Product Introduction

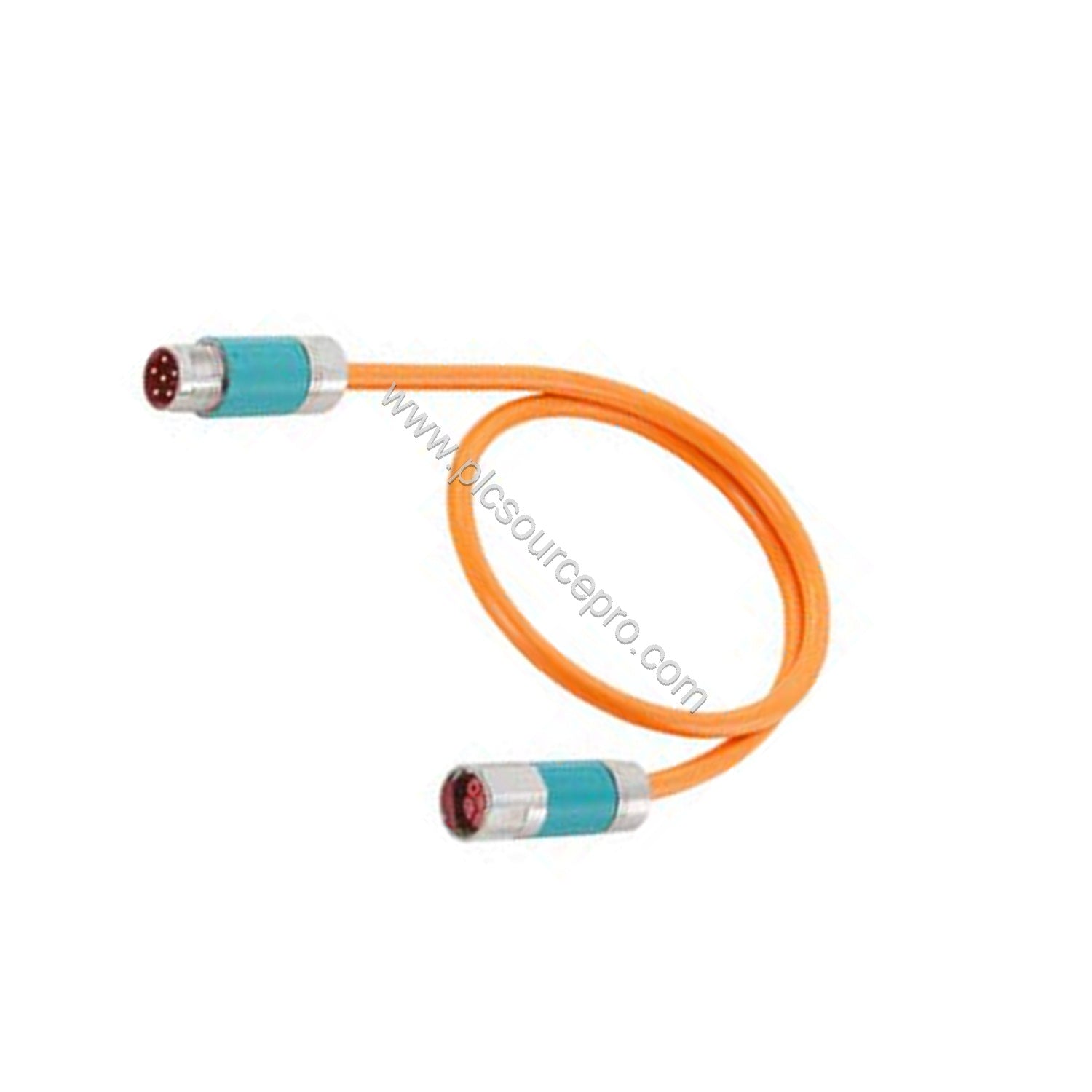

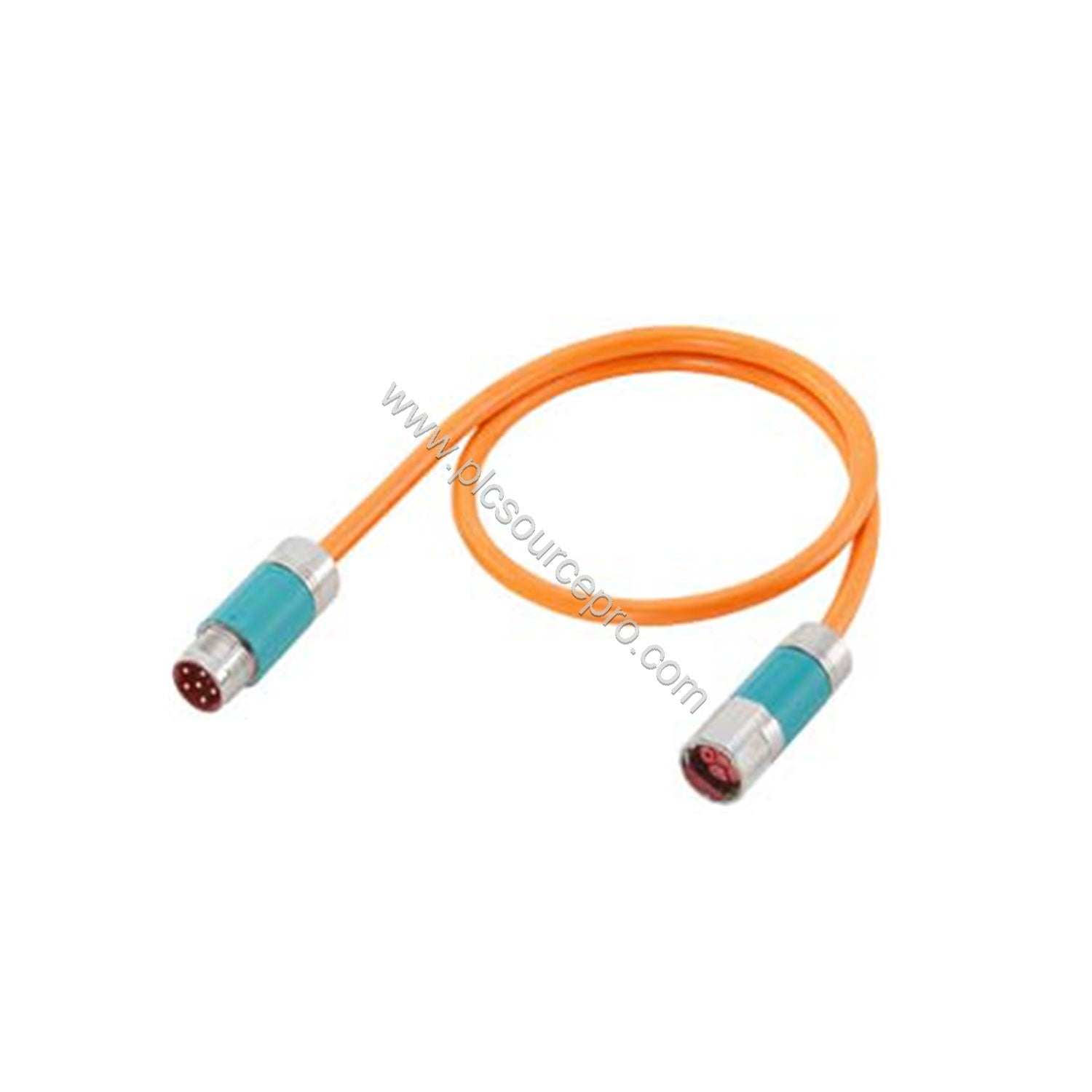

When replacing or upgrading power connections in SIMODRIVE systems, the Siemens 6FX5002-5DQ58-1AF0 pre-assembled extension cable provides a precise, reliable solution. This cable is designed for demanding motion control environments, offering a pre-assembled configuration with a Speed connect connector size 1.5. The Siemens 6FX5002-5DQ58-1AF0 is manufactured to MOTION-CONNECT 500 standards, ensuring durability under continuous flexing and harsh conditions.
Compatibility & Integration
The Siemens 6FX5002-5DQ58-1AF0 is compatible with SIMODRIVE drives and motors requiring a 4x6+(2x1.5) core power cable. It incorporates a Speed connect connector, simplifying field wiring and reducing installation time. This cable integrates seamlessly into existing Siemens drive systems, supporting UL/CSA and DESINA compliance for global machine tool applications.
Installation & Setup Guidance
Installing the Siemens 6FX5002-5DQ58-1AF0 requires no special tools beyond standard cable stripping equipment. The pre-assembled connector plugs directly into SIMODRIVE units. Ensure the cable is routed with a minimum bend radius greater than 17.6 mm (Dmax) to avoid stress. The length configuration (+0+0+5+0 meters) provides a 5-meter extension, ideal for connecting drives to distant motors or junction boxes.
Maintenance & Reliability
The Siemens 6FX5002-5DQ58-1AF0 is built for longevity with motion‑rated jacketing from the MOTION-CONNECT 500 series. Regularly inspect the cable for cuts or kinks, especially near connection points. With proper handling, this cable maintains signal integrity and power delivery over thousands of cycles, reducing unplanned downtime.
Selection Guide & Purchasing Advice
Before ordering, verify your SIMODRIVE drive model requires a 4x6+(2x1.5) power cable with Speed connect size 1.5. The Siemens 6FX5002-5DQ58-1AF0 is a direct replacement for original equipment cables. For genuine Siemens parts, rely on PLC Source PRO (formerly ubest101) for fast, accurate fulfillment.
