Product Overview

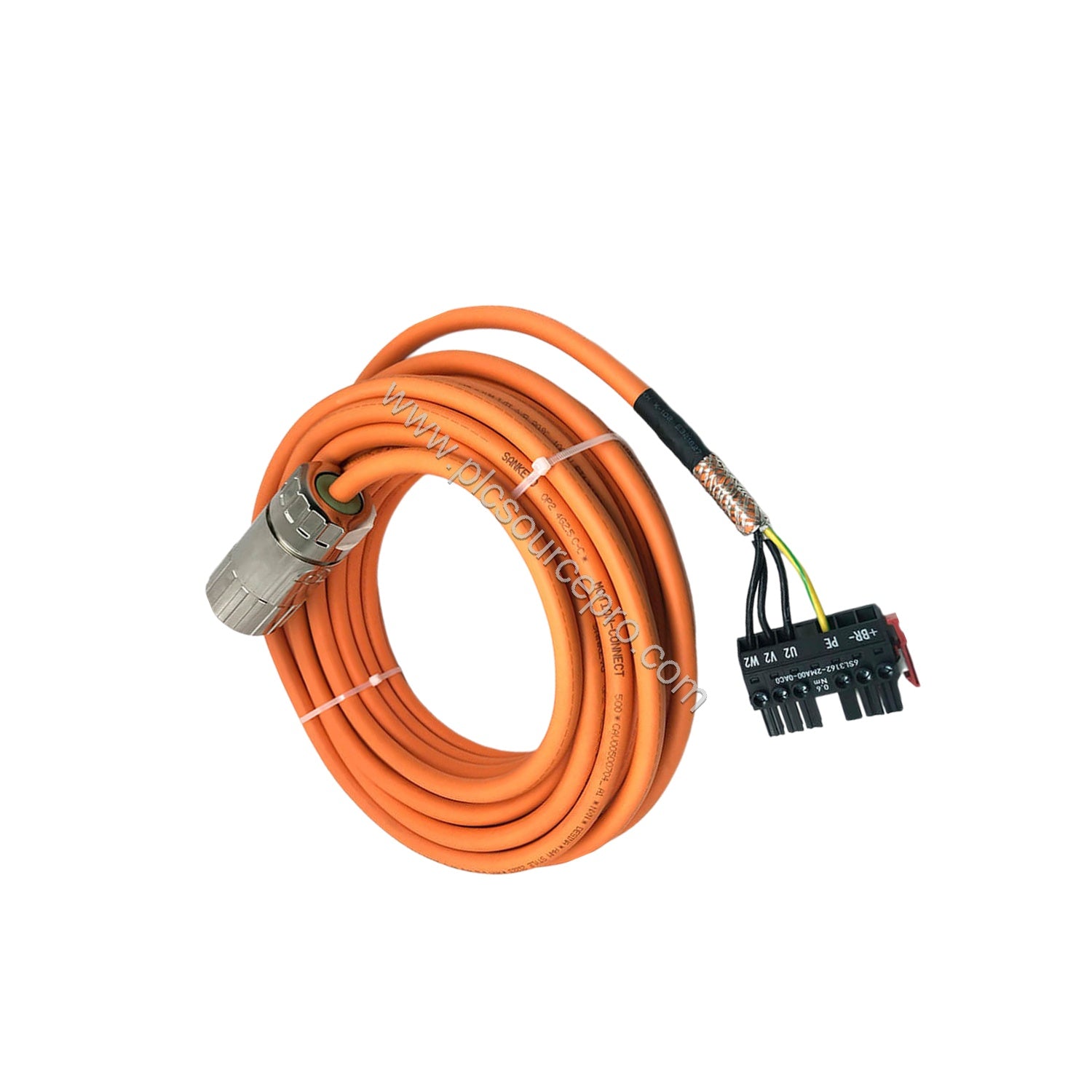

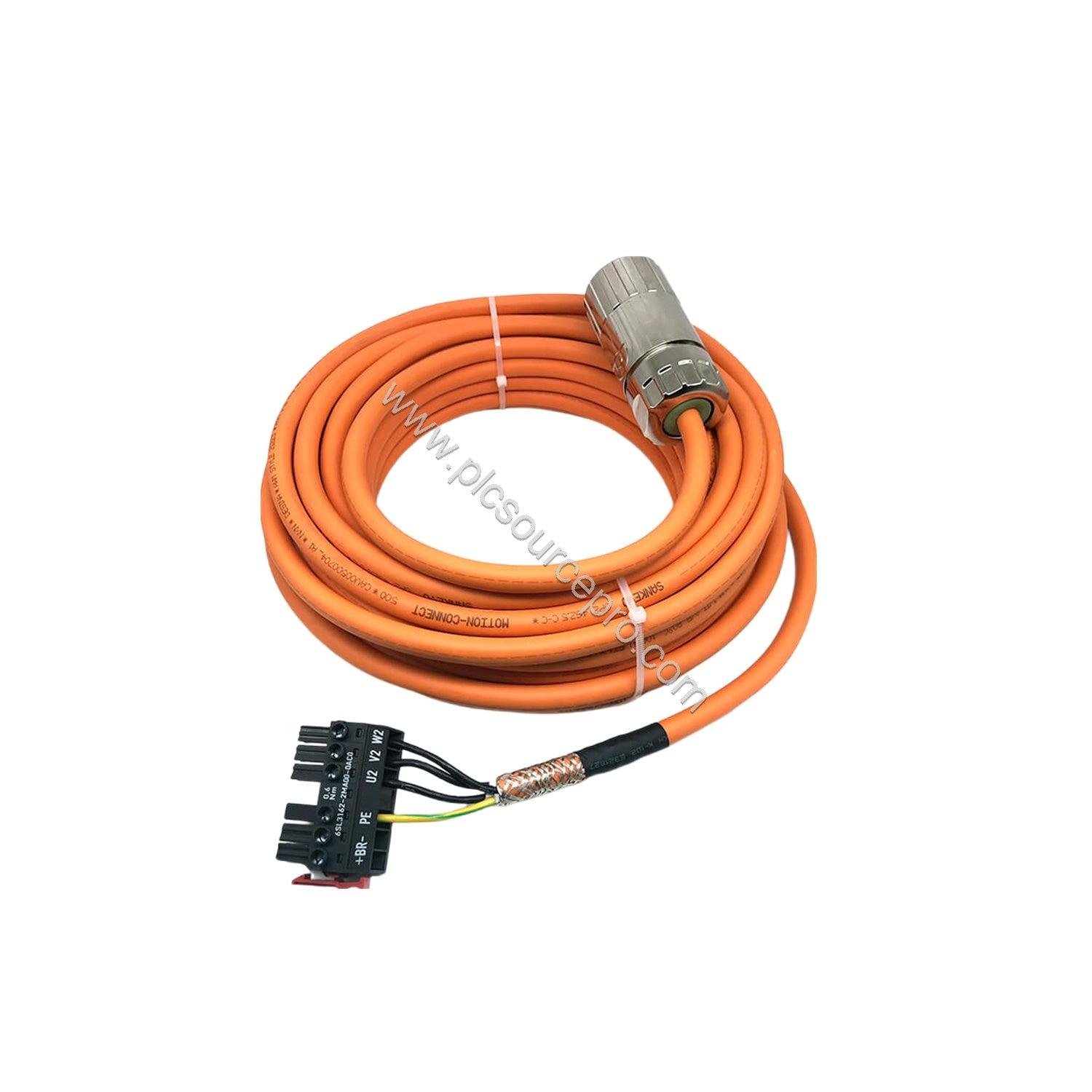

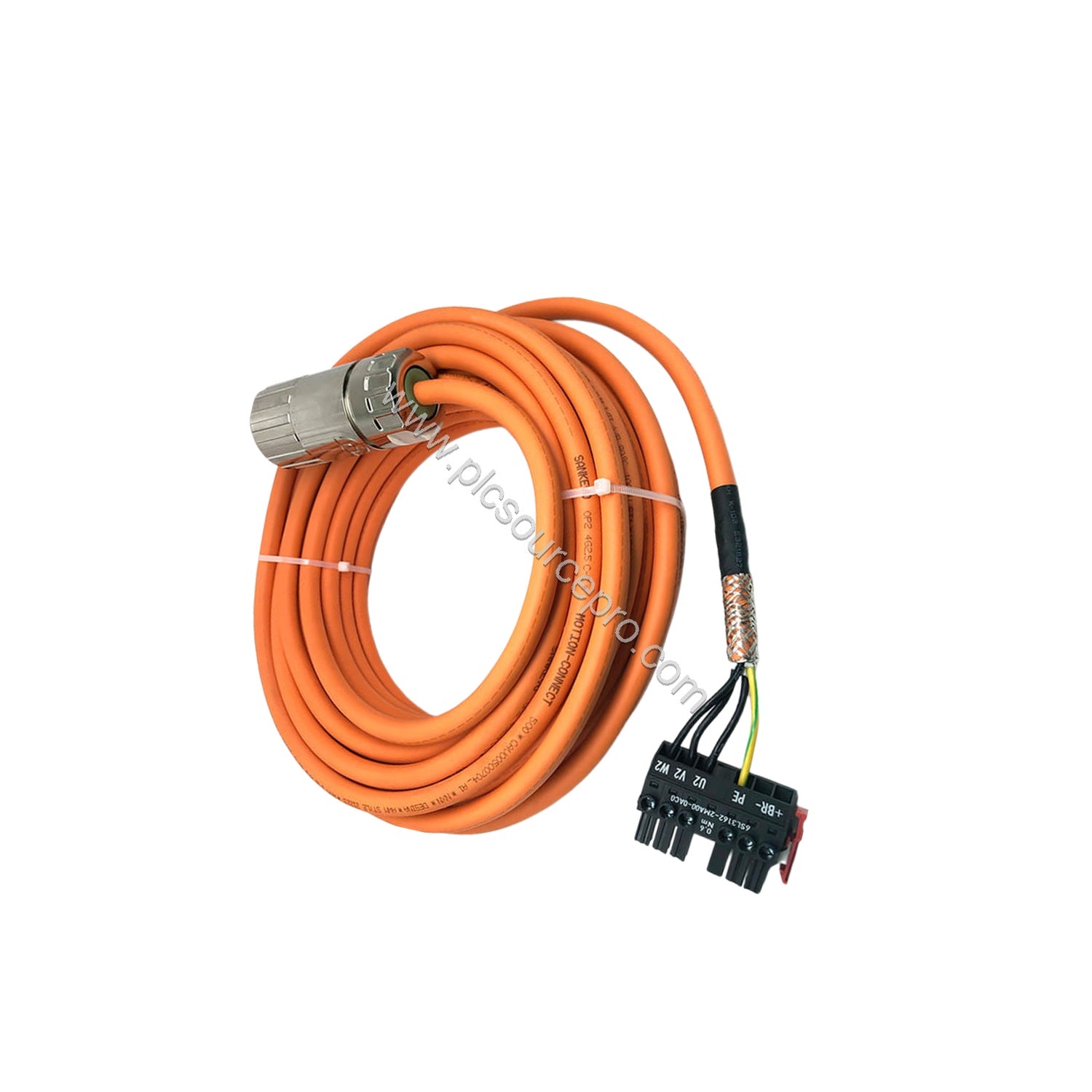

When harsh industrial environments cause power connection failures, the Siemens 6FX5002-5DN06-1BA0 delivers reliable performance. This M23 female straight power connector with pre-wired terminals provides a shielded connection for SINAMICS S120 drives and motors with M23 interface. Rated up to 630 V AC/DC and IP66/IP67 protection, it withstands dust, water jets, and chemical exposure.
Key Technical Specifications
The Siemens 6FX5002-5DN06-1BA0 is built for demanding applications. Below are the critical parameters from the product datasheet:
| Parameter |
Value |
| Cable length |
10 m |
| Tightening torque |
2 Nm |
| Thread |
M23 x 1 |
| Width across flats |
SW27 |
| Degree of protection |
IP66, IP67 (EN IEC 60529) |
| Operating voltage AC max. |
630 V |
| Operating voltage DC max. |
630 V |
| Pollution degree |
3 |
| Rated surge voltage |
6 kV |
| Material group (IEC 60664-1) |
I |
| Housing material |
Zinc die-casting, nickel plated |
| Locking material |
Brass, nickel plated |
| Mounting method |
Inserted, screwed, shaking protection |
| Operating temperature |
-25 °C to 85 °C |
| Power cores rating |
12 A (1.5 mm²), 15 A (2.5 mm²) |
| Brake cores rating |
5 A (1.5 mm²) |
Real-World Applications
The Siemens 6FX5002-5DN06-1BA0 excels in automated production lines where drives require robust power and signal connections. In machining centers, the shielded cable prevents electromagnetic interference, while the IP66/67 rating protects against coolant and metal chips. For conveyor systems, the shaking protection mounting ensures reliable contact under continuous vibration.
Installation & Setup Guidance
Mount the Siemens 6FX5002-5DN06-1BA0 by inserting and screwing it into the M23 receptacle at the drive or motor. Apply a tightening torque of 2 Nm to the locking nut using a SW27 wrench. Ensure the cable is routed without sharp bends to maintain its shielding integrity. The connector comes without cable sleeves, so use a suitable strain relief if required.
Maintenance & Reliability
The nickel-plated zinc housing resists corrosion and chemical attack, reducing maintenance frequency. For maximum lifespan, periodically inspect the connector for signs of wear or loose connections. The contamination degree 3 rating allows operation in conductive pollution environments. Operating temperature range of -25 °C to 85 °C covers most industrial settings.
Selection Guide & Purchasing Advice
Before ordering the Siemens 6FX5002-5DN06-1BA0, verify that your drive or motor has an M23 x 1 mating interface. This cable is pre-terminated with a female straight connector on one side; other lengths are available on request. For bulk or custom requirements, contact ubest101 for pricing and lead times.
