Product Overview

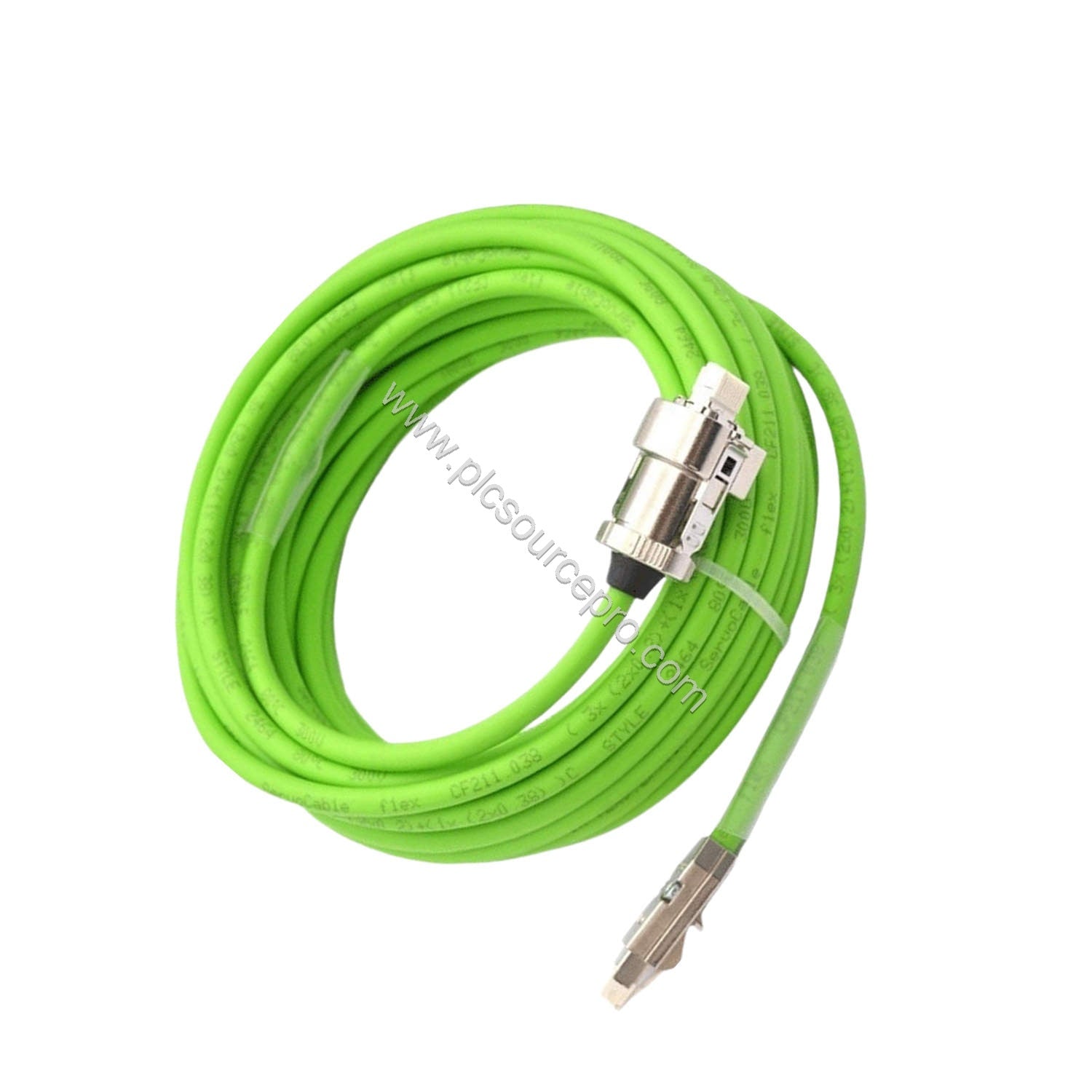

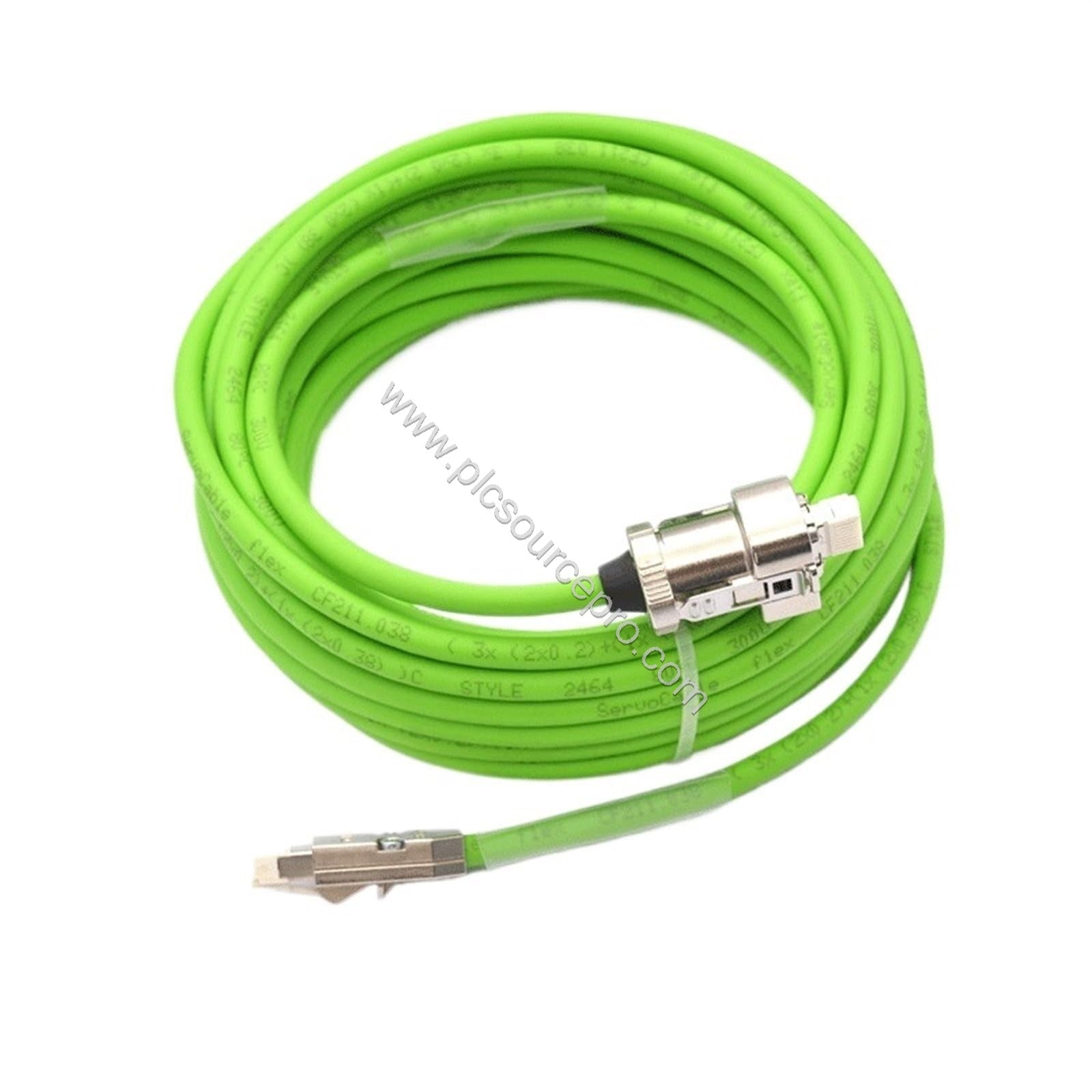

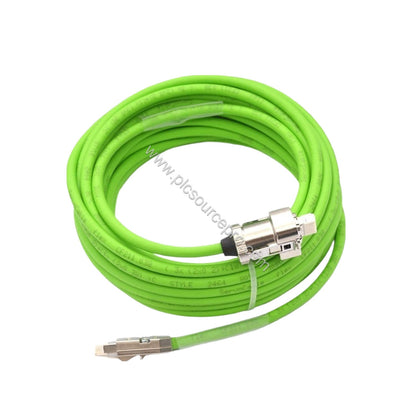

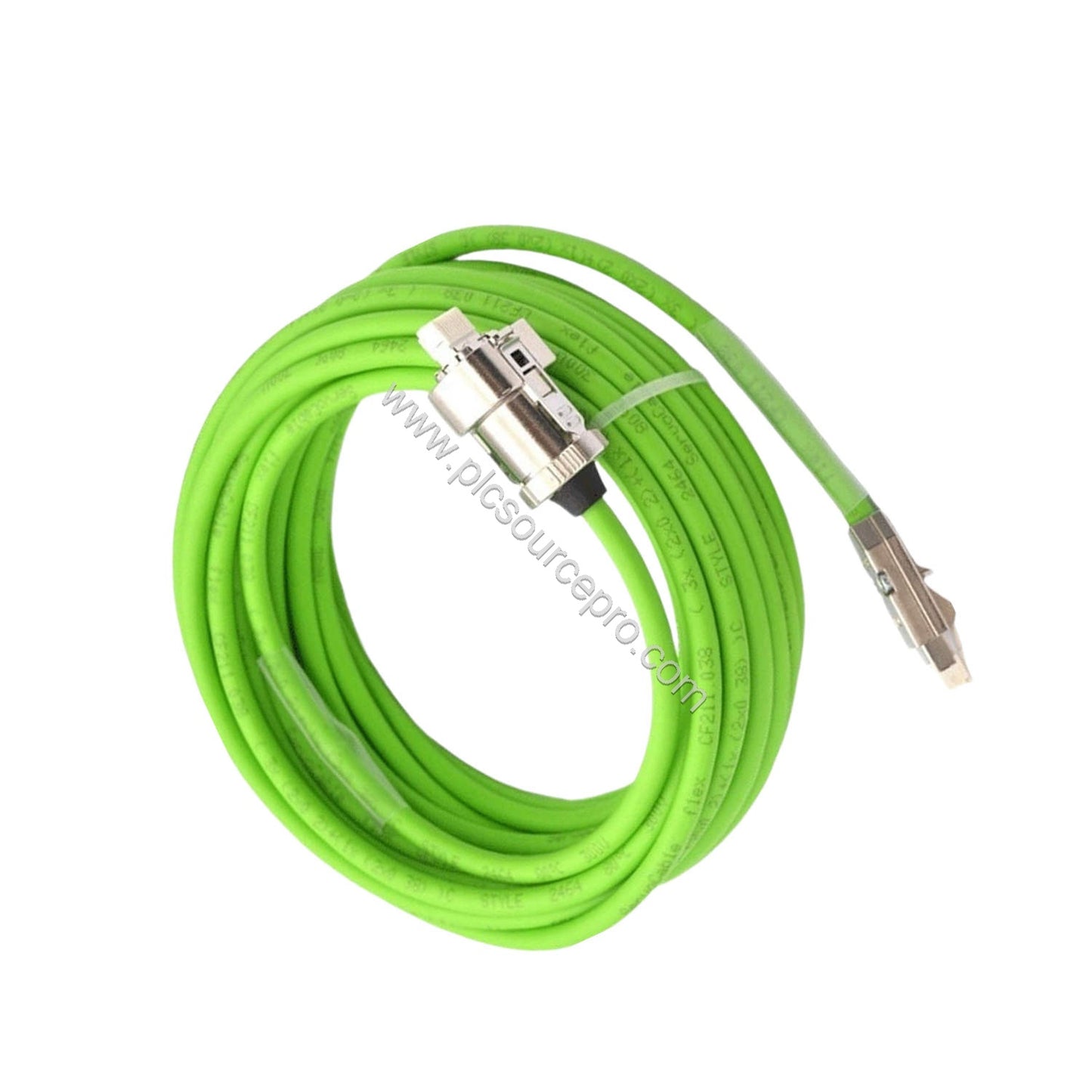

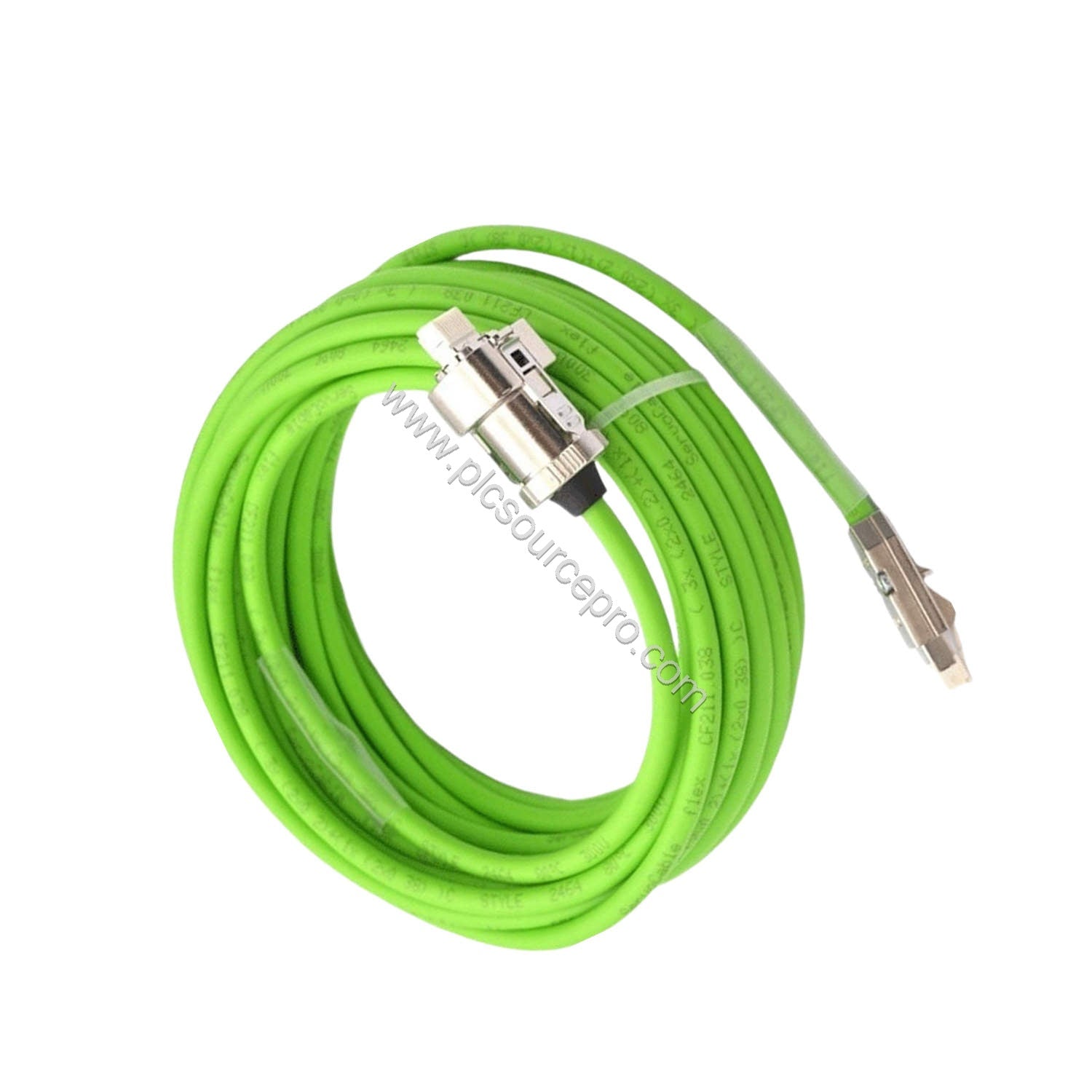

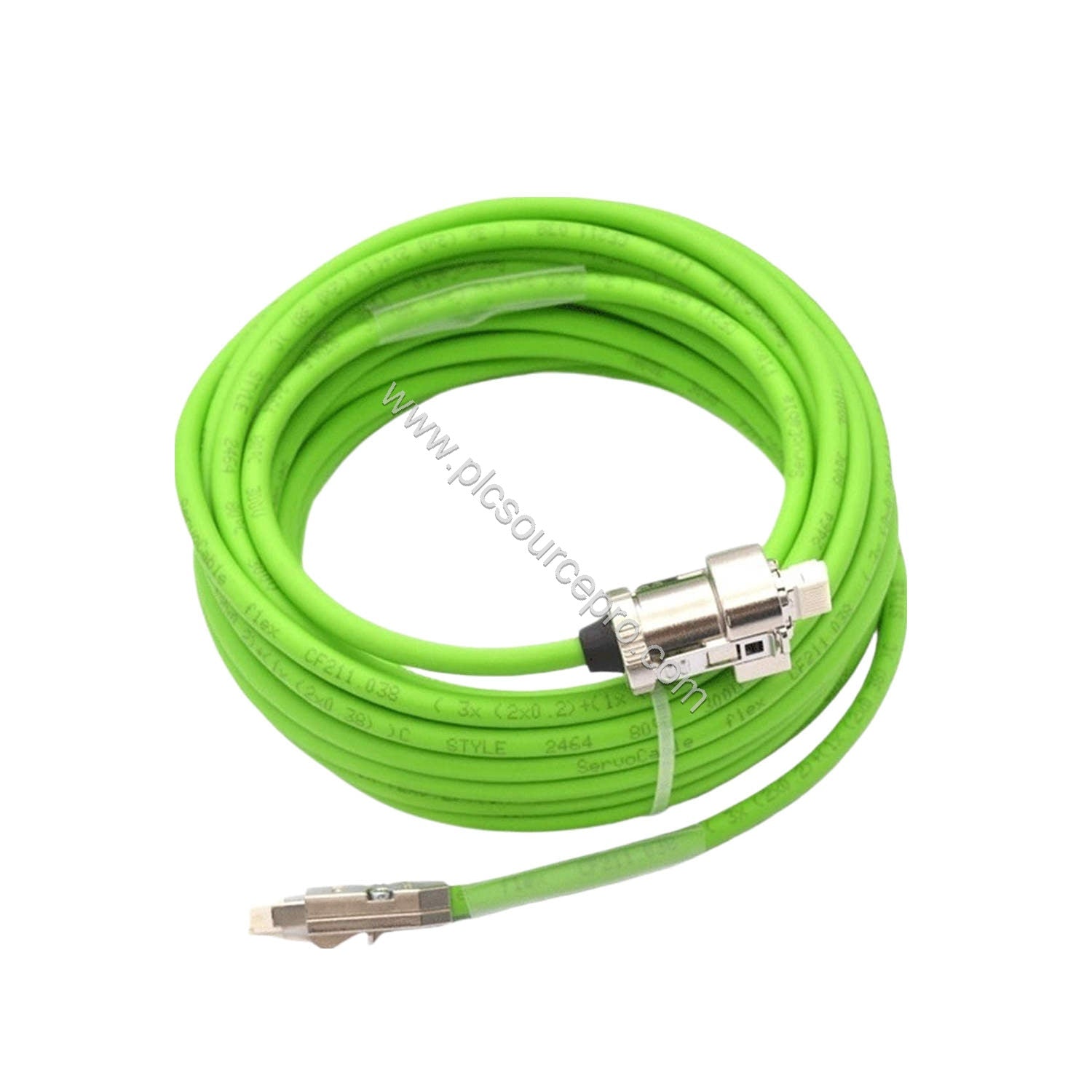

When replacing or upgrading your motion control system, the exact cable is critical. The Siemens 6FX5002-2DC10-1BF0 is a pre-assembled signal cable designed for SINAMICS DRIVE-CLiQ interfaces. This cable comes with IP20/IP67 connectors and supports 24 V operation under the MOTION-CONNECT 500 specification. It is an active product (PLM PM300) and is part of the SINAMICS S120 Motor Module and SINUMERIK 840D sl family. The Siemens 6FX5002-2DC10-1BF0 ensures reliable communication between drive components.
Technical Specifications
The following parameters are verified for the Siemens 6FX5002-2DC10-1BF0:
-
Net Weight: 2.760 lb
-
Packaging Quantity: 1 piece
-
Country of Origin: Slovakia
-
RoHS Compliance: Since July 1, 2006
-
WEEE Take-Back Obligation: Yes
-
Export Control: ECCN: N / AL: N
-
Standard Lead Time: 15 days ex-works
These specifications confirm that the Siemens 6FX5002-2DC10-1BF0 meets current environmental standards and is ready for immediate integration.
Industry Applications
The Siemens 6FX5002-2DC10-1BF0 is essential in motion control applications using SINAMICS S120 drives and SINUMERIK 840D sl CNCs. Typical uses include machine tool spindles, packaging lines, and robotics. When upgrading an existing DRIVE-CLiQ network, this pre-assembled cable reduces installation time and minimizes signal errors. The IP20/IP67 rating allows use in both cabinet and harsh environment zones.
Installation & Setup Guidance
Before installation, verify the required cable length and connector orientation. The Siemens 6FX5002-2DC10-1BF0 features a pre-assembled DRIVE-CLiQ plug on both ends. Ensure the mating connectors are clean and free of debris. For IP67 environments, tighten the connector locking mechanism securely. Route the cable away from high‑voltage power lines to avoid interference. No special tools are needed beyond standard cable ties and strain relief.
Compatibility & Integration
The Siemens 6FX5002-2DC10-1BF0 is specifically designed for SINAMICS DRIVE-CLiQ interfaces used in S120 Motor Modules and SINUMERIK 840D sl controllers. It is compatible with all MOTION-CONNECT 500 components and supports 24 V signal levels. Use this cable to connect drives, motors, and encoders within the same DRIVE-CLiQ loop. Ensure your system firmware supports the cable type.
Selection Guide & Purchasing Advice
When ordering the Siemens 6FX5002-2DC10-1BF0, confirm the required cable length as per your machine layout. This product is sold individually. For bulk orders or expedited shipping, contact ubest101 directly. As a trusted supplier of industrial automation parts, PLC Source PRO ensures genuine Siemens 6FX5002-2DC10-1BF0 cables with full traceability.
