Product Overview

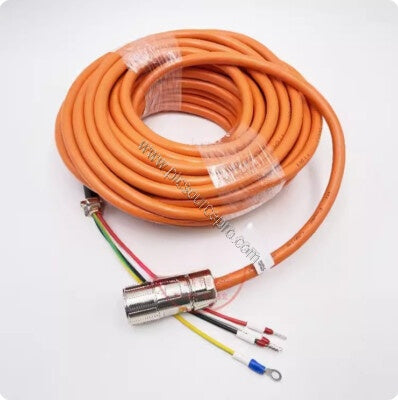

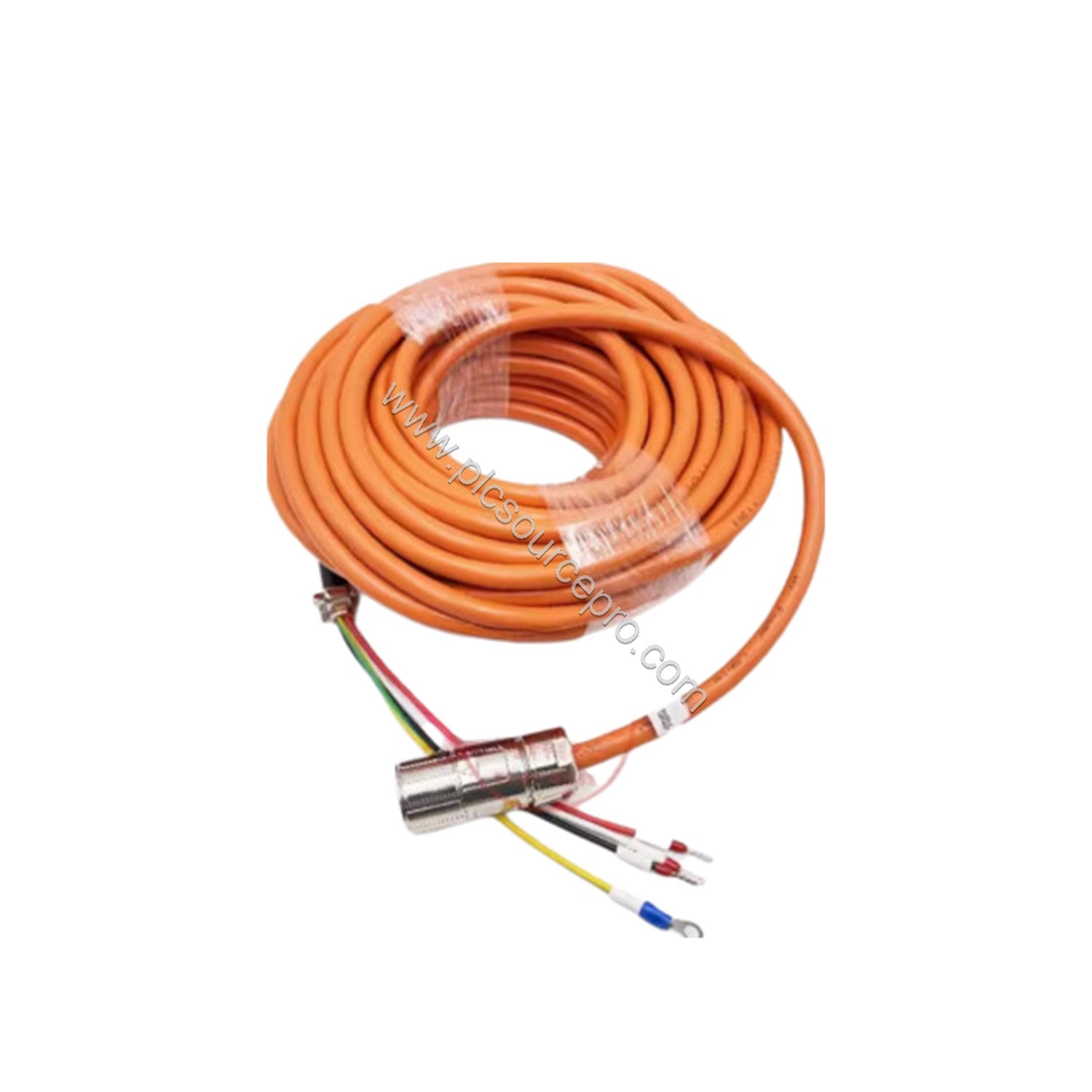

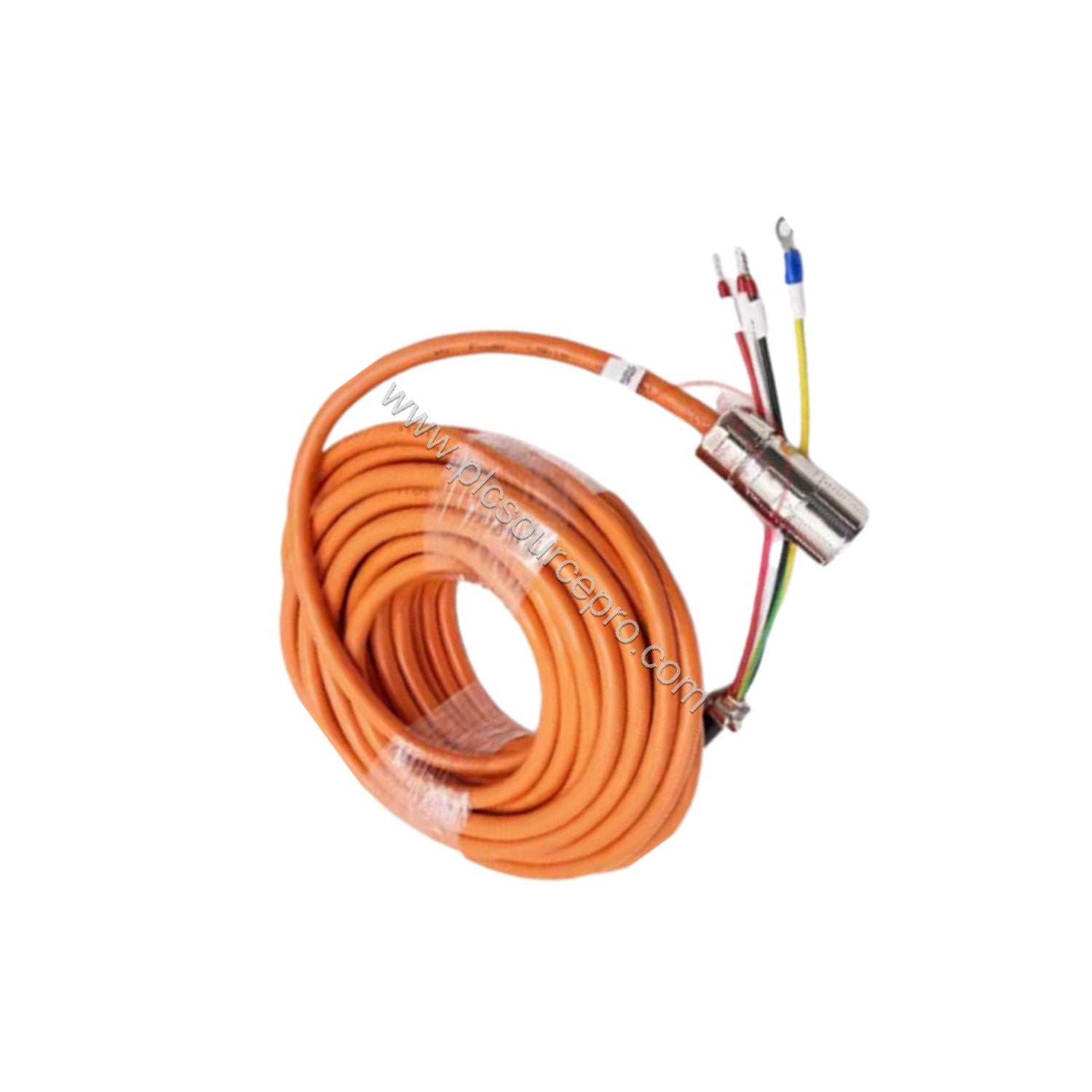

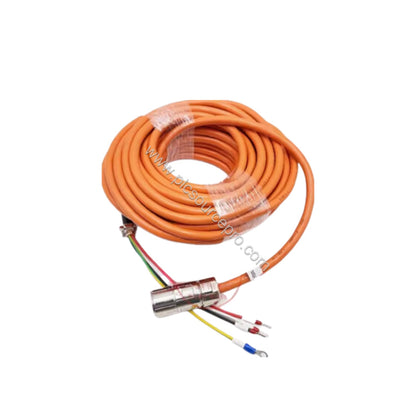

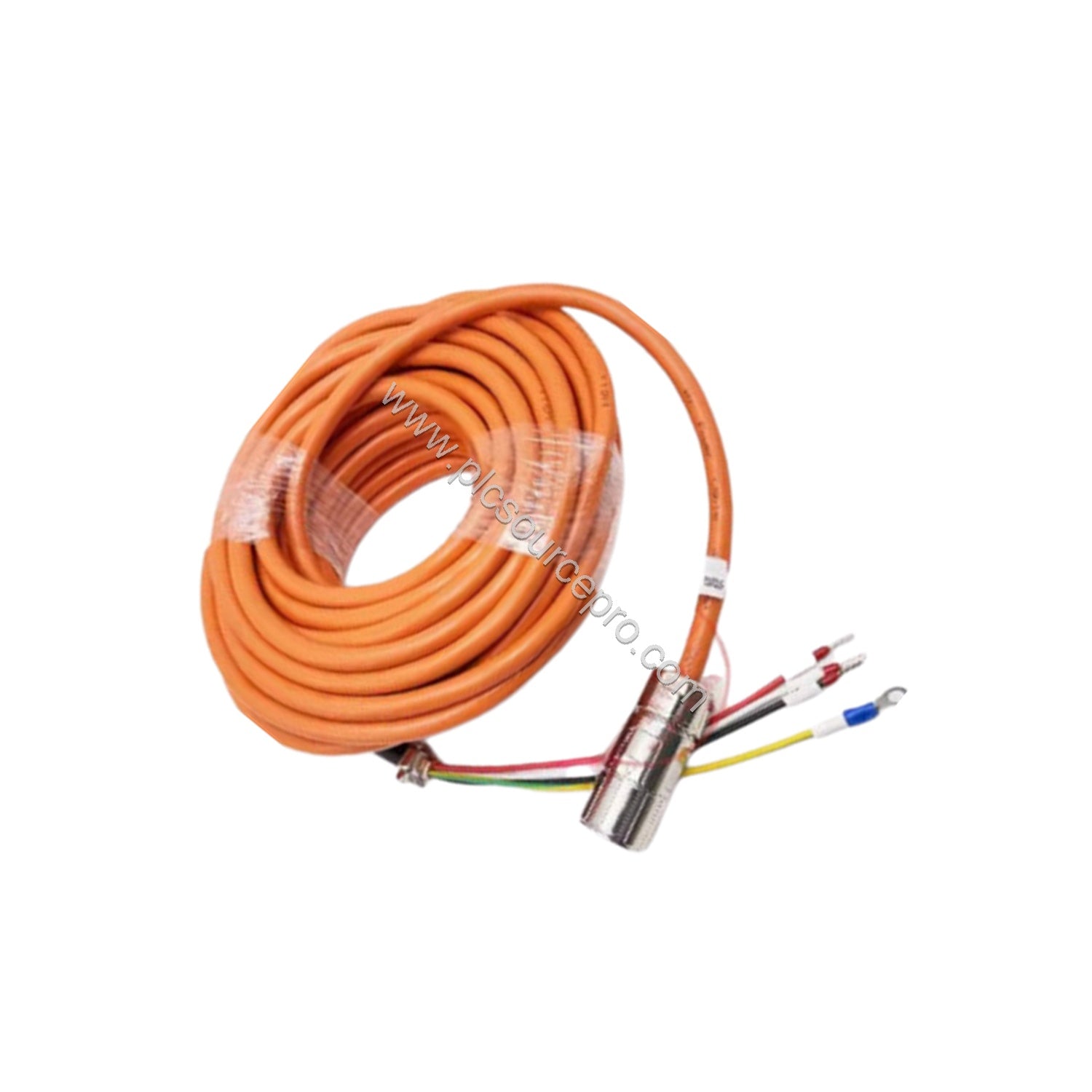

The Siemens 6FX3002-5CL01-1BF0 is a pre-assembled MOTION-CONNECT 300 power cable designed for S-1FL6 high-inertia motors operating at 400 V with V70/V90 frame sizes AA and A. This industrial automation cable delivers reliable power transmission in demanding factory environments. With a length of 15.0 meters and a rugged PVC sheath, the 6FX3002-5CL01-1BF0 ensures long service life even under continuous flexing. PLC Source PRO stocks this genuine Siemens spare part for rapid deployment.
Technical Specifications Breakdown
The Siemens 6FX3002-5CL01-1BF0 features a 4-core x 1.5 mm² conductor cross-section. The test voltage for power conductors reaches 4,000 V RMS, while the rated voltage U0/U per EN 50395 is 600 V/1000 V. Mechanical robustness includes a minimum bending radius of 6× diameter for fixed installation and 155 mm for flexible installation. The cable withstands up to 1,000,000 bending cycles, with a maximum tensile stress of 50 N/mm² (fixed) and 20 N/mm² (flexible). Torsional stress tolerance is 30°/m. The connection uses an angular connector that allows rotatable cable outlet direction in fixed increments (disassembly required for adjustment). Operating ambient temperature ranges from -25°C to 80°C for permanently installed cables. The cable is IP65 rated, PVC-insulated, and complies with EN 60332-1-1 to 1-3 for flame resistance and EN 60811-2-1 for oil resistance (mineral oil only). CE, UL, and RoHS certifications confirm suitability for global use.
Installation & Setup Guidance
When installing the Siemens 6FX3002-5CL01-1BF0, ensure the cable is routed with a minimum bending radius of 155 mm for flexible applications. For fixed installations, a radius of 6× cable diameter (approx. 48.6 mm) suffices. Secure the angular connector to the motor junction box by loosening the retaining screws, rotating the cable outlet to the desired orientation, then re-tightening. Avoid sharp edges and pinching. Use appropriate strain relief to keep tensile stress below 20 N/mm² for moving cables and 50 N/mm² for stationary runs. The cable is pre-assembled for immediate connection—no field termination required.
Compatibility & Integration
This Siemens 6FX3002-5CL01-1BF0 cable is specifically designed for S-1FL6 HI motors paired with SINAMICS V70/V90 servo drives in frame sizes AA and A. It integrates directly into MOTION-CONNECT 300 systems, supporting UL/CSA installations. The 4-core power conductors deliver 400 VAC to the motor. For best performance, use with Siemens drive interfaces listed in the motor and drive documentation.
Selection Guide & Purchasing Advice
Before purchasing the Siemens 6FX3002-5CL01-1BF0, verify your motor and drive model. This cable suits S-1FL6 HI motors with V70/V90 drives only. Confirm the required cable length—this variant is 15 m. If a different length or connector type is needed, contact PLC Source PRO for alternatives. As your trusted industrial automation parts supplier, ubest101 offers genuine Siemens spares with fast shipping. Ensure your application matches the cable's IP65, oil resistance, and flame-retardant capabilities.
