Product Overview

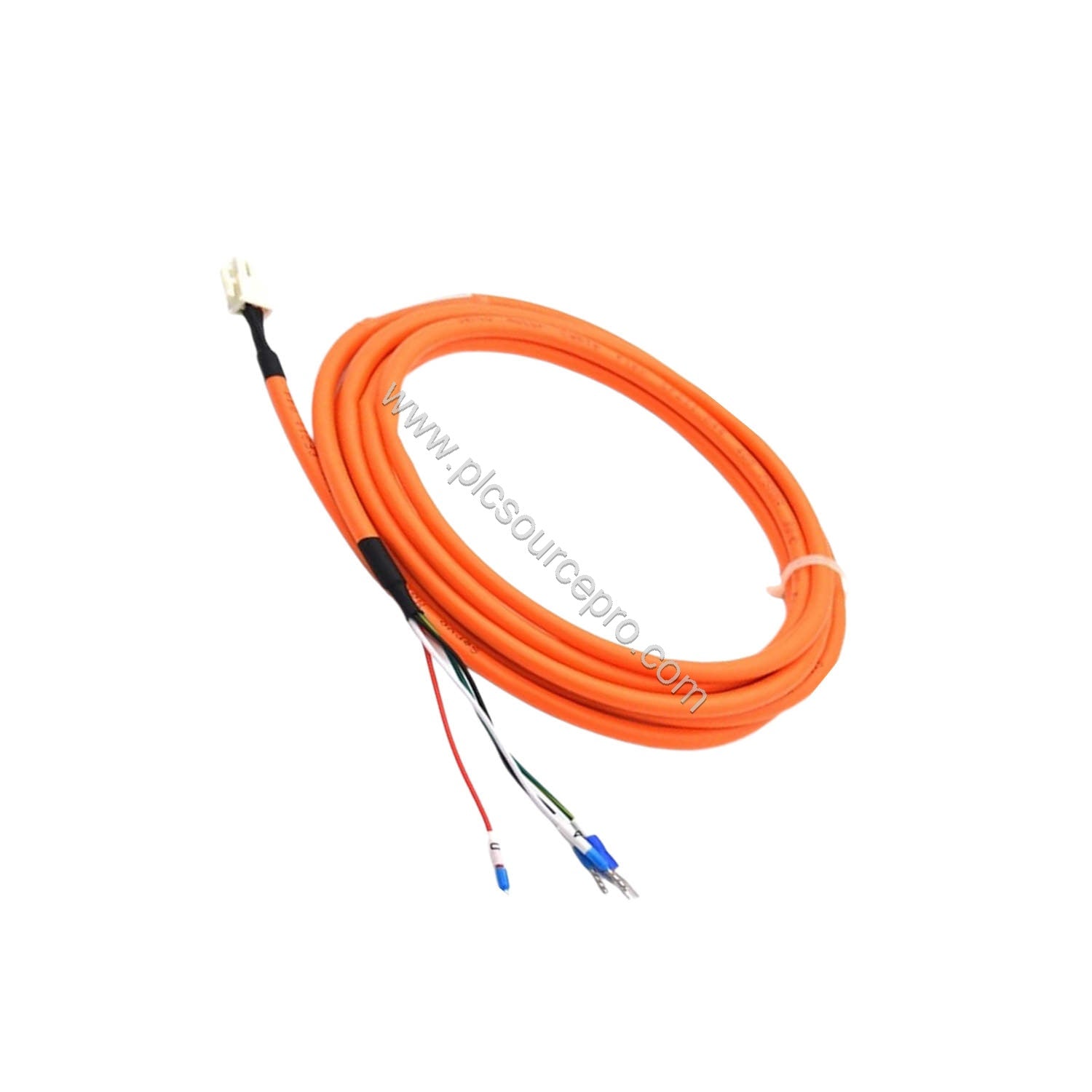

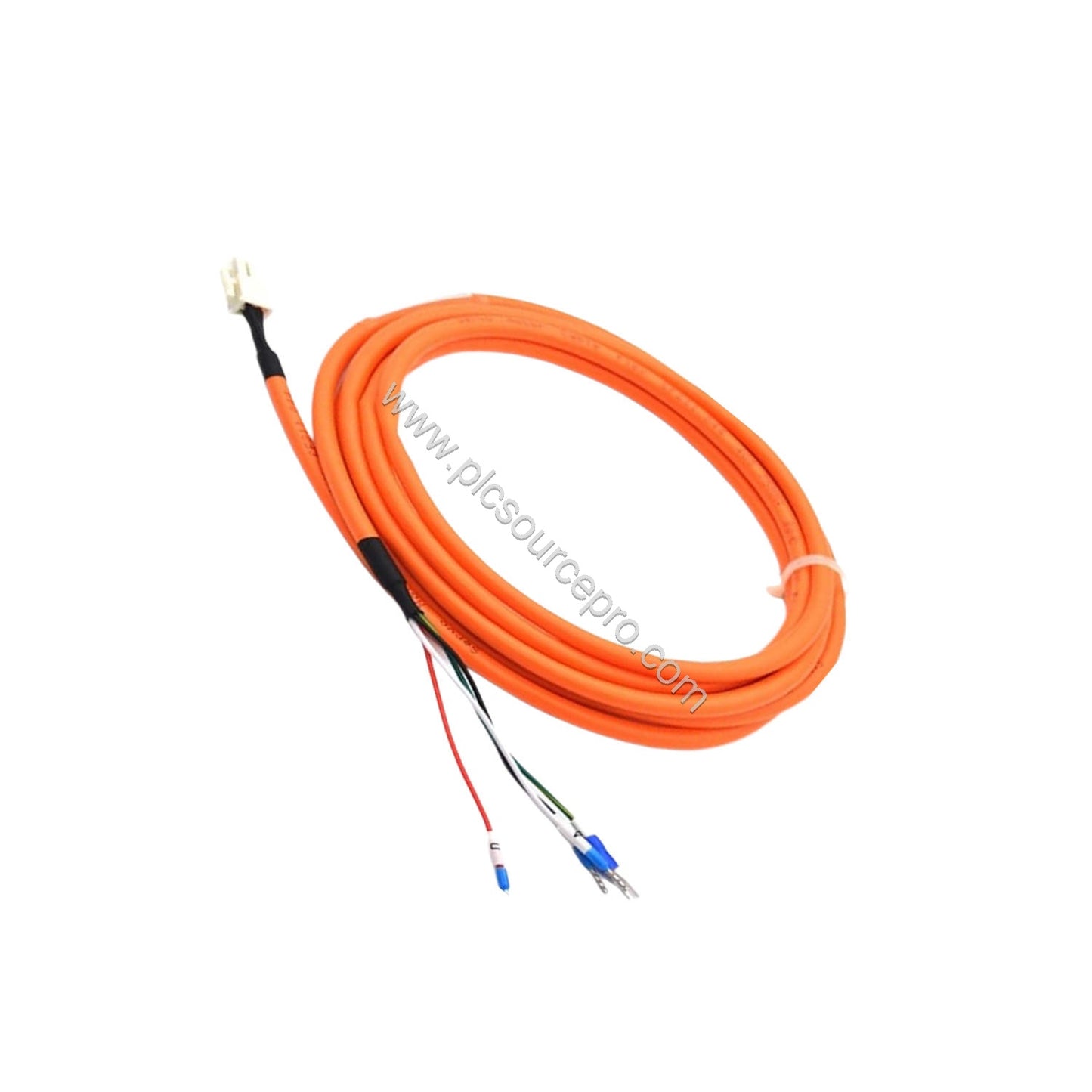

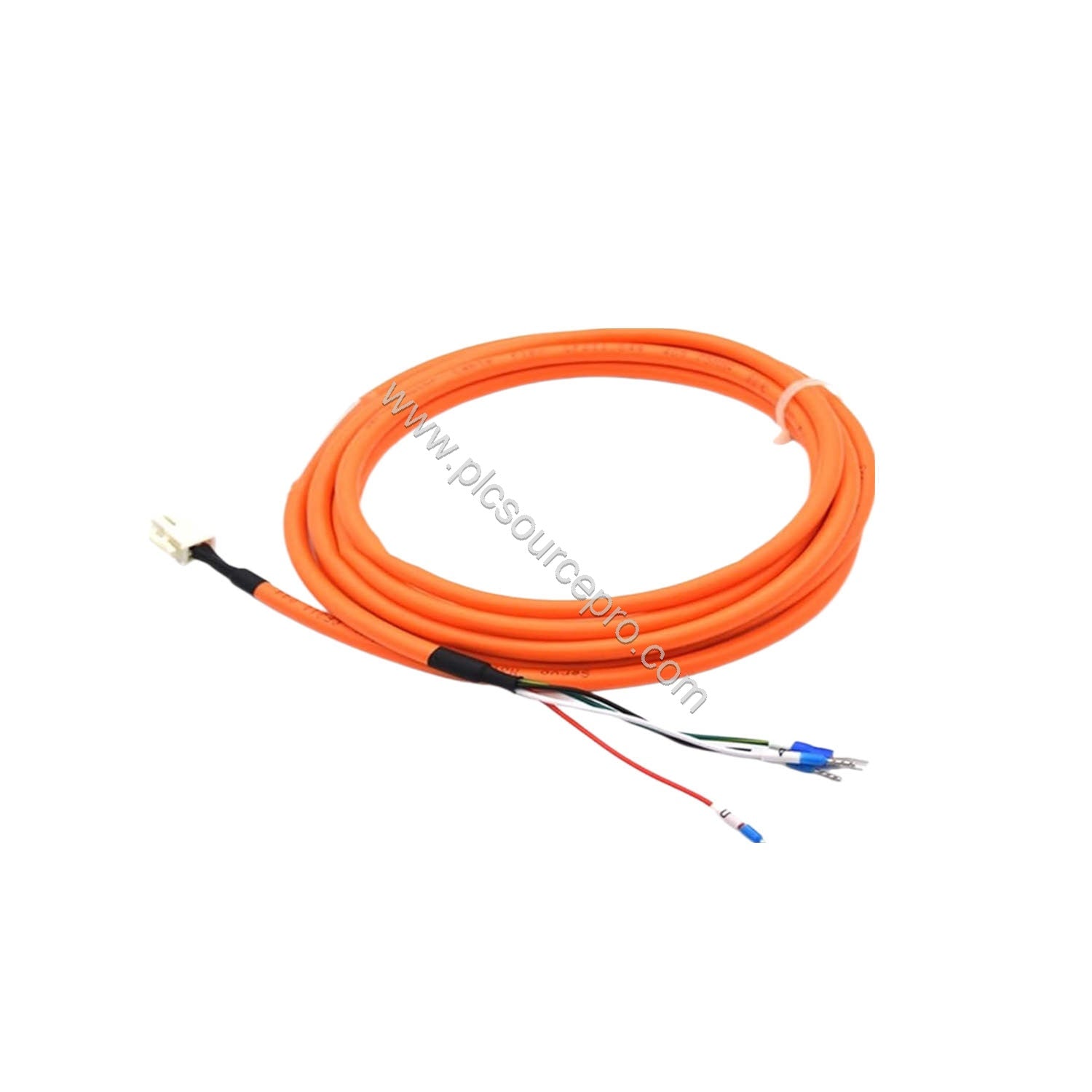

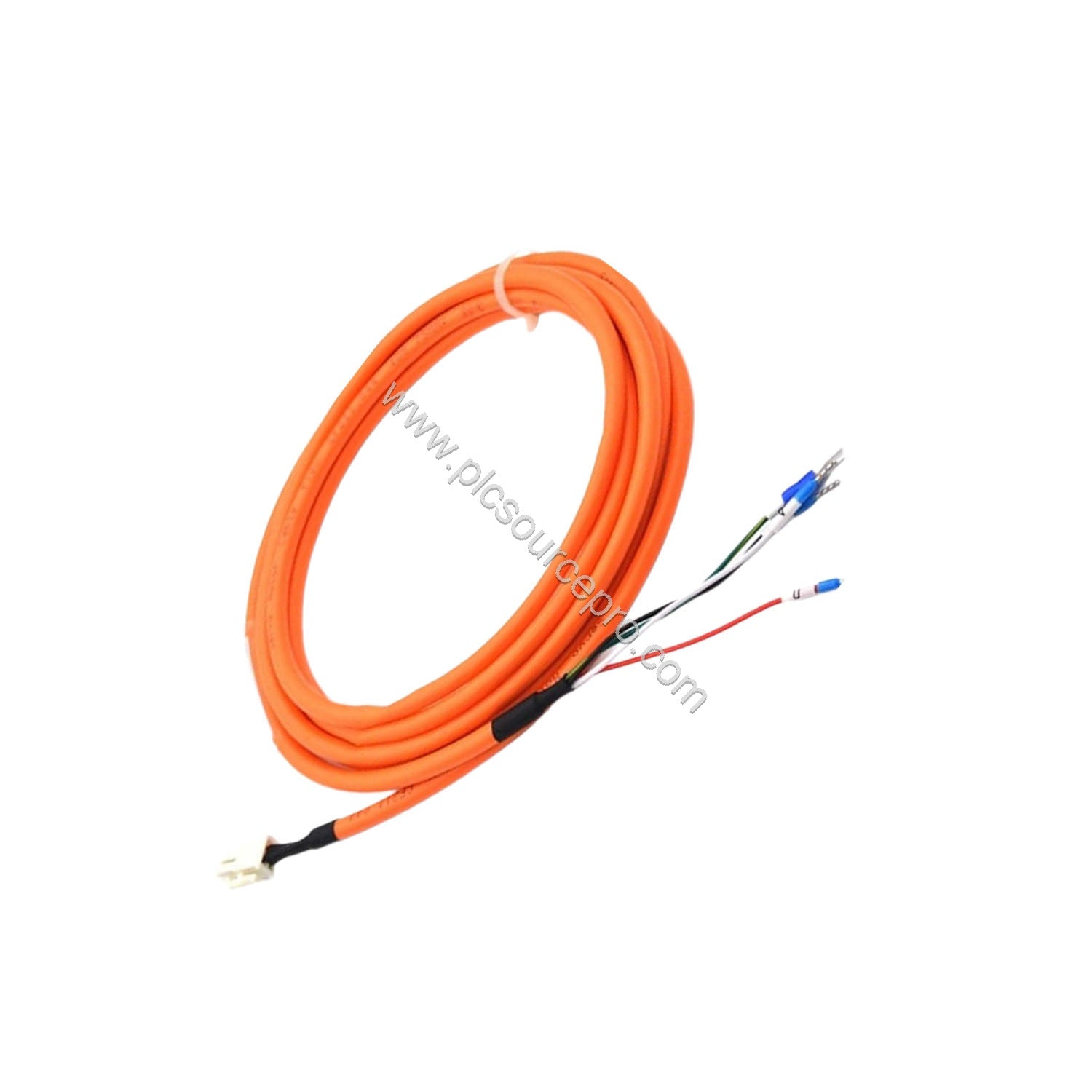

When upgrading motion control systems, signal integrity and robust cabling are critical. The Siemens 6FX3002-5CK01-1AD0 MOTION CONNECT 300 industrial automation cable ensures reliable power transmission and signal accuracy for demanding drive applications. Designed for flexible installation, this cable delivers consistent performance under repeated bending and tensile stress.
Technical Specifications
The Siemens 6FX3002-5CK01-1AD0 offers the following key parameters:
| Parameter |
Value |
| No. of cores x cross-section (mm²) |
4x0.75 |
| Test voltage, rms (power conductors) |
4000 V |
| Rated voltage U₀/U per EN 50395 (power conductors) |
300 V / 500 V |
| Bending radius (fixed installation) |
6 x diameter |
| Bending radius (flexible installation) |
155 mm |
| Max. number of bends |
100,000 |
| Tensile stress (fixed installation) |
50 N/mm² |
| Tensile stress (flexible installation) |
20 N/mm² |
| Torsional stress |
Absolute 30°/m |
| Connection type |
Straight connector (fixed cable outlet direction) |
| Length |
3.0 m |
Industry Applications
The Siemens 6FX3002-5CK01-1AD0 is ideal for connecting SIMOTION drives to motors in CNC machines, packaging lines, and robotic systems. Its flexible design supports dynamic cable routing in drag chains, while the high tensile strength ensures longevity in automated production cells.
Installation & Setup Guidance
When installing the Siemens 6FX3002-5CK01-1AD0, observe the minimum bending radius of 6 x diameter for fixed installations and 155 mm for flexible moves. Avoid exceeding the maximum tensile stress of 50 N/mm² (fixed) or 20 N/mm² (flexible). Use the straight connector with a fixed cable outlet direction to maintain strain relief.
Maintenance & Reliability
Regularly inspect the Siemens 6FX3002-5CK01-1AD0 for cuts, kinks, or worn insulation. The cable is rated for up to 100,000 bending cycles under proper installation, reducing replacement costs. Ensure torsional stress remains below 30°/m to prevent internal conductor damage.
Selection Guide & Purchasing Advice
Verify that the connector type (straight, fixed outlet) matches your drive and motor interface. The 3.0 m length is suited for most cabinet-to-machine runs. For high‑quality Siemens automation spares, ubest101 offers genuine Siemens 6FX3002-5CK01-1AD0 cables tested for industrial reliability.
