Product Overview

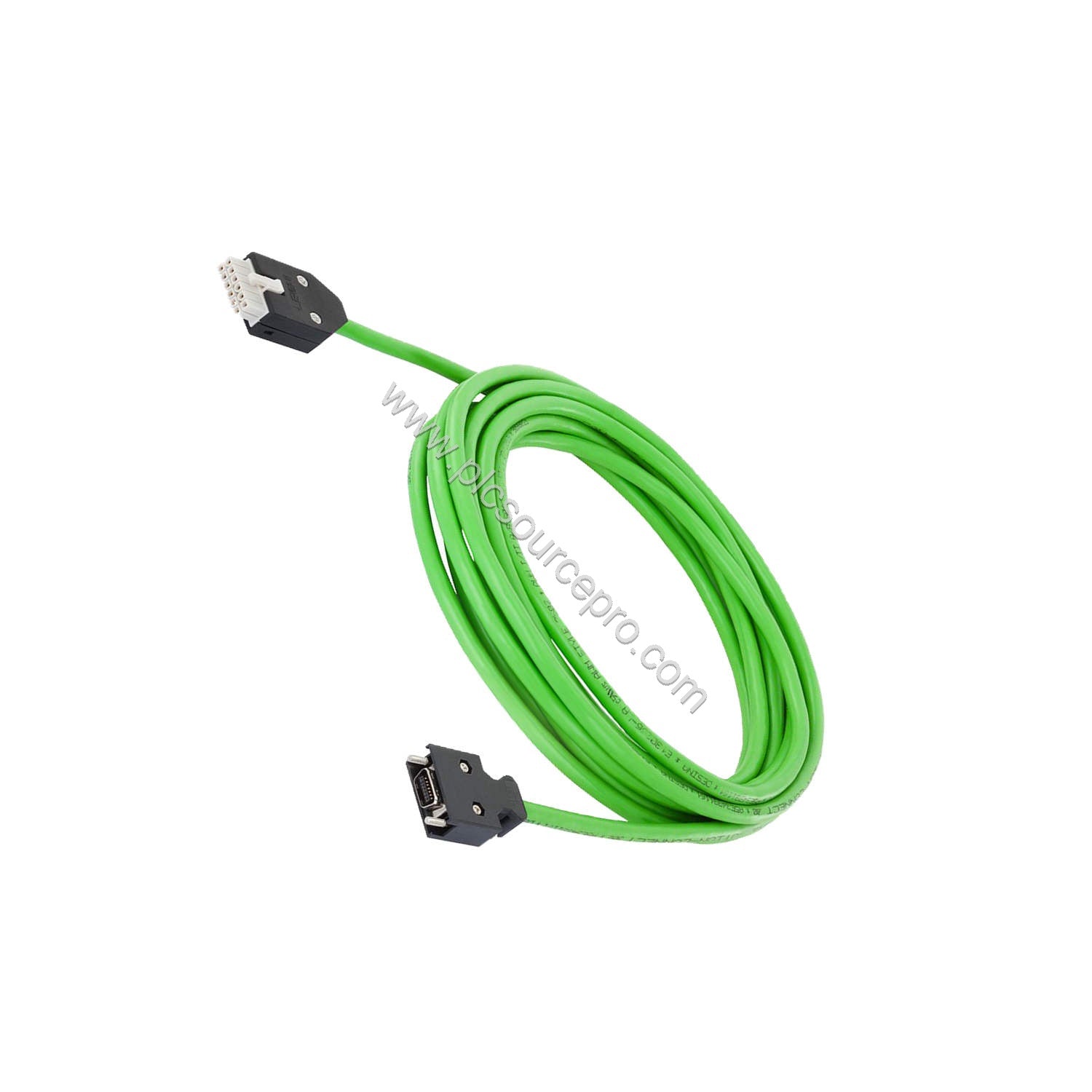

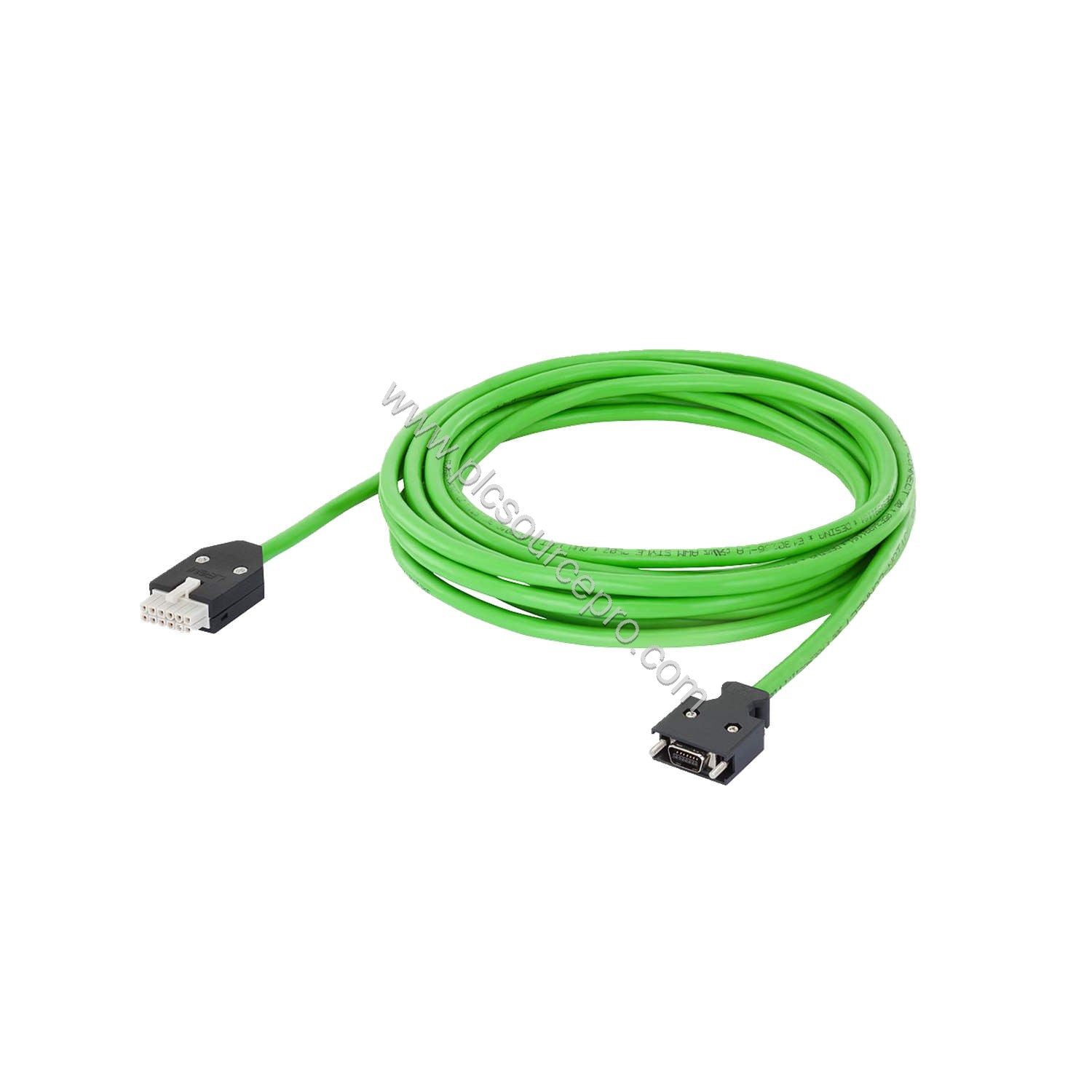

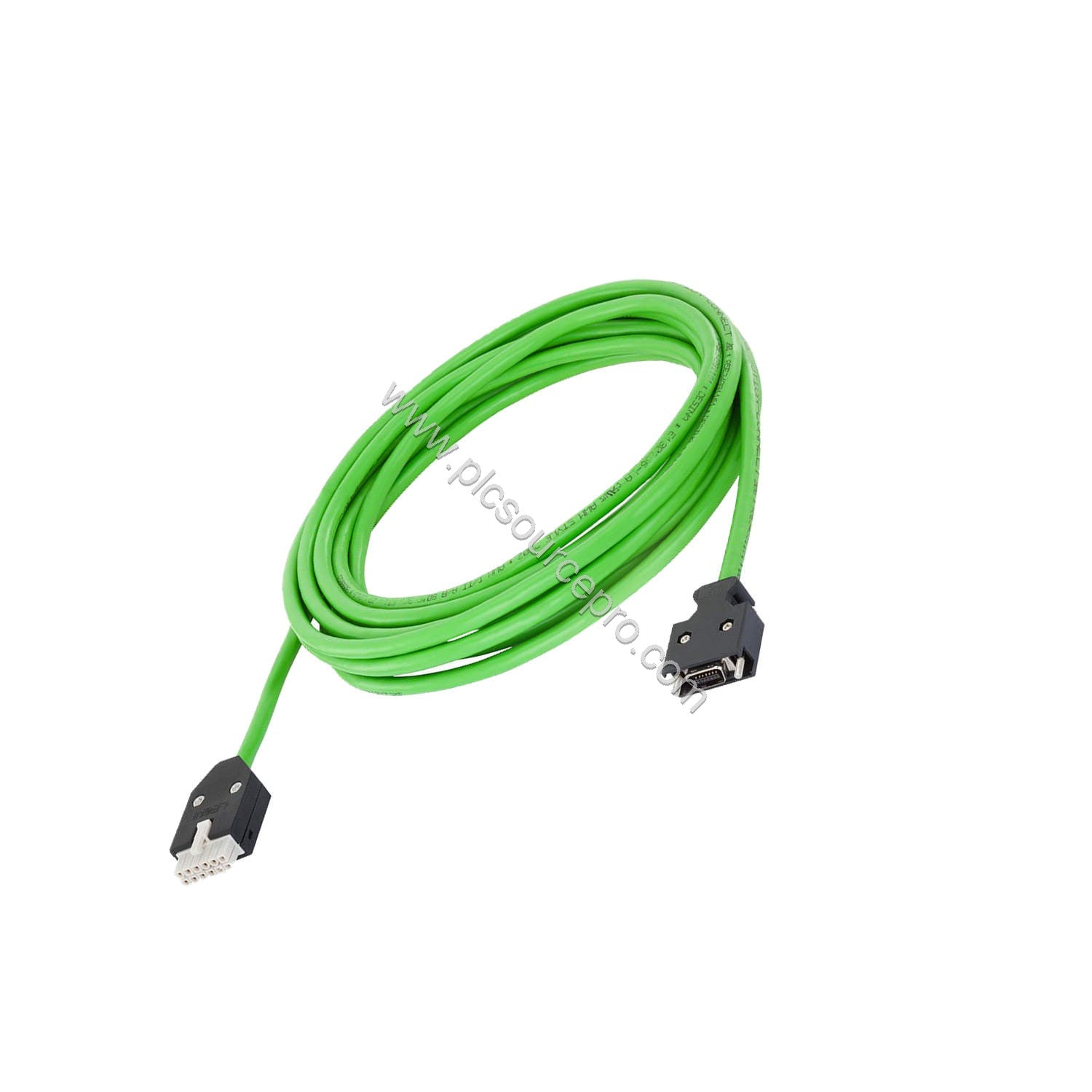

The Siemens 6FX3002-2CT20-1BA0 is a high-performance V90 Servo Encoder Cable designed for precise encoder signal transmission in demanding industrial automation applications. This cable features a robust construction with 3x2x0.20 + 2x2x0.25C conductors, rated for 30V/30V and tested at 500V. With a length of 10.0m and a straight connector (fixed cable outlet direction), it ensures reliable connectivity between servo drives and encoders. The flexible design supports up to 100,000 bends, making it ideal for moving cable chains.
Technical Specifications
| Parameter |
Value |
| Conductor configuration |
3x2x0.20 + 2x2x0.25C |
| Test voltage, rms |
500V |
| Rated voltage UO/U (EN 50395) |
30V/30V |
| Smallest bending radius (fixed) |
6 x diameter |
| Smallest bending radius (flexible) |
155mm |
| Max. number of bends |
100,000 |
| Max. tensile stress (fixed) |
50 N/mm² |
| Max. tensile stress (flexible) |
20 N/mm² |
| Torsional stress |
Absolute 30°/m |
| Connection type |
Straight connector (fixed cable outlet direction) |
| Length |
10.0m |
The Siemens 6FX3002-2CT20-1BA0 meets high mechanical demands with a tensile stress rating of 50 N/mm² for fixed installations and 20 N/mm² for flexible uses, ensuring long service life even in harsh environments.
Installation Guidelines
When installing the Siemens 6FX3002-2CT20-1BA0, maintain a minimum bending radius of 6 times the cable diameter for fixed installations and 155mm for flexible routing. Avoid exceeding the maximum tensile stress limits to prevent conductor damage. For dynamic applications, ensure the cable can accommodate up to 100,000 bends without failure. The straight connector simplifies wiring in control cabinets and cable ducts.
Industry Applications
The Siemens 6FX3002-2CT20-1BA0 is widely used in CNC machinery, robotics, and packaging equipment where accurate encoder feedback is critical. Its flexible design supports continuous motion in automated assembly lines, while the high bend count reduces downtime caused by cable fatigue. In machine tool applications, the cable's torsional resistance (30°/m) maintains signal integrity during rotational movements.
Maintenance Tips
To maximize the lifespan of the Siemens 6FX3002-2CT20-1BA0, inspect the cable periodically for wear at bend points and connectors. Clean the connector pins with isopropyl alcohol to prevent oxidation. Avoid routing the cable near heat sources or sharp edges. When replacing, always verify the correct part number to ensure compatibility with existing V90 servo systems.
Buying Guide
Before purchasing the Siemens 6FX3002-2CT20-1BA0, confirm your required length and connector orientation. This cable is a direct replacement for original Siemens V90 encoder cables. For volume or urgent requirements, contact PLC Source PRO (ubest101) for stock availability and competitive pricing.
