Product Introduction

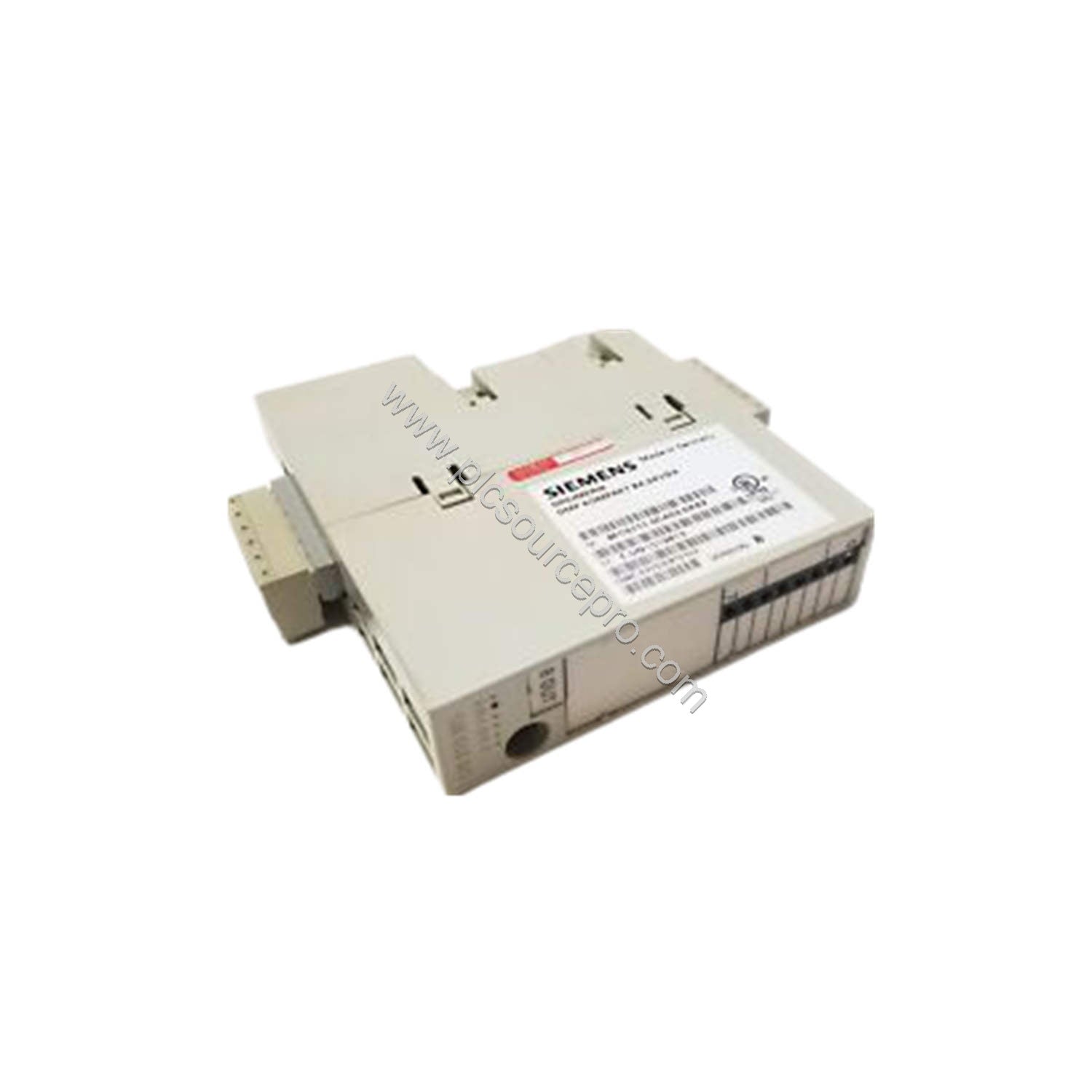

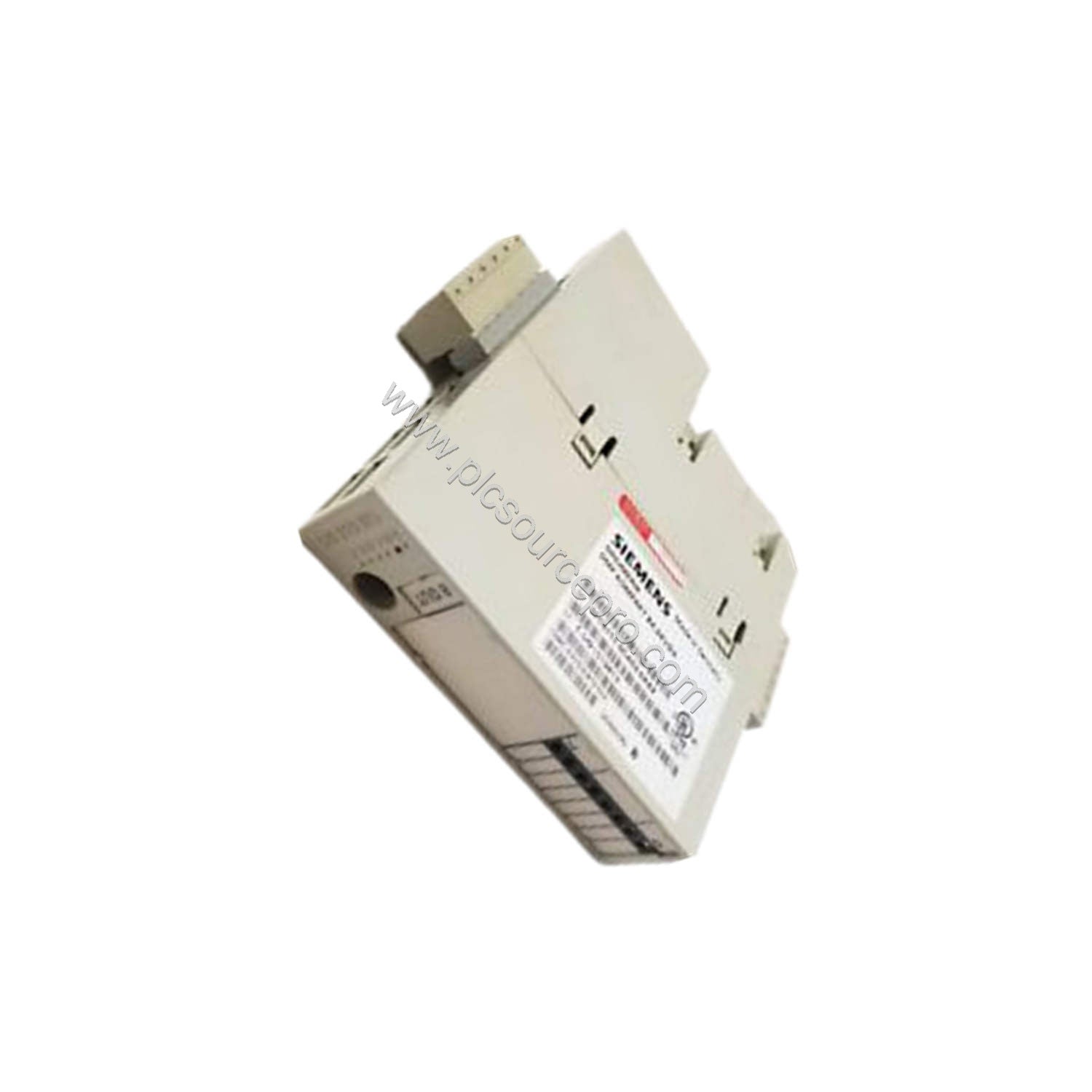

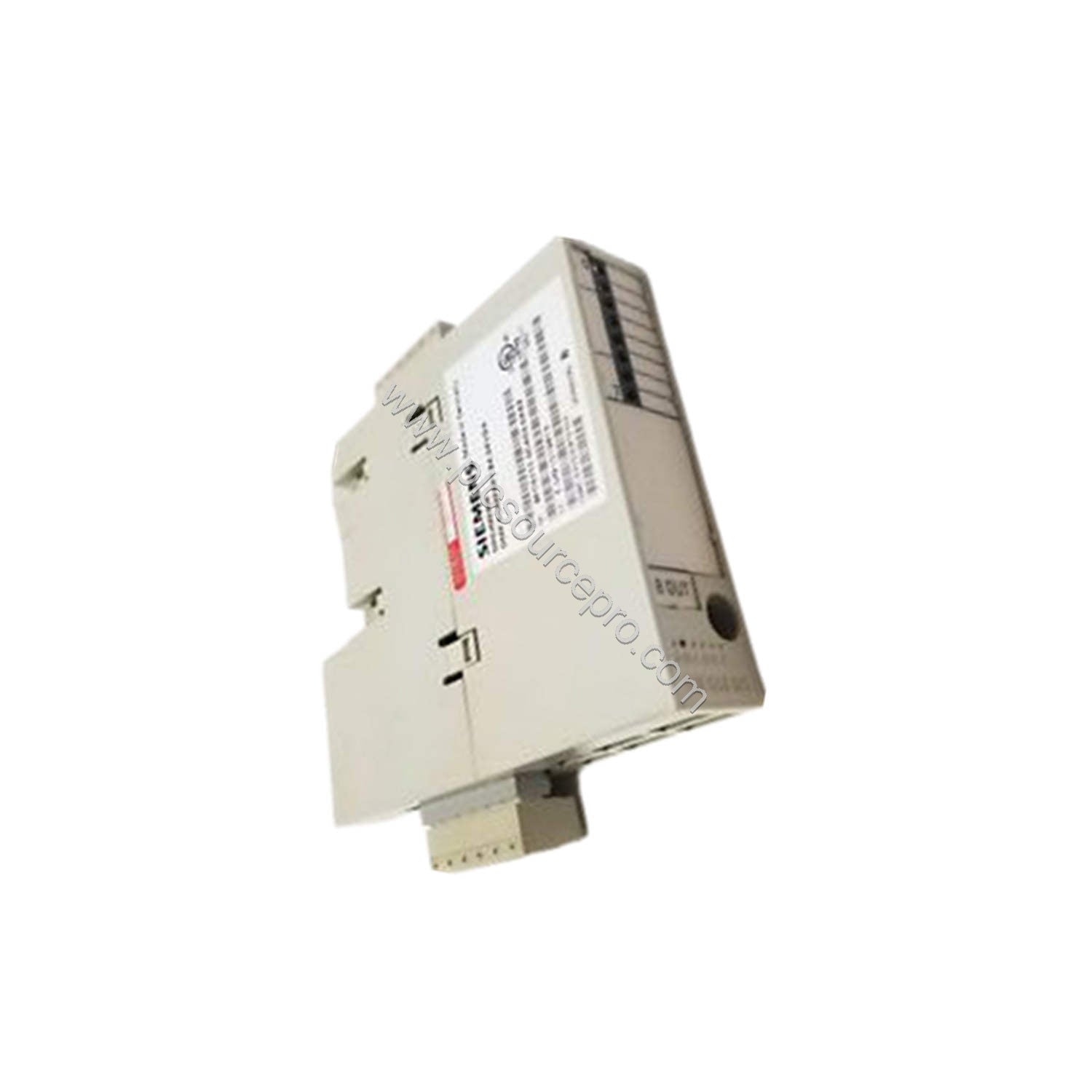

With eight outputs rated at 24 V DC and 2 A per channel, the Siemens 6FC5111-0CA03-0AA2 output module delivers robust performance for demanding industrial automation applications. This Siemens 6FC5111-0CA03-0AA2 module belongs to the I/O Modules product line and provides floating, isolated outputs to ensure clean signal transmission. Integrated short-circuit protection and a freewheeling diode contribute to long service life, reducing downtime and maintenance costs—a clear return on investment for your control system.
Technical Specifications Breakdown
| Parameter |
Value |
| Manufacturer |
Siemens |
| Product Type |
Output Module |
| Product Line |
I/O Modules |
| Part Number |
6FC5111-0CA03-0AA2 |
| EAN |
4025515006084 |
| Number of Outputs |
8 |
| Output Voltage |
24 V DC |
| Output Type |
Floating, Isolated |
| Output Current |
2 A per output |
| Current Consumption |
40 mA |
| Short-Circuit Protection |
Yes |
| Freewheeling Diode |
Integrated |
| Mounting Type |
Panel mount |
| Temperature Range |
0°C to +50°C |
| Environmental Protection |
IP20 |
These specifications highlight the module’s capacity to drive inductive loads safely, its low power draw (40 mA), and its ability to operate in standard industrial environments (0°C to +50°C). The floating, isolated design prevents ground loops, enhancing system reliability.
Industry Applications
The Siemens 6FC5111-0CA03-0AA2 is ideal for controlling solenoids, relays, indicator lights, and small motors in manufacturing lines, packaging machinery, and material handling systems. Its 2 A per output capability suits medium-power devices, while the integrated freewheeling diode ensures smooth switching of inductive loads. By choosing this module, you reduce the risk of coil-generated voltage spikes, thereby extending equipment life and lowering total cost of ownership.
Installation & Setup Guidance
Mount the Siemens 6FC5111-0CA03-0AA2 on a standard panel using the provided panel-mount interface. Ensure the IP20-rated enclosure is placed in a clean, dry environment. Connect the 24 V DC power supply to the module, and wire each output to its respective load. The floating output design allows flexible wiring configurations; however, verify that all loads are compatible with the 2 A per channel limit. No additional heatsink is required under normal operating conditions (0°C to +50°C).
Maintenance & Reliability
This module’s built-in short-circuit protection prevents damage from overcurrent events, while the freewheeling diode absorbs inductive kickback, safeguarding both the output stage and connected devices. Routine inspection consists of a visual check for dust accumulation (IP20 requires periodic cleaning) and verifying terminal tightness. With a low current consumption of 40 mA, it contributes to energy-efficient operation. Over its lifecycle, the robust design minimizes unplanned downtime, directly supporting your ROI goals.
Selection Guide & Purchasing Advice
Before ordering the Siemens 6FC5111-0CA03-0AA2, confirm your application voltage (24 V DC) and total current draw—each output supports up to 2 A. Ensure your control panel has adequate space for panel-mount installation. For additional system configuration support, contact ubest101, your trusted source for genuine industrial automation spares.
