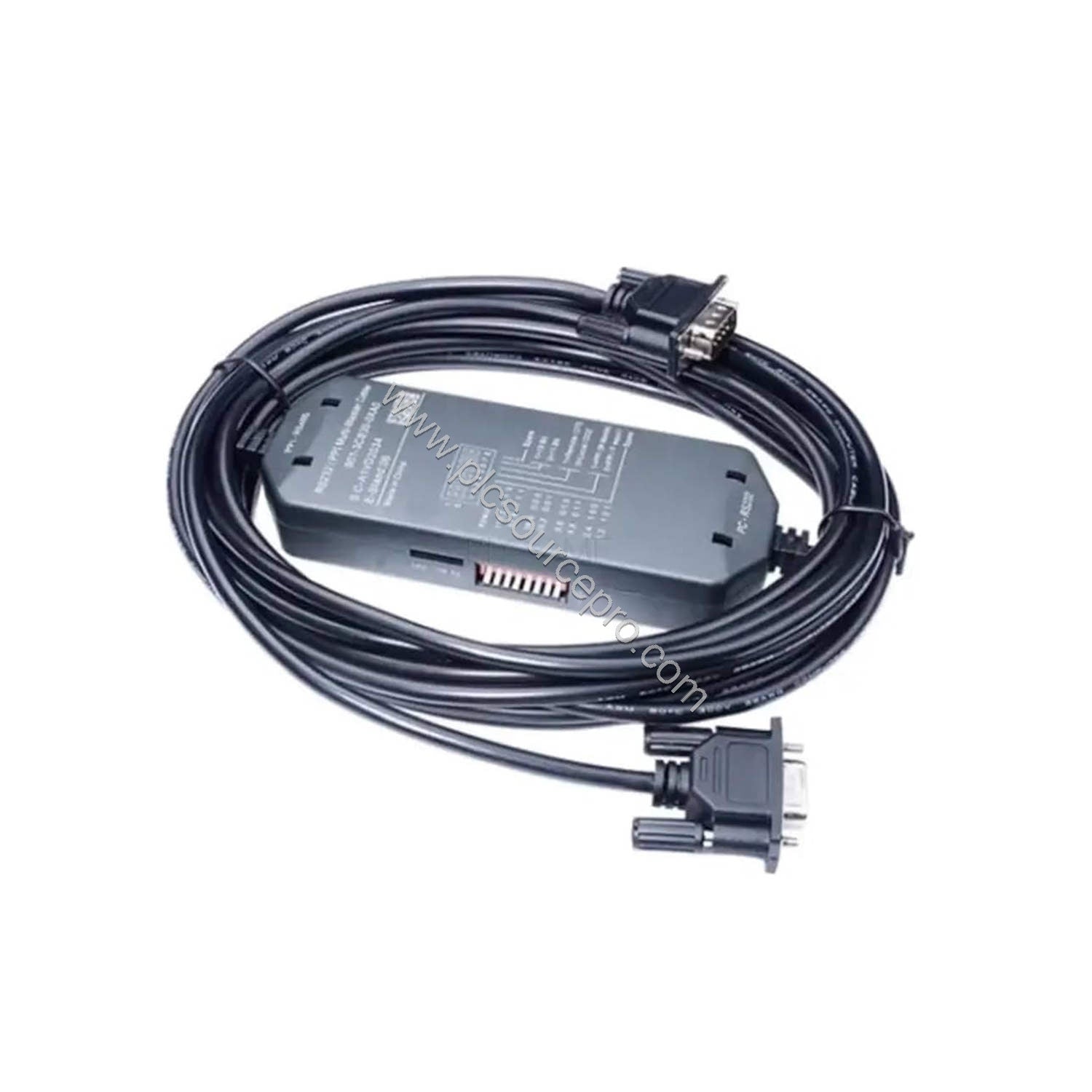

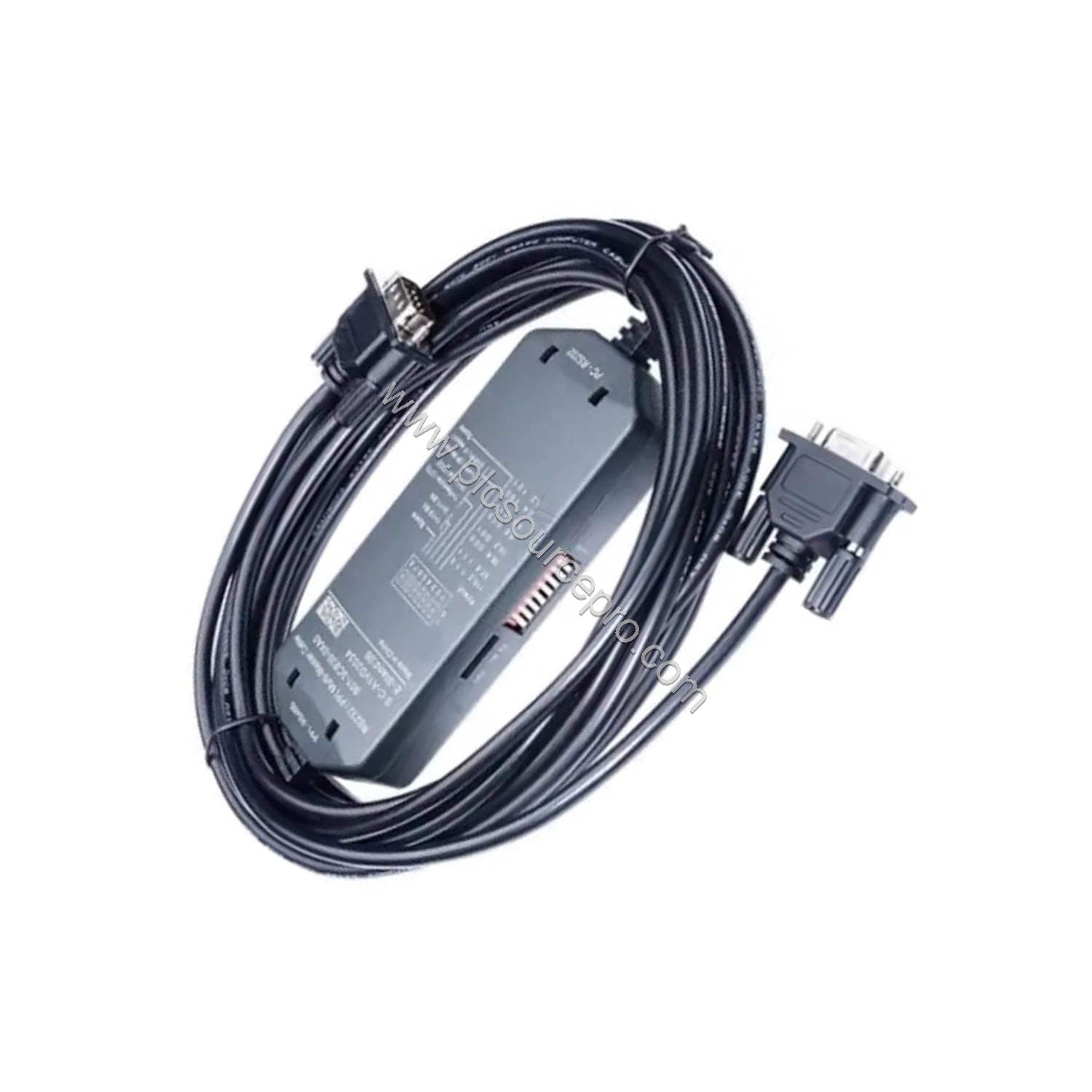

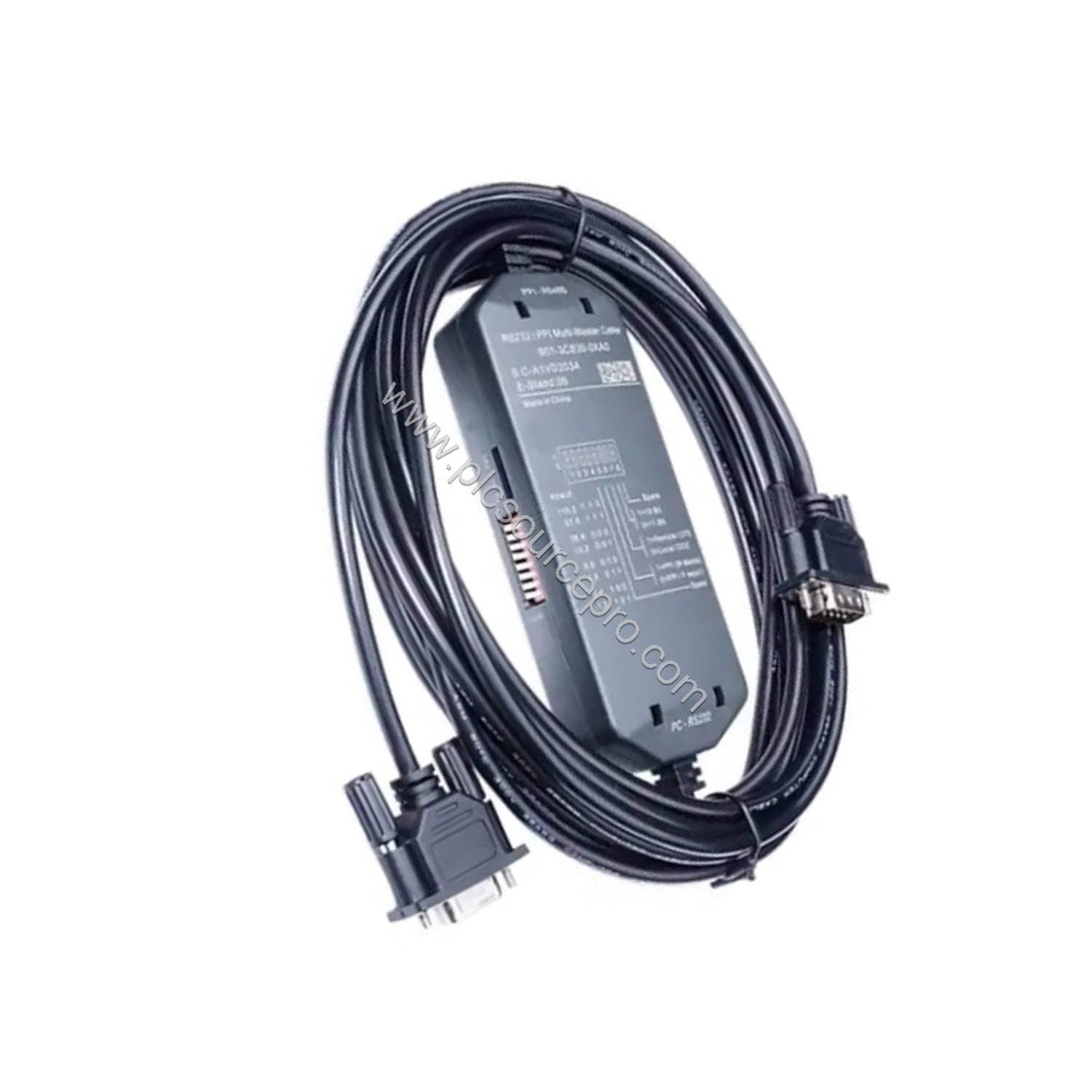

Product Overview: Siemens 6ES7901-3CB30-0XA0 PC/PPI Multi-Master Cable
The Siemens 6ES7901-3CB30-0XA0 is a dedicated PC/PPI multi-master cable designed for the SIMATIC S7-200 family. It connects the S7-200 CPU to a serial PC interface, enabling reliable communication via RS-232 and RS-485. This cable supports Freeport (ASCII) and GSM modem protocols, making it a versatile tool for remote monitoring and programming. Its integrated isolation prevents ground loops and signal degradation, a common failure point in industrial automation setups.
Technical Specifications
-
Transmission Rate: Up to 187.5 kbit/s (selectable via DIP switch: 9.6 / 19.3 / 187.5 kbit/s)
-
Protocols: PPI (10/11 bit), ASCII (Freeport)
-
Power Supply: Derived from the CPU (no external power required)
-
Diagnostics: LED indicators: Tx (green) for RS-232 transmit, Rx (green) for RS-232 receive, PPI (green) for RS-485 transmit
-
Isolation: Potential separation exists (galvanic isolation)
-
Weight: Approximately 300 g
Installation and Setup Guide
Installing the Siemens 6ES7901-3CB30-0XA0 is straightforward. Connect the RS-232 end to the PC serial port (or USB-to-serial adapter) and the RS-485 end to the S7-200 PPI port. Use the onboard DIP switch to set the desired baud rate (9.6, 19.3, or 187.5 kbit/s) matching your network configuration. The cable’s 90-degree connector eases installation in tight panels. Ensure termination and bias settings are correct for multi-drop networks.
Maintenance and Reliability
This cable is designed for long-term industrial use. Its galvanic isolation prevents common ground-loop failures, reducing downtime. Periodically inspect the LEDs: a constant green on Tx or Rx confirms active communication. Keep the cable away from high-voltage sources to avoid interference. With no moving parts, the Siemens 6ES7901-3CB30-0XA0 requires minimal maintenance—clean connectors with isopropyl alcohol if needed.
Compatibility and Integration
The Siemens 6ES7901-3CB30-0XA0 works exclusively with SIMATIC S7-200 CPUs (e.g., CPU 221, 222, 224, 226). It supports PPI protocol for programming and SCADA integration, and ASCII-based Freeport for custom device communication. The cable also interfaces with GSM modems, enabling remote diagnostics via SMS. It cannot be used with S7-300/400 or other PLC families without additional adapters.
Selection Guide and Purchasing Advice
Before purchasing, verify that your PC has an available serial port or a reliable USB-to-serial adapter. For long-distance runs up to 1200 m, use proper RS-485 cabling with the Siemens 6ES7901-3CB30-0XA0. This cable is ideal for replacing older non-isolated or fixed-baud PPI cables. For genuine Siemens quality, order from ubest101, a trusted supplier of industrial automation spares.
