Product Introduction

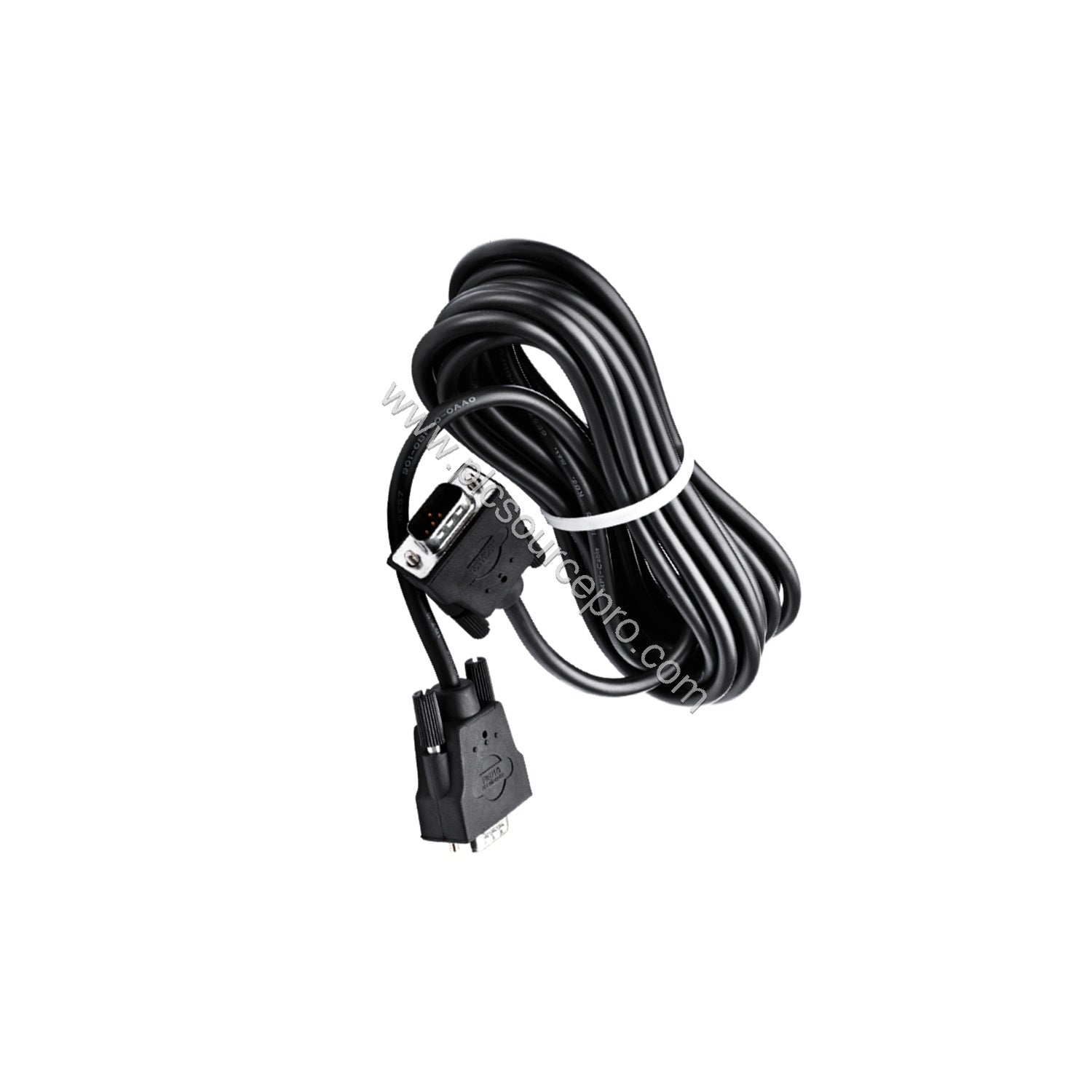

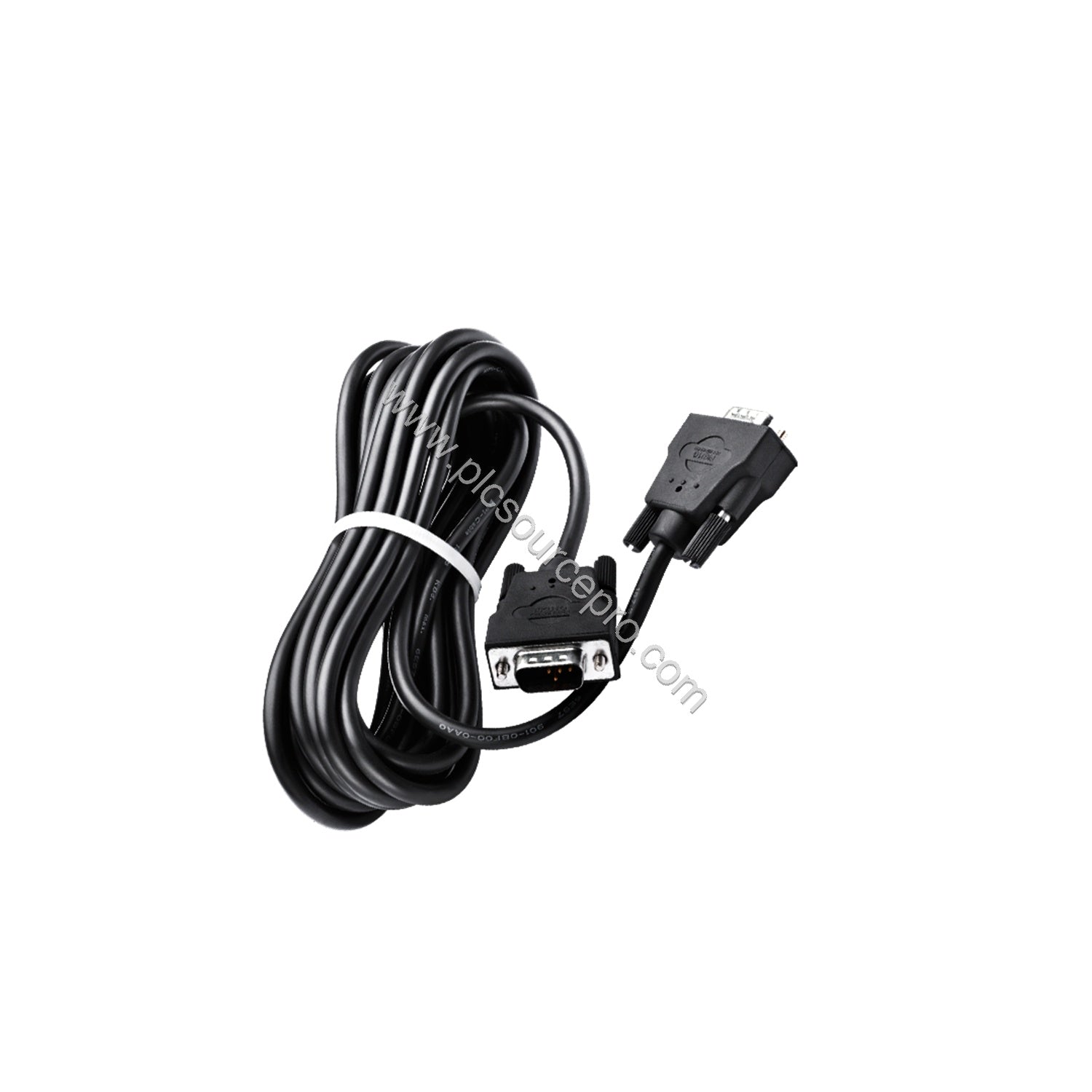

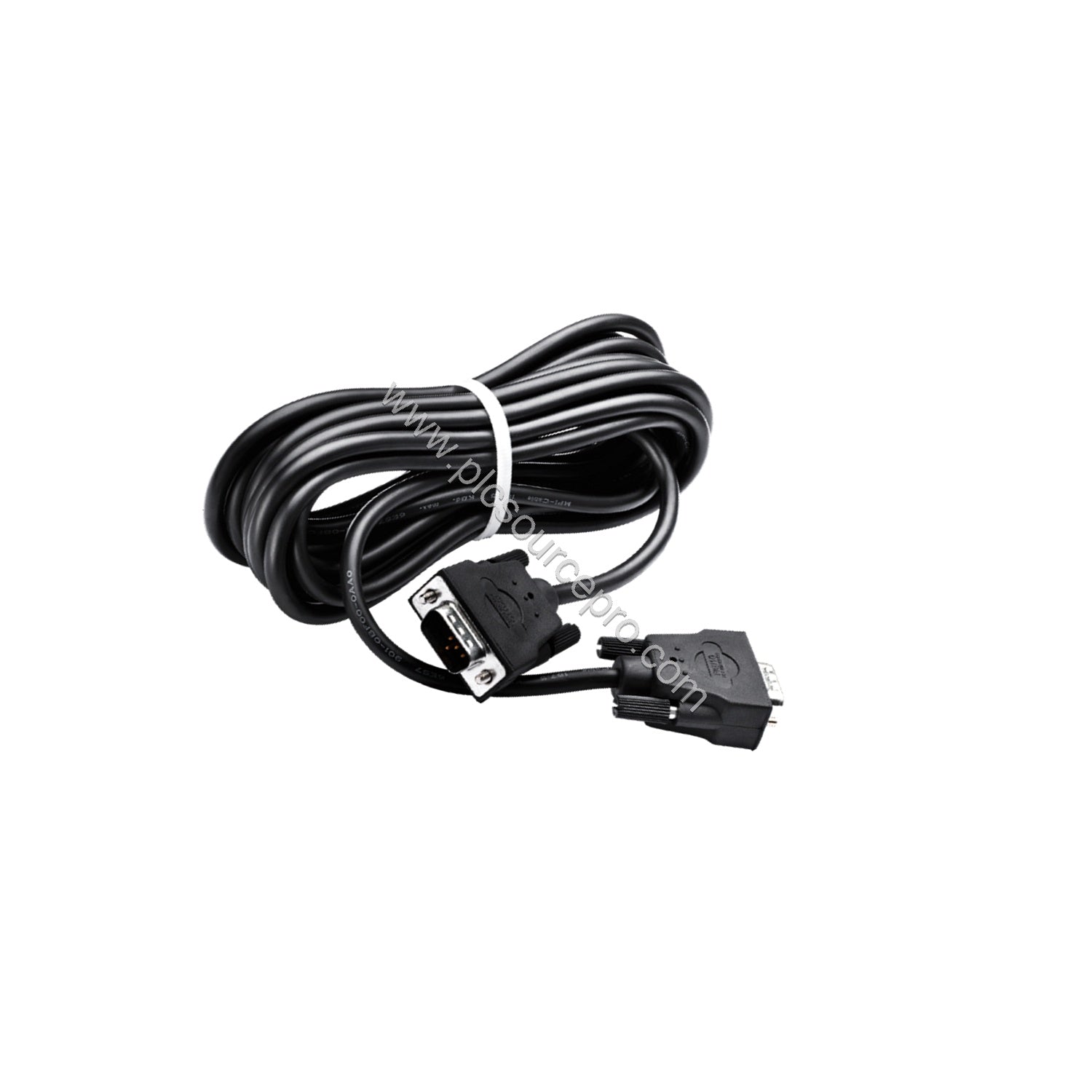

The Siemens 6ES7901-0BF00-0AA0 is a dedicated MPI cable designed for the SIMATIC S7 automation platform. This 5-meter cable provides a robust connection between SIMATIC S7 controllers and programming devices (PG/IPC) via the MPI interface. With a weight of approximately 293 g, it is lightweight yet durable, ensuring reliable data transfer in industrial environments. As an original Siemens component, the 6ES7901-0BF00-0AA0 guarantees signal integrity and long service life, outperforming generic alternatives that may introduce communication errors or premature wear.
Industry Applications
The Siemens 6ES7901-0BF00-0AA0 is primarily used in factory automation and process control for programming, diagnostics, and monitoring of SIMATIC S7 systems. Typical applications include:
- Connecting an S7-300 or S7-400 CPU to a Siemens PG or industrial PC for program upload/debugging.
- Establishing an MPI network between multiple S7 stations and an operator panel.
- Integrating legacy S7 systems with modern IPC MD-57A devices via MPI.
Choosing the original Siemens 6ES7901-0BF00-0AA0 cable over third-party cables ensures consistent performance and minimizes downtime due to communication faults.
Installation & Setup Guidance
Installing the Siemens 6ES7901-0BF00-0AA0 is straightforward. The cable features standard MPI connectors on both ends. Follow these steps for proper setup:
- Ensure both devices are powered off before connecting the cable.
- Align the connector pins carefully and tighten the screws to secure the connection.
- Avoid bending the cable at sharp angles or placing it near high-voltage lines to prevent signal interference.
- For permanent installations, use cable ties to secure the cable along the routing path.
Compatibility & Integration
The Siemens 6ES7901-0BF00-0AA0 is fully compatible with SIMATIC S7-300, S7-400, and S7-1500 controllers (via MPI adapter), as well as PG/PC with MPI port. It works seamlessly with Siemens STEP 7 software for programming and diagnostics. The cable supports MPI communication at standard baud rates and is designed for interference-free data transmission in industrial environments.
Selection Guide & Purchasing Advice
When selecting the Siemens 6ES7901-0BF00-0AA0, verify the cable length (5 m) meets your application distance. For longer distances, consider MPI repeaters. Always purchase genuine Siemens cables to avoid substandard materials that can cause network errors. PLC Source PRO (available at ubest101) supplies original Siemens 6ES7901-0BF00-0AA0 cables with fast shipping and quality assurance.
