Product Introduction

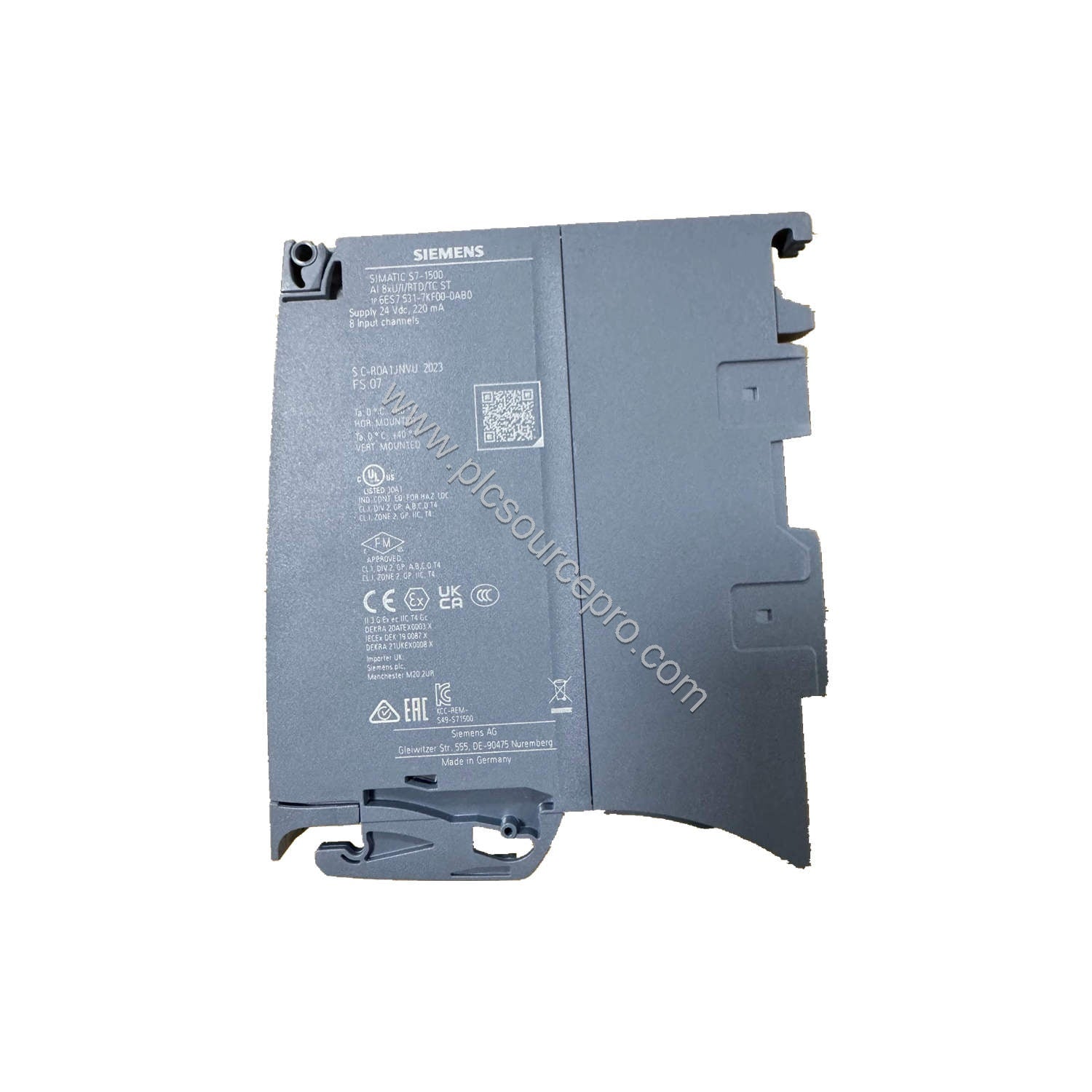

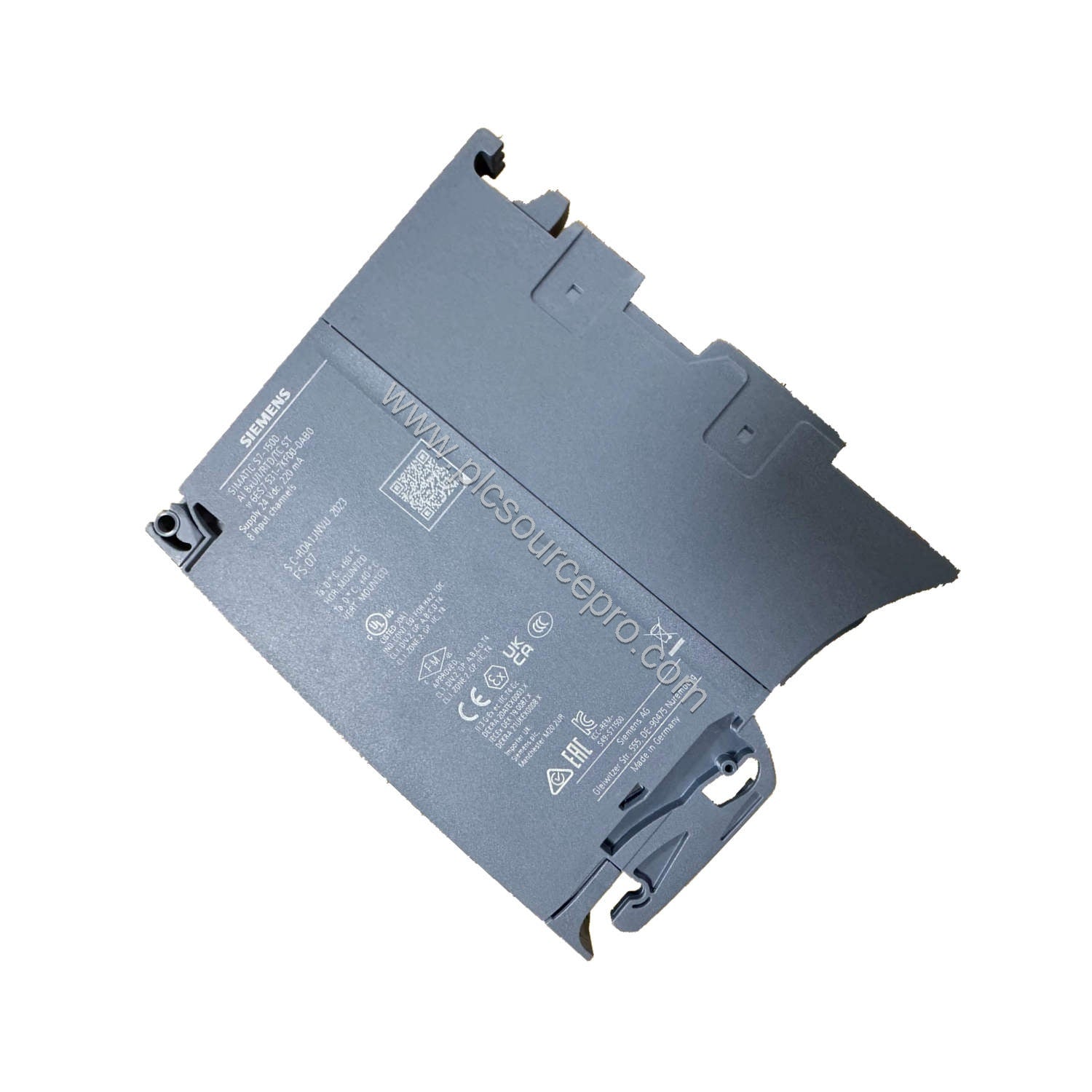

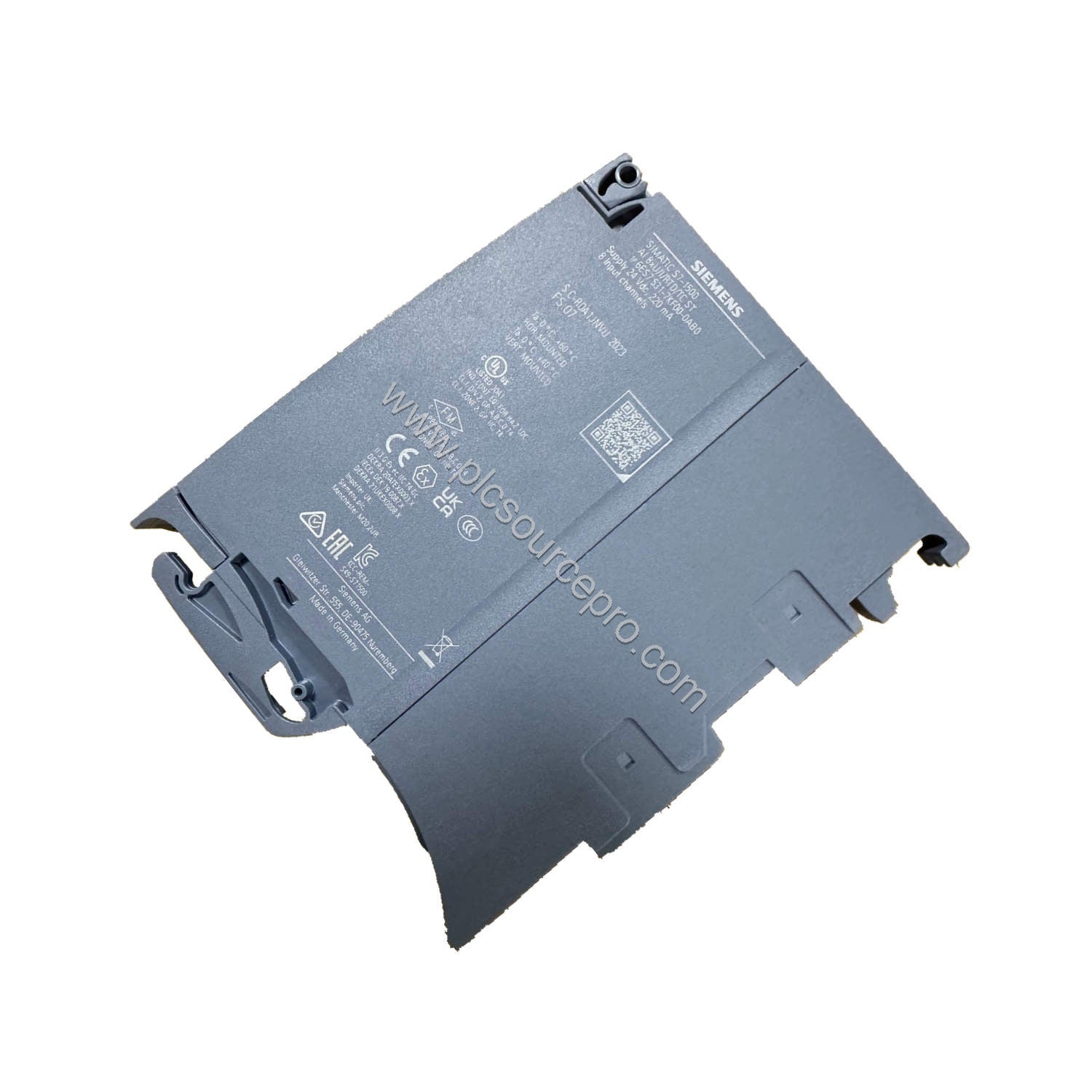

When process variability threatens production quality, the Siemens 6ES7531-7KF00-0AB0 analog input module provides reliable, high-resolution measurement. This AI 8xU/I/RTD/TC ST module is part of the SIMATIC S7-1500 family and delivers 16-bit resolution with 0.3% accuracy. It handles voltage, current, RTD, and thermocouple inputs, making it a versatile choice for demanding automation tasks.
Technical Specifications Breakdown
The Siemens 6ES7531-7KF00-0AB0 offers eight analog input channels configurable in groups of eight. Key specifications include:
| Parameter |
Value |
| Resolution (with overrange) |
16 bit |
| Operational error (voltage/current/resistance) |
0.3% |
| Rated supply voltage (DC) |
24 V (20.4–28.8 V) |
| Typical power loss |
2.7 W |
| Common mode voltage (max) |
10 V |
| Diagnostics |
Diagnostic alarm, limit value alarm, wire-break, overflow/underflow |
| Temperature measurement units |
°C/°F/K (adjustable) |
With an integration time as low as 2.5 ms and full parameterization via STEP 7 TIA Portal (V12 or later), this module excels in both high-speed and precision applications.
Real-World Applications
In chemical processing plants, the Siemens 6ES7531-7KF00-0AB0 reliably monitors temperature via Pt100 RTDs or type K thermocouples, ensuring strict quality control. For water treatment facilities, the module handles 4–20 mA loop-powered transmitters and provides diagnostics that alert operators to wire breaks or out-of-range conditions. In discrete manufacturing, the module’s eight channels can simultaneously measure voltage signals from pressure sensors and current from flow meters, reducing the need for multiple I/O cards.
Maintenance and Reliability
The Siemens 6ES7531-7KF00-0AB0 simplifies maintenance with comprehensive diagnostics. Green RUN and PWR LEDs indicate operational status, while red ERROR and channel diagnostic LEDs pinpoint faults. The module supports reparameterization and calibration in RUN, minimizing downtime. Built-in wire-break monitoring (for 1–5 V, 4–20 mA, TC, R, and RTD) and overvoltage protection ensure robust field operation. For long-term reliability, install the module horizontally (0–60 °C) or vertically (0–40 °C) and use shielded cables up to 800 m for voltage/current, 200 m for RTD, and 50 m for thermocouples.
Compatibility and Integration
This module integrates seamlessly with the SIMATIC S7-1500 system. It supports PROFIBUS (GSD V1.0 / V5.1) and PROFINET (GSD V2.3) and is configurable with STEP 7 TIA Portal from V12 onward. The Siemens 6ES7531-7KF00-0AB0 also includes I&M data (I&M0 to I&M3) for easy asset management. Firmware V2.0.0 is updateable in the field.
Selection Guide and Purchasing Advice
Before purchasing the Siemens 6ES7531-7KF00-0AB0, verify your power supply delivers 24 V DC (20.4–28.8 V) with at least 240 mA. Confirm mounting orientation and cable length limitations for your specific sensor types. For reliable sourcing and competitive pricing, trust PLC Source PRO (available at ubest101) for genuine Siemens automation parts.
