Product Overview

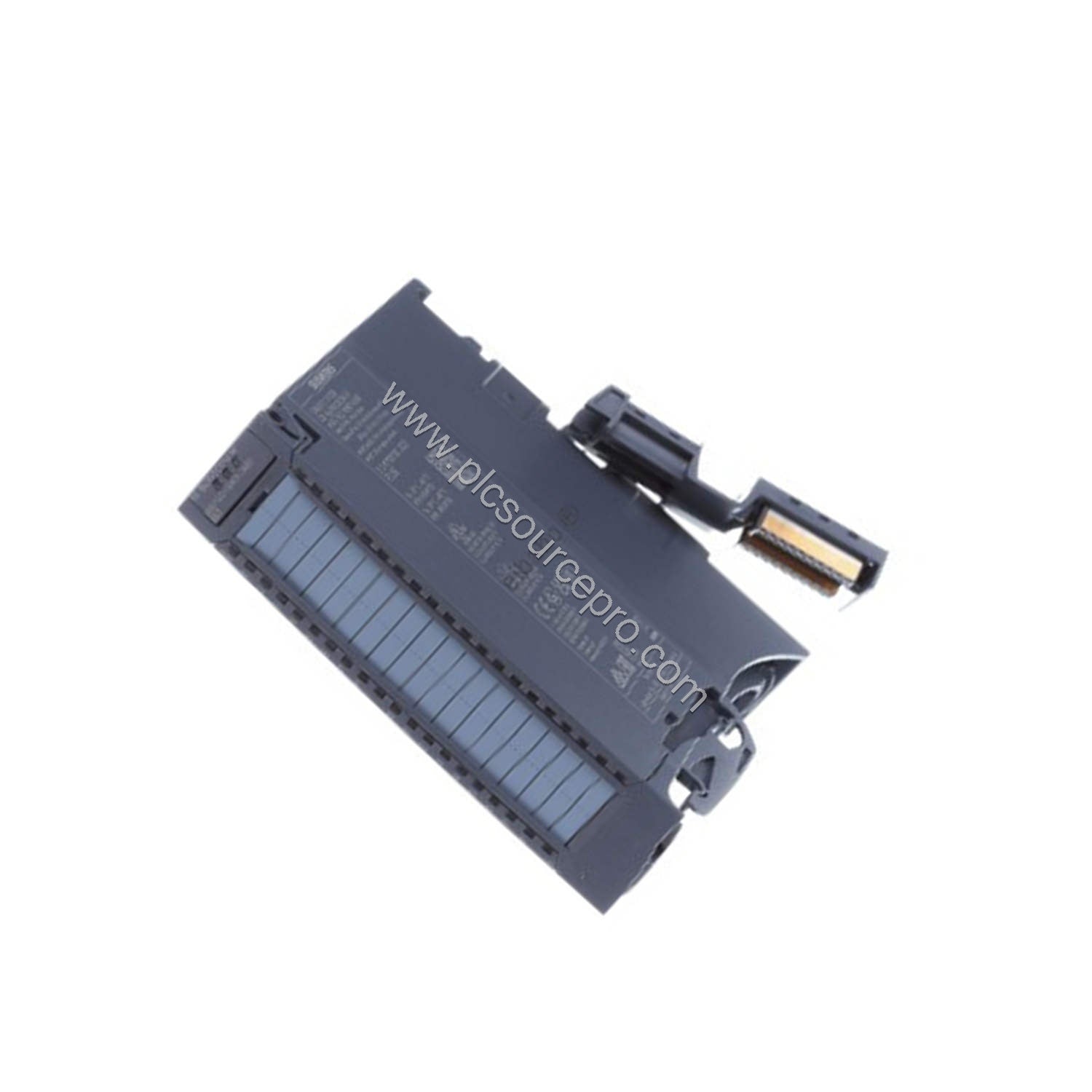

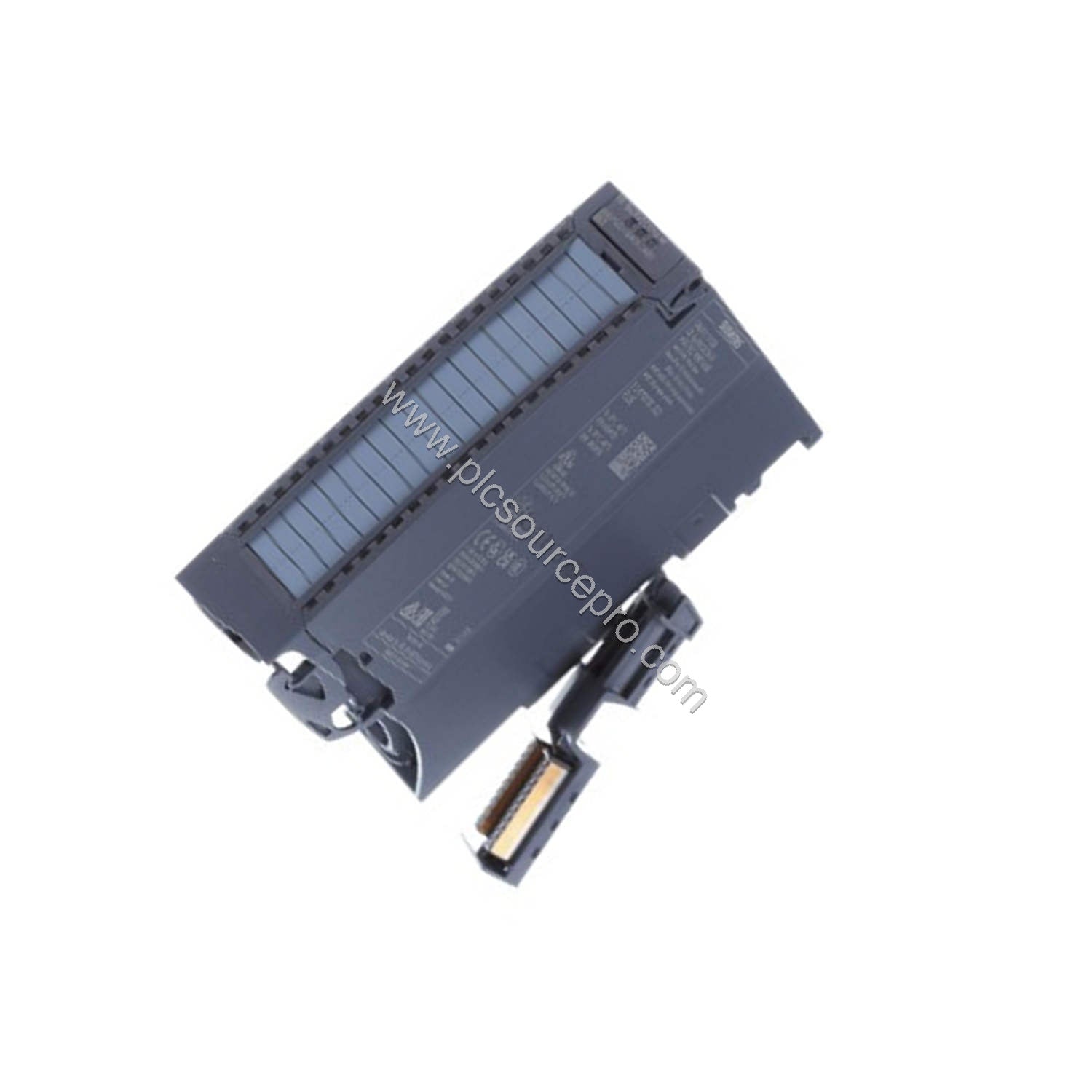

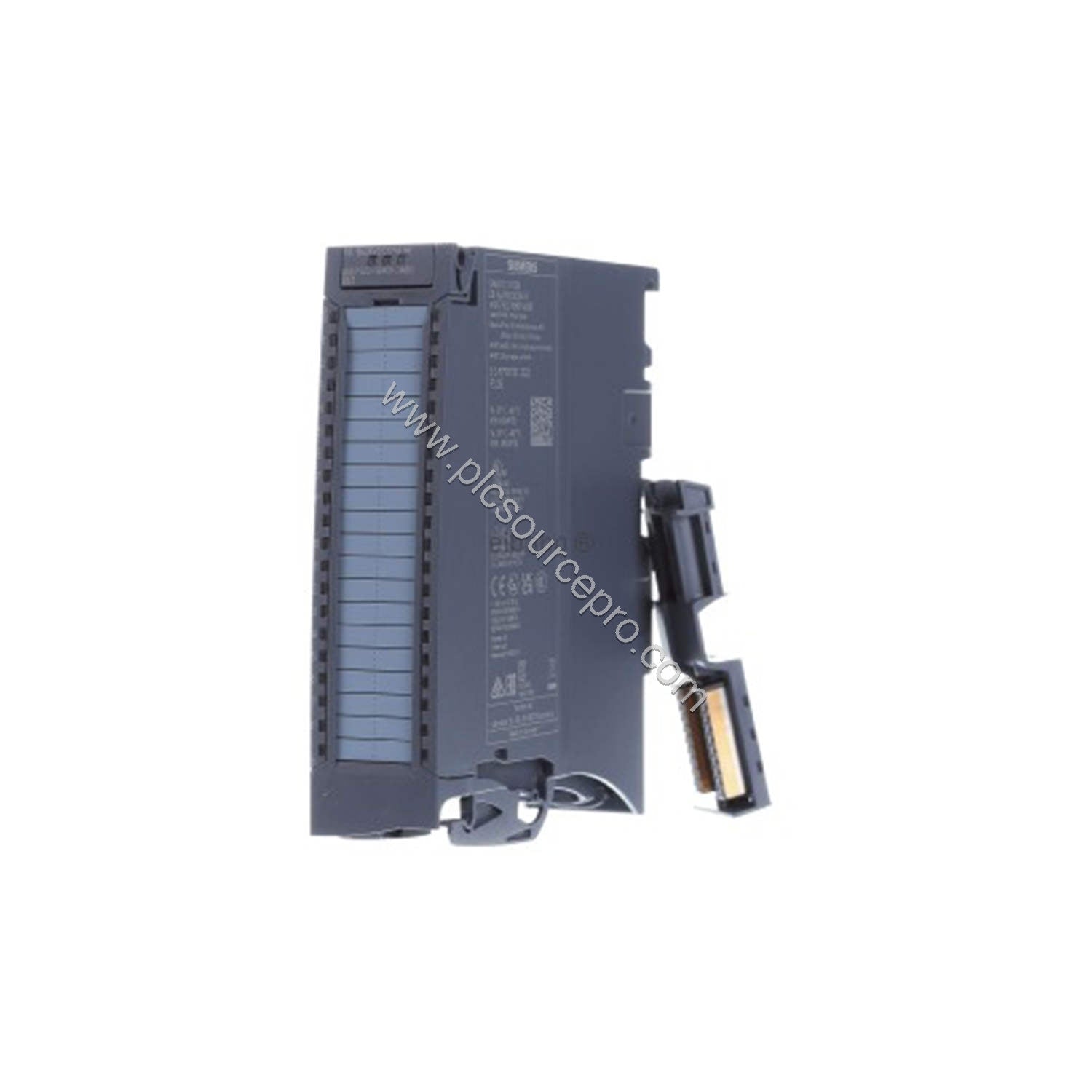

The Siemens 6ES7522-1BH01-0AB0 is a high-feature digital output module from the SIMATIC S7-1500 series. It provides 16 channels organized in two groups of eight, each channel delivering up to 0.5 A at 24 V DC. Designed for demanding industrial control systems, this module supports single-channel diagnostics, substitute value control, and a switching cycle counter for connected actuators. It also enables safety-oriented shutdown of load groups up to SIL 2 (EN IEC 62061) and Category 3/PL d (EN ISO 13849-1). The front connector (screw or push-in) must be ordered separately.
Technical Specifications
The Siemens 6ES7522-1BH01-0AB0 offers robust performance for critical applications. Key parameters include:
- Supply voltage: 24 V DC (19.2 V to 28.8 V range)
- Output current per channel: 0.5 A
- Total current per group: 4 A
- Total current per module: 8 A
- Output delay: “0” to “1” max 100 µs; “1” to “0” max 500 µs
- Switching frequency: resistive load 100 Hz, lamp load 10 Hz, inductive load 0.5 Hz
- Short-circuit protection: clocked electronically with 1 A response threshold
- Diagnostic functions: monitoring of supply voltage, wire-break, short-circuit, and group error
- Firmware version: V1.1.0, update possible
- HW functional status: from FS02
- Dimensions: 35 mm x 147 mm x 129 mm, weight approx. 230 g
Real-World Applications
The Siemens 6ES7522-1BH01-0AB0 excels in environments requiring precise control and comprehensive diagnostics. Typical applications include:
-
Manufacturing lines with high-speed resistive loads (e.g., solenoid valves up to 100 Hz)
-
Safety-related shutdown circuits in machinery (supports SIL 2 / PL d)
-
Automated material handling where lamp loads and inductive actuators need to be controlled reliably
Its integrated diagnostics detect wire breaks and short circuits, minimizing downtime and enabling fast troubleshooting.
Compatibility and Integration
The Siemens 6ES7522-1BH01-0AB0 is fully integrated into the TIA Portal environment. Engineering can be performed with STEP 7 TIA Portal V13 SP1 or later, or STEP 7 V5.5 SP3. It supports GSD files for PROFIBUS (V1.0/V5.1) and PROFINET (V2.3). The module also features I&M data (I&M0 to I&M3) and isochronous mode for time-critical applications.
Maintenance and Reliability
Designed for long service life, the Siemens 6ES7522-1BH01-0AB0 operates in a wide temperature range: -30 °C to 60 °C (horizontal) and -30 °C to 40 °C (vertical). It includes a RUN (green), ERROR (red), and MAINT (yellow) LED for at-a-glance status. Regular inspection of the front connector and cable shielding (max. 1000 m shielded, 600 m unshielded) ensures sustained performance. The module’s power consumption is low: 1.1 W from backplane bus and 2 W typical power loss.
Selection Guide
When ordering the Siemens 6ES7522-1BH01-0AB0, remember to purchase the appropriate front connector (screw or push-in type) separately. Verify compatibility with your existing S7-1500 system and ensure the firmware version meets your requirements. For reliable sourcing, PLC Source PRO (available at ubest101.myshopify.com) offers genuine Siemens modules with fast shipping. Confirm your application’s safety level – the module supports safety-related tripping from FS02 onwards.
