Product Overview

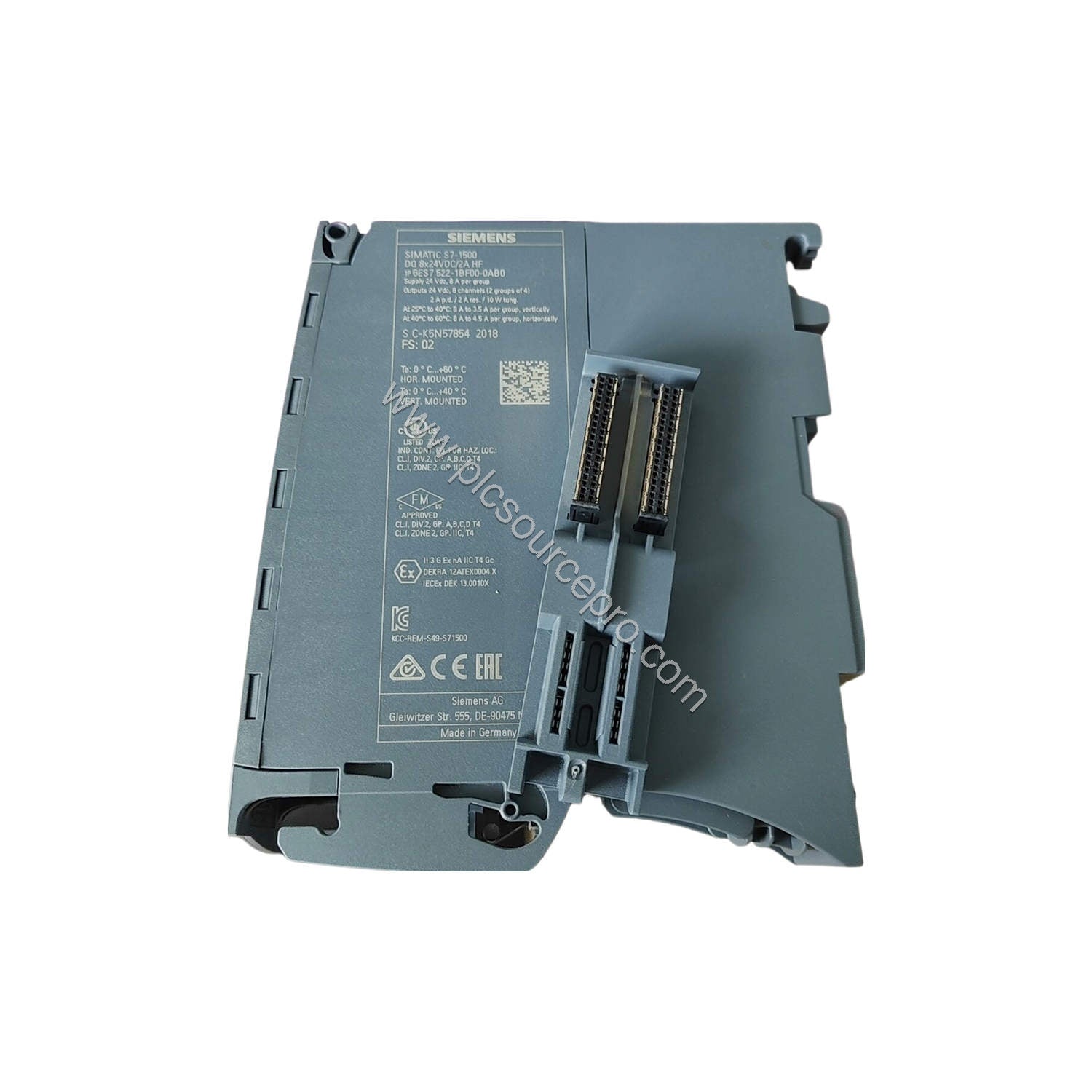

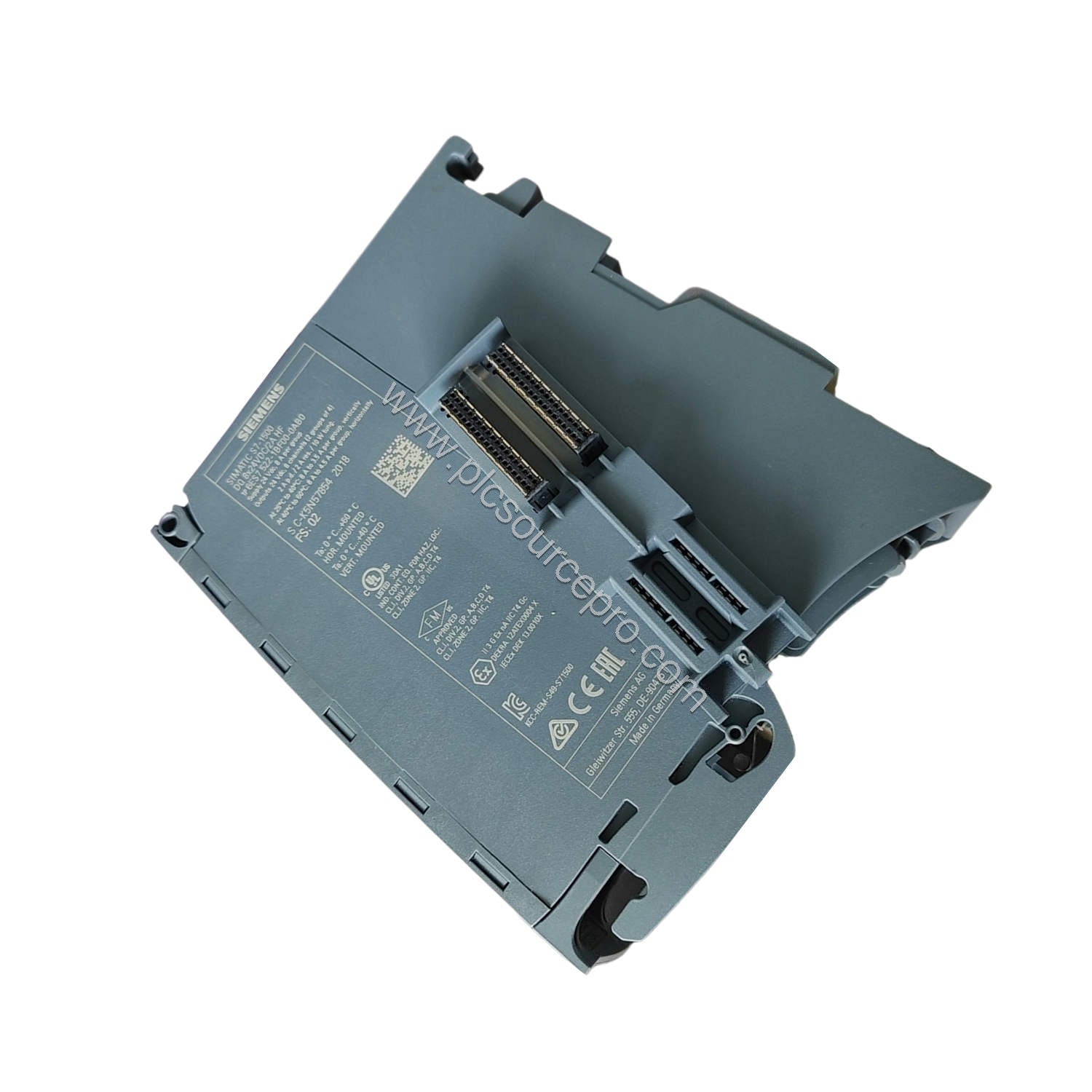

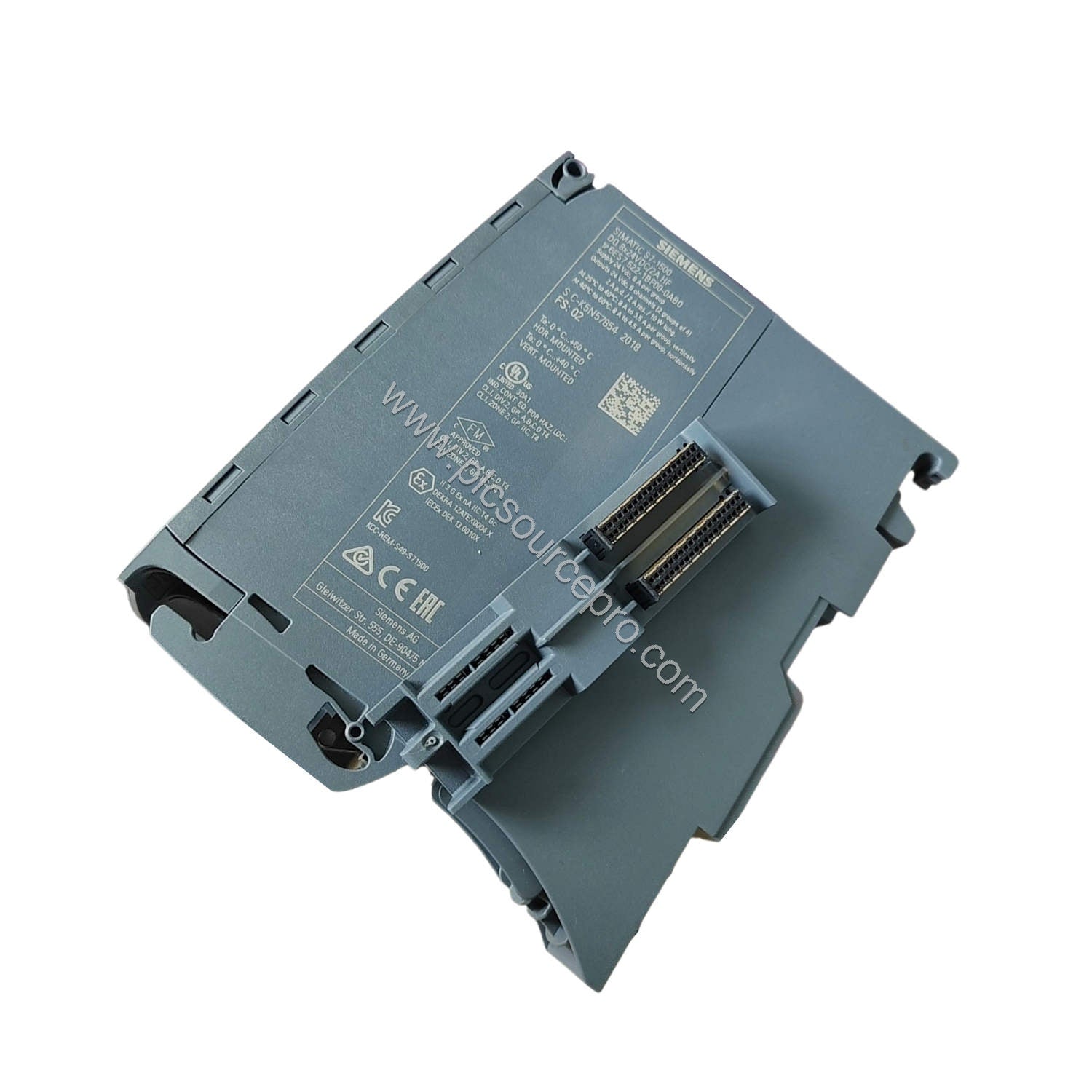

The Siemens 6ES7522-1BF00-0AB0 is a high-performance digital output module from the SIMATIC S7-1500 series. It delivers 8 channels at 24 V DC with 2 A per channel, supporting pulse width modulation (PWM) for precision control. With diagnostics, substitute values, and safety-oriented shutdown up to SIL2 (EN IEC 62061:2021) and Category 3/PL d (EN ISO 13849-1:2015), this module reduces downtime and enhances operational safety. Front connectors (screw or push-in) are ordered separately.
Technical Specifications
The Siemens 6ES7522-1BF00-0AB0 offers a robust set of parameters for demanding industrial environments. Key specifications include:
-
Supply voltage: Rated 24 V DC, permissible range 19.2 V to 28.8 V with reverse polarity protection (10 A per group)
-
Output current: 2 A per channel (rated), max. 2.4 A per channel with derating for PWM
-
Switching frequency: Up to 100 Hz resistive load, 500 Hz with PWM (two outputs)
-
Power loss: Typ. 5.6 W (6.8 W in PWM mode)
-
Short-circuit protection: Yes, response typ. 3 A
-
PWM output: Two channels at max. 500 Hz, cycle duration 2...100 ms, duty cycle resolution 0.1%
-
Dimensions: 35 x 147 x 129 mm (W x H x D), weight approx. 240 g
Industry Applications
The Siemens 6ES7522-1BF00-0AB0 excels in material handling, packaging, and machine tool applications. Its PWM functionality enables precise control of heaters, valves, or variable-speed actuators, directly reducing energy consumption. The safety shutdown capability protects personnel and equipment, while diagnostics minimize troubleshooting time. For example, in a conveyor system with multiple zones, this module can handle high-frequency switching for sorters and safely isolate load groups during maintenance.
Installation Guidance
Mount the Siemens 6ES7522-1BF00-0AB0 on a standard DIN rail inside the S7-1500 enclosure. Ensure the backplane bus connector is properly seated. Use shielded cable up to 1000 m or unshielded up to 600 m for output wiring. Set parameters via STEP 7 TIA Portal V13 SP1 or higher. For PWM operation, verify firmware version V2.1.0 or above (FS02). The front connector must be ordered separately; choose screw or push-in terminals based on maintenance needs.
Selection Guide & Purchasing Advice
Before ordering, confirm your system requires 8 digital outputs at 24 V DC / 2 A and supports the S7-1500 form factor. If PWM is needed, ensure two channels suffice. For safety applications, verify the module's FS03 hardware status. As a trusted supplier, PLC Source PRO (available at ubest101.myshopify.com) stocks genuine Siemens 6ES7522-1BF00-0AB0 modules with full warranty. Always pair with the correct front connector and consult the manual for derating in PWM mode.
