Product Overview

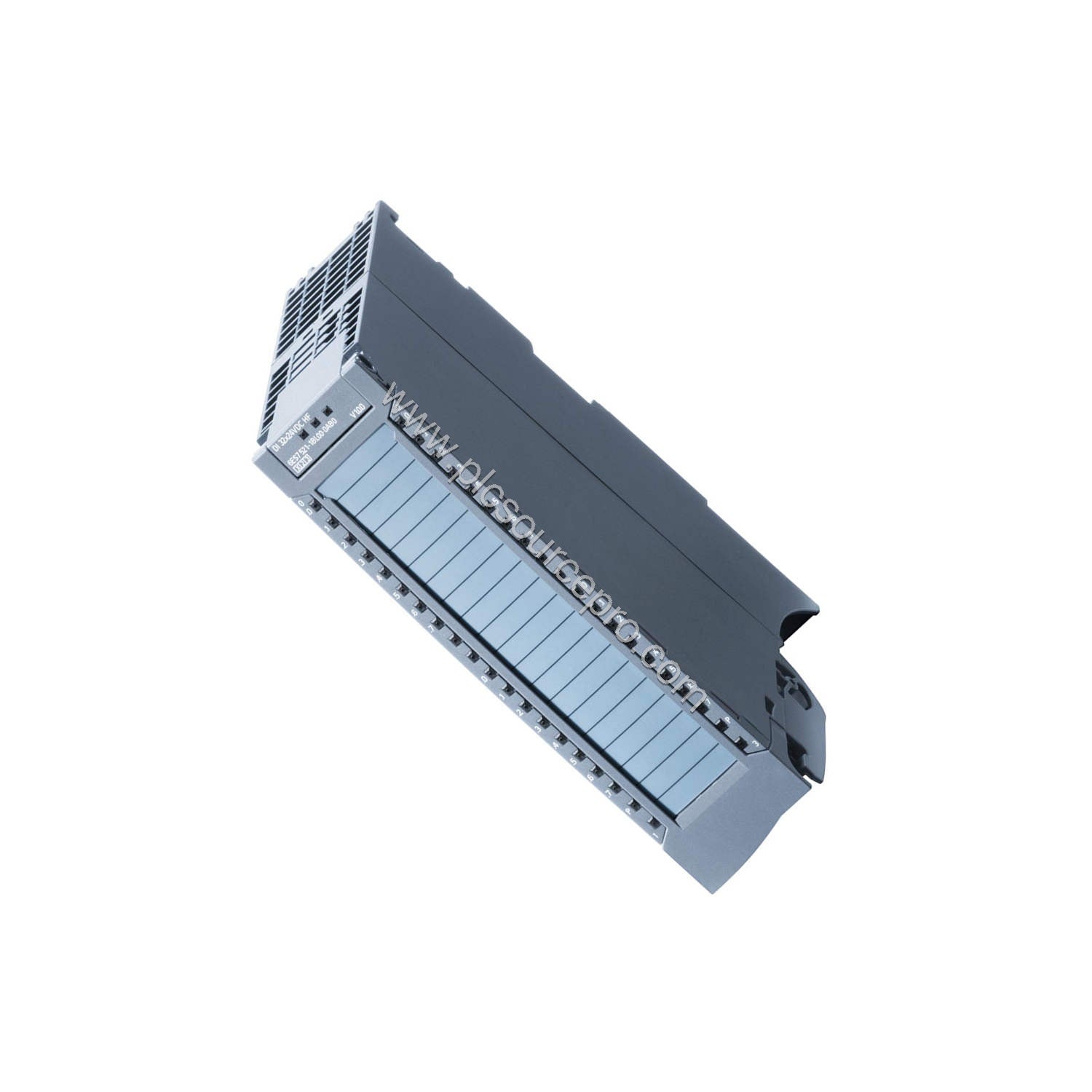

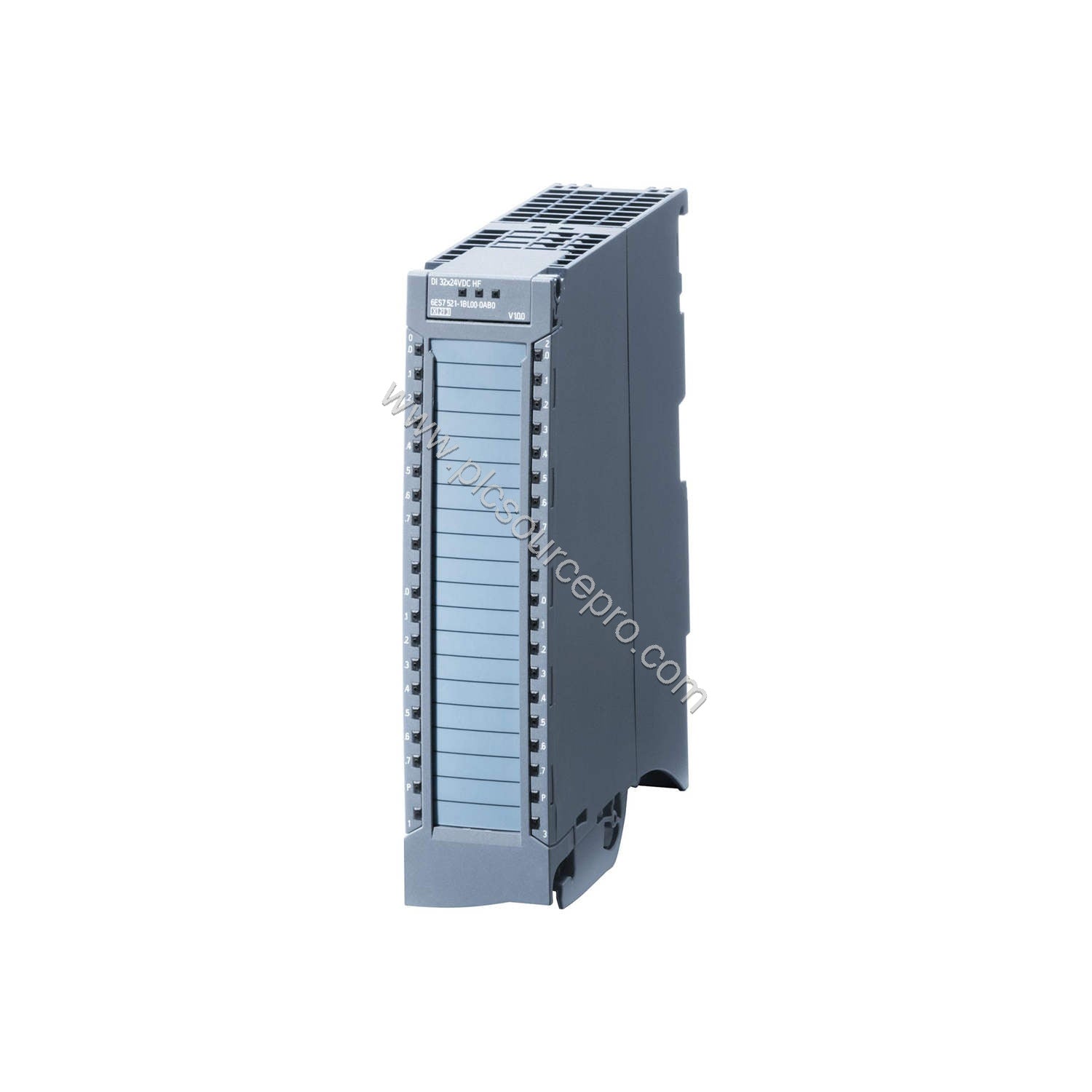

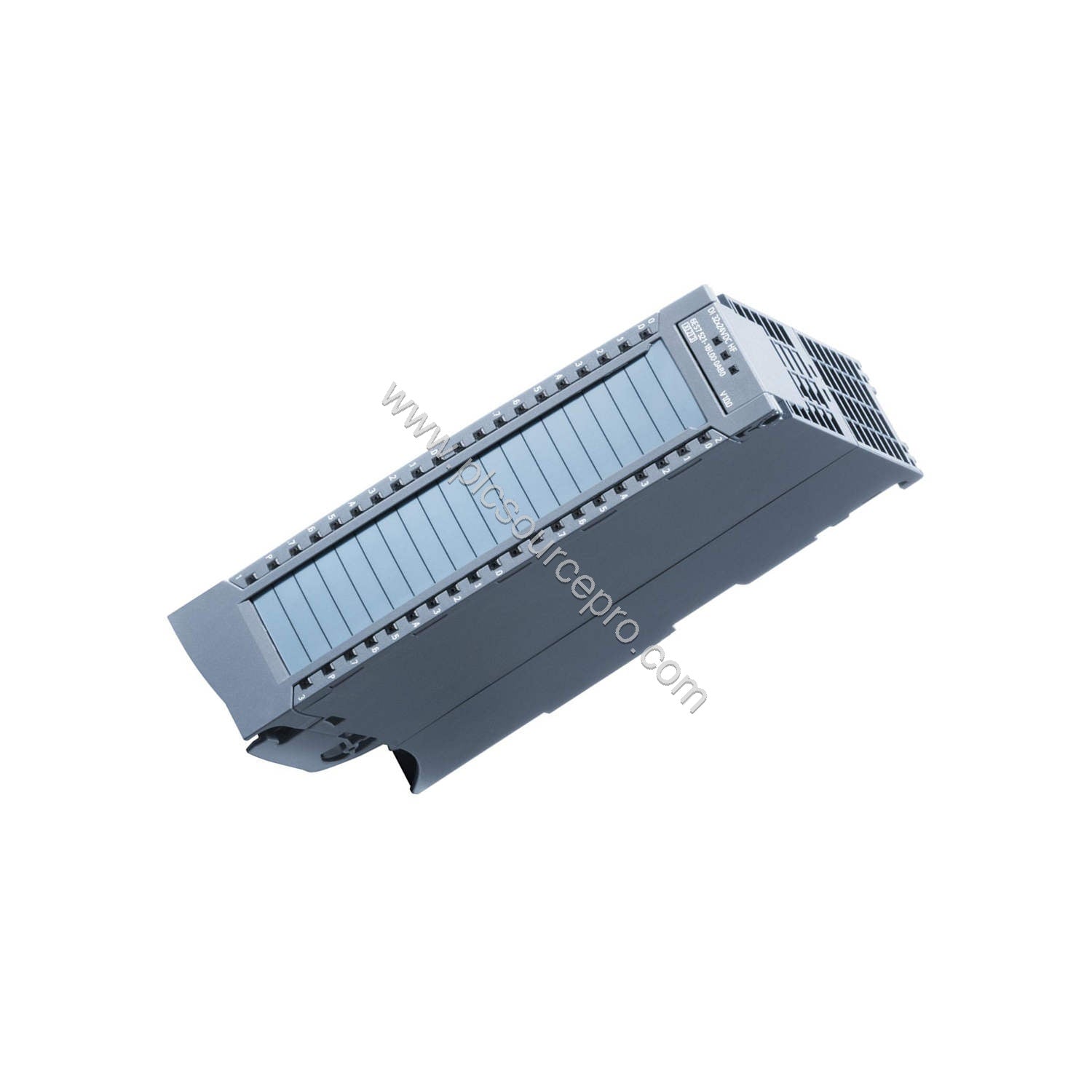

When production line downtime costs thousands per minute, the Siemens 6ES7521-1BL00-0AB0 provides the diagnostics and reliability needed to minimize interruptions. This digital input module from the SIMATIC S7-1500 series offers 32 channels in groups of 16, with 2 inputs configurable as counters. It features an input delay ranging from 0.05 ms to 20 ms and supports input type 3 per IEC 61131. Diagnostics and hardware interrupts ensure rapid fault detection, while the front connector (screw terminals or push-in) is ordered separately.
Technical Specifications
| Parameter |
Value |
| Supply voltage rated value (DC) |
24 V |
| Permissible range (DC) |
19.2 V to 28.8 V |
| Number of digital inputs |
32 |
| Input current for signal “1” |
2.5 mA typ. |
| Input delay (parameterizable) |
0.05 / 0.1 / 0.4 / 1.6 / 3.2 / 12.8 / 20 ms |
| Counting frequency (max.) |
6 kHz (FS04 and FW V2.2.1+) |
| Power loss typ. |
4.2 W |
| Dimensions (W x H x D) |
35 x 147 x 129 mm |
| Weight approx. |
260 g |
The Siemens 6ES7521-1BL00-0AB0 supports isochronous mode, prioritized startup, and engineering with STEP 7 TIA Portal V13 SP1 or STEP 7 V5.5 SP3. It includes I&M data (I&M0 to I&M3) and firmware update capability. Diagnostics features monitor supply voltage and wire-break (I < 350 µA), and LED indicators provide quick status checks.
Industry Applications
In manufacturing assembly lines, the Siemens 6ES7521-1BL00-0AB0 excels at high-speed discrete input sensing. Its 32 channels handle multiple proximity sensors, limit switches, and pushbuttons, while the two counter inputs track fast events like part counts. The diagnostics reduce troubleshooting time, directly lowering downtime costs. In conveyor systems, the module’s 0.05 ms minimum input delay enables precise timing for sortation and palletizing. For packaging machinery, the isochronous mode ensures synchronized data acquisition across axes.
Compatibility & Integration
The Siemens 6ES7521-1BL00-0AB0 integrates seamlessly into the SIMATIC S7-1500 system. It is configured via STEP 7 TIA Portal V13 SP1 or later, and can be used with PROFIBUS (GSD V1.0 / V5.1) or PROFINET (GSD V2.3). The module supports 2-wire sensors with quiescent current up to 1.5 mA. For existing installations, the hardware interrupt and diagnostic alarm functions allow immediate notification of faults to the controller, reducing reaction time.
Selection Guide & Purchasing Advice
Before purchasing the Siemens 6ES7521-1BL00-0AB0, verify your supply voltage is 24 V DC within the permissible range. Order the front connector separately—choose screw terminals or push-in type based on your wiring preference. Ensure the backplane bus power of 1.1 W is available. The module is suitable for horizontal installation from -30°C to 60°C, and vertical installation up to 40°C. For reliable automation spares, consider ubest101 as a trusted source for genuine Siemens modules.
