Product Overview

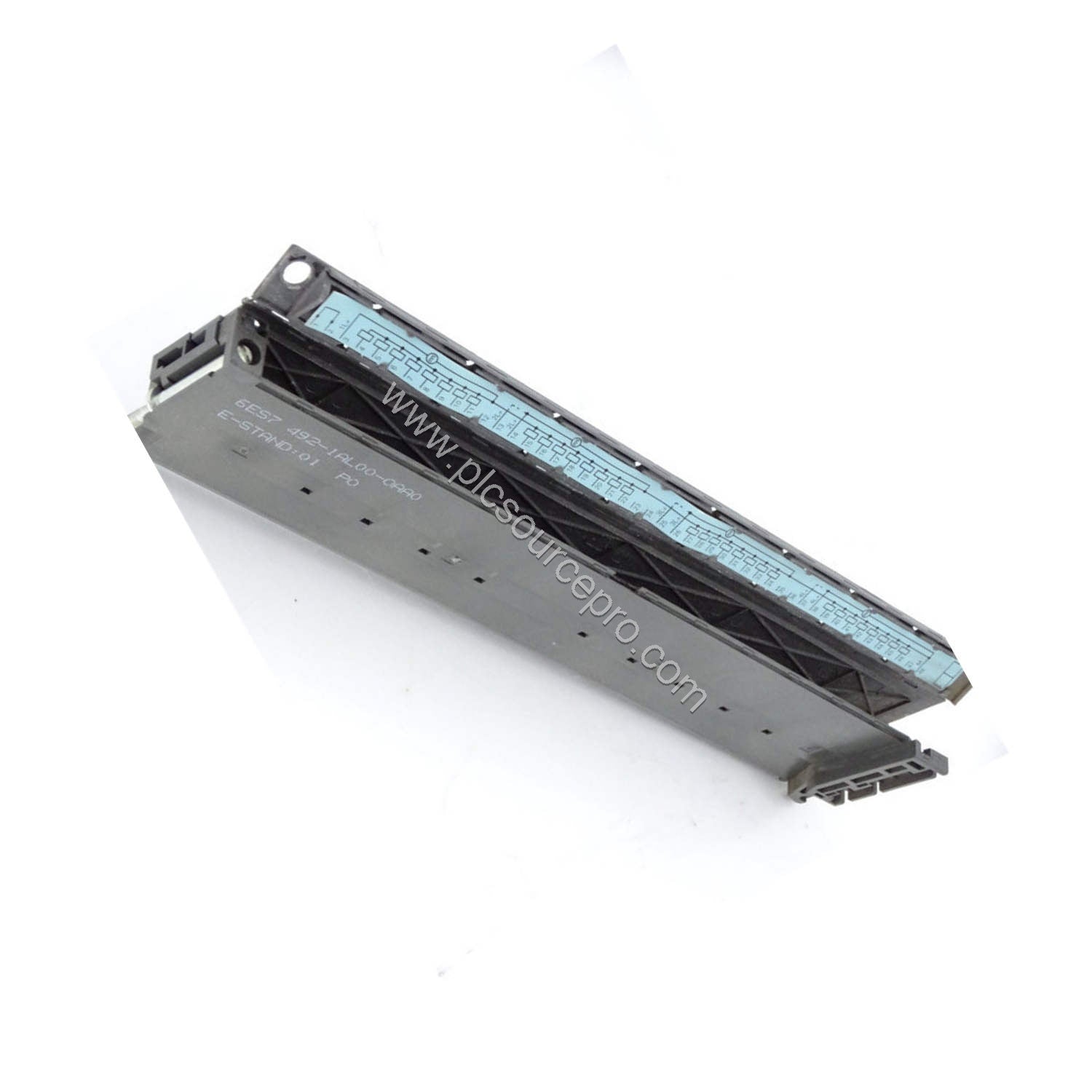

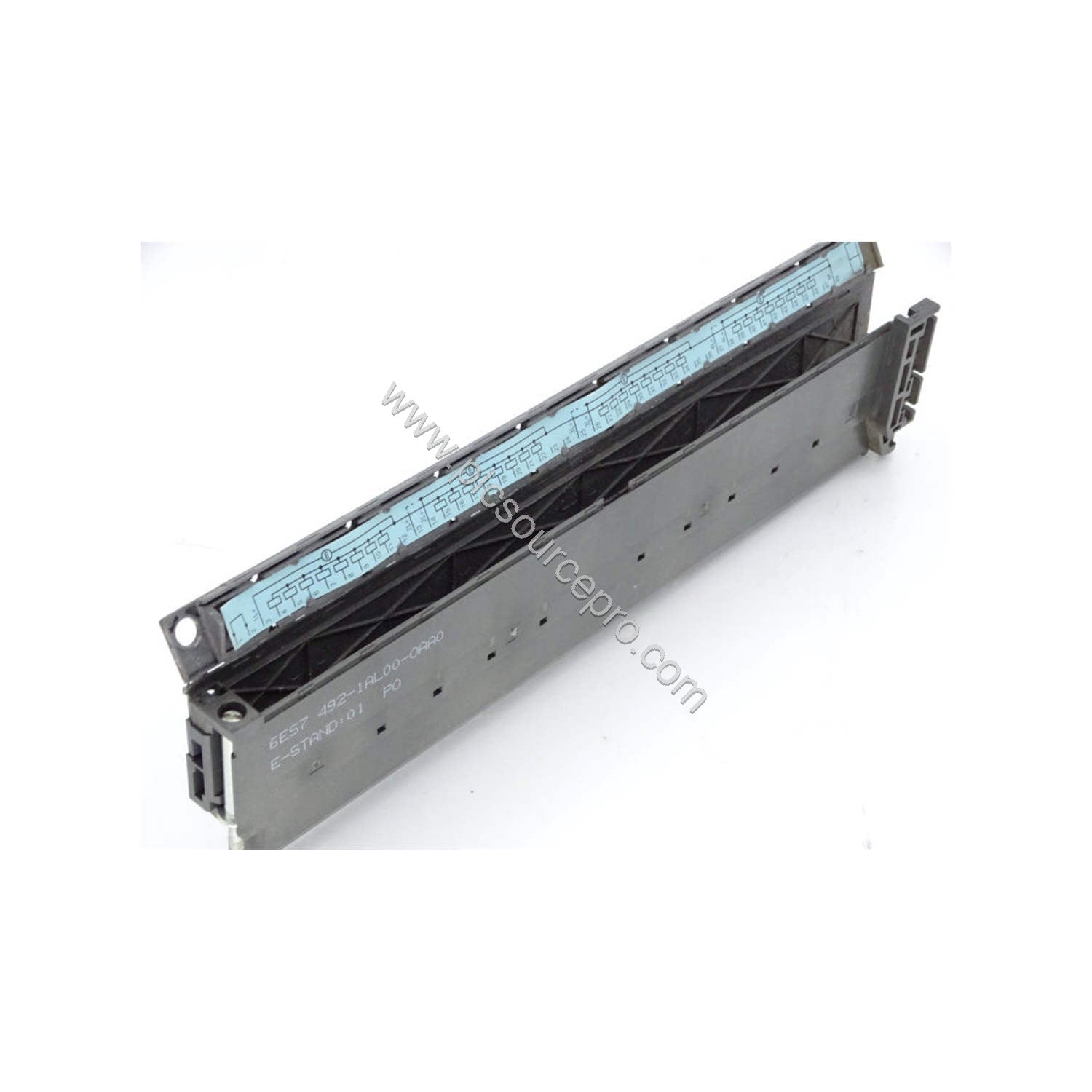

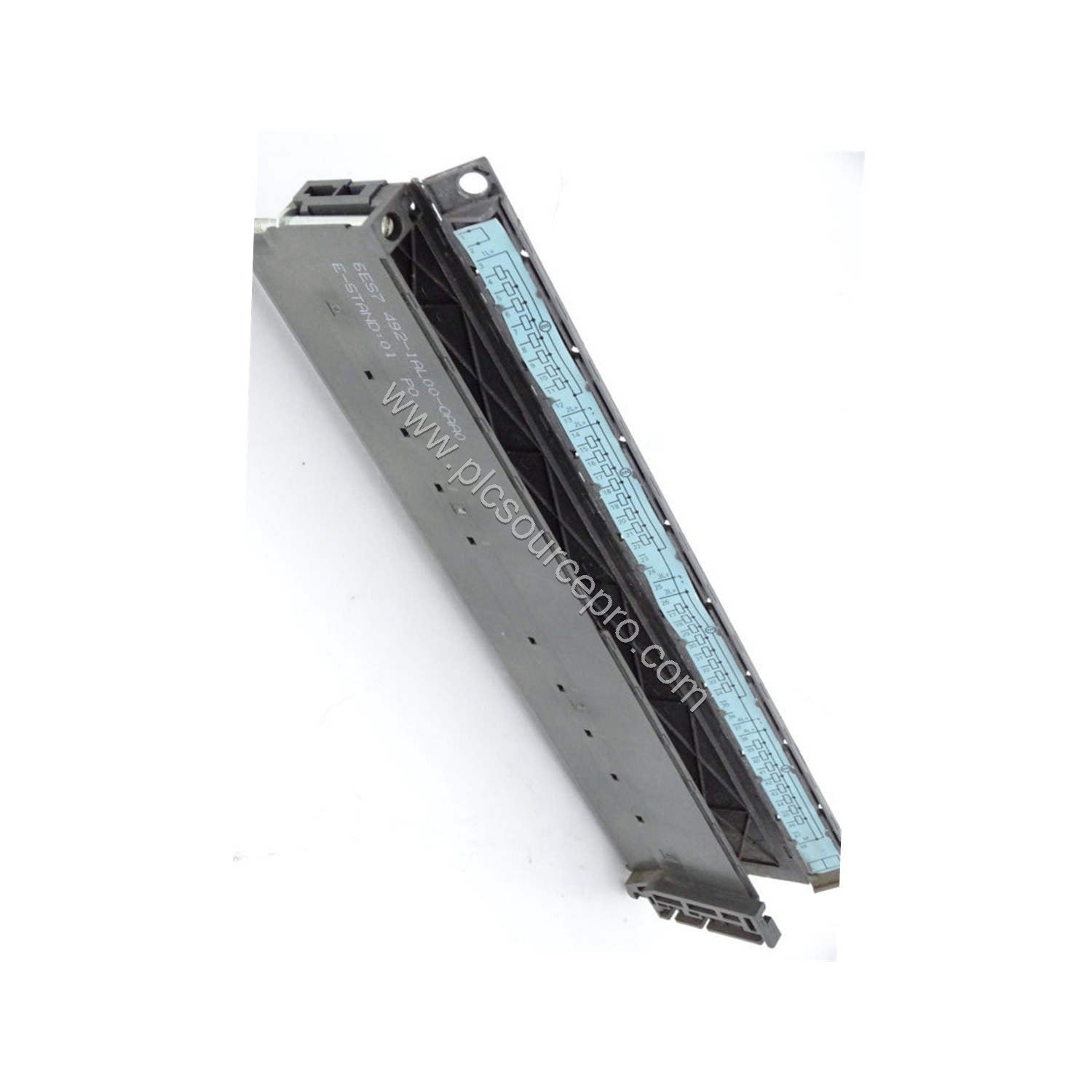

The Siemens 6ES7492-1AL00-0AA0 is a front connector designed for use with S7-400 series I/O modules. This 48-pin connector ensures secure and reliable electrical connections for analog and digital signals. As part of the Siemens SIMATIC family, the 6ES7492-1AL00-0AA0 is an essential component for building and maintaining robust industrial automation systems. Whether you are replacing a worn connector or upgrading an existing panel, this front connector provides a direct fit and consistent performance.
Installation and Setup Guidance
Installing the Siemens 6ES7492-1AL00-0AA0 front connector is straightforward. First, ensure the S7-400 module is powered off. Align the connector with the module's terminal block and press firmly until it clicks into place. Use a screwdriver to tighten the clamping screws to secure the wires. For proper strain relief, route cables through the designated channels. Always verify that the connector is fully seated before applying power.
Compatibility and Integration
The 6ES7492-1AL00-0AA0 is compatible with a wide range of Siemens S7-400 analog and digital I/O modules that require a 48-pin front connector. This includes modules such as the 6ES7 331-7KF02-0AB0 and 6ES7 332-5HF00-0AB0. It integrates seamlessly into existing S7-400 racks and is suitable for new installations as well as field replacements. When updating older systems, the 6ES7492-1AL00-0AA0 ensures backward compatibility with earlier S7-400 series components.
Troubleshooting and Common Issues
Common problems with front connectors include loose wiring, bent pins, or incorrect insertion. If you experience intermittent signals or module faults, inspect the Siemens 6ES7492-1AL00-0AA0 for damaged pins or corrosion. Ensure all wires are properly stripped and tightened. For persistent issues, consider replacing the connector, as repeated removal cycles can weaken the gripping mechanism. The 6ES7492-1AL00-0AA0 is designed for durability but should be handled carefully to avoid pin damage.
Selection Guide and Purchasing Advice
Before purchasing the Siemens 6ES7492-1AL00-0AA0, verify the required pin count and module compatibility. This model is specifically for 48-pin applications; do not confuse it with 20-pin or other variants. For bulk orders or urgent replacements, contact PLC Source PRO for availability. As a trusted supplier, ubest101 ensures genuine Siemens components for your automation needs. Always check the product label for authenticity and store connectors in a static-safe environment.
