Product Overview

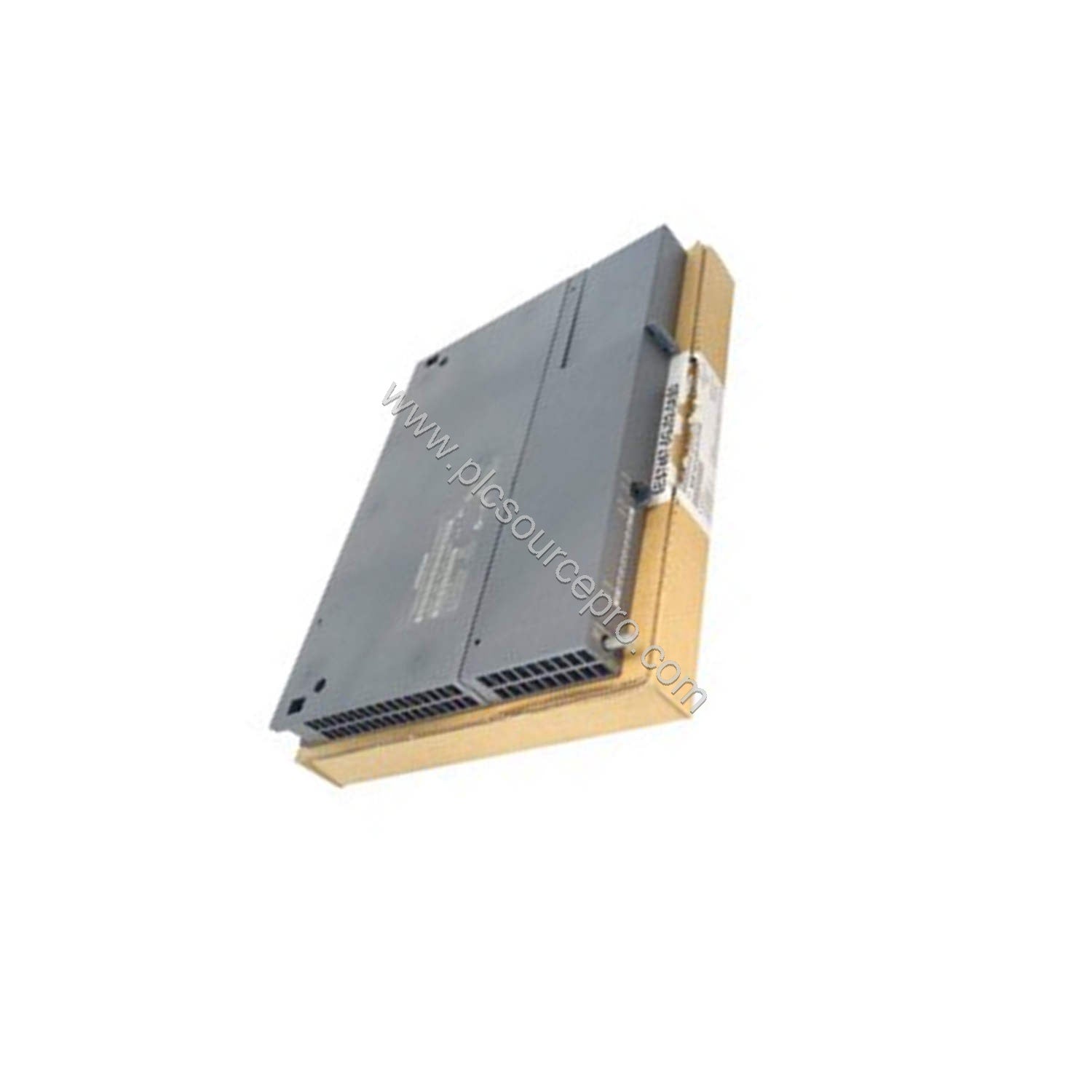

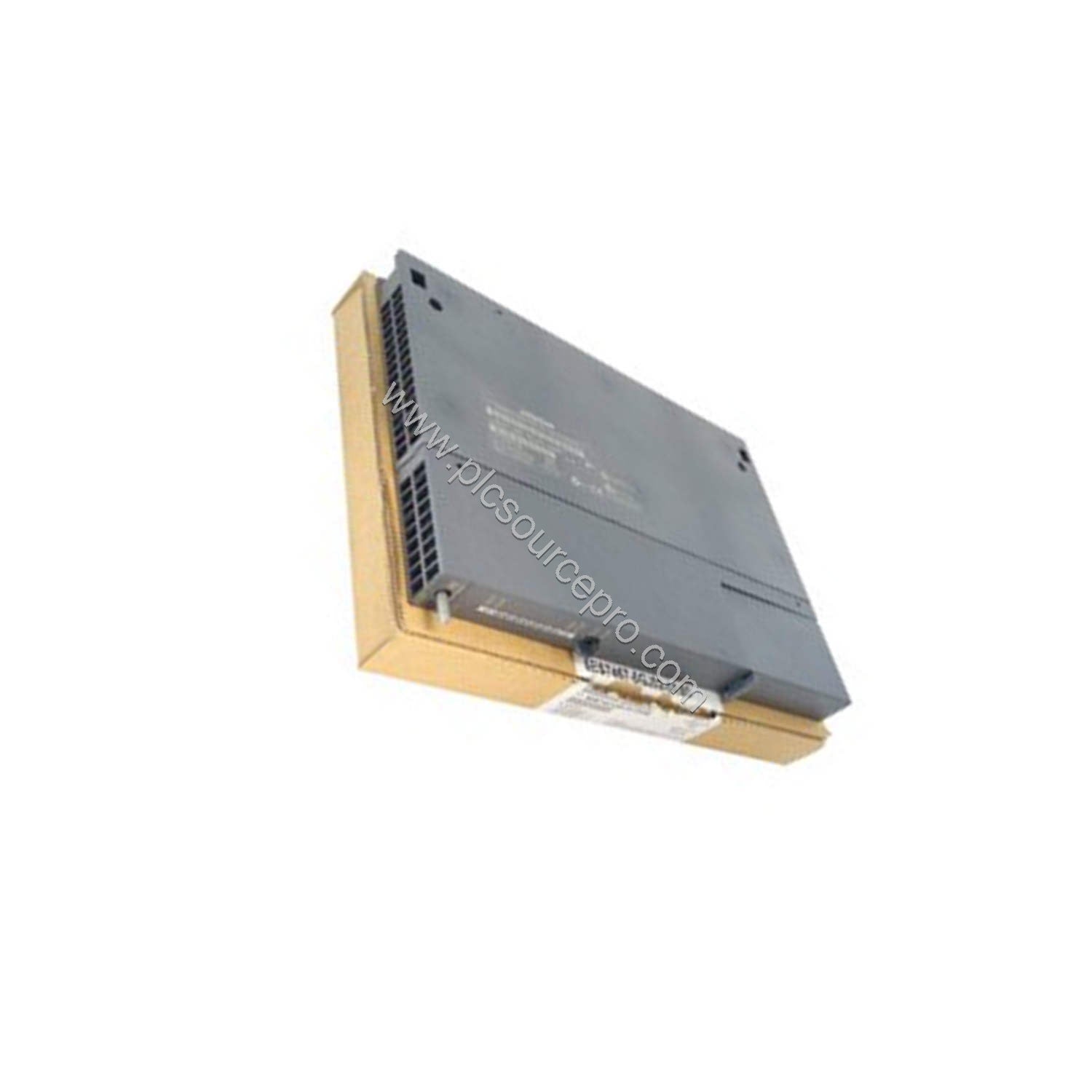

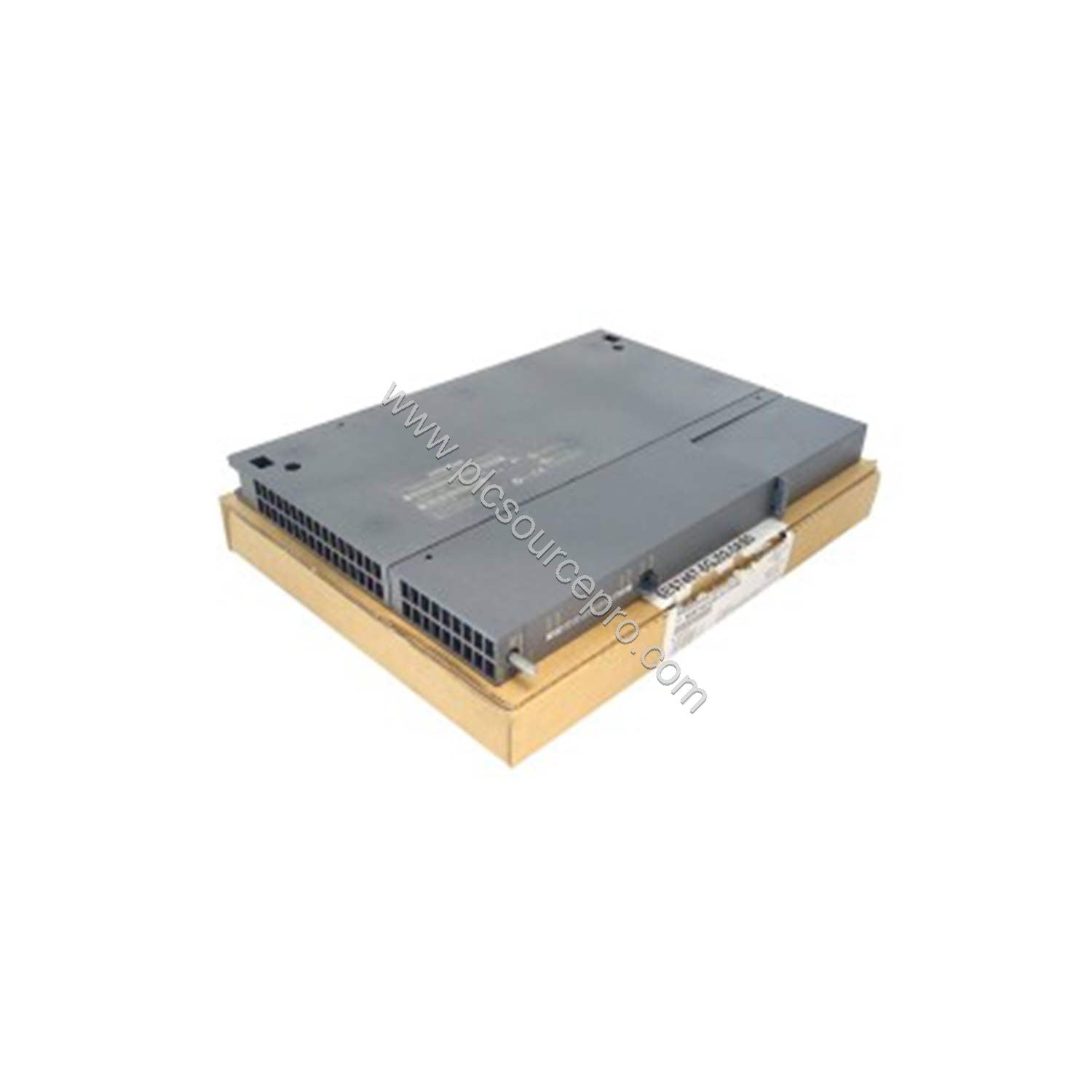

The Siemens 6ES7467-5GJ02-0AB0 Industrial Automation Module is a PROFIBUS DP master interface designed for the SIMATIC S7-400 system. It replaces older interface modules or upgrades existing PROFIBUS networks. With support for up to 96 DP slaves and transmission rates up to 12 Mbit/s, this module ensures reliable communication in demanding industrial environments.
Technical Specifications
| Parameter |
Value |
| Supply Voltage (5 V DC) |
Yes, ±5% |
| Supply Voltage (24 V DC) |
Yes, ±5% |
| Input Current from Backplane Bus 5 V DC |
Max. 1300 mA |
| Interface Type |
9-pin Sub D Socket, RS485 |
| Transmission Rate |
Max. 12 Mbit/s |
| Number of DP Slaves |
Max. 96 |
| Operating Temperature |
0 °C to 60 °C |
| Dimensions (W x H x D) |
25 mm x 290 mm x 210 mm |
| Weight |
Approx. 700 g |
Applications & Use Cases
Ideal for upgrading existing S7-400 based distributed control systems, the Siemens 6ES7467-5GJ02-0AB0 connects field devices per PROFIBUS DP standard. Use in manufacturing lines, process plants, and material handling where high-speed data exchange and multiple slave connections are required.
Installation & Setup
Mount the Siemens 6ES7467-5GJ02-0AB0 module in a S7-400 rack. Connect the 9-pin sub D socket to the PROFIBUS DP network. Ensure proper termination and bus configuration. The module draws up to 1300 mA from the 5 V backplane bus.
Compatibility & Integration
The Siemens 6ES7467-5GJ02-0AB0 is compatible with SIMATIC S7-400 CPUs. It supports equidistance and direct data exchange. Use with PROFIBUS DP field devices for seamless integration.
Selection Guide
When replacing an existing interface, verify CPU type and number of modules per CPU (max 10). For reliable sourcing, contact ubest101 for genuine Siemens 6ES7467-5GJ02-0AB0 modules.
