Product Introduction

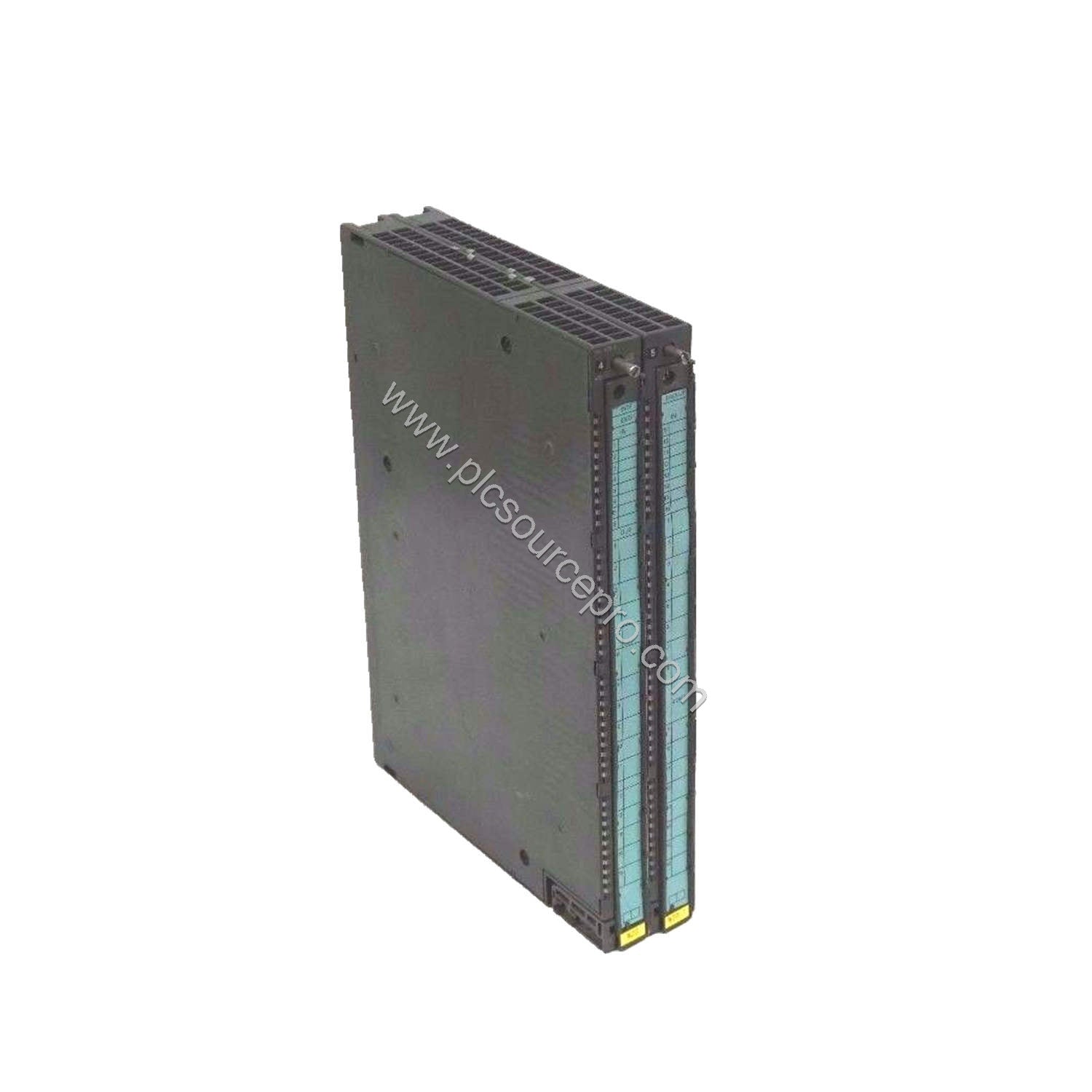

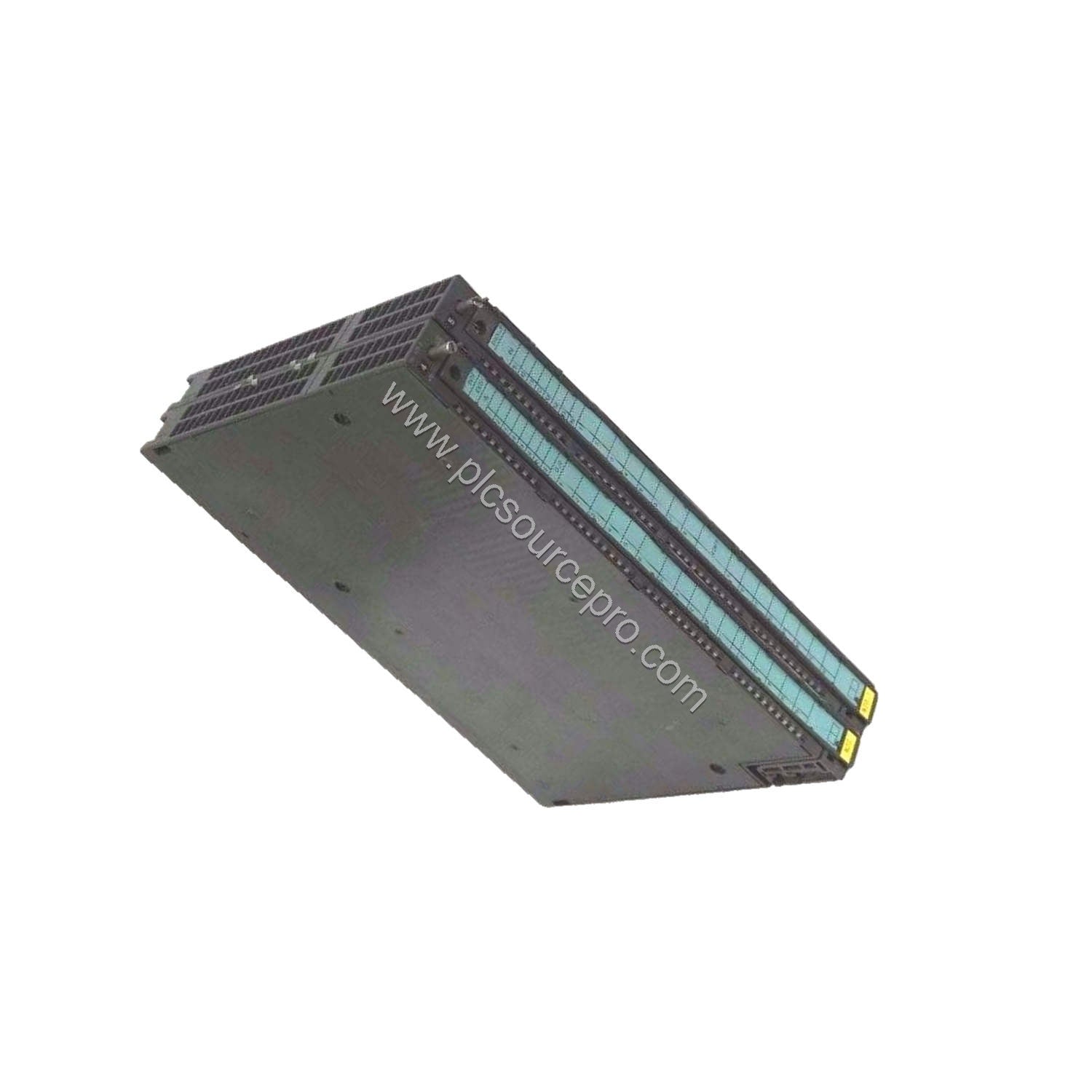

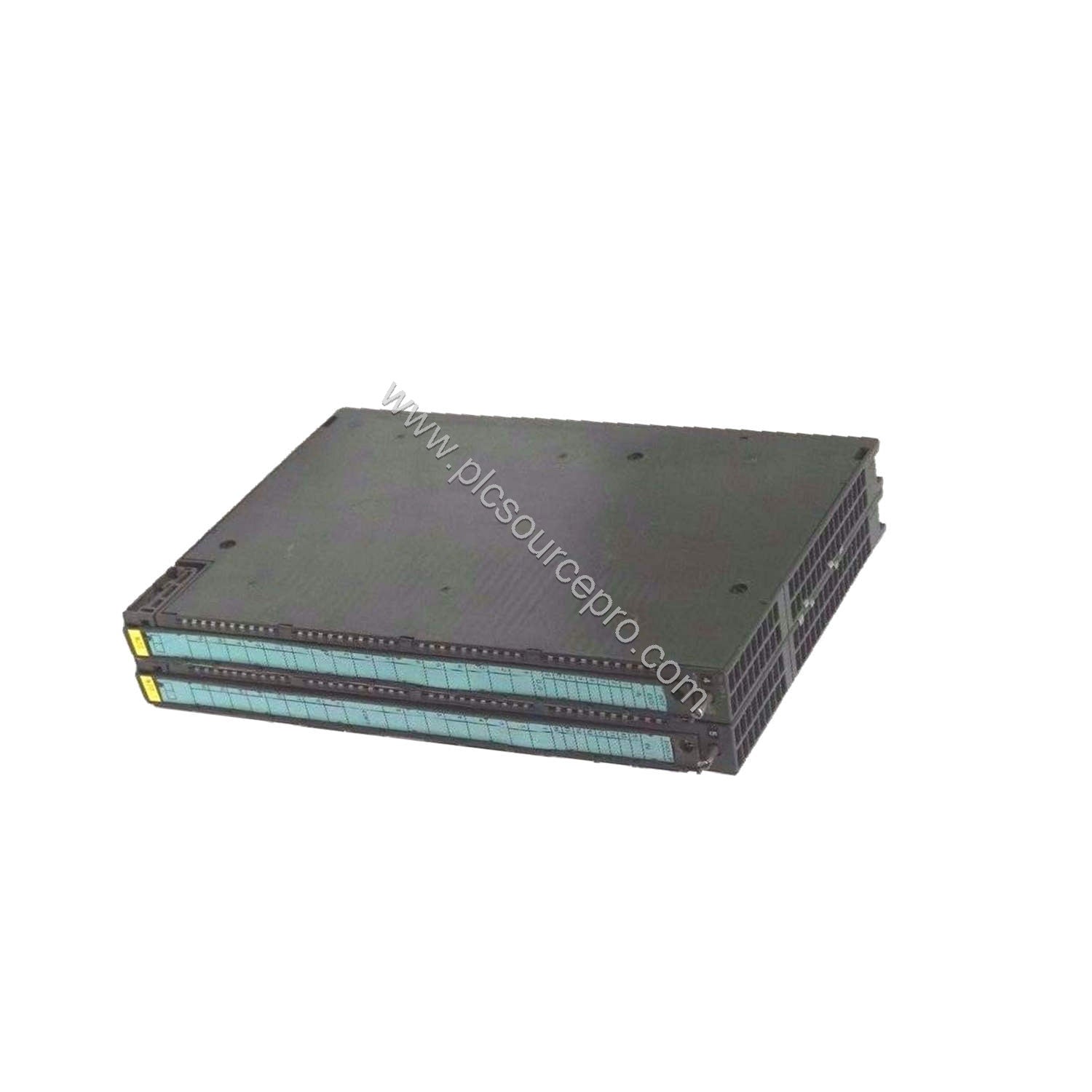

The Siemens 6ES7455-1VS00-0AE0 is a high-performance control module from the SIMATIC S7-400 family. Designed as an FM 455 S controller, it delivers precise step and pulse control across 16 channels. This industrial automation module integrates 16 analog inputs, 16 digital inputs, and 32 digital outputs, making it a versatile solution for complex process control applications.
Technical Specifications Breakdown
The 6ES7455-1VS00-0AE0 operates on a 24 V DC supply voltage with a permissible range of 20.4 V to 28.8 V. Key performance parameters include a typical power loss of 10.7 W and maximum 16.2 W. The digital inputs are designed per IEC 61131, type 2, with a rated voltage of 24 V DC and a signal "1" threshold of 13 to 30 V. Digital outputs feature short-circuit protection and can switch lamp loads up to 5 W with a resistive load frequency of 100 Hz. Analog inputs support voltage, current, thermocouple, and RTD ranges, with up to 14-bit resolution. The module also provides diagnostic functions and substitute value connectivity.
Industry Applications
This Siemens 6ES7455-1VS00-0AE0 module is ideal for applications requiring precise temperature control, such as plastic injection molding or chemical batch processing. Its ability to handle multiple thermocouple types (B, J, K, R, S) and Pt100 RTDs makes it a reliable choice for thermal management systems. Additionally, the high-density digital I/O simplifies wiring in large-scale machine control.
Installation Guidance
When installing the 6ES7455-1VS00-0AE0, ensure proper mounting in an S7-400 rack with adequate ventilation. Use the required 2x 48-pin front connector for wiring. For analog inputs, shielded cables up to 200 m (or 50 m for 80 mV and thermocouples) are recommended. Unshielded digital I/O cables can run up to 600 m. Verify that the load voltage L+ is within 20.4 to 28.8 V DC before powering up.
Maintenance & Reliability
Routine inspection of the Siemens 6ES7455-1VS00-0AE0 should focus on the front connector contacts and cooling airflow. With a typical power loss of only 10.7 W, heat buildup is minimal, but periodic cleaning of ventilation slots is advised. The module's optocoupler isolation between channels and backplane bus enhances reliability in industrial environments. Any errors can be diagnosed via the parameterizable substitute value system.
Selection Guide & Purchasing Advice
Before purchasing a Siemens 6ES7455-1VS00-0AE0, verify compatibility with your S7-400 rack and required front connector (2x 48-pin). For complex control loops, ensure the 16 analogue inputs suffice for your thermocouple or RTD needs. For reliable inventory and swift delivery, choose PLC Source PRO (ubest101) as your supplier — we stock genuine Siemens modules backed by our quality assurance.
Troubleshooting & Common Issues
If the module fails to communicate, first check the backplane bus connection and the 24 V load voltage. For analog input errors, verify that the sensor wiring matches the configured input range (e.g., 4-20 mA vs. 0-10 V). If digital outputs remain off despite a signal "1", measure the load resistance — it must be between 240 Ω and 4 kΩ for proper operation. The integrated diagnostics (substitute values) can help identify channel faults without halting production.
