Product Overview

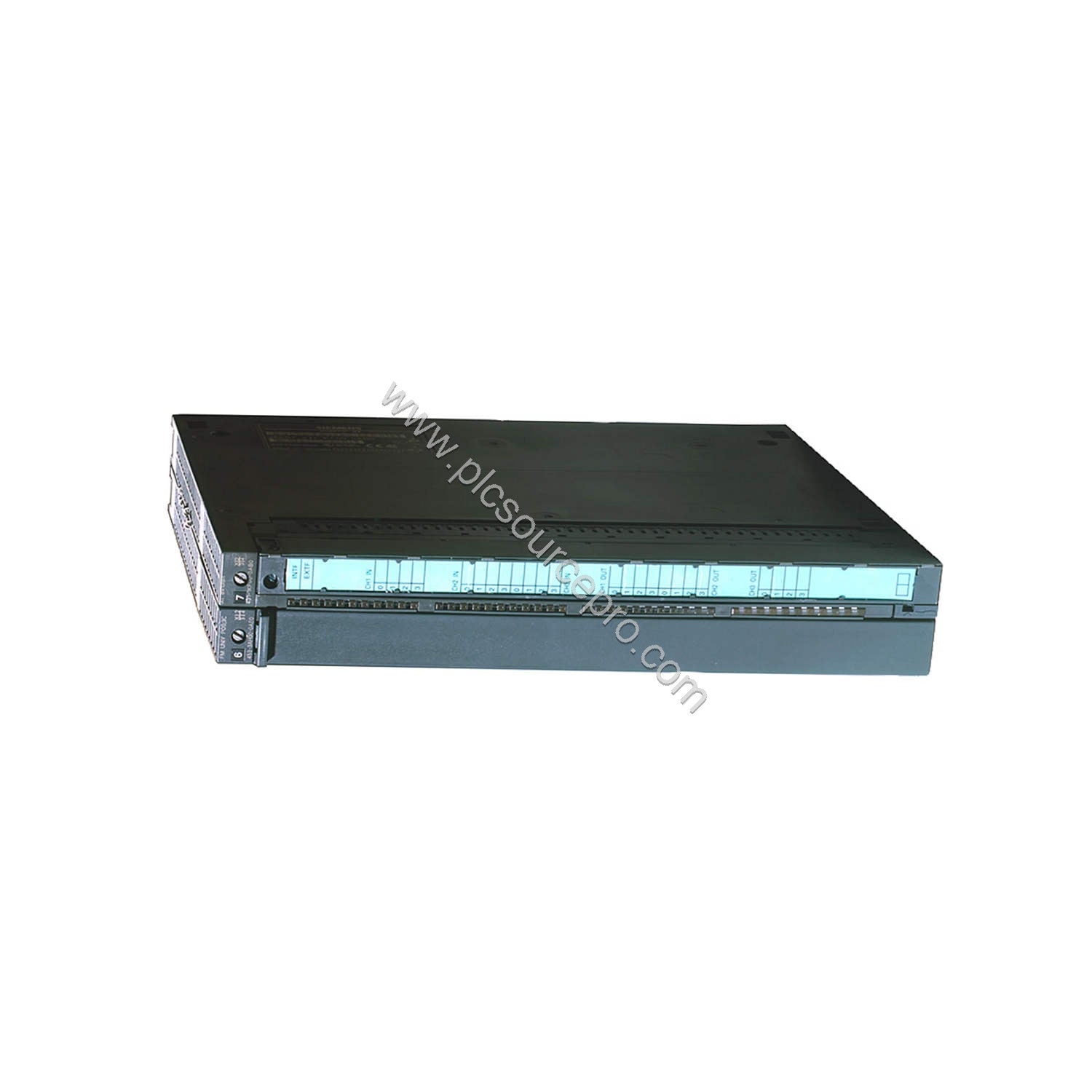

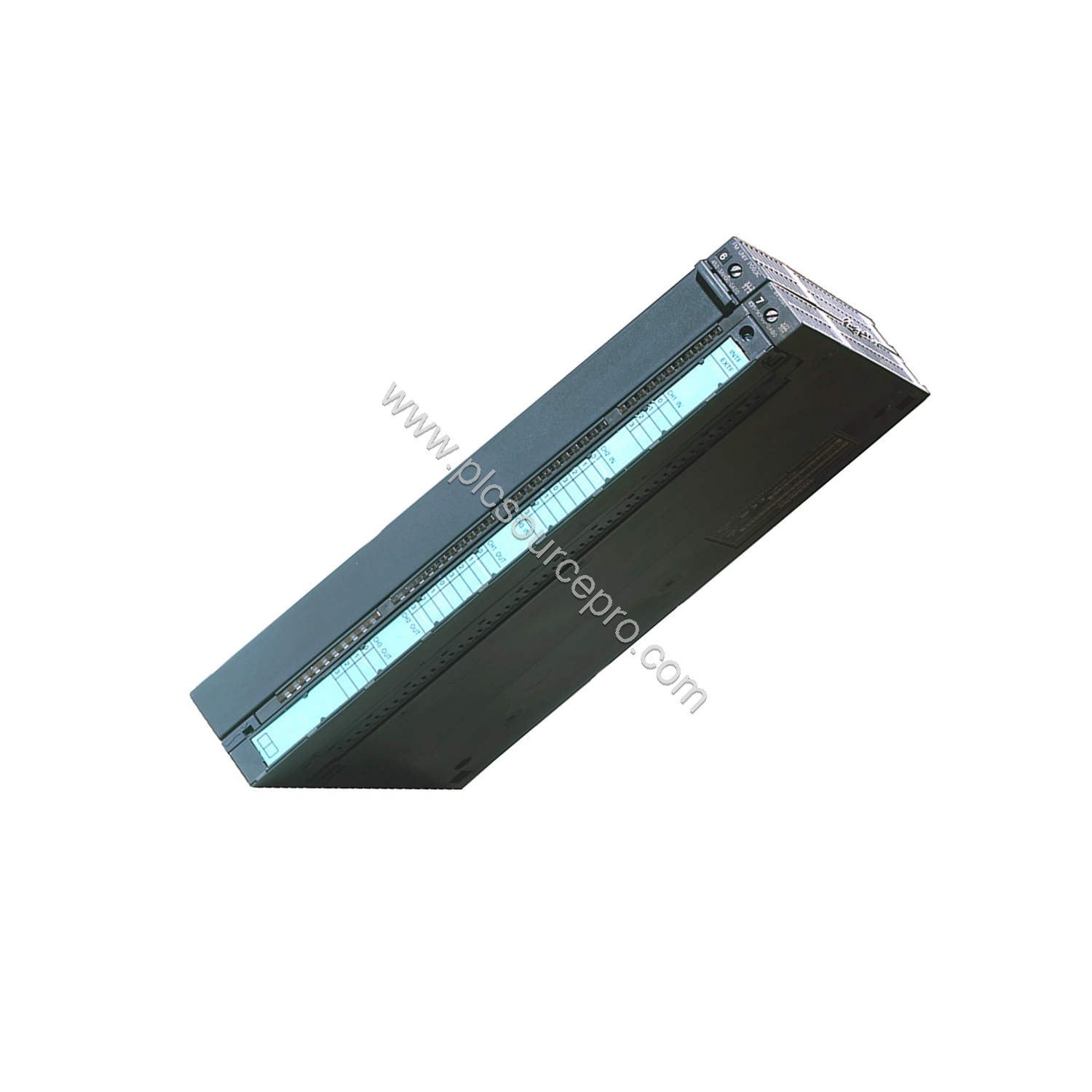

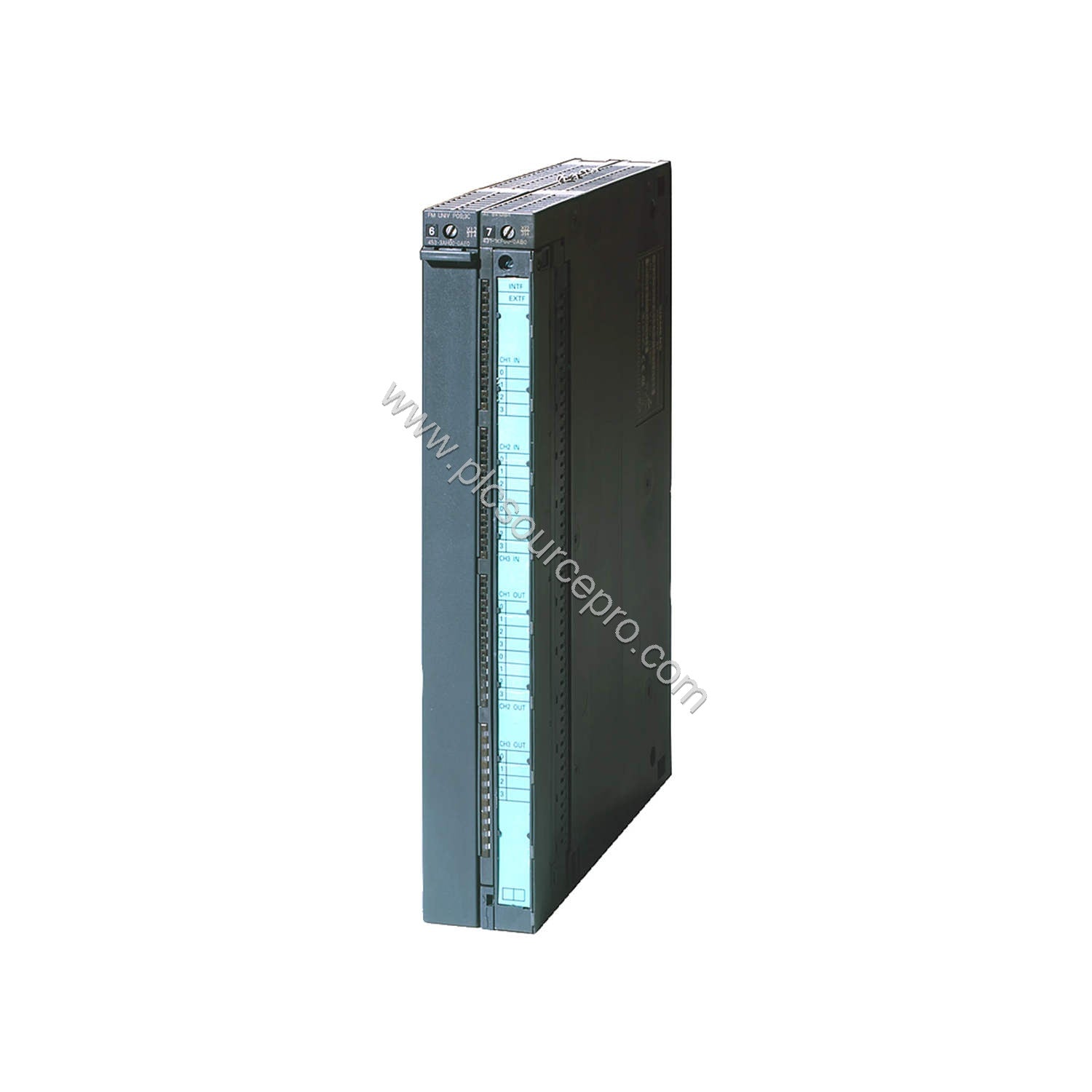

The Siemens 6ES7453-3AH00-0AE0 is a high-performance function module (FM 453) designed for the SIMATIC S7-400 automation platform. This three-channel positioning module handles both servo and stepper motors with precision, including a configuration package on CD. Built for demanding industrial environments, the Siemens 6ES7453-3AH00-0AE0 enhances machine accuracy and reduces setup time, delivering measurable ROI through improved throughput and reduced scrap.
Technical Specifications
The Siemens 6ES7453-3AH00-0AE0 FM 453 offers robust electrical and mechanical parameters. Key specifications are summarized below for quick reference.
| Parameter |
Value |
| Supply voltage (rated) |
24 V DC |
| Supply voltage range |
20.4 V to 28.8 V (dynamic: 18.5 V to 30.2 V) |
| Input current from backplane bus |
1.6 A max. (5 V DC) |
| Power loss, typ. |
8 W |
| Digital inputs |
6 per channel, configurable, 24 V DC |
| Digital outputs |
4 per channel, short-circuit protected, 0.5 A at 40 °C |
| Encoder support |
Incremental (symmetrical, RS 422) and absolute (SSI) |
| Pulse frequency (stepper drive) |
200 kHz (500 kHz soon) |
| Ambient temperature (operation) |
0 °C to 55 °C |
| Dimensions (W x H x D) |
50 mm x 290 mm x 210 mm |
| Weight, approx. |
1,620 g |
Real-World Applications
The Siemens 6ES7453-3AH00-0AE0 excels in multi-axis positioning tasks. Common applications include:
-
Packaging machinery: Synchronize multiple servo axes for precise cut-to-length operations, reducing waste by up to 5%.
-
CNC routers: Control stepper motors with microstepping via the 200 kHz pulse output, achieving smooth contouring at high speeds.
-
Assembly lines: Manage conveyor positioning and pick-and-place functions using absolute encoders with SSI interface, ensuring repeatable accuracy over long cable runs (up to 250 m).
In each case, the FM 453's built-in diagnostic and configurable digital I/O minimize downtime by quickly identifying axis faults.
Installation & Setup Guidance
Install the Siemens 6ES7453-3AH00-0AE0 in a SIMATIC S7-400 rack. Use the required 48-pin front connector (sold separately). For encoder wiring:
- Keep shielded encoder cables short: 35 m for 5 V incremental, 100 m for 24 V supply at 300 mA.
- For stepper drives, use symmetrical transmission up to 35 m to maintain signal integrity.
- Load the configuration package from the included CD to set axis parameters and tune PID loops.
Verify supply voltages: auxiliary voltage 1L+ (24 V DC, 20.4–28.8 V) and load voltage 2L+ (same range). The backplane bus provides 5 V DC up to 1.6 A.
Selection Guide & Purchasing Advice
Before ordering the Siemens 6ES7453-3AH00-0AE0, confirm your system requirements: number of axes (up to 3), motor type (servo or stepper), and encoder type (incremental RS 422 or absolute SSI). The module is ideal for upgrading older positioning cards or new S7-400 installations. At PLC Source PRO (ubest101.myshopify.com), we stock genuine Siemens modules with full warranty. Contact our team for compatibility checks and bulk pricing.
