Product Overview

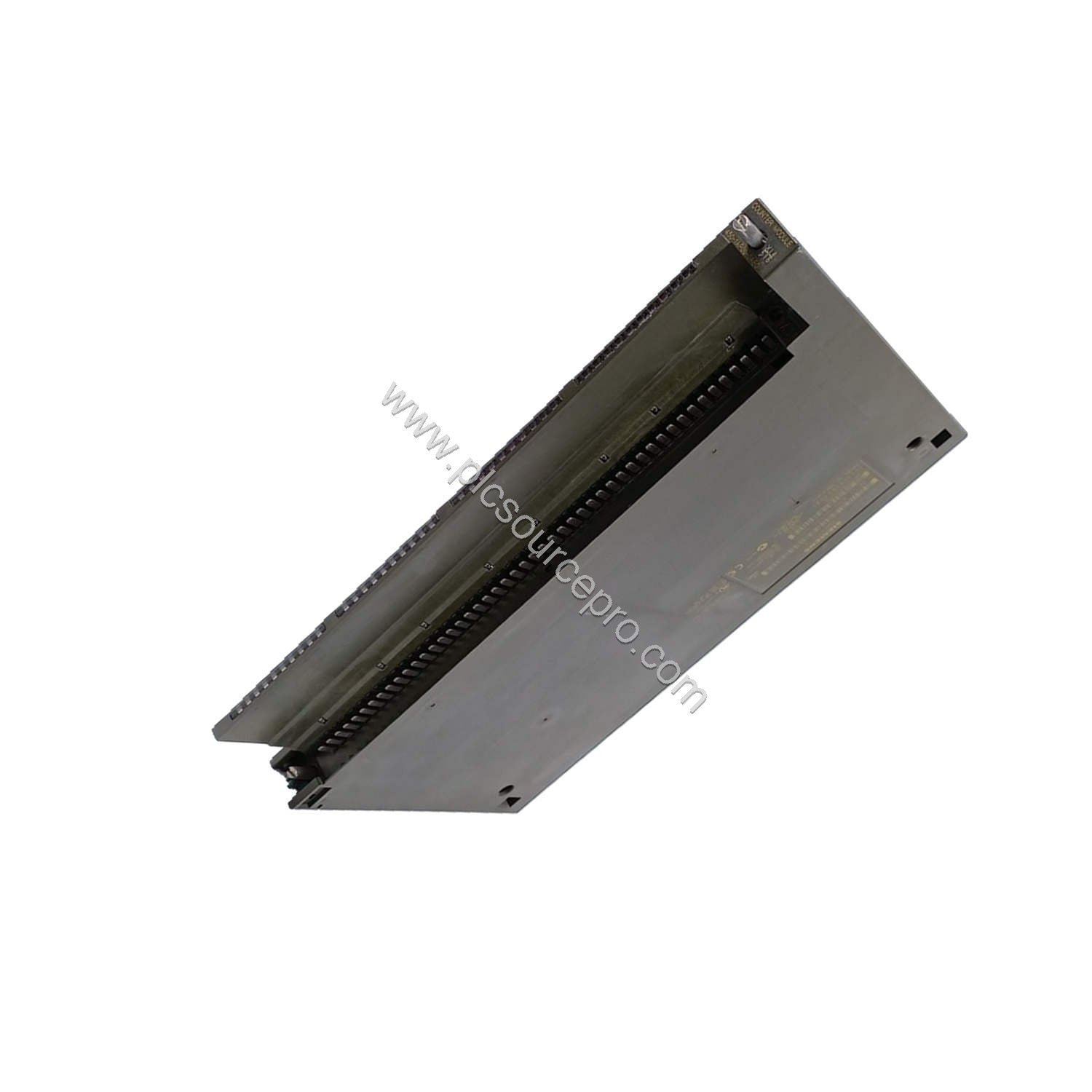

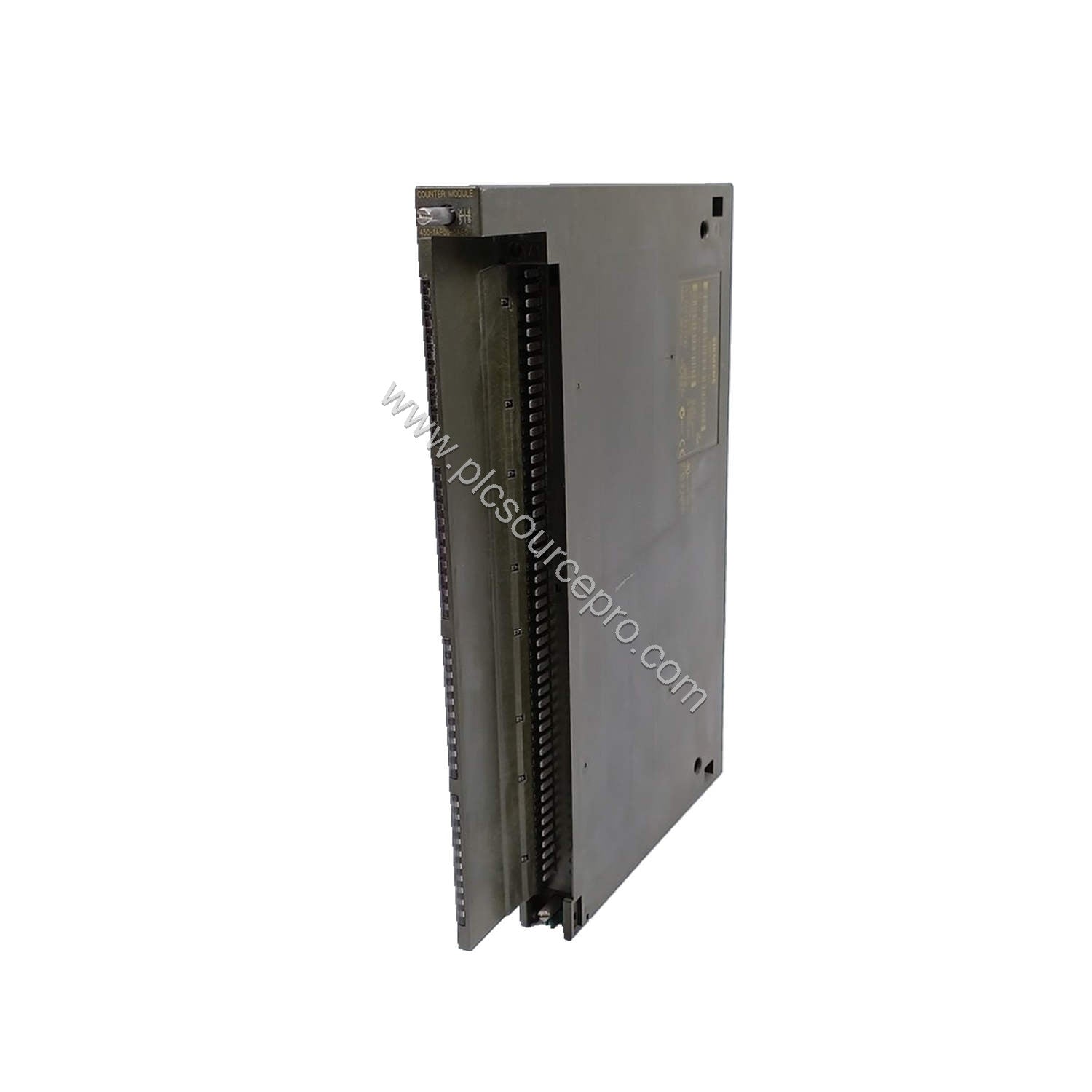

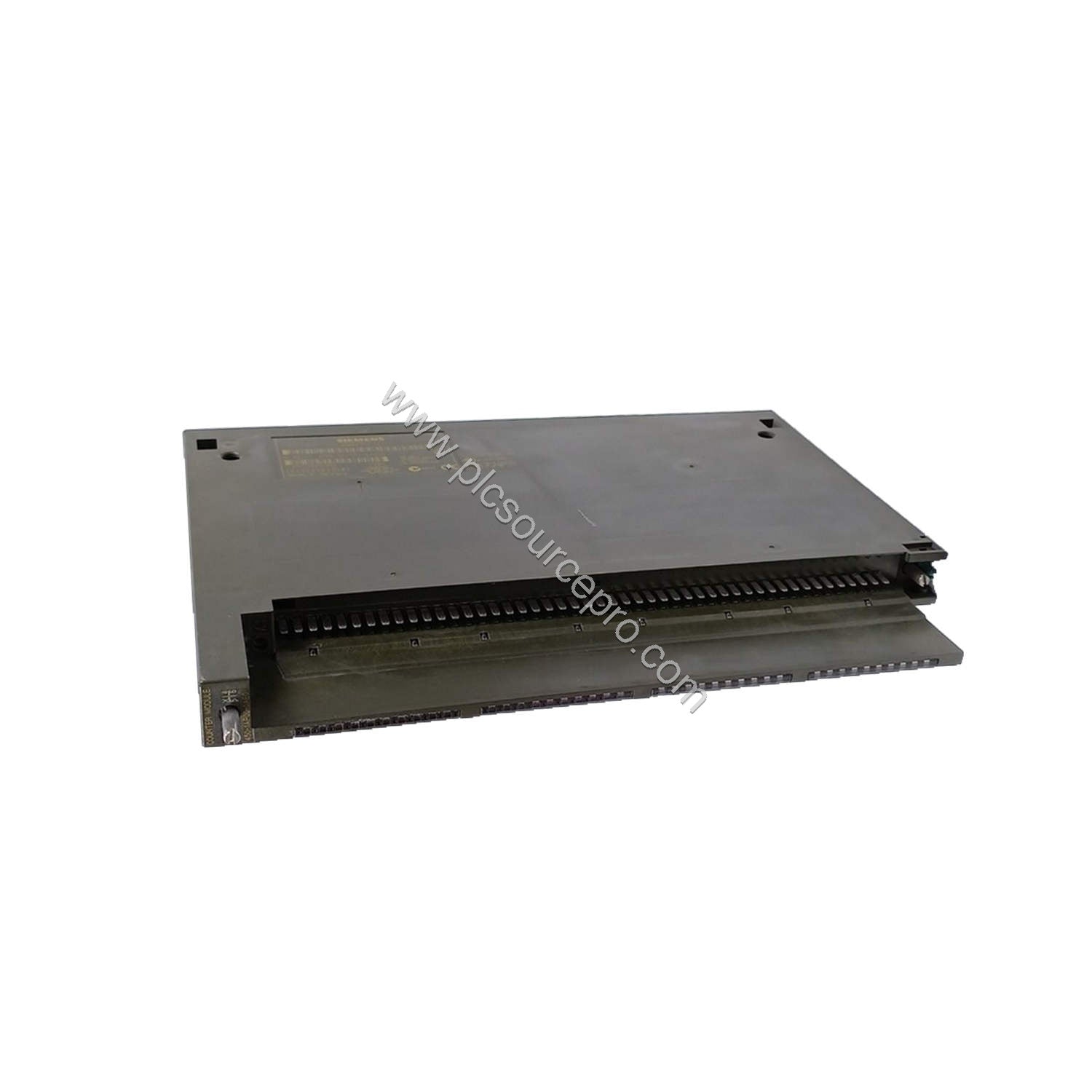

When unexpected downtime stops your production line, the Siemens 6ES7450-1AP00-0AE0 SIMATIC S7-400 FM 450-1 Function Module delivers reliable counting functionality with advanced diagnostics to minimize disruptions. This module features two counter channels, digital inputs and outputs, and comprehensive status indicators for proactive maintenance. Designed for the S7-400 platform, it supports high-speed counting up to 500 kHz on 5V RS-422 encoders and 200 kHz on 24V inputs.
Technical Specifications
| Parameter |
Value |
| Supply voltage (rated) |
24 V DC |
| Power loss (typical) |
9 W |
| Digital inputs |
6 (3 for function control) |
| Digital outputs |
4 (0.5 A each) |
| Counter inputs |
2 (32-bit or ±31-bit) |
| Maximum counting frequency (5 V) |
500 kHz |
| Maximum counting frequency (24 V) |
200 kHz |
| Encoder supply |
5 V (300 mA) and 24 V (300 mA) |
| Diagnostic functions |
Yes (alarms, status LEDs) |
| Potential separation |
Optocoupler for inputs, outputs, counter |
| Dimensions (WxHxD) |
25 x 290 x 210 mm |
Industry Applications
The Siemens 6ES7450-1AP00-0AE0 excels in high-speed counting and positioning applications. In packaging lines, it tracks product flow with precise gate control. In material handling, it monitors conveyor speed and direction. The module's diagnostic alarms and hardware interrupts enable early detection of encoder faults or wiring issues, reducing unplanned downtime.
Installation & Setup Guidance
Mount the Siemens 6ES7450-1AP00-0AE0 in a standard S7-400 rack. Use a 48-pin front connector (required) for all field wiring. Ensure supply voltage is within 20.4 to 28.8 V DC (dynamic range 18.5-30.2 V). For encoder connections, use shielded cables to minimize noise. The module automatically detects reverse polarity on load voltage inputs.
Selection Guide & Purchasing Advice
Before ordering, verify compatibility with your S7-400 CPU and backplane bus power capacity. The module draws up to 450 mA from the backplane 5 V bus. Purchase genuine Siemens 6ES7450-1AP00-0AE0 modules from a trusted supplier like PLC Source PRO to ensure authentic parts and reliable performance.
Troubleshooting & Common Issues
The Siemens 6ES7450-1AP00-0AE0 includes 14 green LEDs for status of CR, DIR, inputs, and outputs, plus two red LEDs for internal and external errors. If counting errors occur, check encoder wiring and supply voltage. Parameterizable diagnostic alarms can alert operators to faults. Ensure the input delay settings match your encoder frequency (e.g., ≥2.5 µs for 200 kHz).
