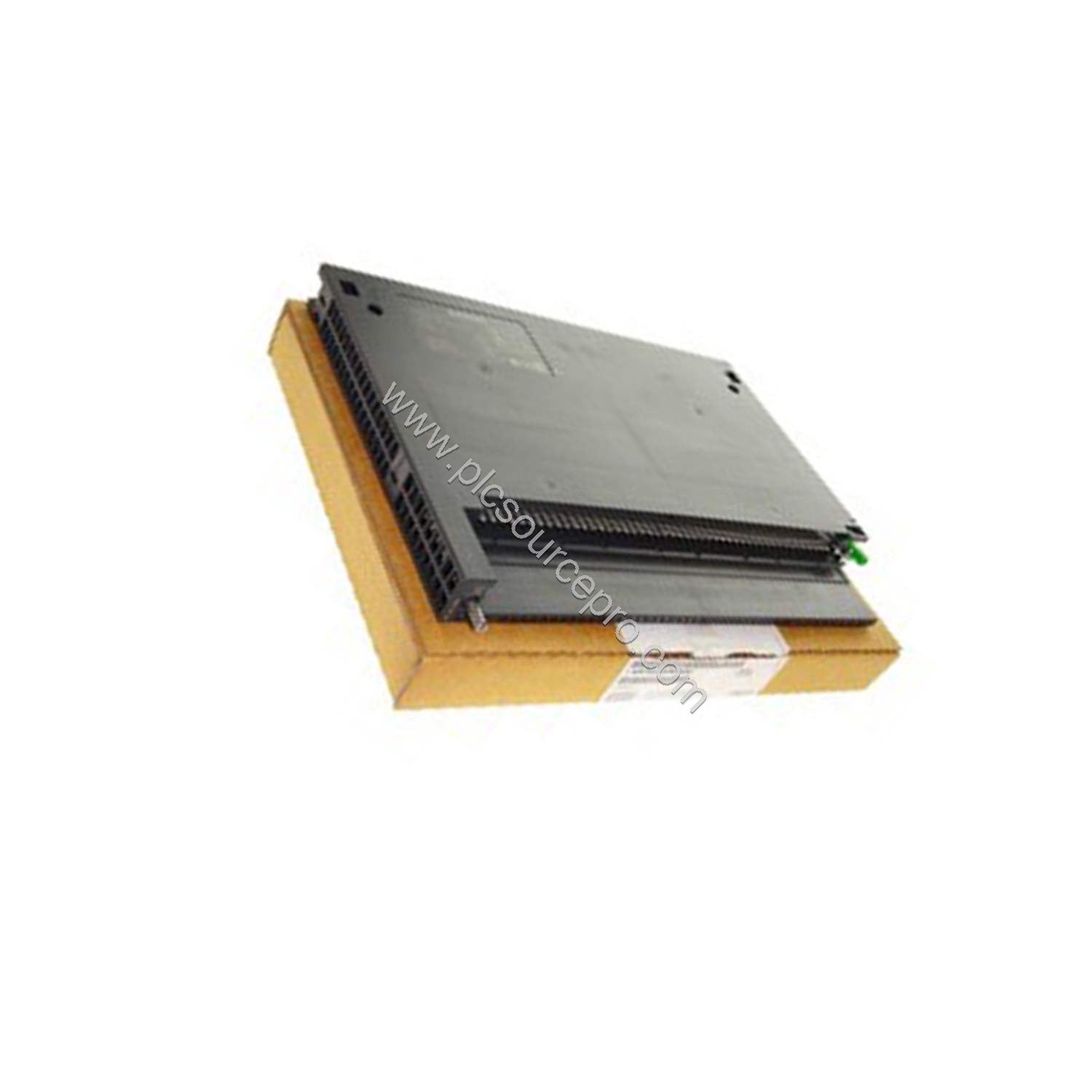

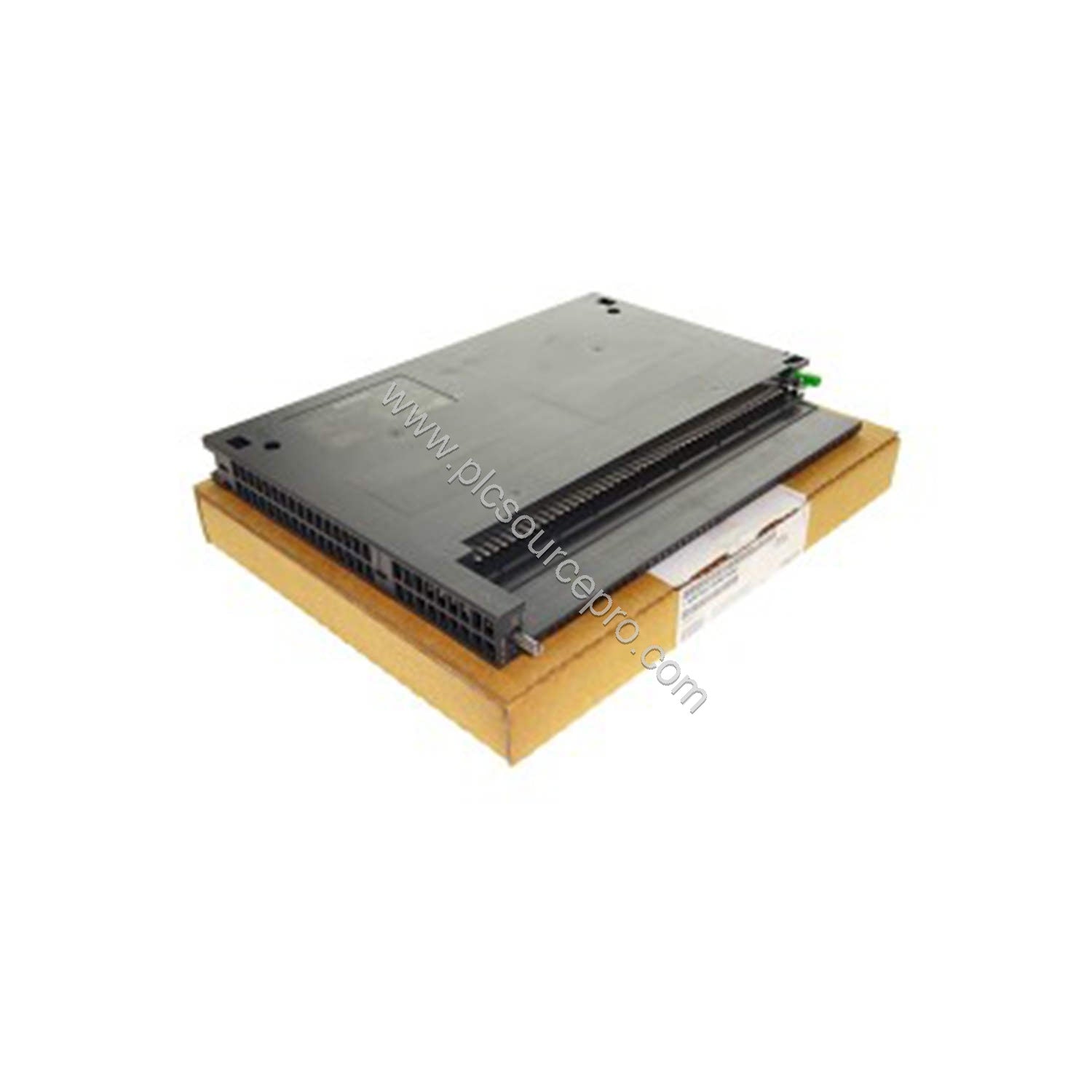

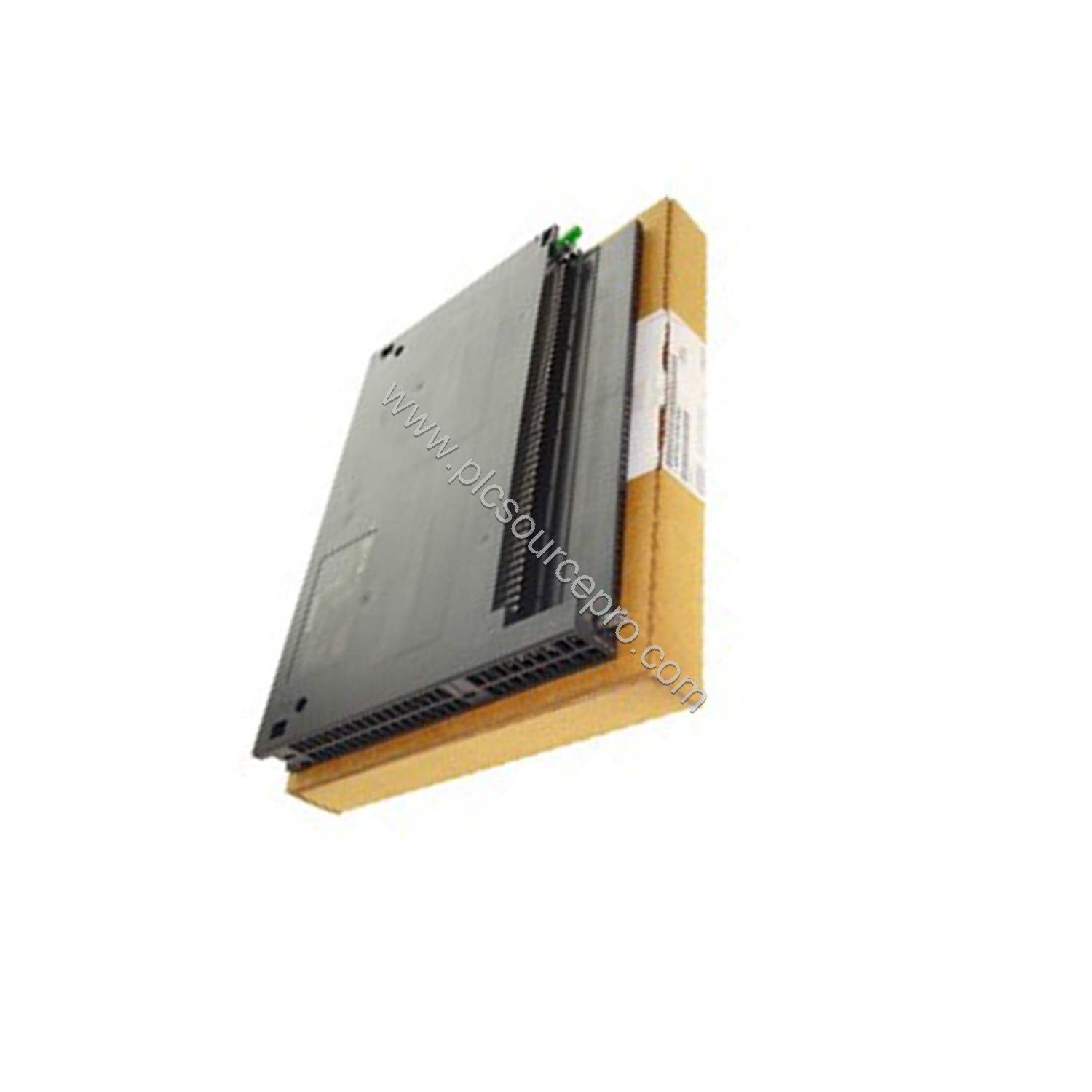

Product Overview: Siemens 6ES7432-1HF00-0AB0 Analog Output SM 432
The Siemens 6ES7432-1HF00-0AB0 Analog Output SM 432 module is a high‑performance component for SIMATIC S7‑400 systems. Designed as a replacement or upgrade for existing analog output modules, the 6ES7432-1HF00-0AB0 delivers 8 isolated channels with 13‑bit resolution, supporting both voltage and current outputs. This module enhances system accuracy and reliability while simplifying wiring and maintenance.
Technical Specifications
Below are the key parameters of the Siemens 6ES7432-1HF00-0AB0 as verified from the product datasheet.
| Parameter |
Value |
| Supply voltage (rated) |
24 V DC |
| Reverse polarity protection |
Yes |
| Input current from L+ (max., without load) |
200 mA |
| Input current from L+ (rated load) |
400 mA |
| Backplane bus current (5 V DC) |
150 mA |
| Power loss (typ.) |
9 W |
| Number of analog outputs |
8 |
| Resolution (with overrange) |
13 bit |
| Voltage output short-circuit protection |
Yes |
| Short-circuit current (max.) |
30 mA |
| No‑load voltage (current output) |
19 V |
| Voltage output ranges |
0…10 V, 1…5 V, -10…+10 V |
| Current output ranges |
0…20 mA, -20…+20 mA, 4…20 mA |
| Load impedance (voltage outputs, min.) |
1 kΩ |
| Load impedance (current outputs, max.) |
500 Ω |
| Shielded cable length (max.) |
200 m |
| Conversion time per channel |
420 µs (1…5 V / 4…20 mA); 300 µs (other ranges) |
| Settling time (resistive load) |
0.1 ms |
| Settling time (capacitive load) |
3.5 ms |
| Settling time (inductive load) |
0.5 ms |
| Operational error limit (voltage, overall temp.) |
±0.5 % |
| Operational error limit (current, overall temp.) |
±1 % |
| Basic error limit (25 °C, voltage) |
±0.5 % |
| Basic error limit (25 °C, current) |
±0.5 % |
| Diagnostics function |
No |
| Isolation tested |
2120 V DC between bus and L+/M |
| Dimensions (W x H x D) |
25 x 290 x 210 mm |
| Weight (approx.) |
650 g |
Industry Applications
The Siemens 6ES7432-1HF00-0AB0 excels in process control, building automation, and manufacturing lines requiring precise analog control. Its 8 isolated outputs allow direct connection to actuators, valves, and transducers without additional signal conditioners. For example, in a chemical plant upgrading from a legacy 4‑channel module, the 6ES7432-1HF00-0AB0 reduces cabinet space by 50% while providing identical isolation. In water treatment facilities, the 13‑bit resolution ensures accurate dosing control across 0…20 mA loops.
Installation & Setup Guidance
When replacing an older analog output module with the Siemens 6ES7432-1HF00-0AB0, begin by powering down the S7‑400 rack. Insert the module into a free slot on the backplane bus, ensuring proper keying. Connect the load voltage L+ (24 V DC) to the terminal block, observing polarity. For voltage outputs, use shielded twisted‑pair cable up to 200 m; for current outputs, ensure the load impedance does not exceed 500 Ω. Set the output range via hardware configuration in STEP 7. After power‑up, verify the green LED indicators. No additional software drivers are required beyond the standard S7‑400 library.
Selection Guide & Purchasing Advice
Before ordering the Siemens 6ES7432-1HF00-0AB0, confirm that your S7‑400 rack has an available slot and sufficient backplane bus power (150 mA at 5 V DC). This module is a direct replacement for many 8‑channel analog output modules and offers improved settling times. For quantity discounts or expedited delivery, contact PLC Source PRO – your trusted industrial automation supplier. The 6ES7432-1HF00-0AB0 is available from stock at ubest101.myshopify.com.
