Product Introduction

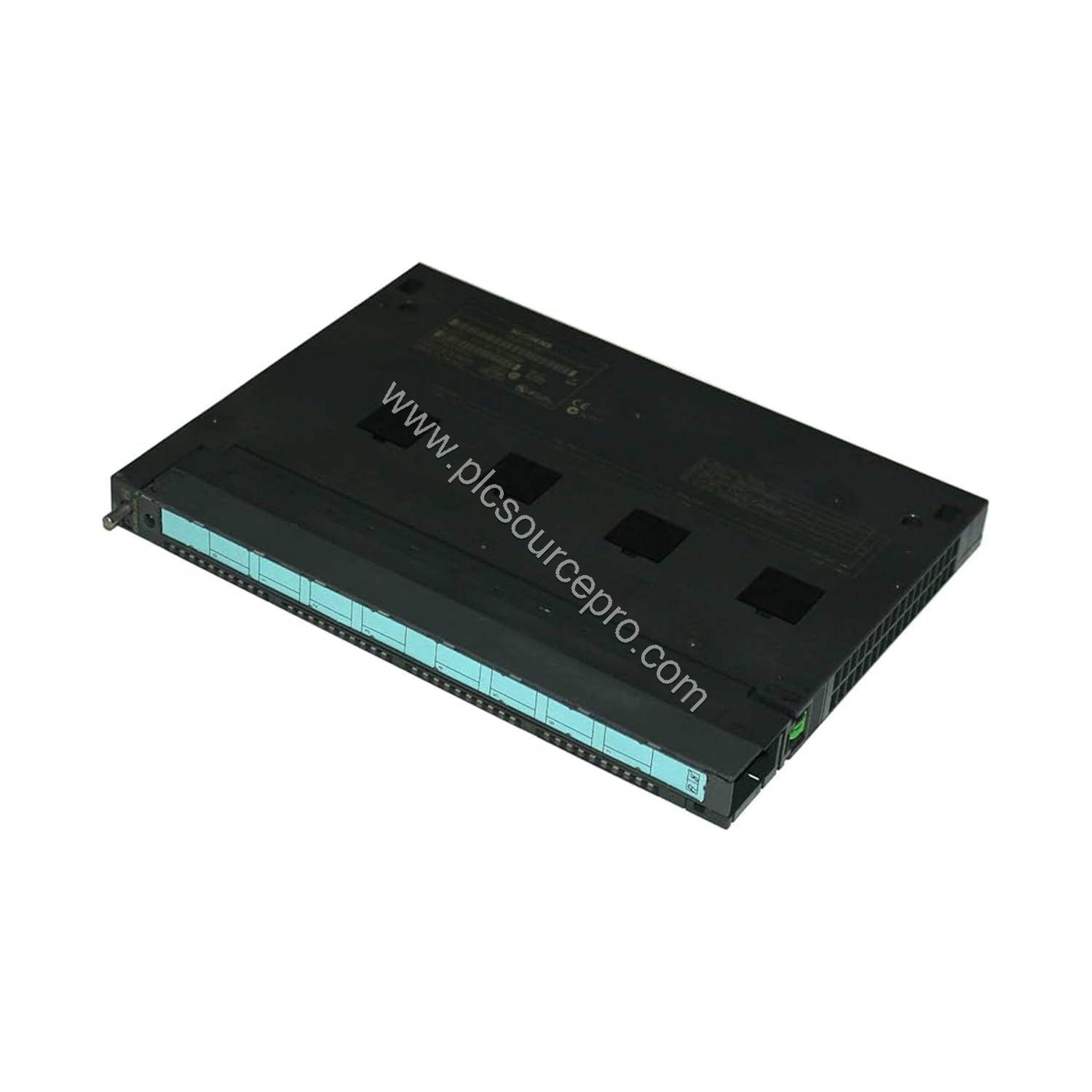

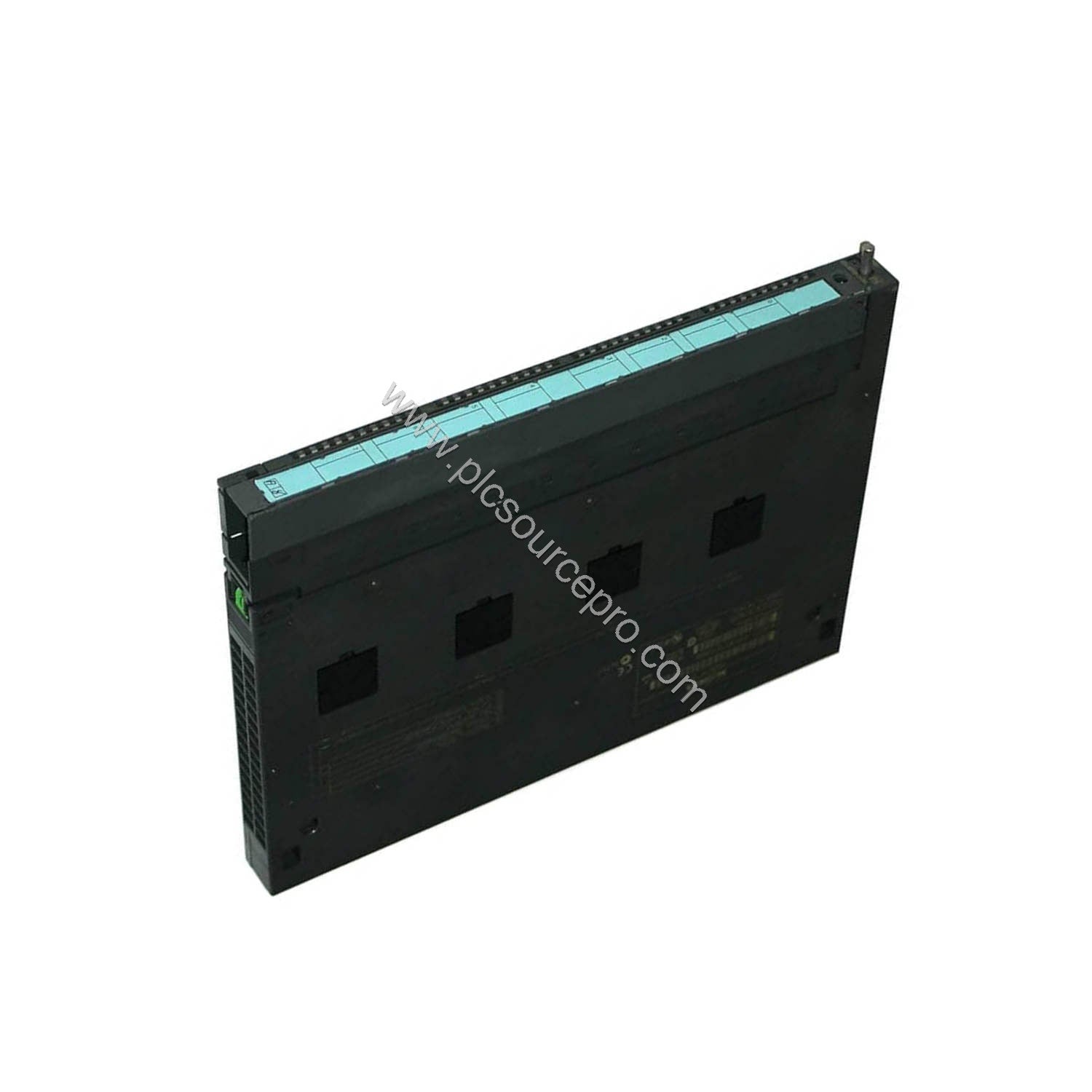

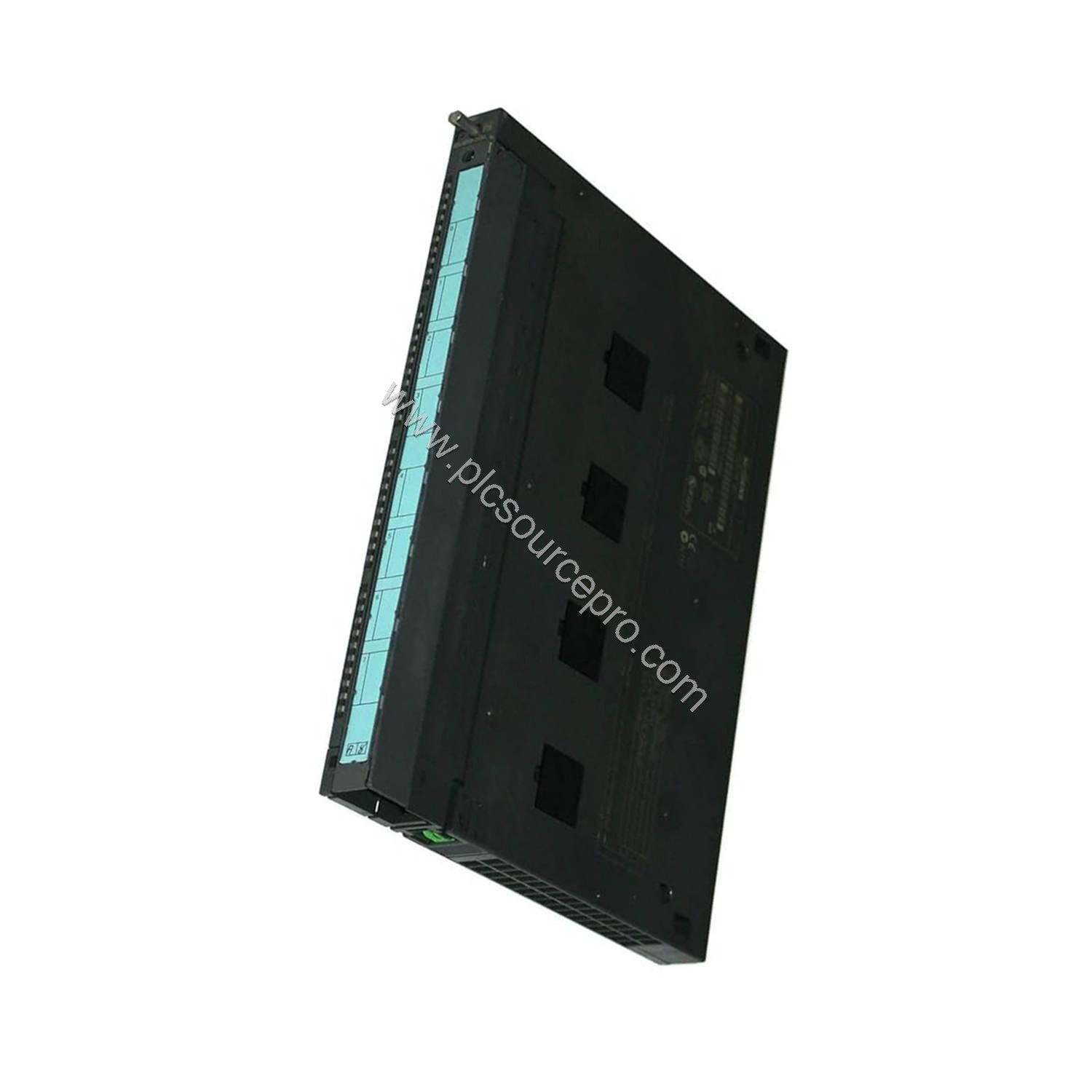

When process uptime and measurement accuracy are non-negotiable, the Siemens 6ES7431-7QH00-0AB0 delivers a cost-effective solution. This analog input module for the SIMATIC S7-400 platform provides 16 isolated channels with 16-bit resolution, handling voltage, current, resistance, thermocouples, and resistance thermometers. Its integrated alarm and diagnostics reduce troubleshooting time, directly improving return on investment by minimizing unplanned downtime.
Technical Specifications
Key parameters of the Siemens 6ES7431-7QH00-0AB0 include:
| Parameter |
Value |
| Supply voltage (load L+) |
24 V DC (for 2-wire transmitters), reverse polarity protection |
| Input current from backplane bus |
5 V DC, max. 700 mA |
| Power loss |
Typ. 4.5 W |
| Number of analog inputs |
16 (voltage/current); 8 (resistance) |
| Resolution |
16 bit |
| Input resistance (voltage ranges) |
1 MΩ (except ±80 mV, etc.) |
| Input resistance (current ranges) |
50 Ω |
| Operational error limit (voltage) |
±0.3% (typical at ±250 mV to ±10 V) |
| Temperature error |
±0.004%/K |
| Isolation tested |
2120 V DC between bus and analog section |
| Dimensions (W x H x D) |
25 x 290 x 210 mm |
| Weight |
Approx. 500 g |
Real-World Applications
The Siemens 6ES7431-7QH00-0AB0 excels in multi-sensor environments. For example, in chemical processing, it simultaneously reads thermocouple Types B, E, J, K, L, N, R, S, T, and U for reactor temperature monitoring. In oil and gas, it accepts 4–20 mA loop-powered transmitters for pressure and flow, with a destruction limit of 40 mA. HVAC systems benefit from Pt100 RTD inputs with parameterizable linearization, ensuring efficient climate control.
Maintenance & Reliability
With a typical operational error of ±0.3% for voltage and current measurements, and a basic error at 25°C of only ±0.15%, the Siemens 6ES7431-7QH00-0AB0 provides long-term stability. The module's isolation testing (2120 V DC between bus and analog section) protects against ground loops. Routine inspection of connected wiring and periodic calibration of field sensors ensures sustained performance. The low temperature drift (0.004%/K) reduces the need for frequent recalibration, lowering total cost of ownership.
Selection Guide & Purchasing Advice
Before ordering the Siemens 6ES7431-7QH00-0AB0, verify your S7-400 backplane compatibility and confirm whether 2-wire or 4-wire transmitters are used. For thermocouple applications, external Pt100 or a compensation socket may be required. The module supports cable lengths up to 200 m shielded (50 m for thermocouples below 80 mV). Ensure your rack provides sufficient backplane bus current (700 mA max). For authentic Siemens 6ES7431-7QH00-0AB0 modules with fast shipping, purchase from ubest101—a trusted industrial automation supplier.
