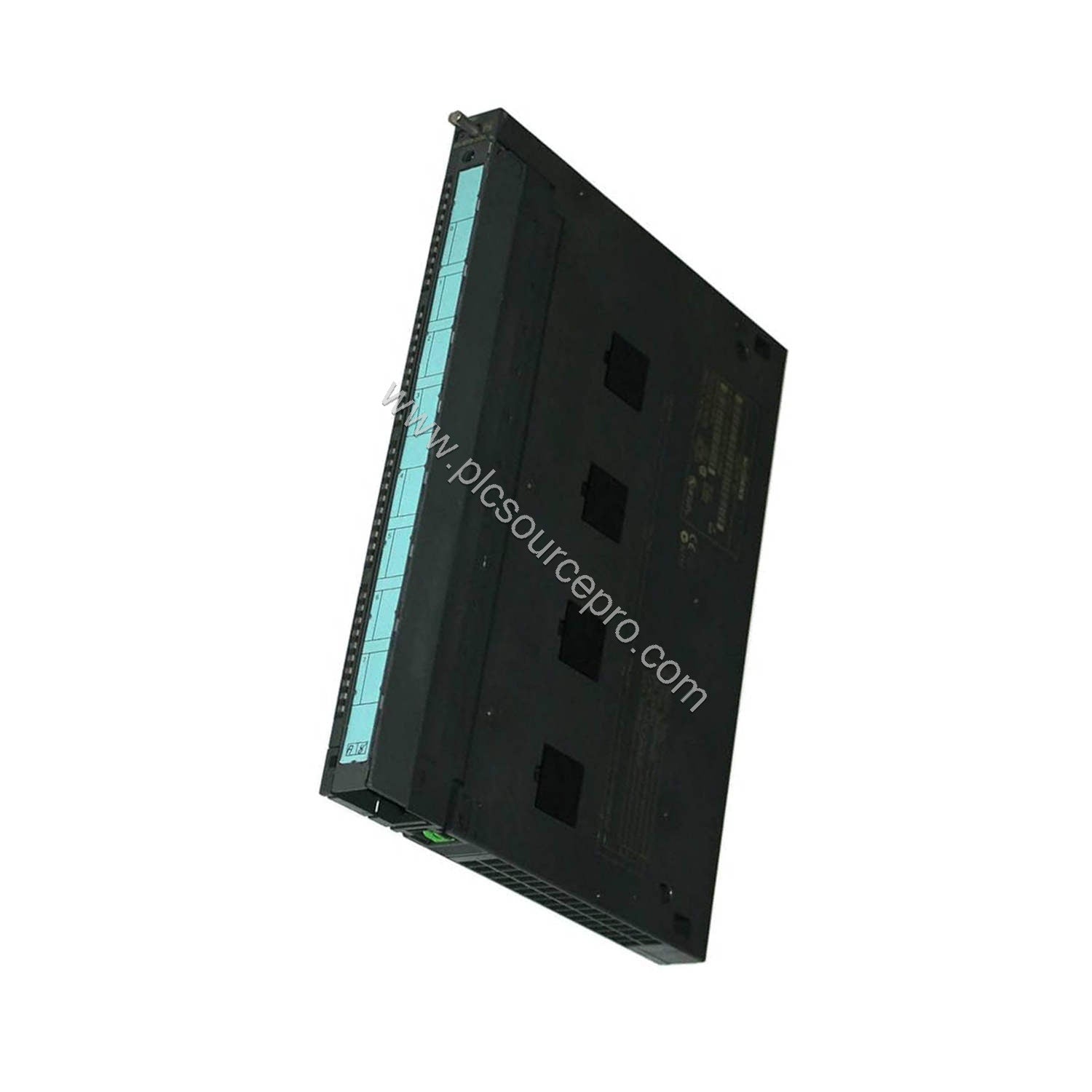

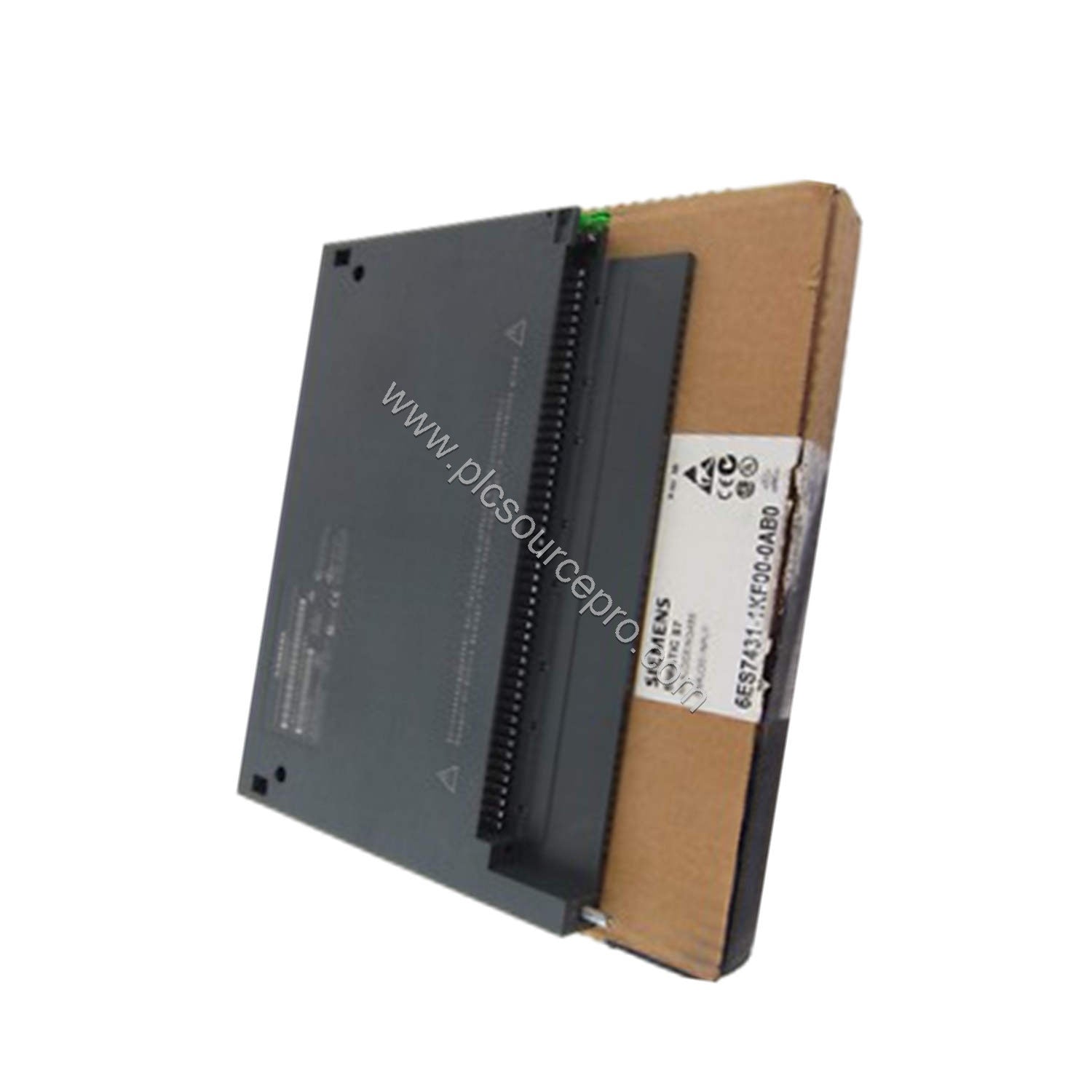

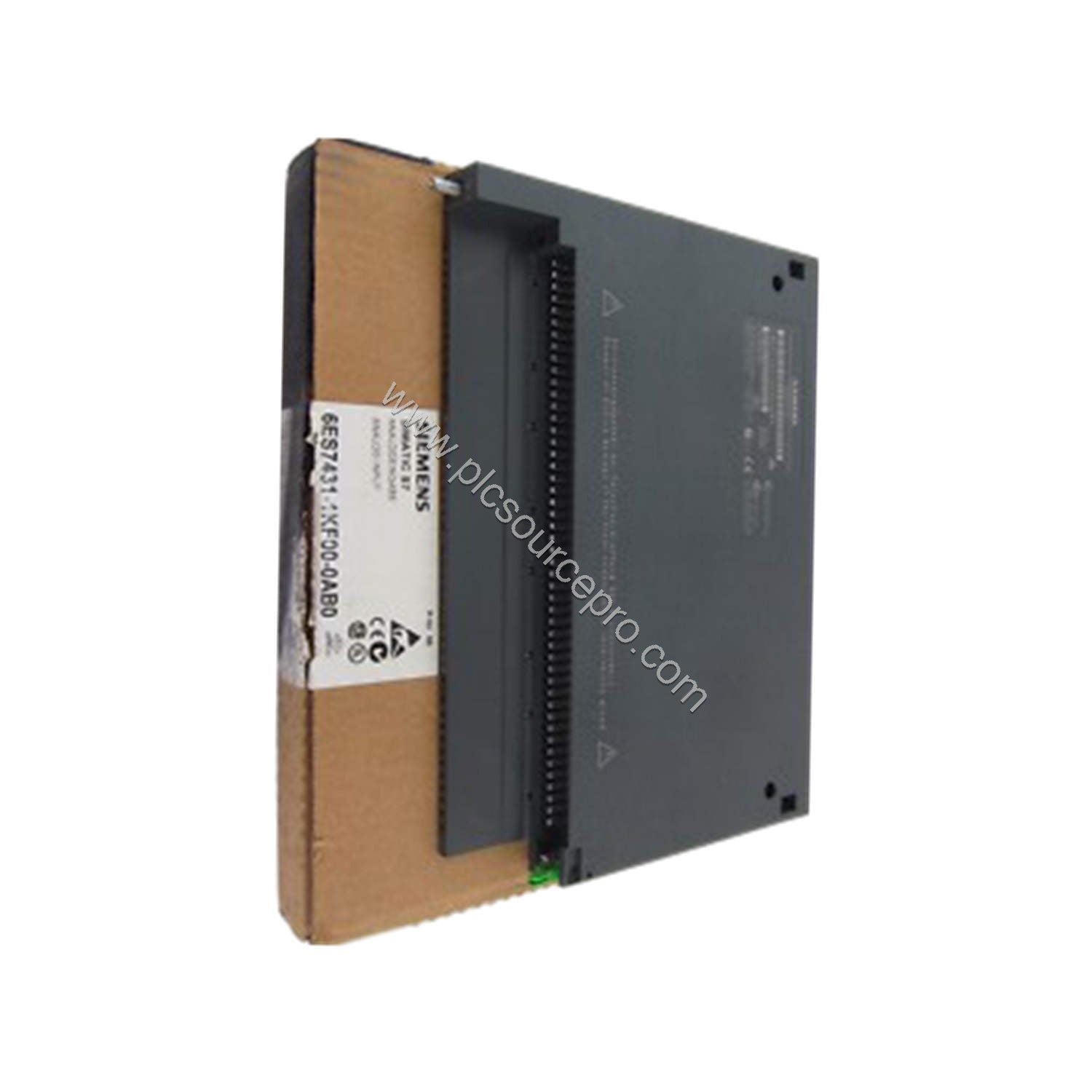

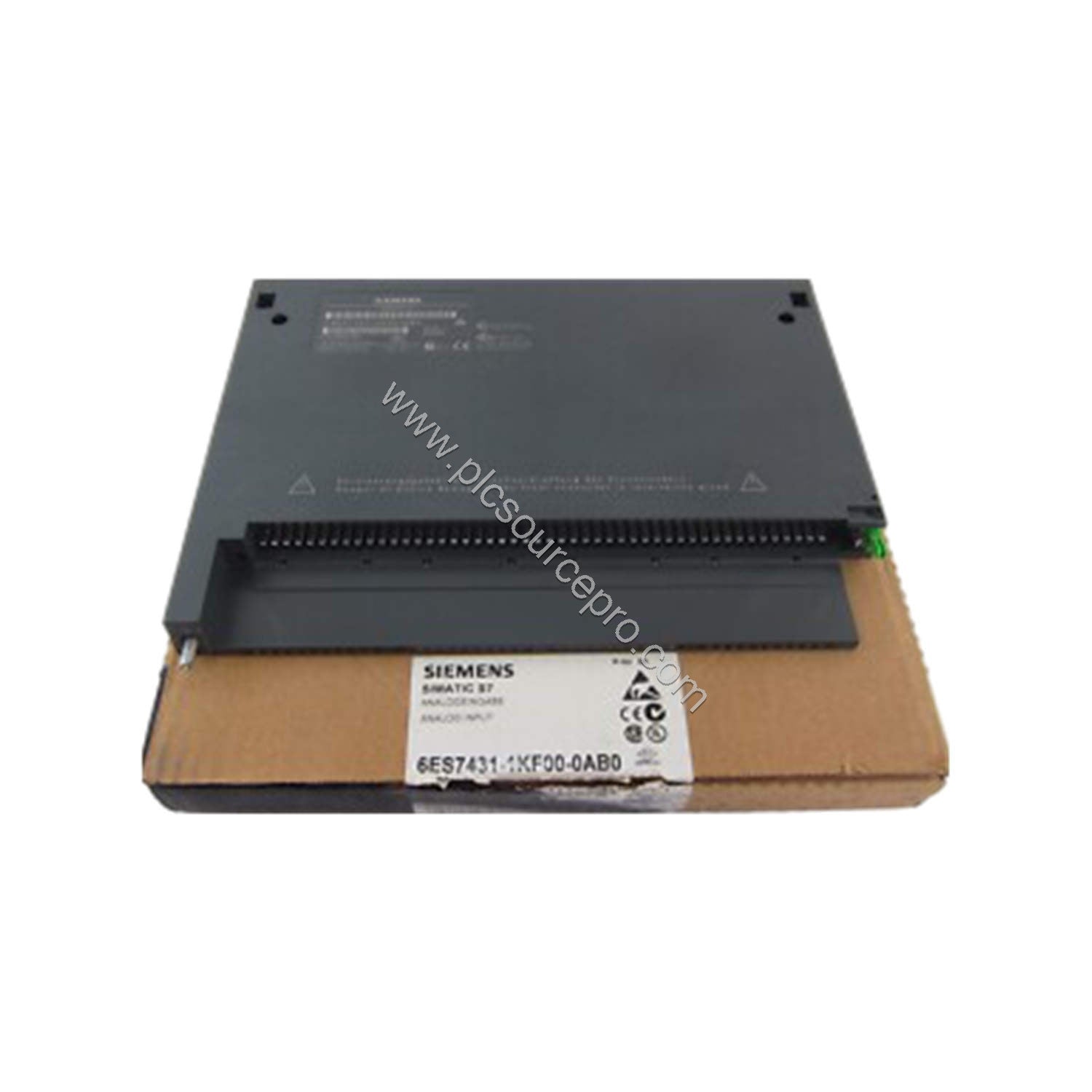

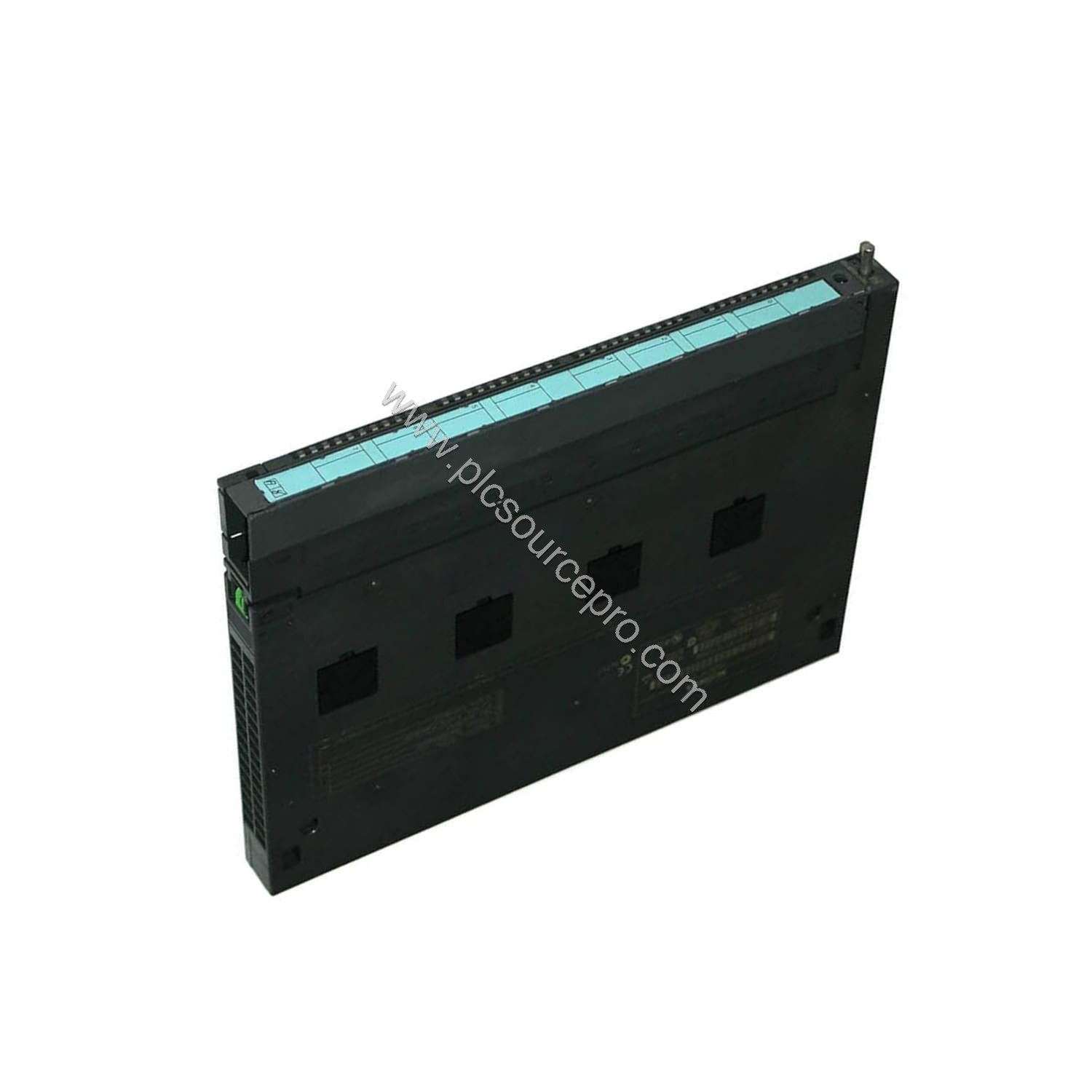

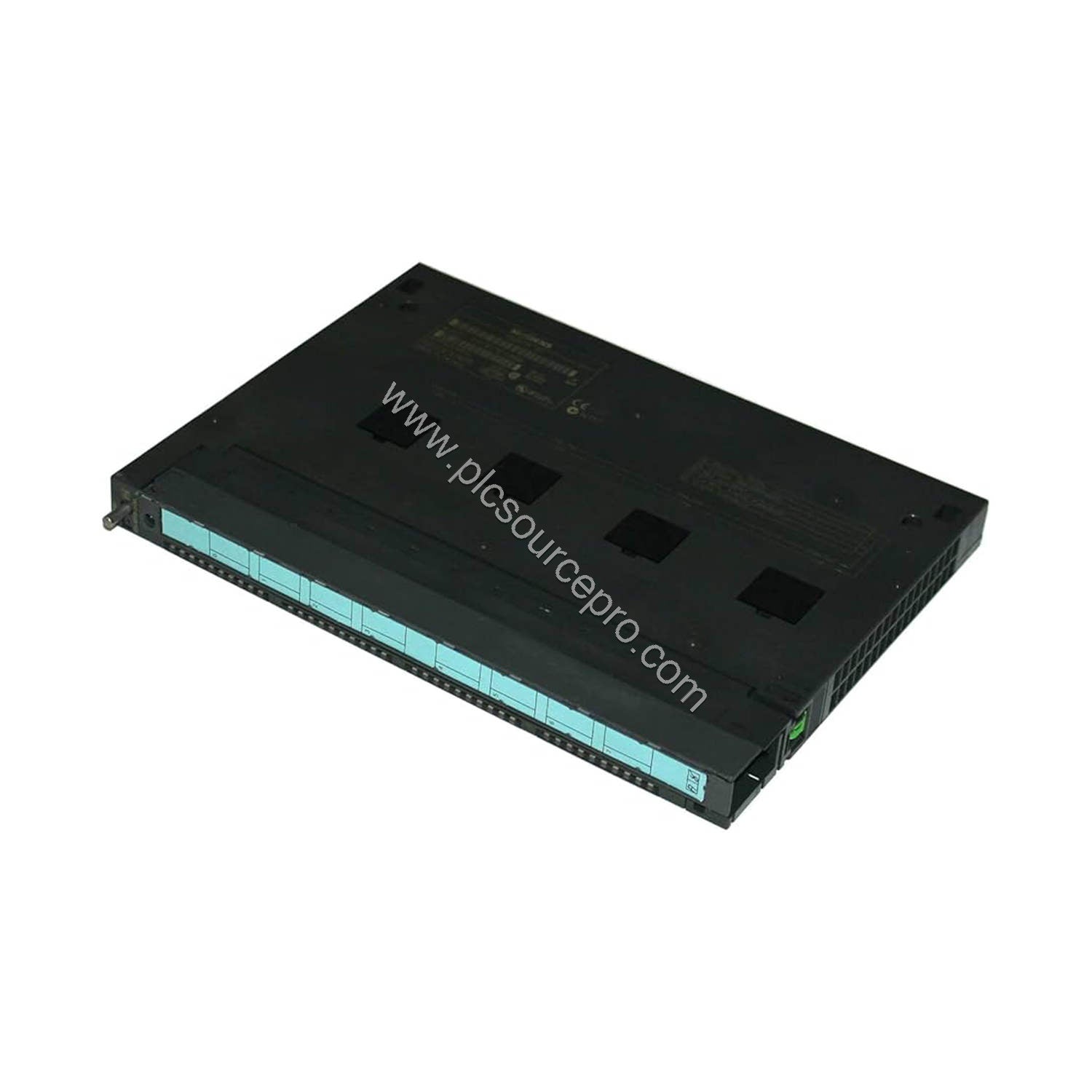

Product Introduction – Siemens 6ES7431-7KF10-0AB0 Analog Input Module
When your S7-400 control system demands precise temperature and resistance measurements, the Siemens 6ES7431-7KF10-0AB0 analog input SM 431 delivers reliable performance. This module supports 8 analog inputs with 16-bit resolution, designed specifically for resistance thermometers (Pt100, Ni100, etc.) and resistive sensors. With parameterizable diagnostics and alarm functions, it ensures high system availability in industrial automation.
Technical Specifications Breakdown
Key performance parameters of the Siemens 6ES7431-7KF10-0AB0 include:
-
Power consumption: 5 V DC backplane bus, max. 650 mA; typ. power loss 3.3 W
-
Analog inputs: 8 inputs, all configurable for resistance measurement
-
Resolution: 16 bit with overrange (including sign)
-
Conversion time: 20 ms at 50 Hz (entire module, including wire-break detection)
-
Input ranges: Supports Pt100, Pt200, Pt500, Pt1000, Ni100, Ni1000 with selectable characteristic linearization (Europe/U.S.)
-
Error limits: Basic error ±0.2 °C at 25 °C; operational error ±1 °C over full temperature range
-
Diagnostics: Parameterizable diagnostic alarm, limit value alarm, and hardware interrupt
-
Isolation: Between channels and backplane bus; tested with 500 V DC
-
Dimensions: 25 mm (W) x 290 mm (H) x 210 mm (D); weight approx. 650 g
These specifications make the Siemens 6ES7431-7KF10-0AB0 ideal for precise temperature monitoring in demanding environments.
Industry Applications
This module excels in applications requiring direct resistance measurement. Typical use cases include:
-
Temperature monitoring in chemical processing: Connect Pt100 sensors to track reactor temperatures with high accuracy (±0.2 °C basic error).
-
HVAC control in large facilities: Use Ni1000 sensors for zone temperature feedback; selectable Europe/U.S. characteristics simplify integration.
-
Power generation equipment: Monitor bearing temperatures with Pt100 or Pt500 elements; the module's diagnostic alarms provide early warning of faults.
The Siemens 6ES7431-7KF10-0AB0 supports both three-wire and four-wire connection for resistance measurement, ensuring flexibility in field wiring.
Installation & Setup Guidance
Mount the Siemens 6ES7431-7KF10-0AB0 on a standard S7-400 rail. Ensure proper slot assignment and backplane bus connection. For resistance measurements, use shielded cables up to 200 m (or 50 m with ±80 mV ranges). Configure the module via STEP 7: set input ranges, integration time (20 ms at 50 Hz), and enable diagnostic alarms as needed. Verify wire-brake detection by selecting appropriate parameters.
Selection Guide & Purchasing Advice
Before purchasing a Siemens 6ES7431-7KF10-0AB0, confirm your S7-400 rack has an available slot and that your power supply can handle the 650 mA load from the backplane bus. This module is a direct replacement for older SM 431 units and upgrades systems requiring higher accuracy or diagnostic capabilities. For technical questions or to order, contact ubest101 – a trusted supplier of industrial automation spares.
