Product Introduction

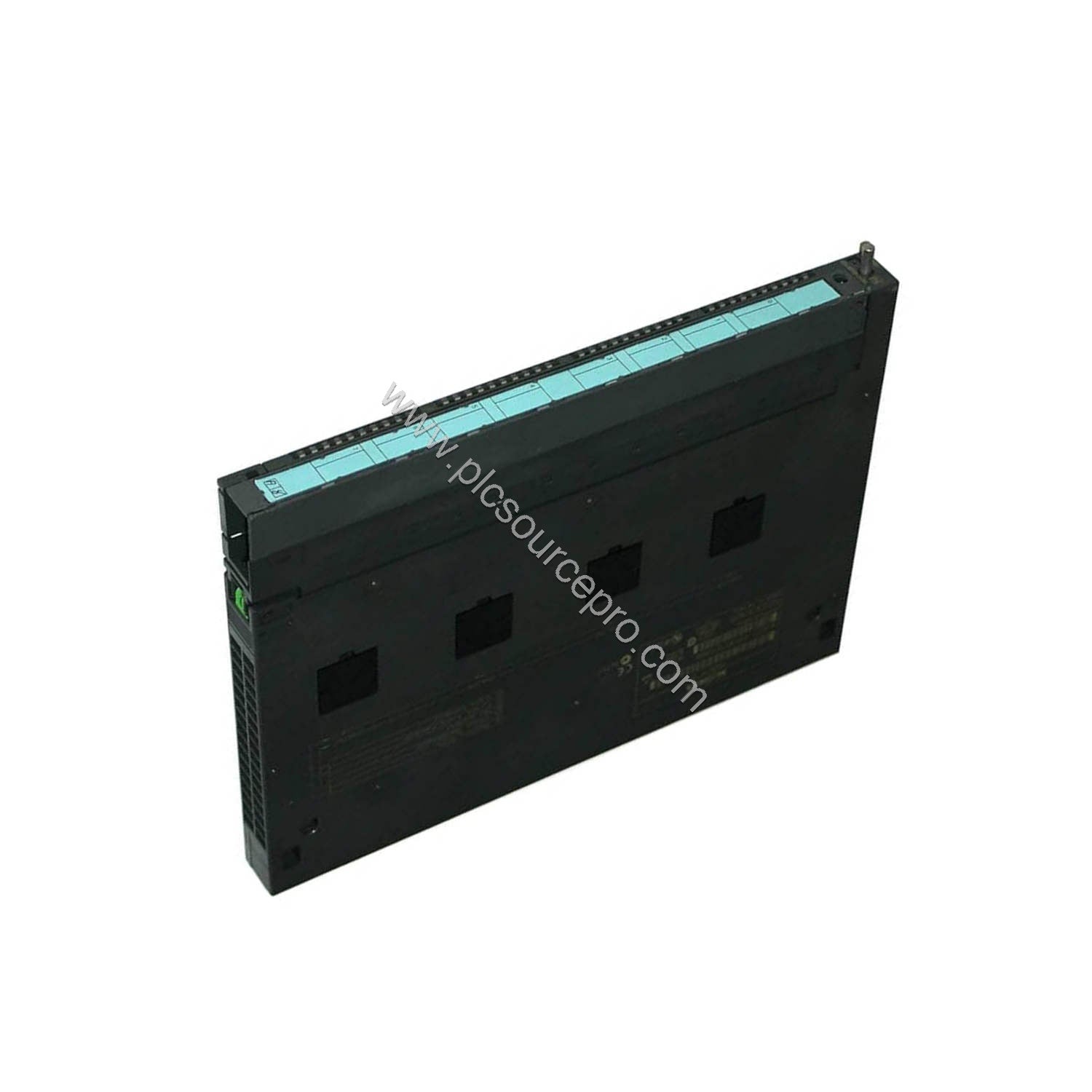

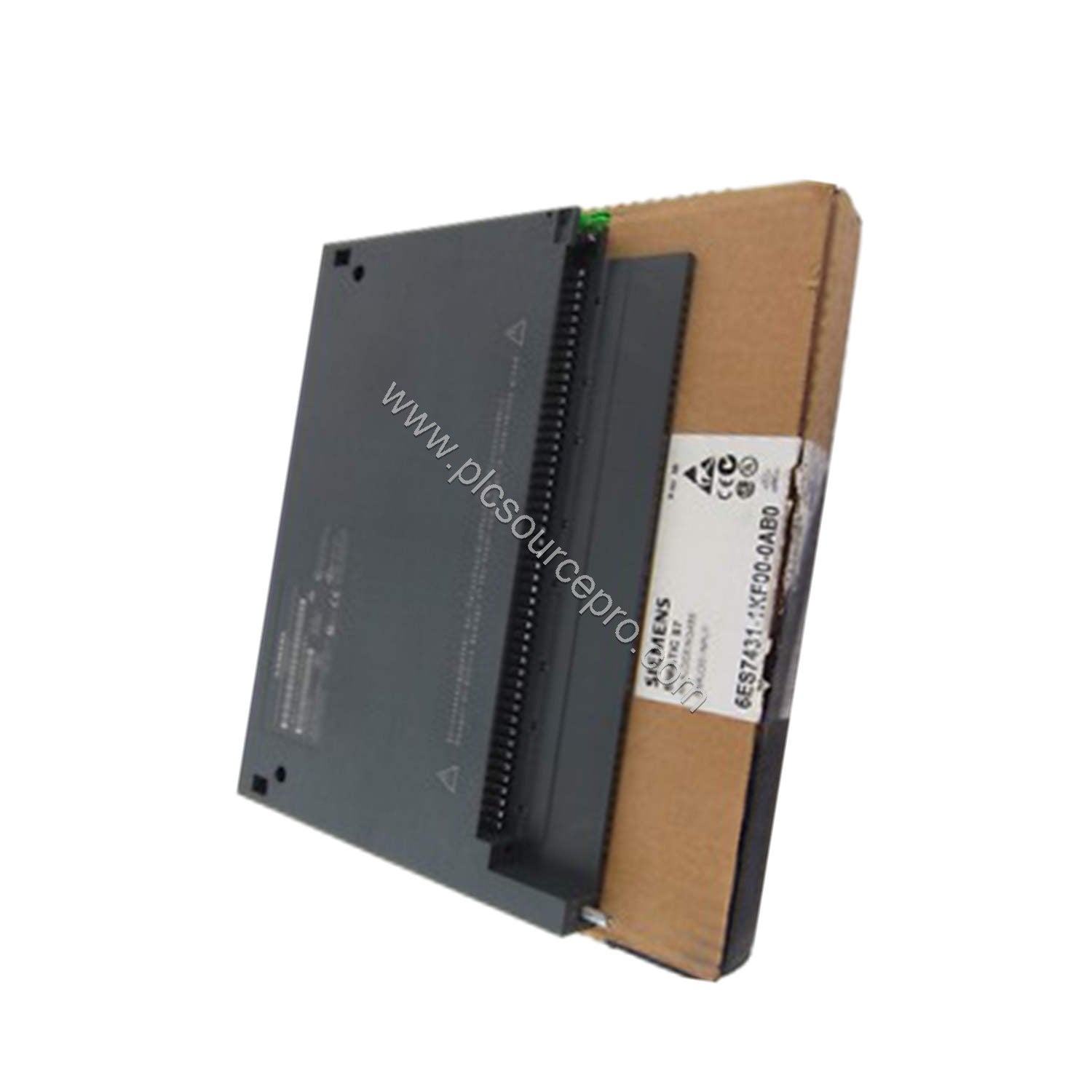

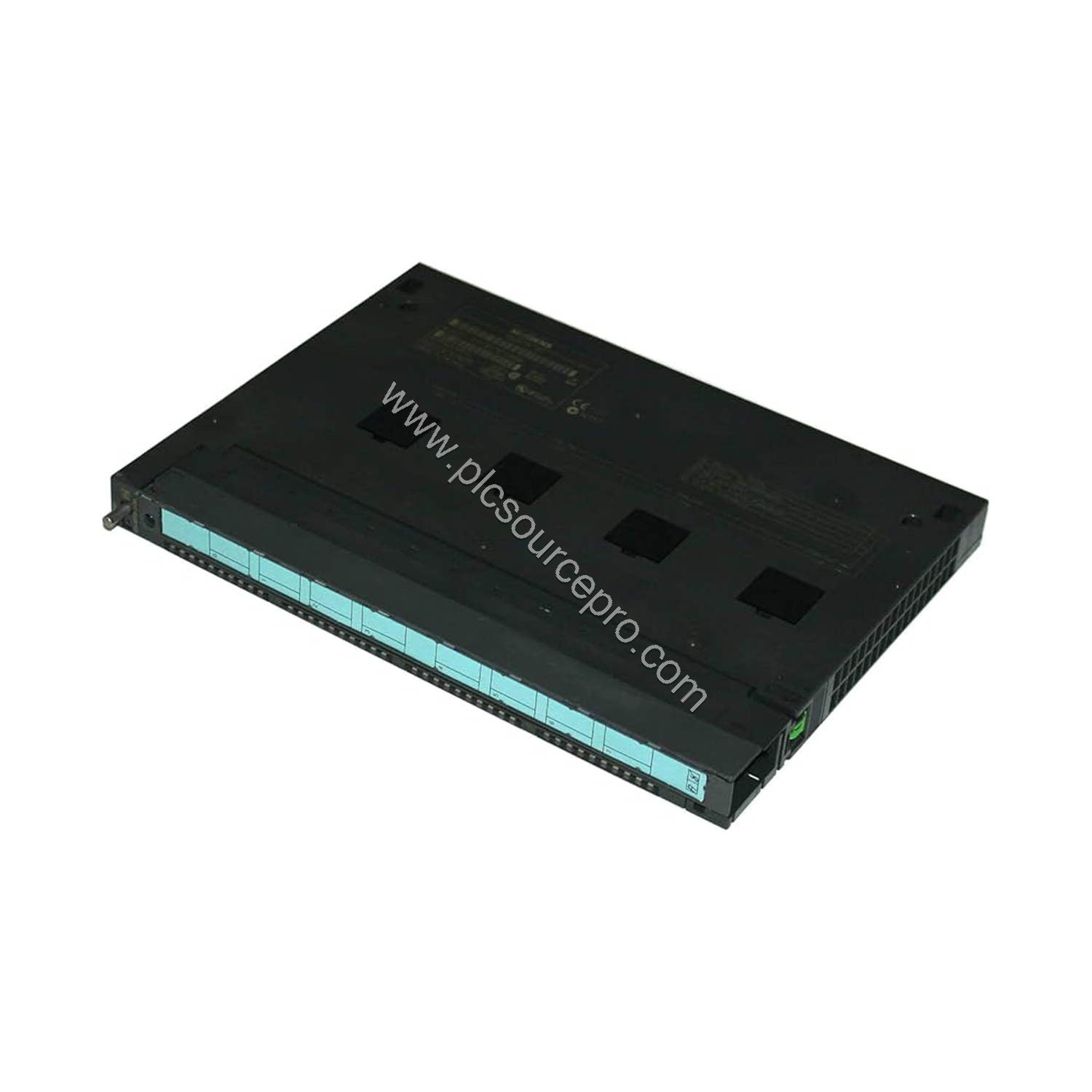

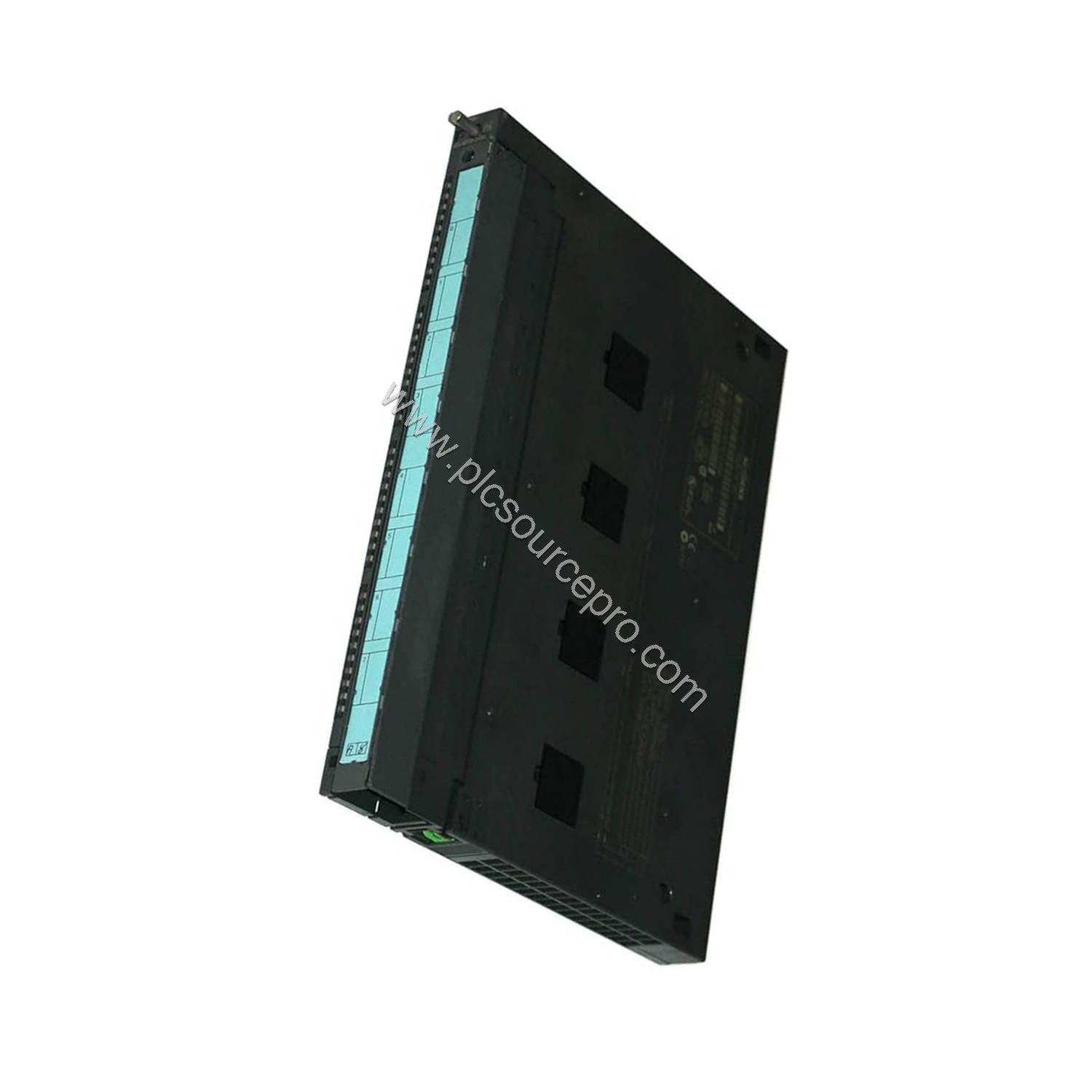

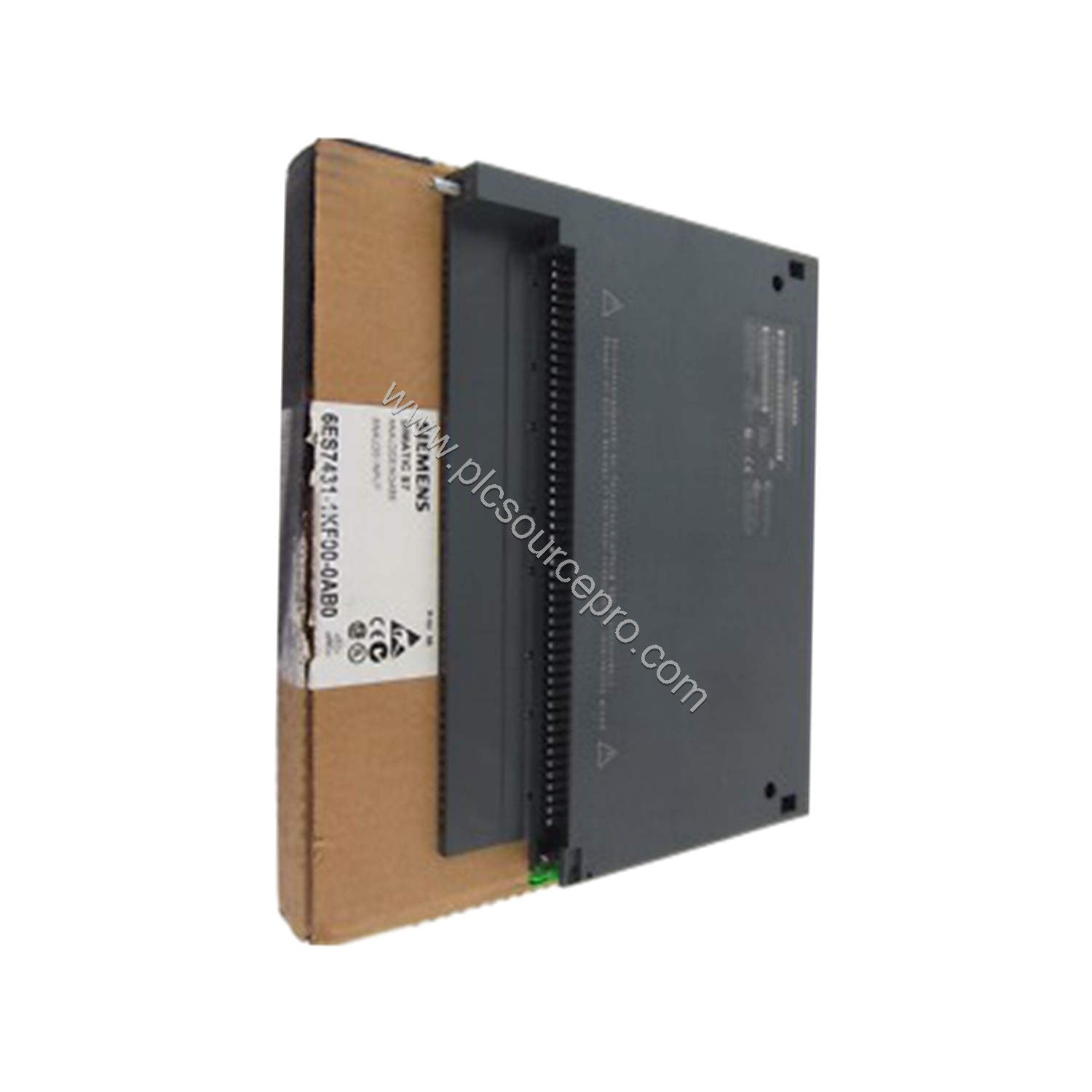

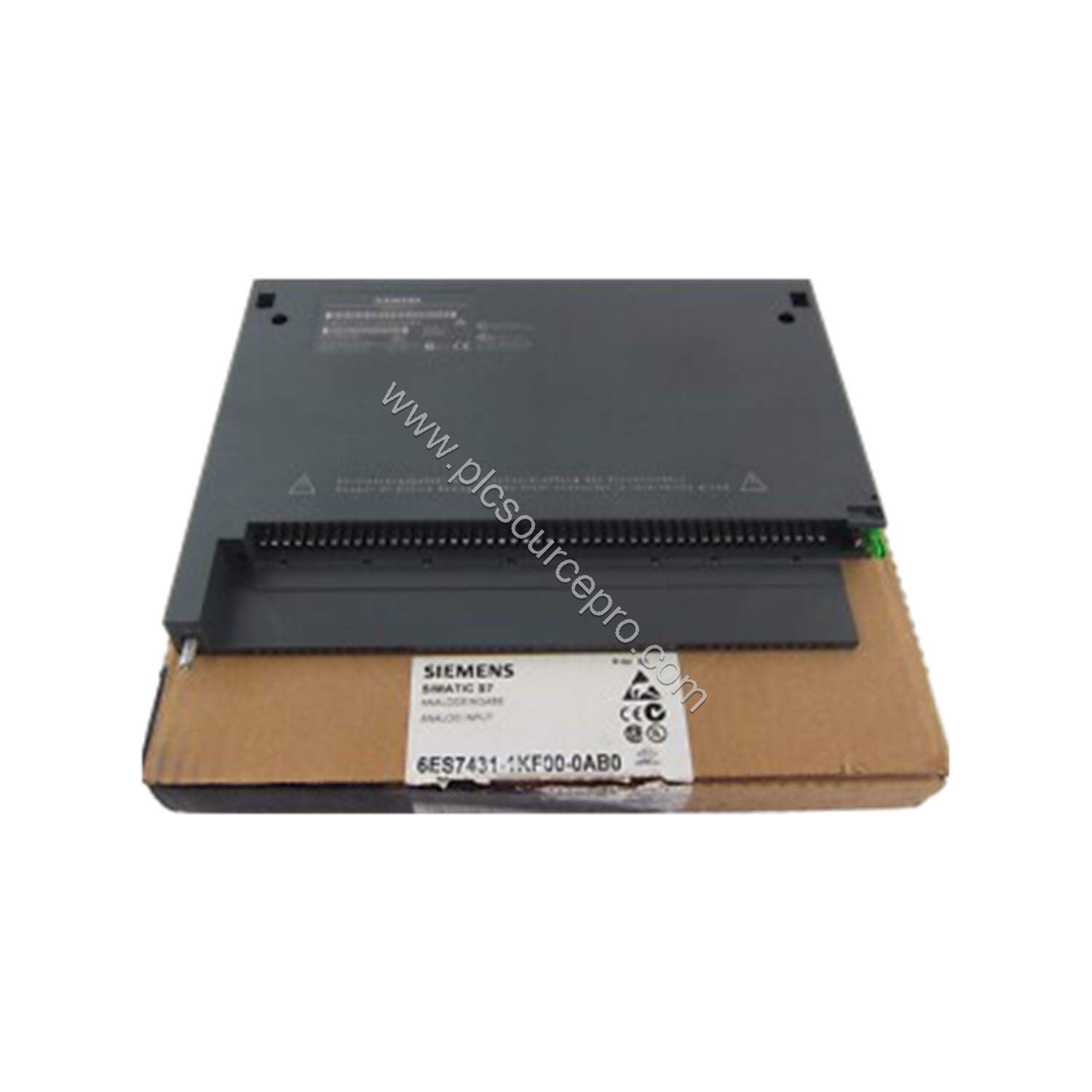

When signal degradation or noise threatens measurement accuracy in industrial control systems, the Siemens 6ES7431-7KF00-0AB0 provides a robust solution. This SIMATIC S7-400 analog input SM 431 module delivers 8 analog inputs with 16-bit resolution, supporting voltage, current, and thermocouple signals. Its isolated design and comprehensive diagnostics help prevent common failure modes such as ground loops and signal drift, ensuring precise data acquisition in demanding environments.
Technical Specifications
The Siemens 6ES7431-7KF00-0AB0 offers a wide range of input configurations and high accuracy. Key specifications include:
| Parameter |
Value |
| Number of analog inputs |
8 (voltage/current measurement) |
| Resolution (with overrange) |
16 bit max |
| Input current from backplane bus |
5 V DC, max. 1,200 mA |
| Power loss, typ. |
4.6 W |
| Permissible input voltage (destruction limit) |
35 V continuous, 75 V for max. 1 s |
| Permissible input current (destruction limit) |
32 mA |
| Basic conversion time |
10 / 16.7 / 20 / 100 ms |
| Operational error limit (voltage) |
+/- 0.3% |
| Operational error limit (current) |
+/- 0.5% |
| Isolation tested with |
1,500 V DC |
| Dimensions (W x H x D) |
25 mm x 290 mm x 210 mm |
| Weight, approx. |
650 g |
Troubleshooting and Common Issues
Common failure modes in analog input modules include overvoltage damage and thermocouple cold-junction errors. The Siemens 6ES7431-7KF00-0AB0 mitigates these with destruction limits of 35 V continuous (75 V for 1 s) and integrated temperature compensation. Its diagnostic alarms alert operators to limit violations, while the hardware interrupt provides immediate notification of channel faults. For thermocouple applications, the module supports types B, E, J, K, L, N, R, S, T, and U, with parameterizable linearization and a connection for external cold-junction compensation (6ES7431-7KF00-6AA0).
Installation and Setup Guidance
Mount the Siemens 6ES7431-7KF00-0AB0 in a SIMATIC S7-400 rack without removing adjacent modules. Ensure shielded cables are used for analog inputs (max. 200 m). For current measurement, use 4-wire transducers. The module requires a 5 V DC supply from the backplane bus; verify that total current draw for the rack does not exceed available capacity. No fuse is needed on the front connector, but observe polarity when wiring voltage inputs. The module automatically detects input ranges after parameterization via STEP 7.
Selection Guide and Purchasing Advice
When selecting the Siemens 6ES7431-7KF00-0AB0, verify compatibility with your S7-400 CPU and power supply. This module replaces older analog input modules with a single-wide design, freeing rack space. For critical applications requiring high accuracy and diagnostics, this is the preferred choice. Purchase from a trusted source like ubest101 to ensure genuine Siemens components and fast delivery. Always confirm that your order includes the correct part number: 6ES7431-7KF00-0AB0.
