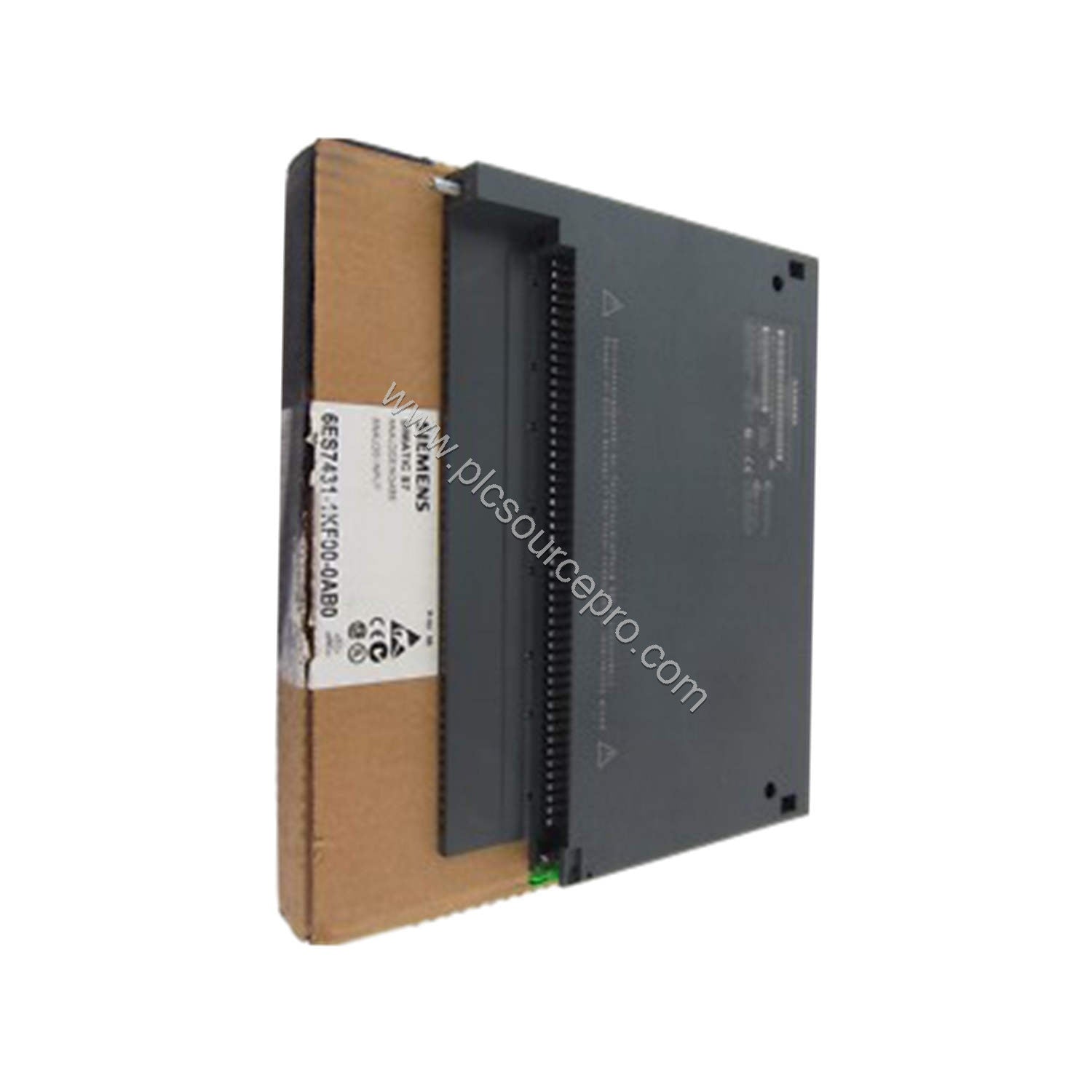

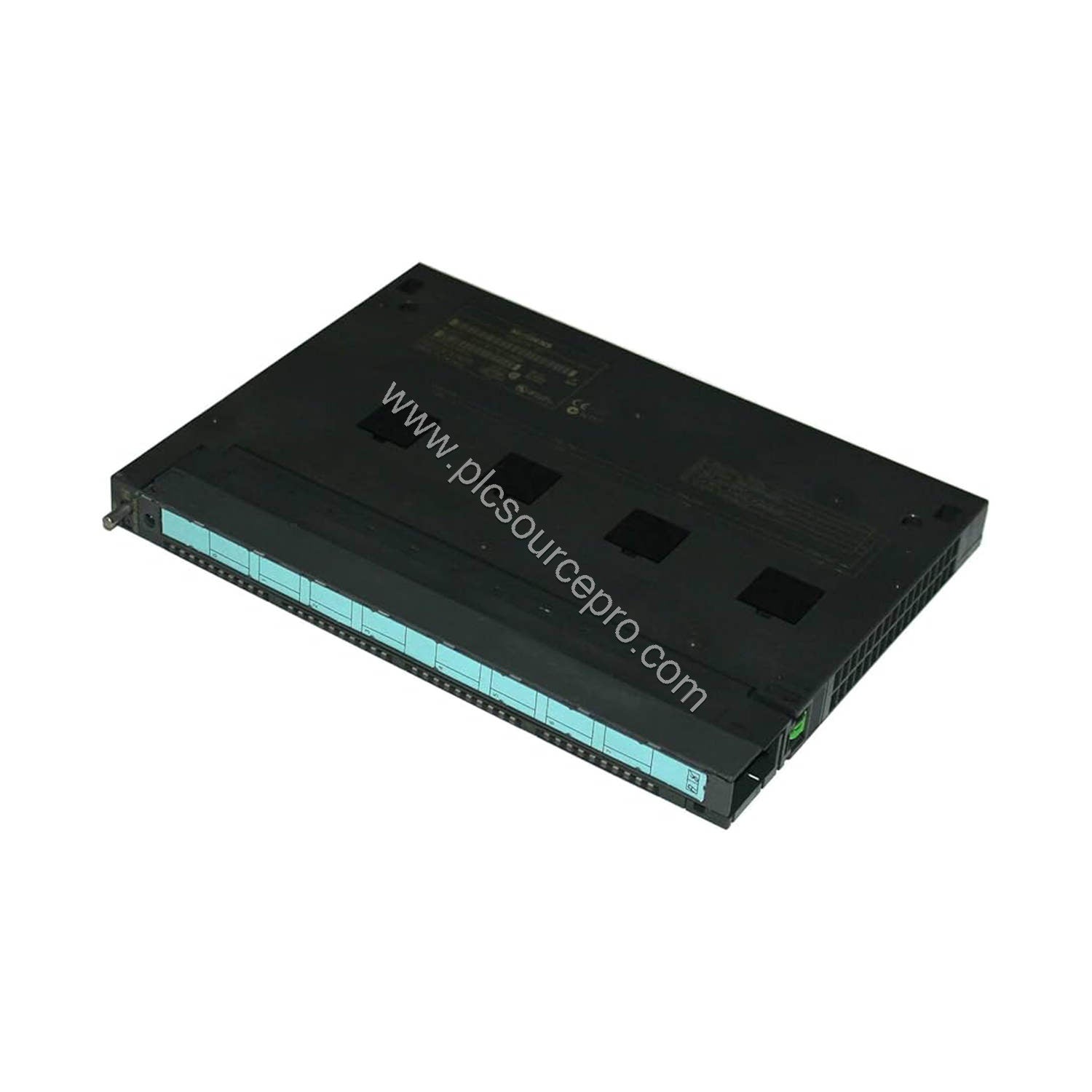

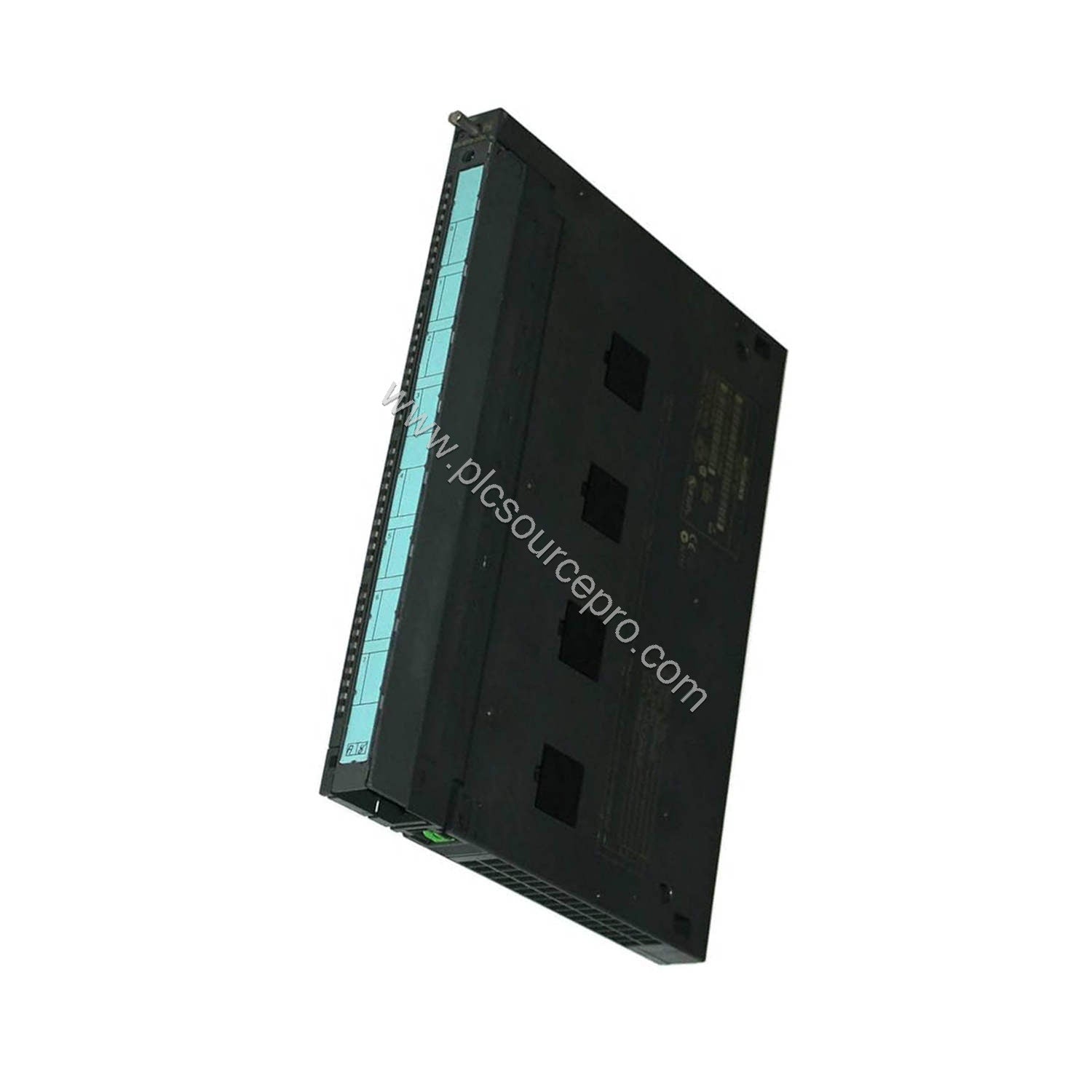

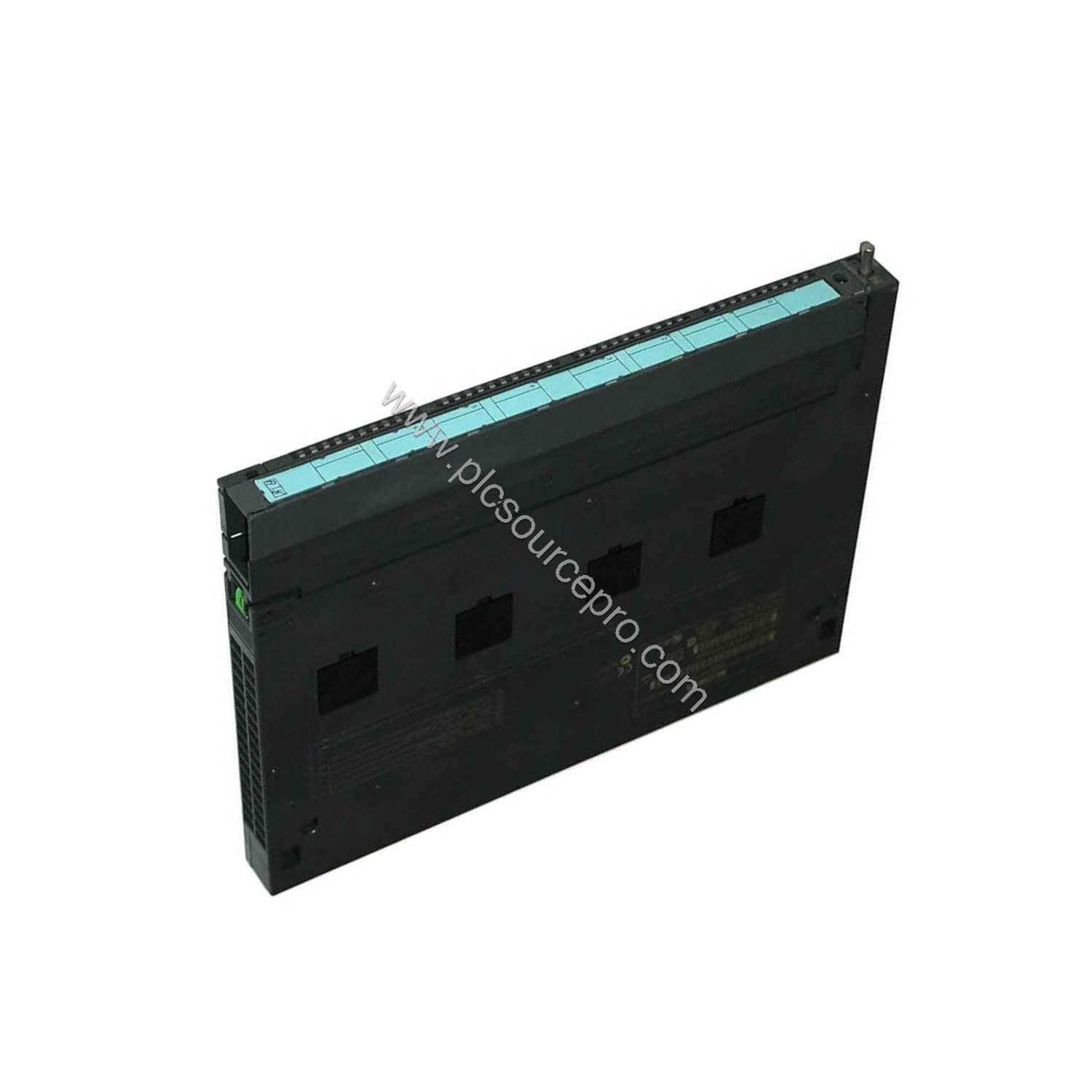

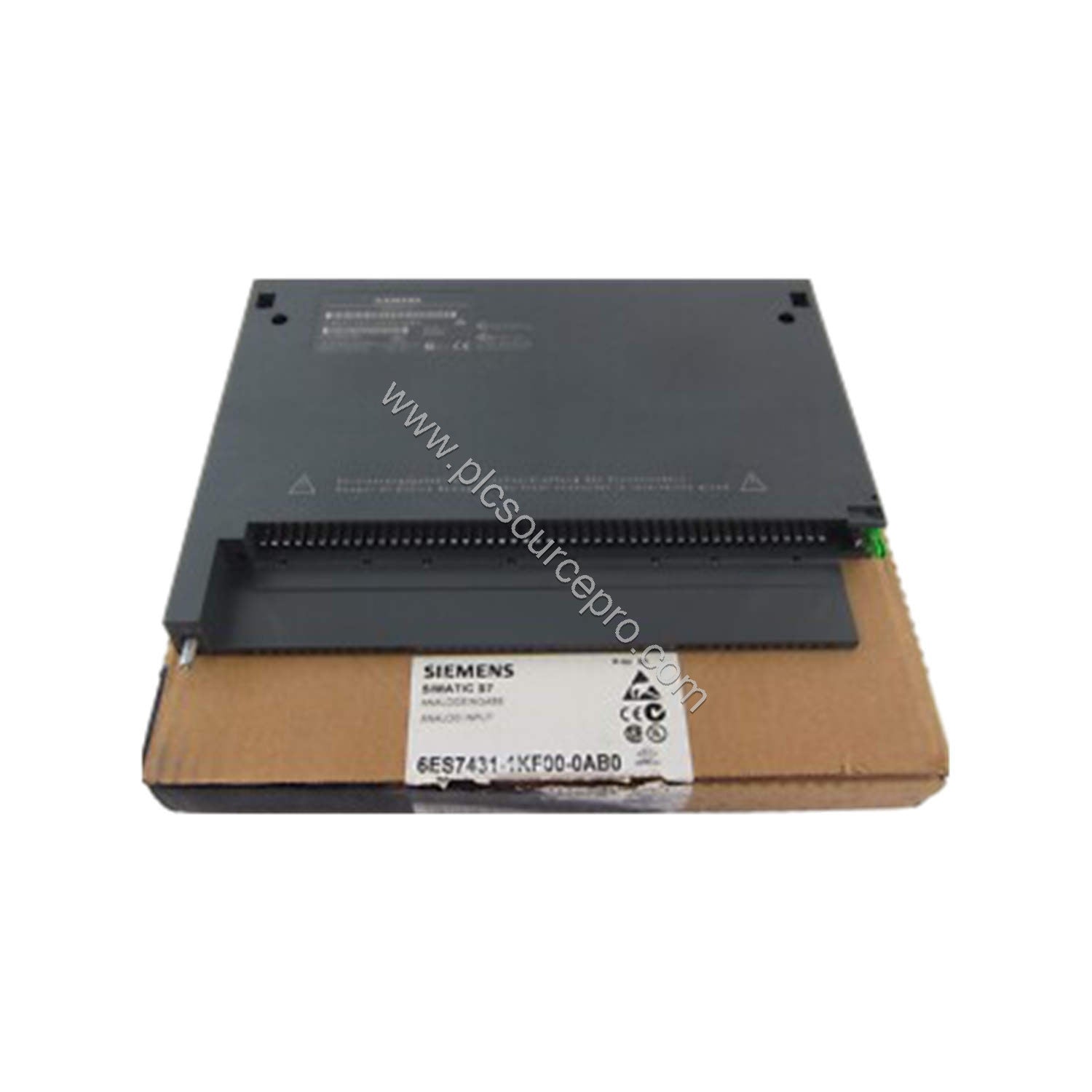

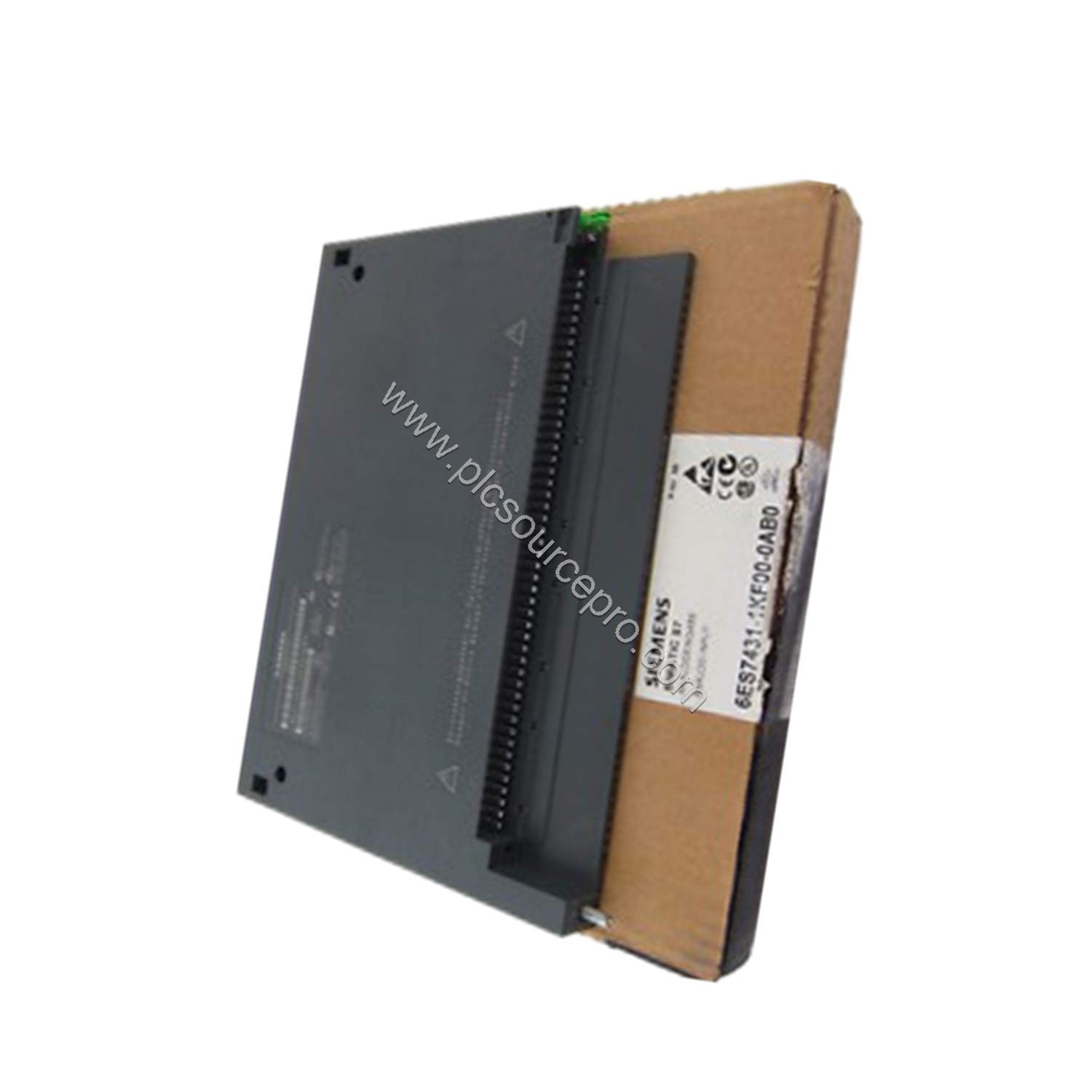

In precision process control, accurate analog input is critical. The Siemens 6ES7431-1KF20-0AB0 delivers robust performance with 14-bit resolution and galvanic isolation, reducing measurement errors and downtime. This Analog Input SM 431 module is designed for the SIMATIC S7-400 system, offering eight isolated analog inputs for voltage, current, and resistance measurements.
Technical Specifications Breakdown
The Siemens 6ES7431-1KF20-0AB0 features eight analog inputs with a resolution of 14 bits, supporting voltage ranges (1 V to 5 V, -1 V to +1 V, -10 V to +10 V), current ranges (-20 mA to +20 mA, 4 mA to 20 mA), and resistance range (0 to 600 ohms). Each input is galvanically isolated from the backplane bus and load voltage L+ (24 V DC). The module draws up to 200 mA from L+ when fully loaded and 1,000 mA from the 5 V DC backplane bus. Power loss is typically 4.9 W. The basic conversion time is 52 µs per channel, with a basic execution time of 0.42 s for all channels enabled. Error limits are tight: voltage ±0.6% (at 25 °C) and current ±0.7% (at 25 °C). Temperature drift is ±0.03%/K. The module supports 2-wire, 4-wire transmitters, and resistance measurements with 2-, 3-, or 4-wire connections.
Industry Applications
Process industries such as chemical, oil and gas, and water treatment benefit from the Siemens 6ES7431-1KF20-0AB0. For example, in a chemical reactor monitoring temperature and pressure via 4-20 mA transmitters, the module's 0.7% accuracy ensures safe operation. In a power plant using resistance temperature detectors (RTDs), the constant measurement current (1.67 mA) and four-wire connection eliminate lead resistance errors. The 14-bit resolution provides fine granularity for precise control loops, reducing waste and improving efficiency.
Installation & Setup Guidance
Mount the Siemens 6ES7431-1KF20-0AB0 in a SIMATIC S7-400 rack. Use a 24 V DC supply only if powering 2-wire transmitters; otherwise, the backplane bus supplies the module. For voltage inputs, use shielded cables up to 200 m with proper grounding. For current inputs, set the input range via software parameters. For resistance measurements, select the appropriate wiring configuration (2-, 3-, or 4-wire) based on accuracy needs. Ensure the destruction limits (18 V for voltage, 40 mA for current) are not exceeded. Parameterize integration time and interference frequency suppression (50/60/400 Hz or none) to match the environment.
Maintenance & Reliability
The Siemens 6ES7431-1KF20-0AB0 requires minimal maintenance due to its solid-state design. Periodically check cable connections and shielding integrity, especially in high-noise environments. The module's galvanic isolation (tested at 2120 V DC between bus and analog section) protects against ground loops and surges, enhancing long-term reliability. If error limits drift beyond spec (±0.03%/K temperature error), verify ambient conditions and recalibrate if needed. No diagnostic function is built in, so monitor status via the S7-400 CPU's diagnostic buffer.
Selection Guide & Purchasing Advice
Before purchasing, verify that your S7-400 CPU firmware supports the Siemens 6ES7431-1KF20-0AB0. Consider the required input types: voltage, current, or resistance; this module covers all three. If thermocouple or RTD inputs are needed, other SM 431 variants exist. For high-accuracy resistance measurements, the 4-wire connection is recommended. Keep a spare unit to minimize downtime. PLC Source PRO (visit ubest101.myshopify.com) stocks genuine Siemens modules with fast shipping. Ensure compatibility with your existing system before ordering.
