Product Overview

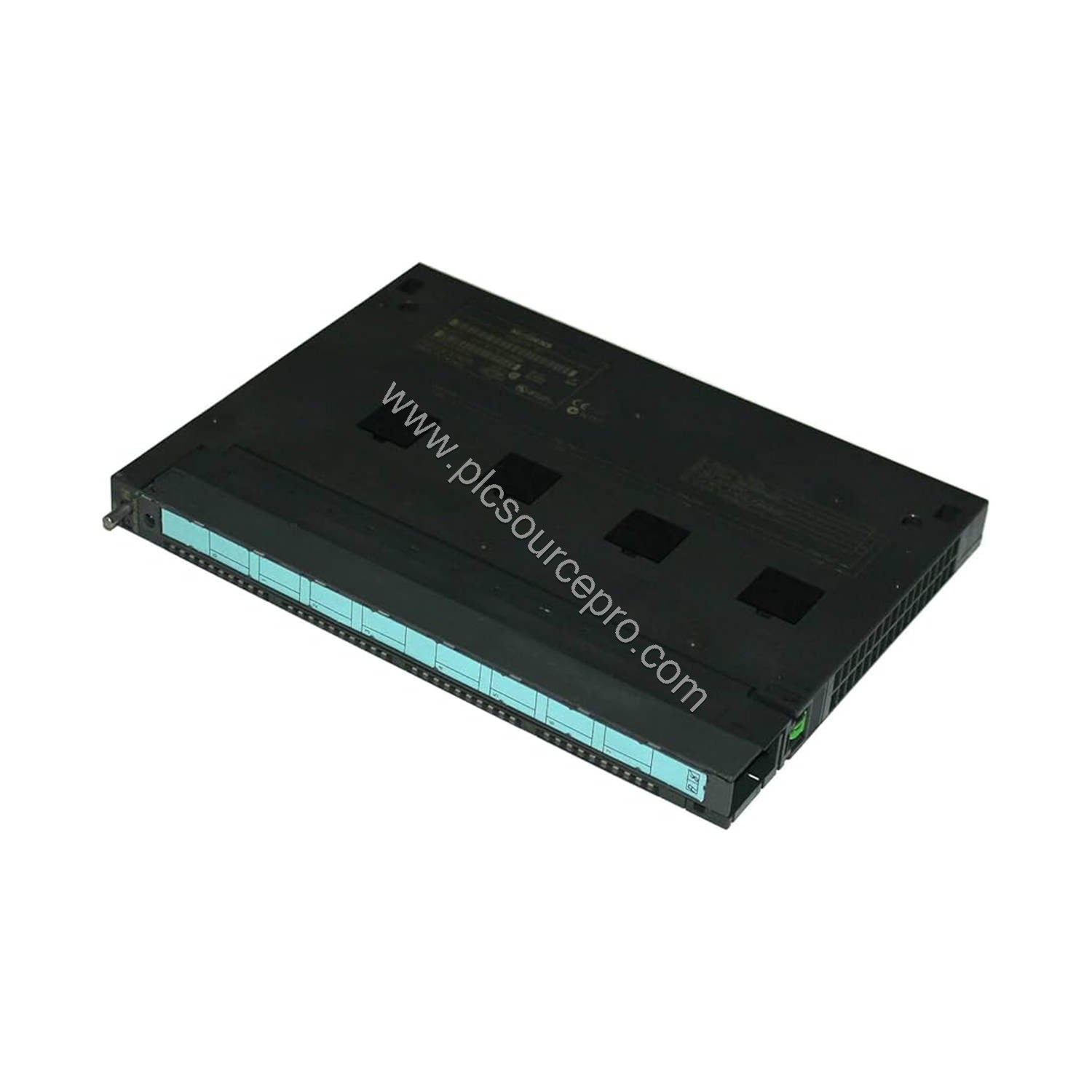

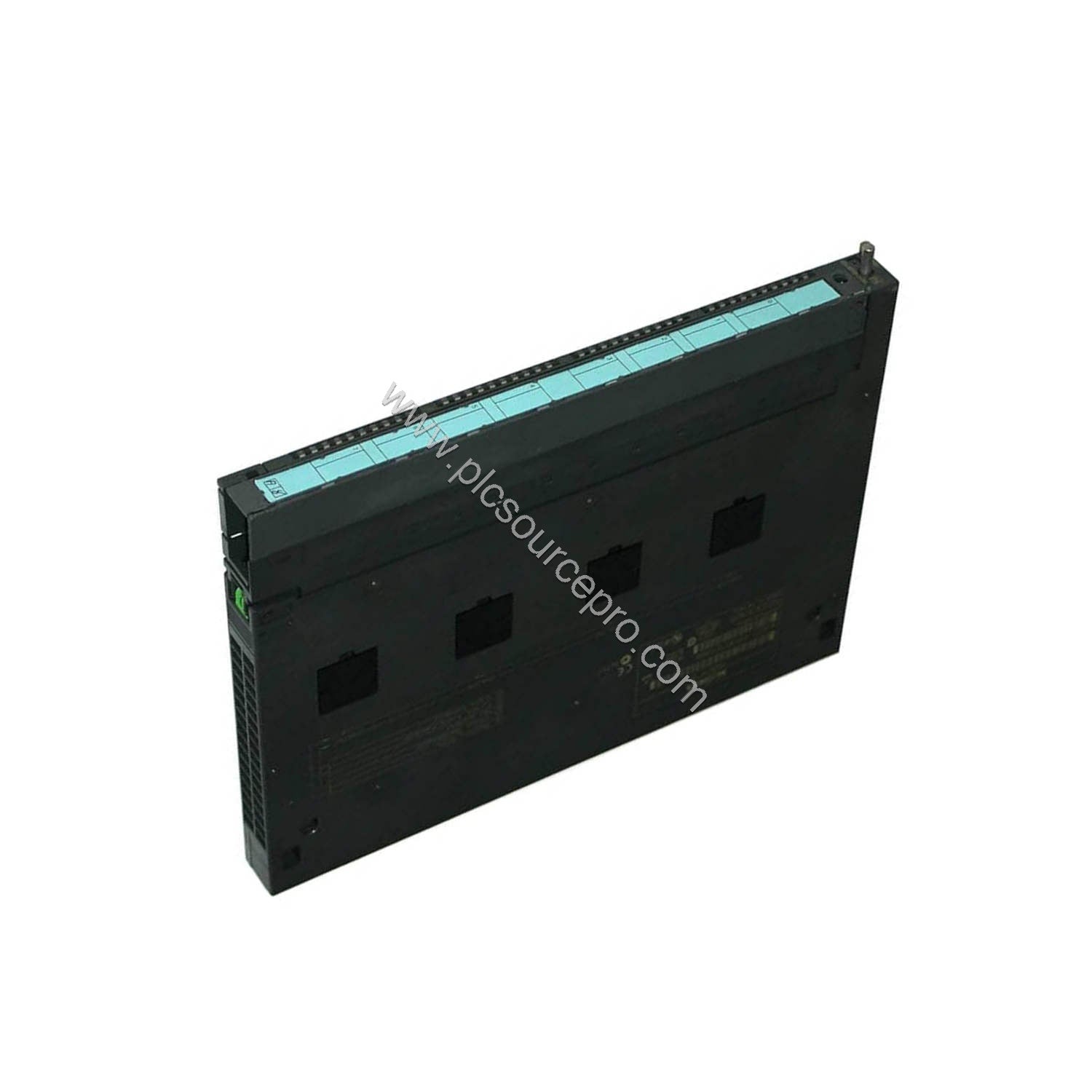

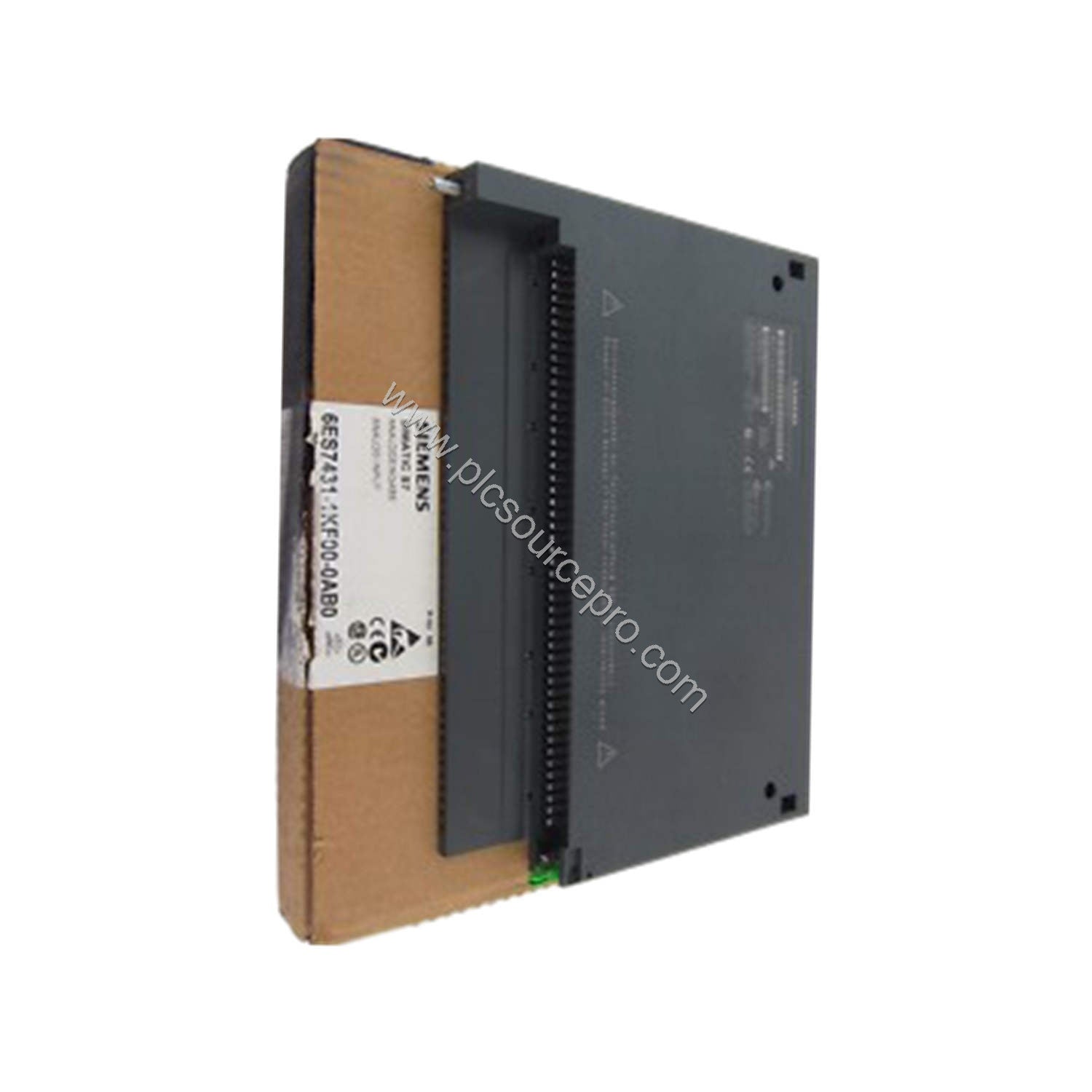

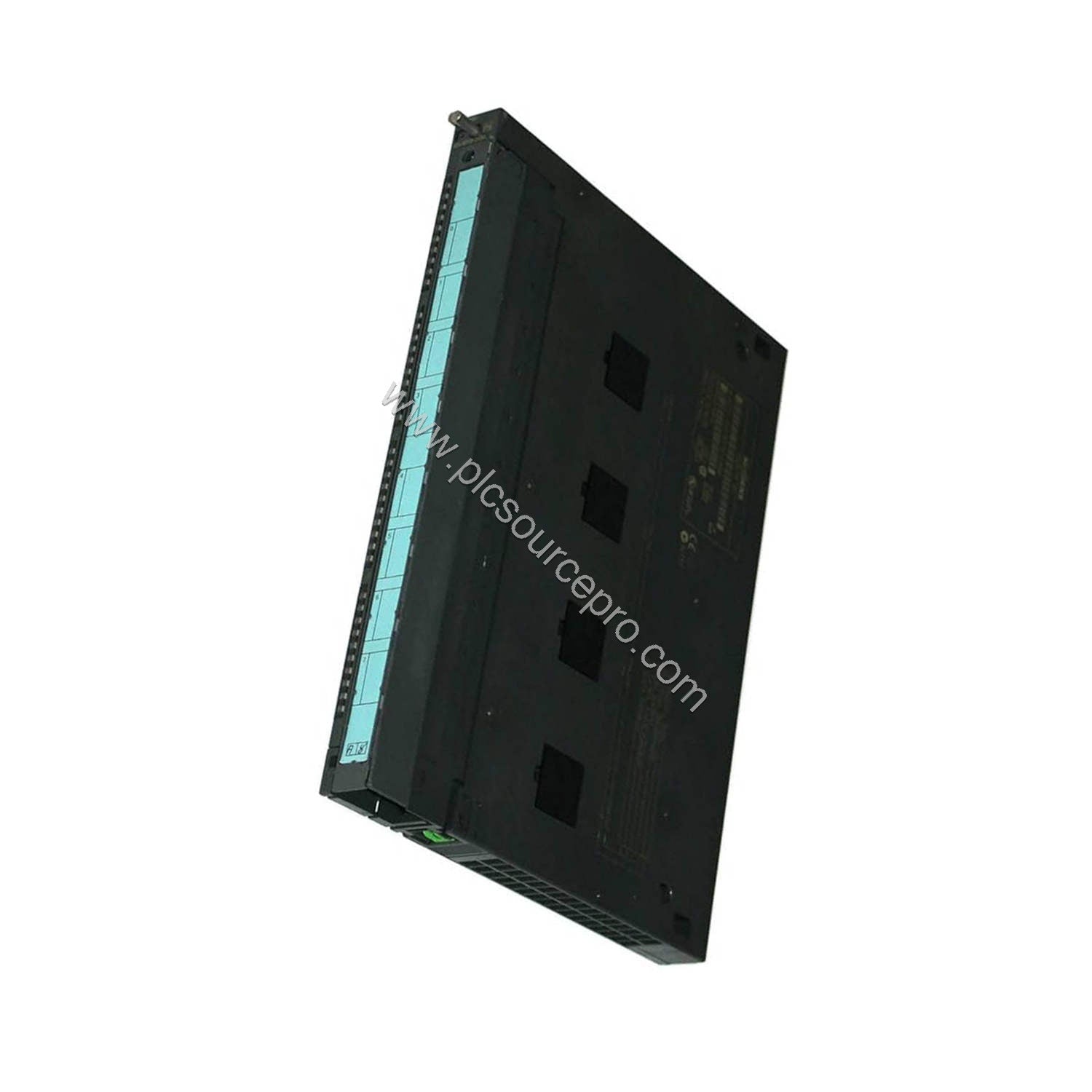

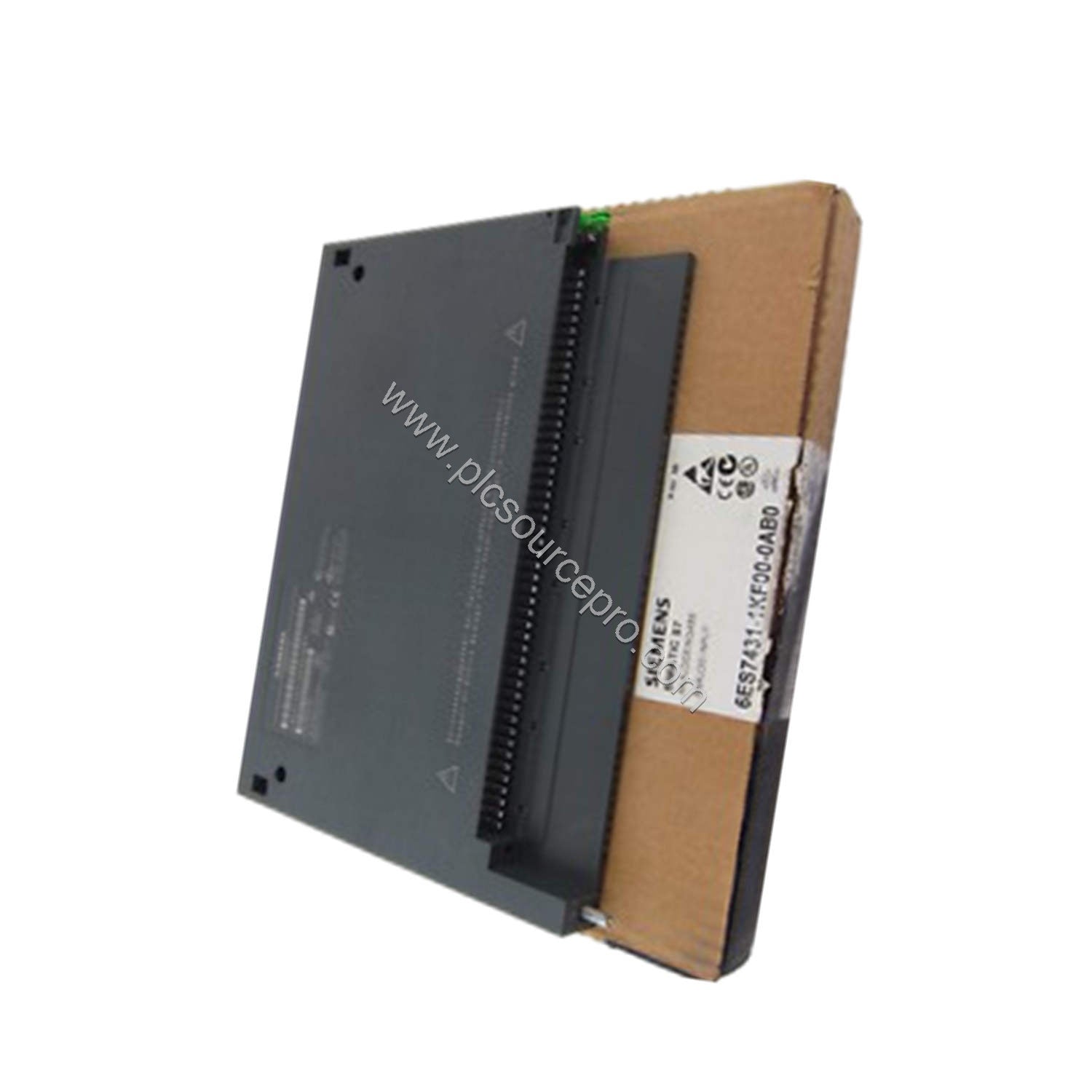

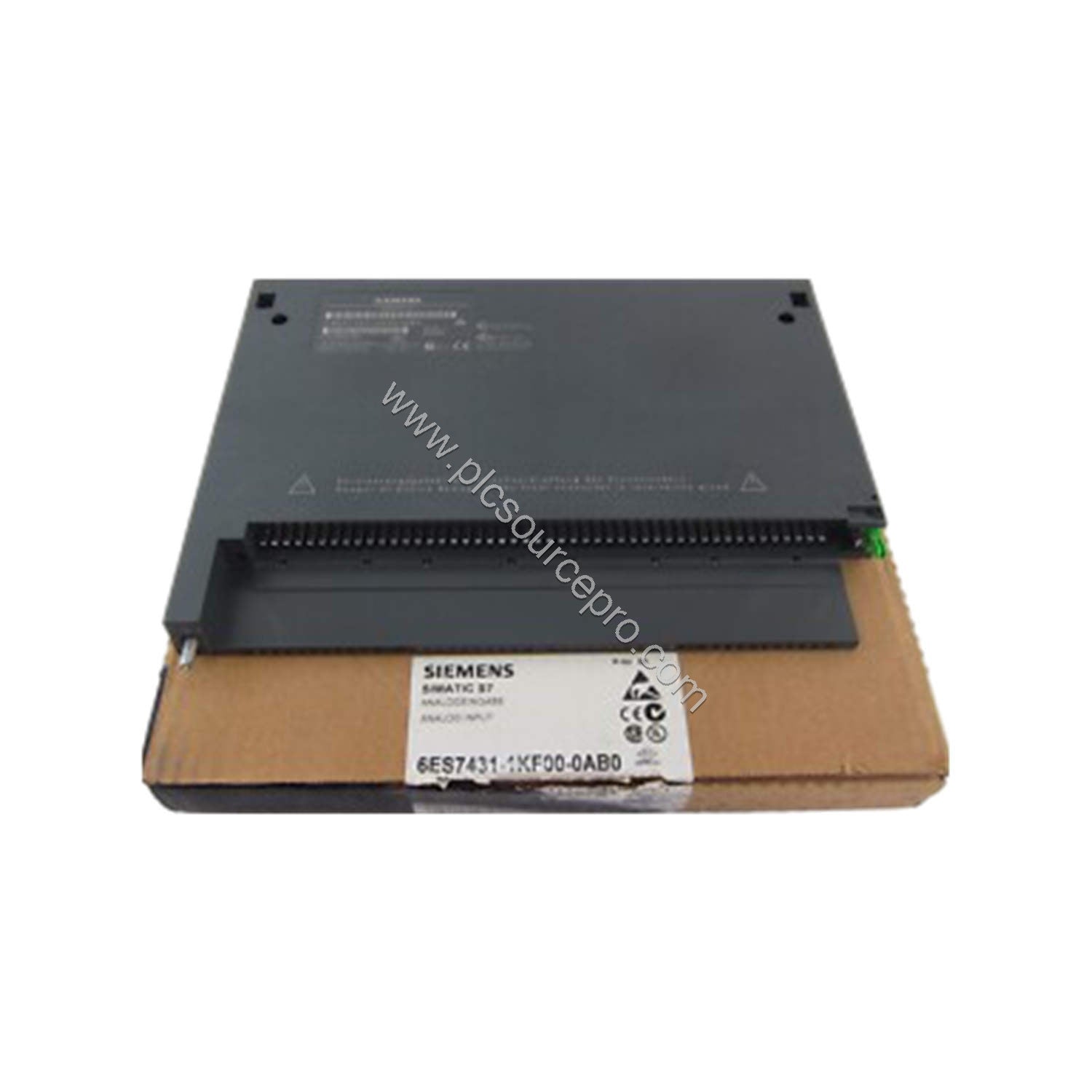

When upgrading your SIMATIC S7-400 system, the Siemens 6ES7431-1KF10-0AB0 analog input module offers a reliable replacement for older units. This SM 431 module provides 8 isolated analog inputs with 14-bit resolution, supporting voltage, current, resistance, thermocouple, and Pt100 sensors. It simplifies wiring by handling multiple signal types without external transducers.
Technical Specifications
The Siemens 6ES7431-1KF10-0AB0 delivers precise measurement capabilities:
| Parameter |
Value |
| Analog Inputs |
8 (8 for voltage/current, 4 for resistance) |
| Resolution |
14 bit (with filtering: 16 bit) |
| Input Ranges |
Voltage: ±80 mV to ±10 V; Current: 0-20 mA, 4-20 mA; Thermocouples: B, E, J, K, L, N, R, S, T, U; Resistance: up to 5000 ohms |
| Power Loss |
3.5 W typ. |
| Isolation |
Between analog inputs and backplane bus; between channels and load voltage |
| Dimensions (WxHxD) |
25 x 290 x 210 mm |
Accuracy: Voltage: ±0.38% to ±0.35% depending on range; Current: ±0.35%; Resistance and RTD: ±0.5%; Thermocouple: varies by type (e.g., Type T ±2.2 K). Temperature error: 0.004%/K.
Industry Applications
As an upgrade module, the Siemens 6ES7431-1KF10-0AB0 suits process industries requiring precise analog measurement. Typical applications include temperature monitoring with thermocouples, pressure sensing via 4-20 mA transmitters, and resistance measurement for strain gauges. Its multiple input ranges eliminate the need for separate modules, reducing panel space and cost.
Installation and Setup
Installing the Siemens 6ES7431-1KF10-0AB0 in an S7-400 rack is straightforward. The module connects to the backplane bus and requires a 24 V DC load voltage only for supplying 2-wire transmitters. For current measurement, use 2-wire or 4-wire transducers. For resistance measurement, three-wire or four-wire connections minimize lead resistance errors. Cable length up to 200 m shielded, or 50 m for thermocouples with ≤80 mV ranges.
Maintenance and Reliability
The module is designed for long-term reliability with a typical power loss of 3.5 W. No diagnostics function is included, but the isolated inputs protect against ground loops. Periodic inspection of wiring and connector integrity ensures consistent accuracy. The module supports a wide range of environmental conditions.
Selection Guide and Purchasing Advice
Before purchasing, verify that your S7-400 rack has a free slot and that the backplane bus can supply sufficient current (max. 600 mA at 5 V DC). The Siemens 6ES7431-1KF10-0AB0 is available from reliable suppliers like ubest101 (PLC Source PRO). Ensure you have the correct part number for your revision. For specific configuration details, consult your system manual. ubest101 offers fast shipping and genuine parts.
