Product Introduction

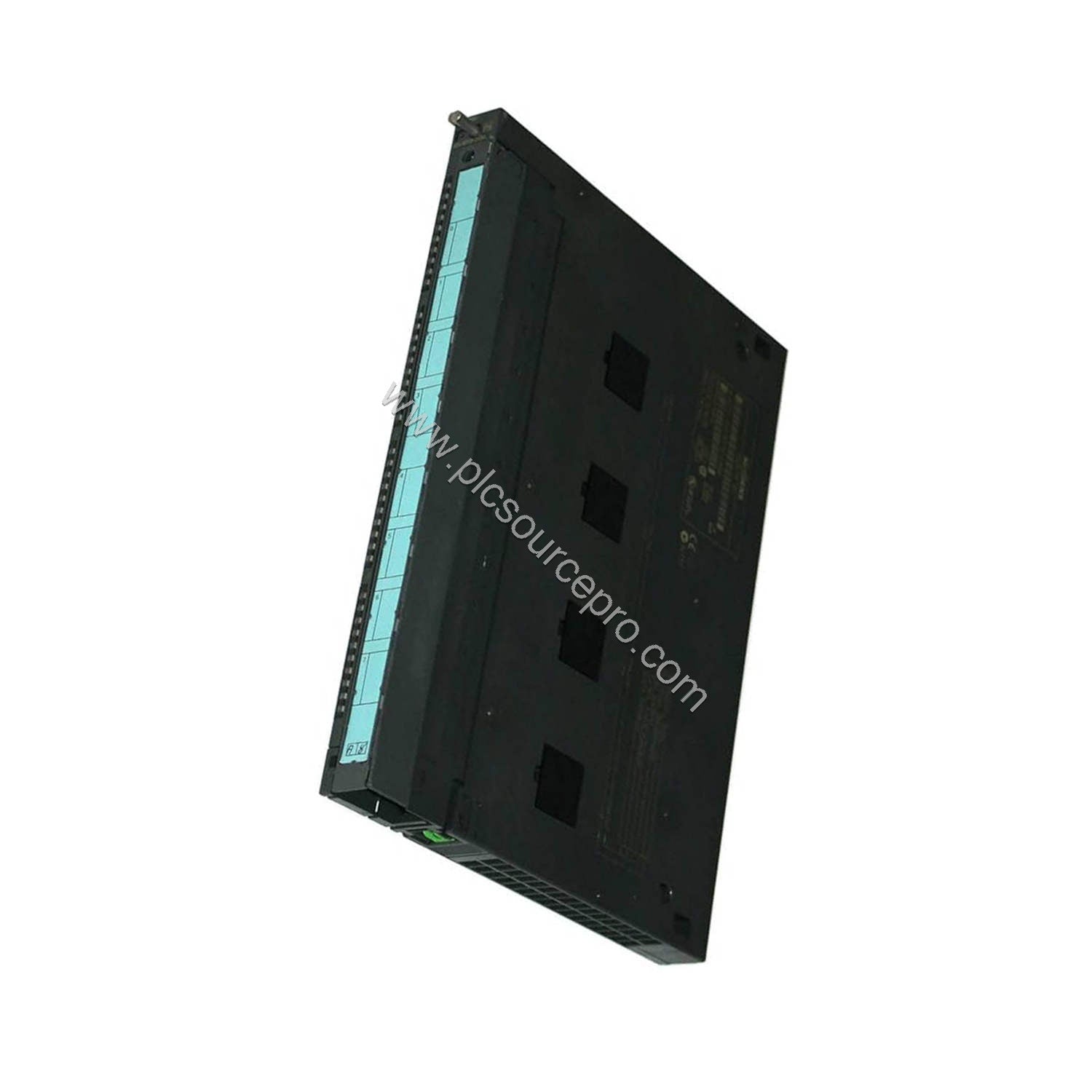

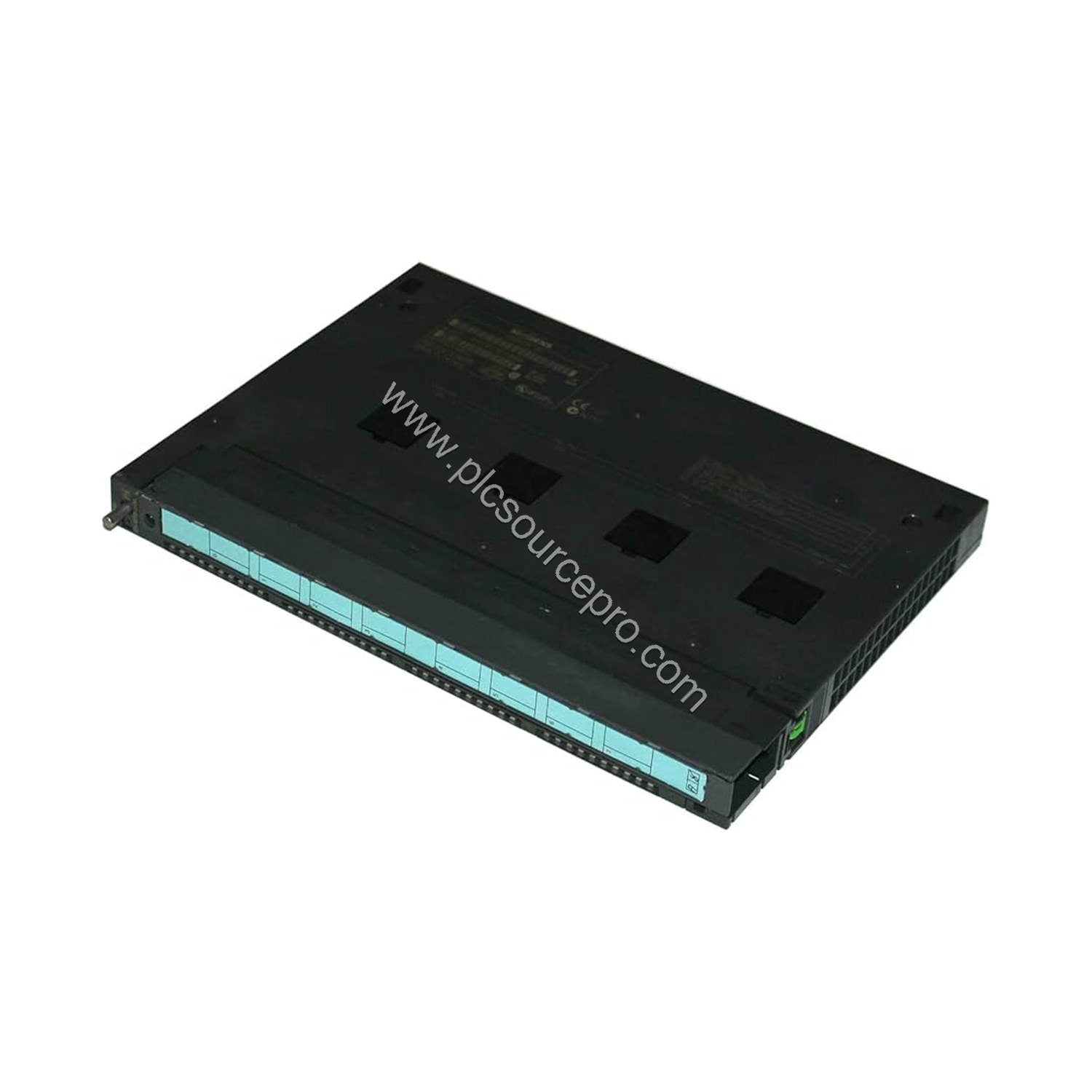

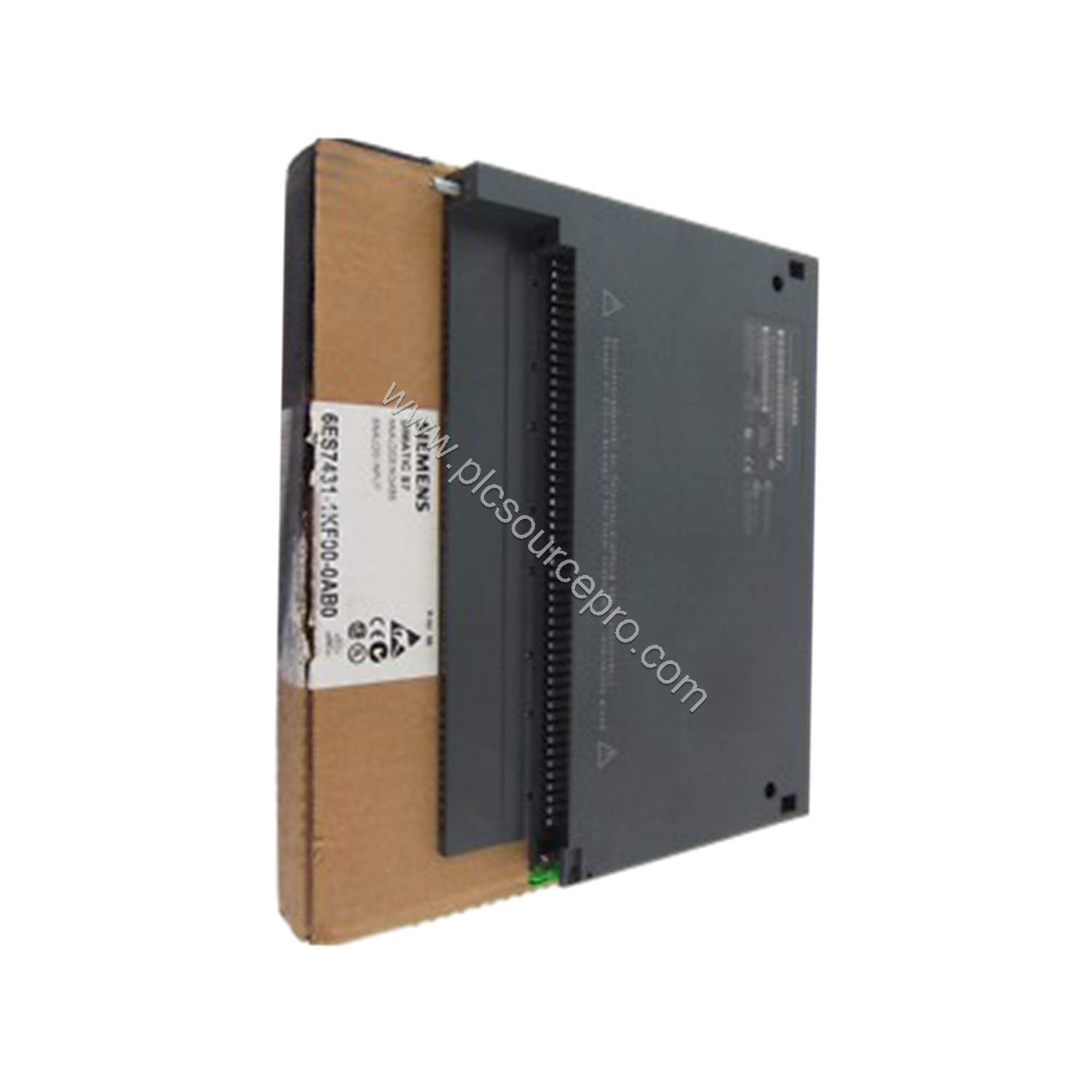

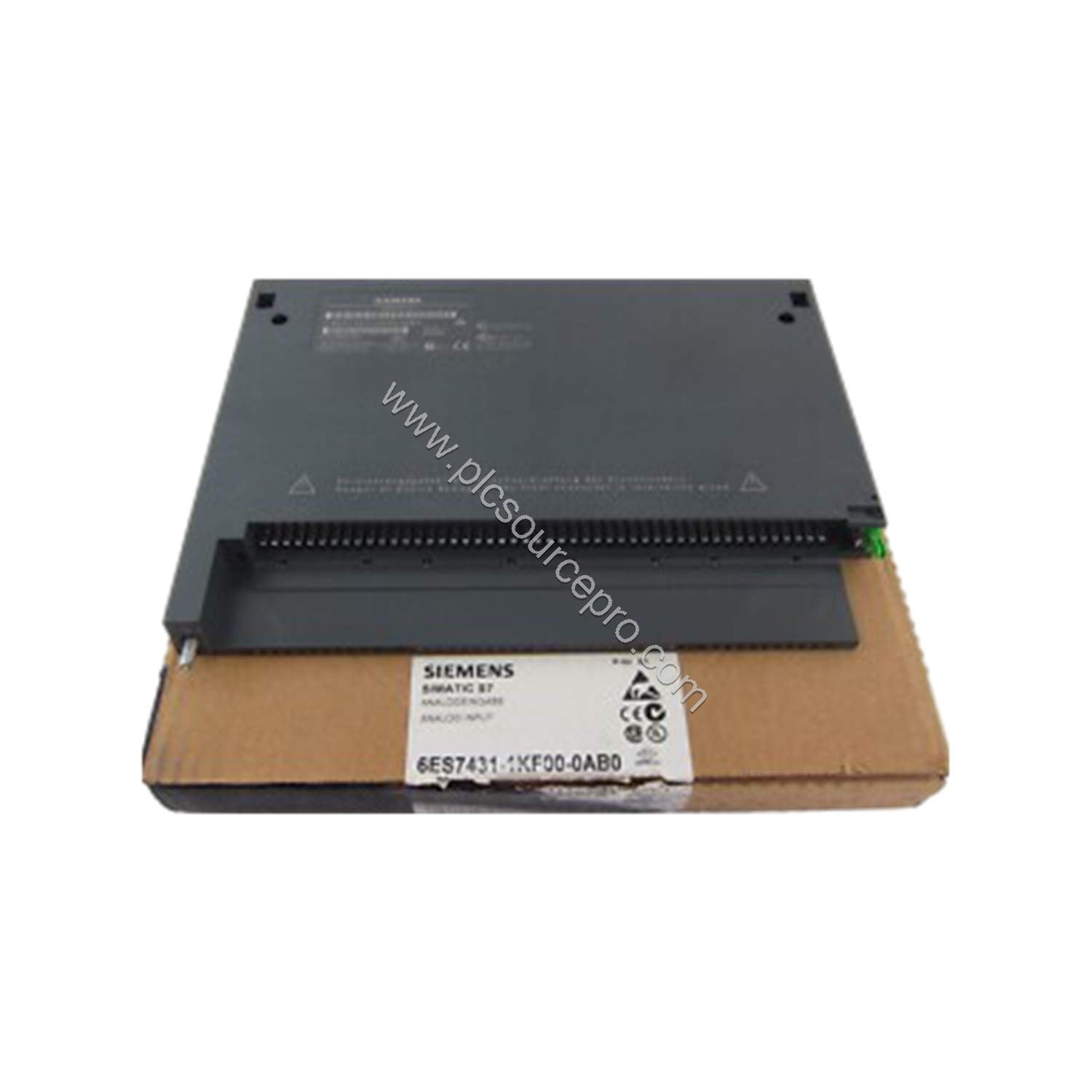

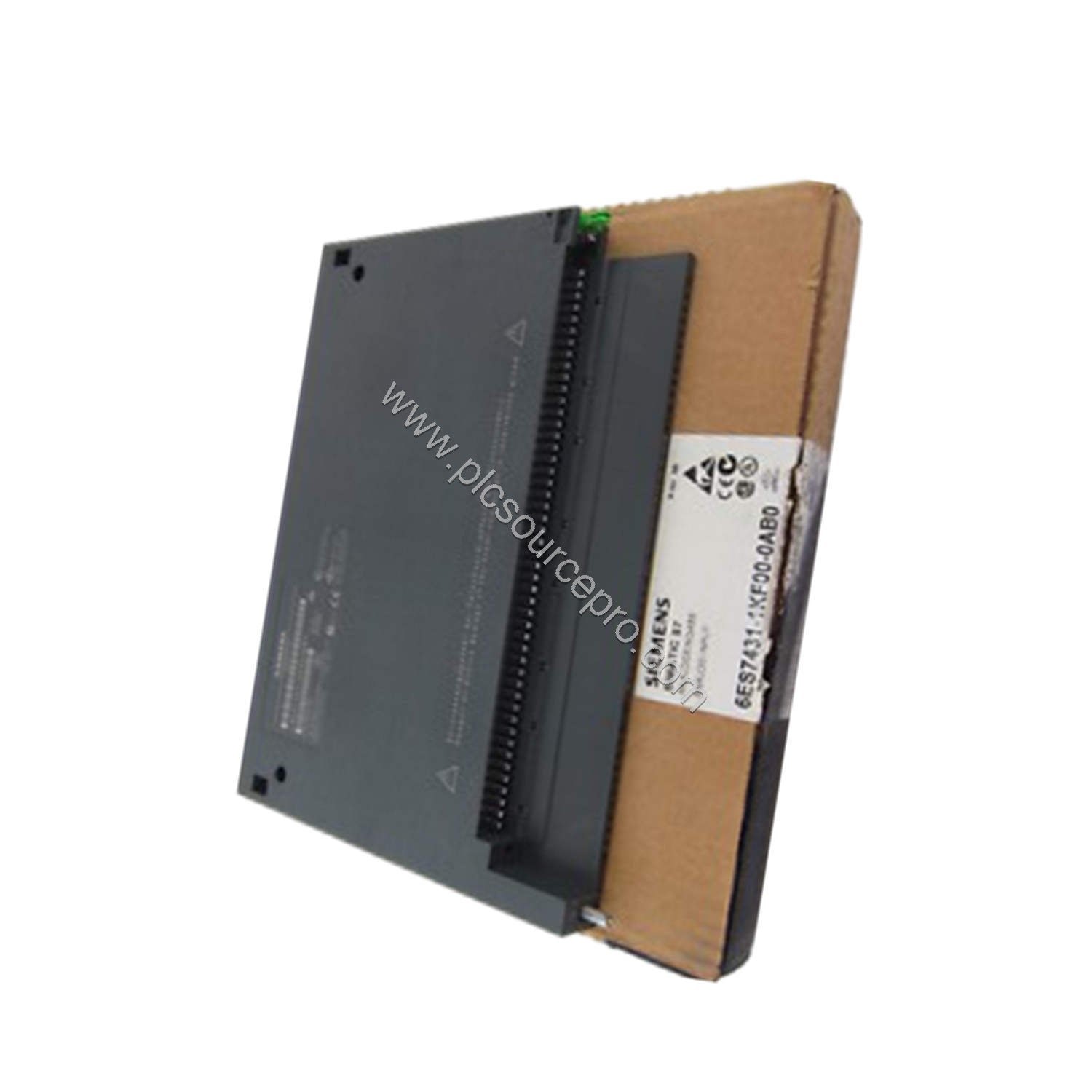

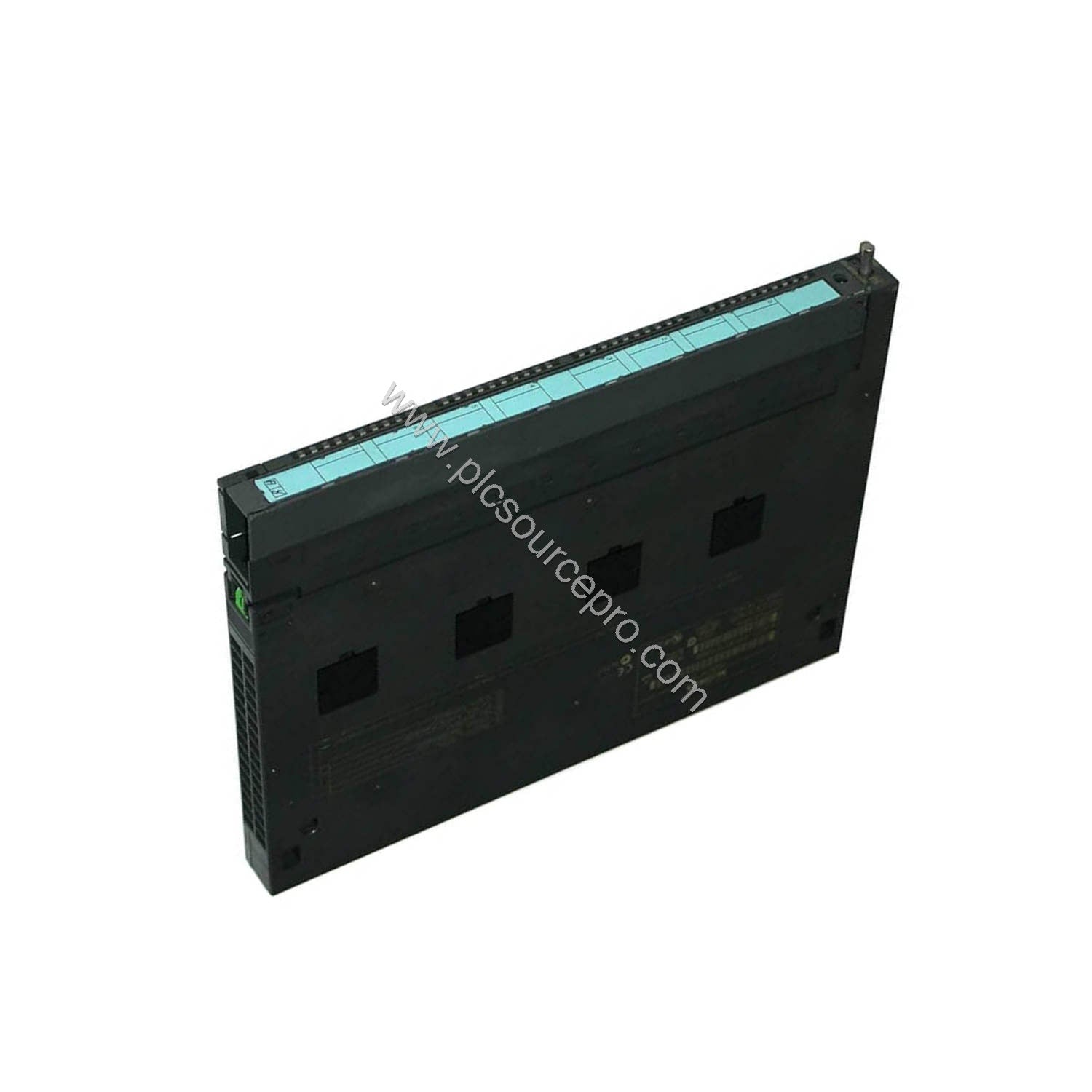

The Siemens 6ES7431-1KF00-0AB0 is an isolated analog input module designed for the SIMATIC S7-400 automation platform. This industrial automation module features 8 analog inputs with 13-bit resolution, supporting voltage, current, and resistance measurements. Built for high-integrity signal acquisition, the Siemens 6ES7431-1KF00-0AB0 excels in harsh industrial environments where accuracy and noise immunity are critical.
Technical Specifications Breakdown
| Parameter |
Value |
| Number of analog inputs |
8 (voltage/current); 4 (resistance) |
| Resolution |
13 bit (with overrange) |
| Power loss |
1.8 W typ. |
| Input current from backplane bus |
350 mA max (5 V DC) |
| Destruction limit (voltage input) |
50 V |
| Destruction limit (current input) |
50 mA (40 mA continuous) |
| Input ranges |
±10 V, ±1 V, 1–5 V; ±20 mA, 4–20 mA; 0–600 Ω |
| Common mode rejection frequency |
50/60 Hz |
| Isolation tested at |
2120 V DC (bus to analog part), 500 V DC (bus to ground) |
| Dimensions (WxHxD) |
25 mm x 290 mm x 210 mm |
| Weight |
approx. 500 g |
The Siemens 6ES7431-1KF00-0AB0 integrates seamlessly into S7-400 racks, providing accurate analog data for process control loops. Its high input impedance (200 kΩ for voltage ranges) minimizes loading effects on sensors.
Industry Applications
-
Process Control: Monitor pressure, temperature, and flow transmitters with 4–20 mA or voltage outputs. The module's 50 mA continuous protection prevents damage from loop faults.
-
Power Generation: Use for monitoring transducer outputs (e.g., ±10 V signals) in turbine and generator control systems. The 13-bit resolution ensures precise measurement.
-
Chemical Plants: Interface with resistance temperature detectors (RTDs) using 3- or 4-wire connections. The integrated 1.67 mA constant current source simplifies RTD excitation.
In each scenario, the Siemens 6ES7431-1KF00-0AB0 delivers reliable performance with interference suppression for 50/60 Hz noise, critical for industrial environments.
Maintenance & Reliability
This module boasts a low power dissipation of only 1.8 W typ., reducing thermal stress in the cabinet. With no moving parts and solid-state isolation, the Siemens 6ES7431-1KF00-0AB0 requires minimal maintenance. The temperature error of ±0.02%/K ensures stable accuracy across varying ambient conditions. For long-term reliability, ensure proper shielding of input cables (max. 200 m shielded) to prevent EMI coupling. The module's overvoltage and overcurrent protection reduce failure risks from accidental wiring errors.
Selection Guide & Purchasing Advice
Before purchasing the Siemens 6ES7431-1KF00-0AB0, verify compatibility with your S7-400 backplane and firmware version. This module is designed for standard S7-400 racks and does not include diagnostic functions—plan for external fault monitoring if needed. For pricing and availability, visit PLC Source PRO (formerly ubest101) for genuine Siemens parts and fast shipping. Ensure you order the correct part number to avoid returns.
