Product Introduction

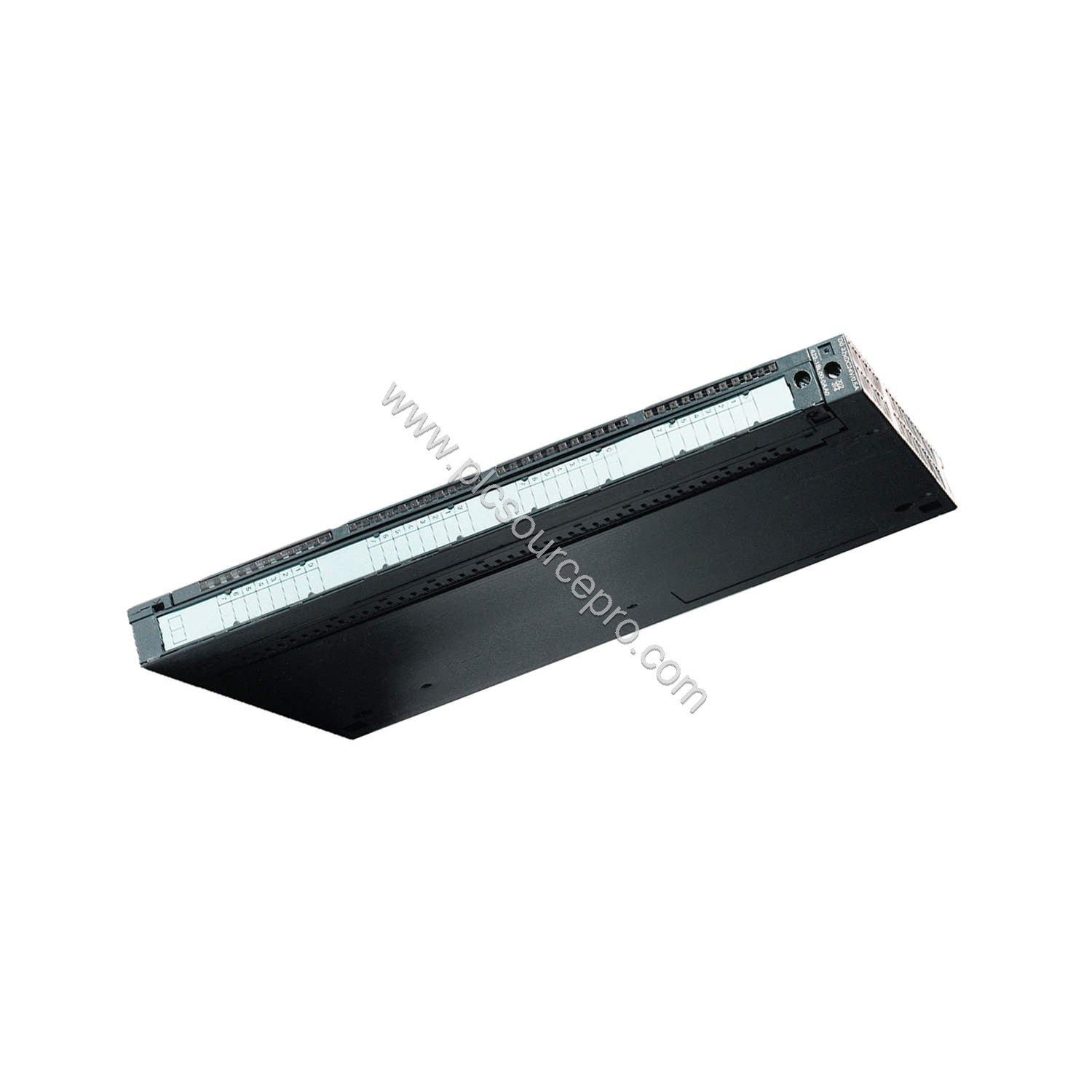

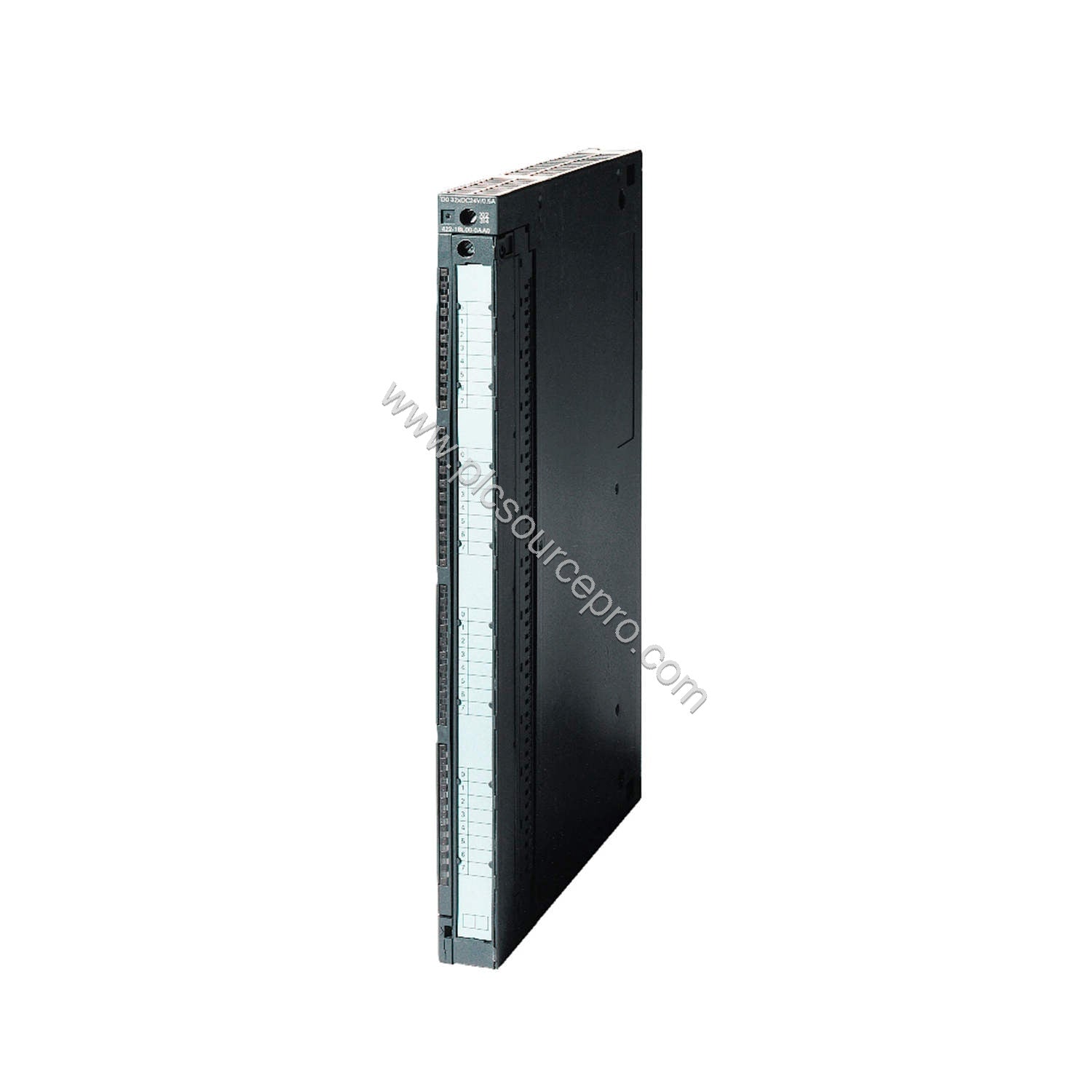

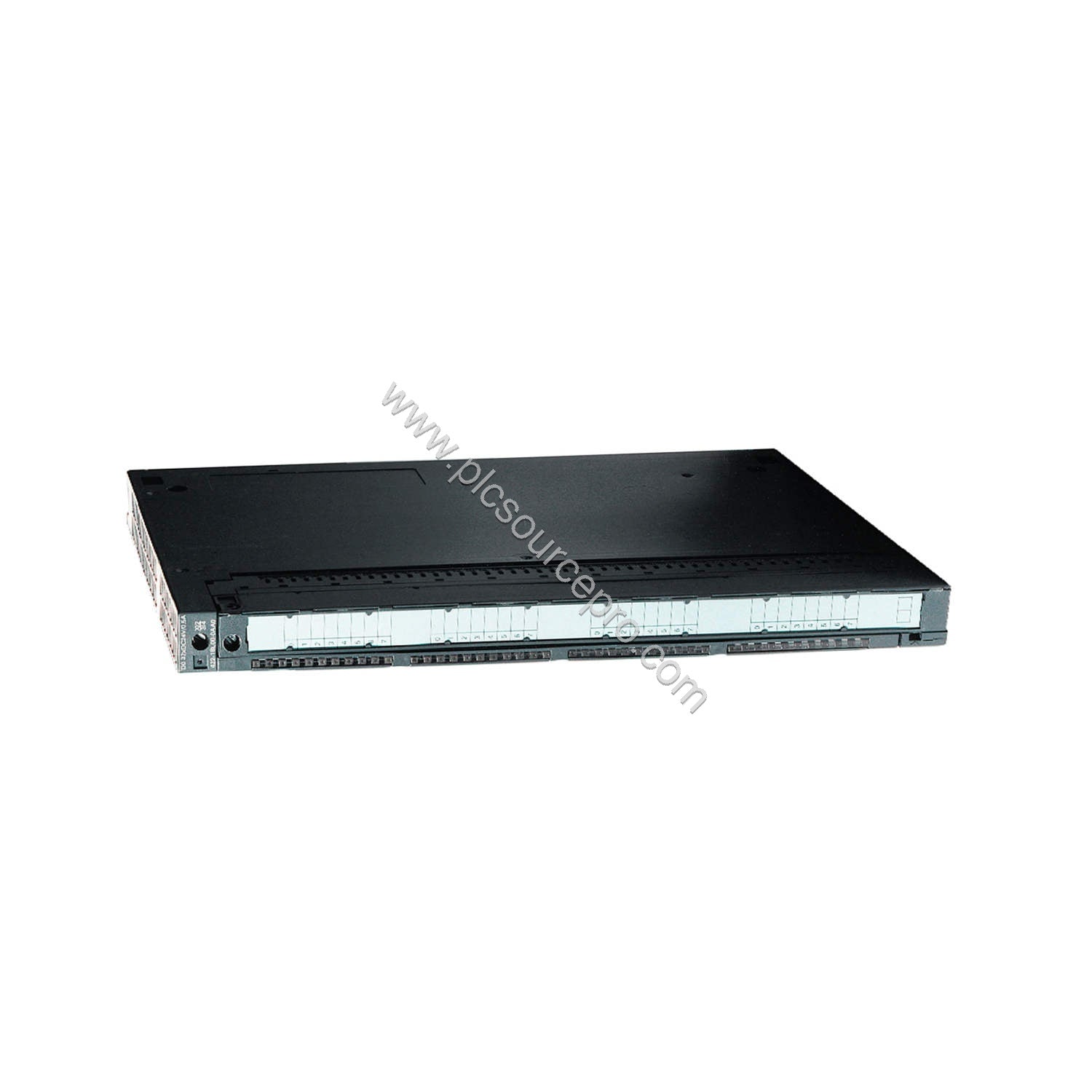

The Siemens 6ES7422-7BL00-0AB0 SM 422 Digital Output Module is a high-reliability component for SIMATIC S7-400 programmable logic controllers. This module provides 32 optically isolated digital outputs operating at 24V DC, each rated at 0.5A with a 0.15 ms output delay. It features comprehensive diagnostic capabilities, making it an excellent choice for applications where output fault detection is critical. When an output channel fails or a short circuit occurs, the 6ES7422-7BL00-0AB0 can be parameterized to generate a diagnostic alarm, allowing for rapid troubleshooting and reduced downtime.
Technical Specifications Breakdown
The following table summarizes the key parameters of the Siemens 6ES7422-7BL00-0AB0 SM 422 Digital Output Module:
| Parameter |
Value |
| Supply Voltage (L+) |
24 V DC (20.4–28.8 V) |
| Input Current from L+ (no load) |
120 mA |
| Power Loss, max. |
8 W |
| Number of Digital Outputs |
32 |
| Output Current for Signal "1" |
0.5 A (rated), 0.6 A max at 60°C |
| Switching Frequency (resistive load) |
100 Hz max |
| Galvanic Isolation |
Between channels in groups of 8; between channels and backplane bus; tested at 500 V DC |
| Diagnostics |
Yes (internal/external fault, parameterizable diagnostic alarm) |
| Dimensions (WxHxD) |
25 mm x 290 mm x 210 mm |
| Weight |
Approx. 600 g |
The 6ES7422-7BL00-0AB0 handles inductive loads with a shutdown voltage limitation to L+ (-45 V) and supports cable lengths up to 1000 m shielded or 600 m unshielded. Its aggregate output current per group (8 channels) is limited to 2 A at 60°C, providing robust performance in demanding industrial environments.
Industry Applications
The Siemens 6ES7422-7BL00-0AB0 SM 422 Digital Output Module is well-suited for discrete control tasks in manufacturing, process control, and material handling. For example, in a conveyor system, the 32 outputs can drive contactors for motor starters, with diagnostics enabling early detection of welded contacts or broken wires. In a chemical batch process, the module's galvanic isolation (500 V DC tested) protects the backplane from voltage transients caused by valve solenoids. The 0.15 ms output delay ensures precise timing for high-speed sorting stations operating at resistive loads up to 100 Hz.
Installation & Setup Guidance
Mount the Siemens 6ES7422-7BL00-0AB0 on an S7-400 rack in any available slot. Ensure the backplane bus provides 5 V DC (max 200 mA from backplane). Connect load voltage L+ (24 V DC) within the permissible range (20.4–28.8 V) to the module's terminal block. Wire digital outputs using shielded cables for distances over 100 m, with a maximum length of 1000 m shielded or 600 m unshielded. Use a group-wise common return (M) for each set of 8 outputs. Parameterize the diagnostic alarm via STEP 7 to enable interrupt-driven fault reporting.
Troubleshooting & Common Issues
Common issues with digital output modules include blown fuses, short circuits, and output driver failure. The Siemens 6ES422-7BL00-0AB0 provides diagnostic alarms that can be parameterized to report channel faults. If an output fails to energize, check the load voltage (L+) and the signal "1" minimum voltage (L+ -0.8 V). For inductive loads, ensure the internal limiting to L+ (-45 V) is sufficient to suppress back EMF. If multiple outputs in the same group overload (exceeding 2 A aggregate), the module may enter thermal shutdown; reduce the load or improve ventilation. Regular inspection of cable connections and relay states extends the module's service life.
Selection Guide & Purchasing Advice
Before purchasing the Siemens 6ES7422-7BL00-0AB0 SM 422 Digital Output Module, verify that your S7-400 rack has an available slot and that the backplane bus current requirement (max 200 mA) is within your configuration limits. For additional system reliability, consider ordering a spare module as a hot standby. PLC Source PRO (ubest101) offers genuine Siemens 6ES7422-7BL00-0AB0 modules with fast shipping and technical support. Always check the compatibility with your existing STEP 7 version and firmware revision.
