Product Overview

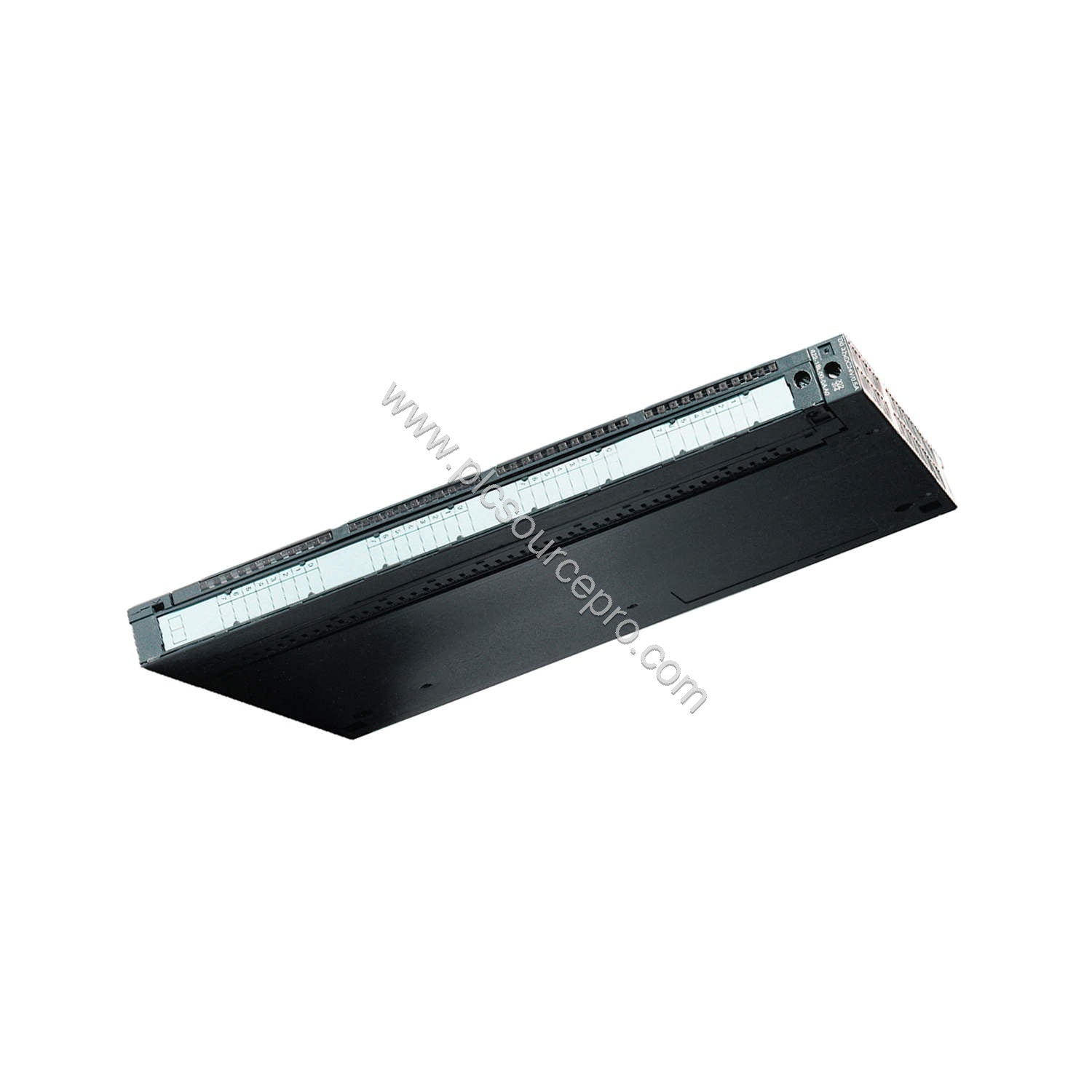

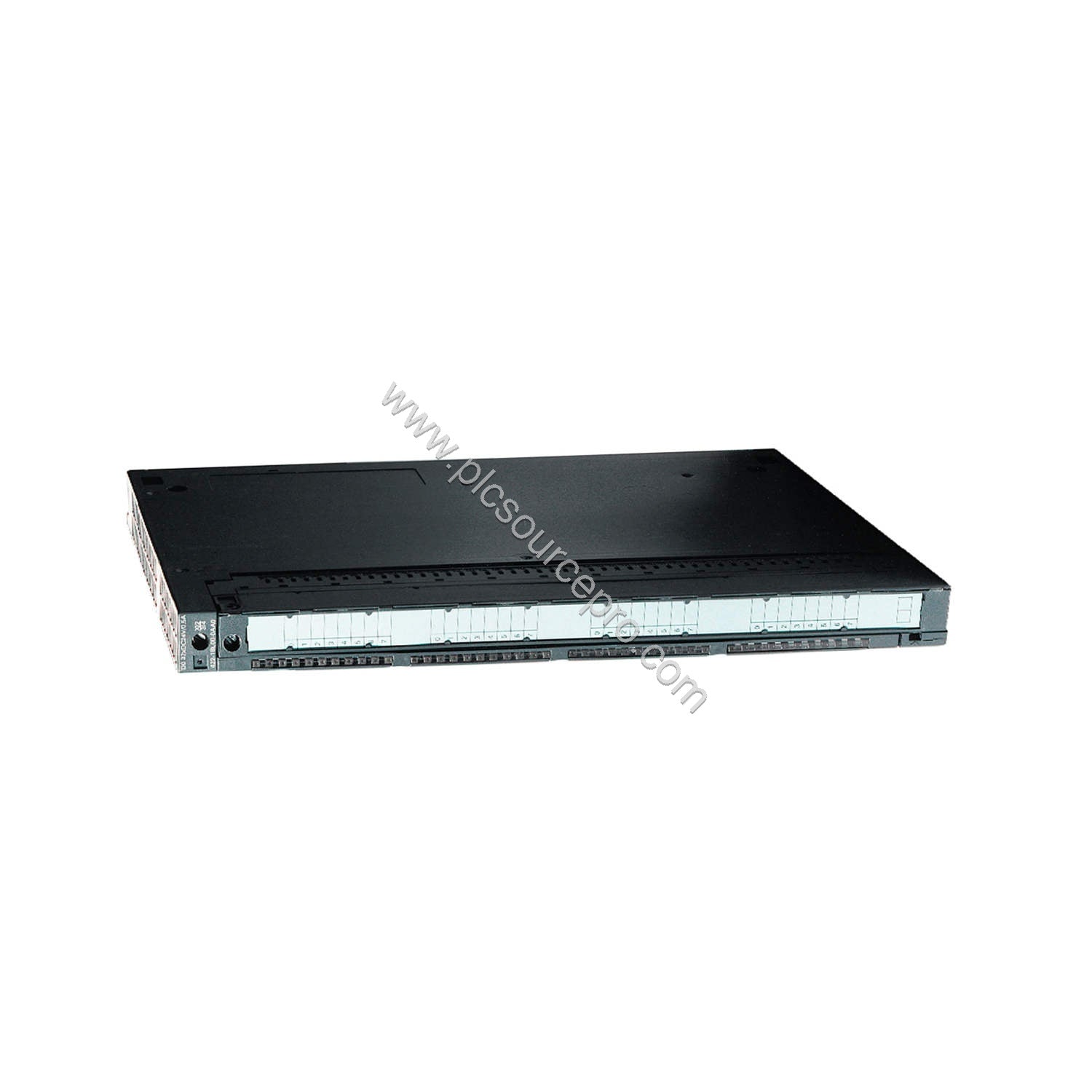

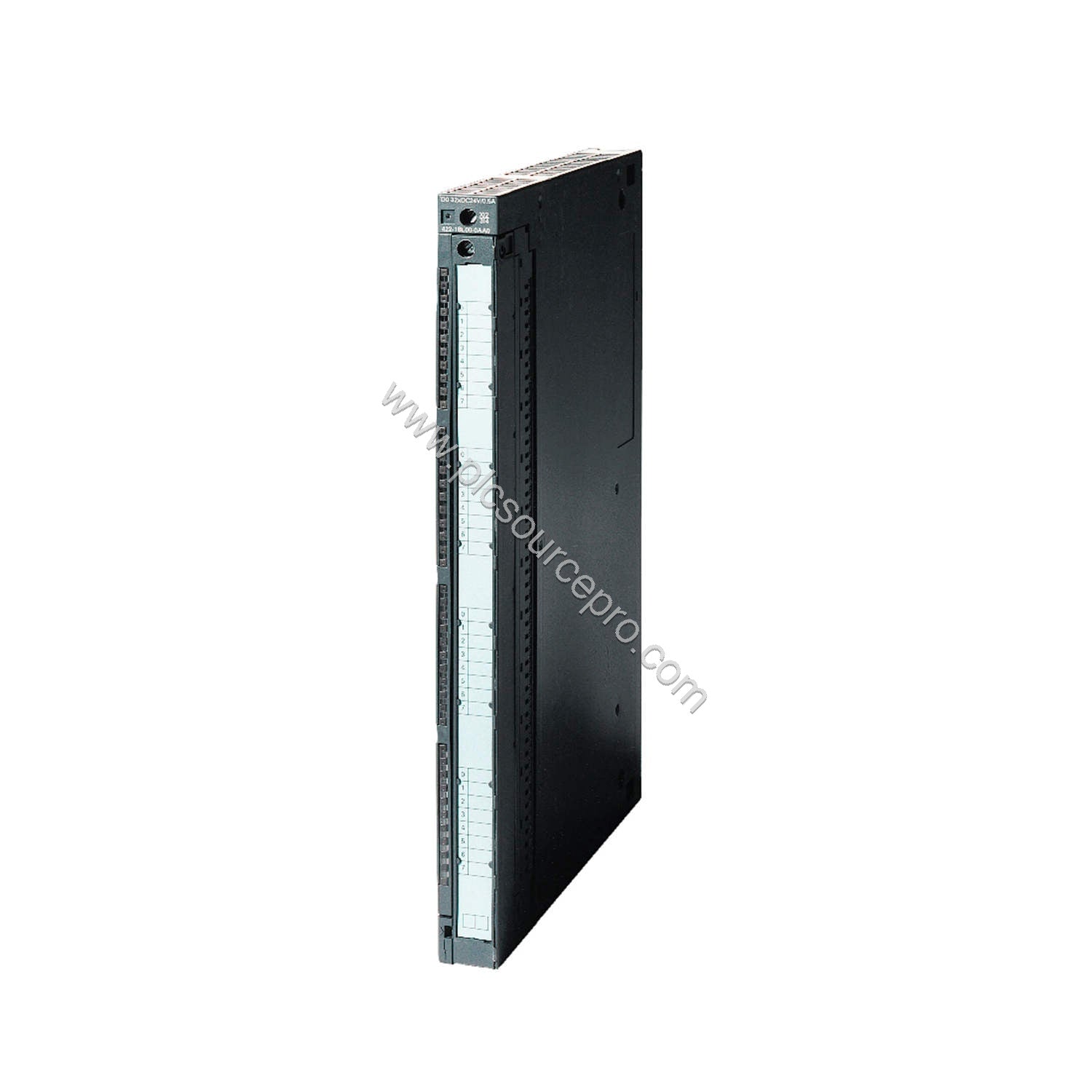

When digital output failures cause unexpected downtime, the Siemens 6ES7422-1BL00-0AA0 provides robust protection and reliable switching for your automation system. This SIMATIC S7-400 digital output module delivers 32 isolated 24 V DC outputs rated at 0.5 A each, with clocked electronic short-circuit protection to prevent damage and reduce maintenance interventions.
Technical Specifications
The Siemens 6ES7422-1BL00-0AA0 is engineered for demanding industrial environments. Key parameters include:
- Number of digital outputs: 32
- Rated load voltage: 24 V DC (permissible range 20.4 V to 28.8 V DC)
- Output current per channel: rated 0.5 A, permissible range 5 mA to 0.6 A
- Short-circuit protection: Yes, clocked electronically (response threshold 0.7 to 1.5 A)
- Power loss typ. 4 W
- Switching frequency with resistive load: max. 100 Hz
- Isolation tested at 500 V AC/707 V DC
These specifications ensure the Siemens 6ES7422-1BL00-0AA0 meets stringent industrial requirements while offering high reliability.
Real-World Applications
This module excels in discrete manufacturing and process control where rapid switching and fault tolerance are critical. For example, in a conveyor system with multiple actuators, the Siemens 6ES7422-1BL00-0AA0 can drive up to 32 solenoid valves simultaneously, while its short-circuit protection prevents cascading failures. In batch processing, the inductive shutdown voltage limitation minimizes arcing on valve coils, extending equipment life.
Installation Guidance
Mount the Siemens 6ES7422-1BL00-0AA0 directly on the S7-400 rack. Ensure proper backplane bus connection for 5 V DC power (max. 200 mA supply). For wiring, use shielded cables up to 1000 m for noise immunity; unshielded up to 600 m. When grouping outputs, consider total current limits: up to 4 A per group at 40 °C, reducing to 2 A at 60 °C with 8 adjacent outputs.
Troubleshooting Common Issues
The Siemens 6ES7422-1BL00-0AA0 minimizes typical output module failures. Its clocked short-circuit protection automatically resets after a fault, reducing manual intervention. For inductive loads, the integrated -27 V shutdown voltage limitation protects internal components. Note that diagnostics are not provided; use external monitoring if needed. If an output remains off, check load resistance (48 Ω to 4 kΩ) and ensure the logic signal '1' voltage is at least L+ (-0.3 V).
Selection Guide & Purchasing Advice
Before purchasing the Siemens 6ES7422-1BL00-0AA0, verify compatibility with your S7-400 CPU and firmware version. For bulk projects, confirm availability of multiple units. As a trusted supplier, PLC Source PRO (available at ubest101.myshopify.com) stocks genuine Siemens modules with full traceability. Always order from authorized channels to guarantee authenticity and avoid counterfeit risks.
