Product Overview

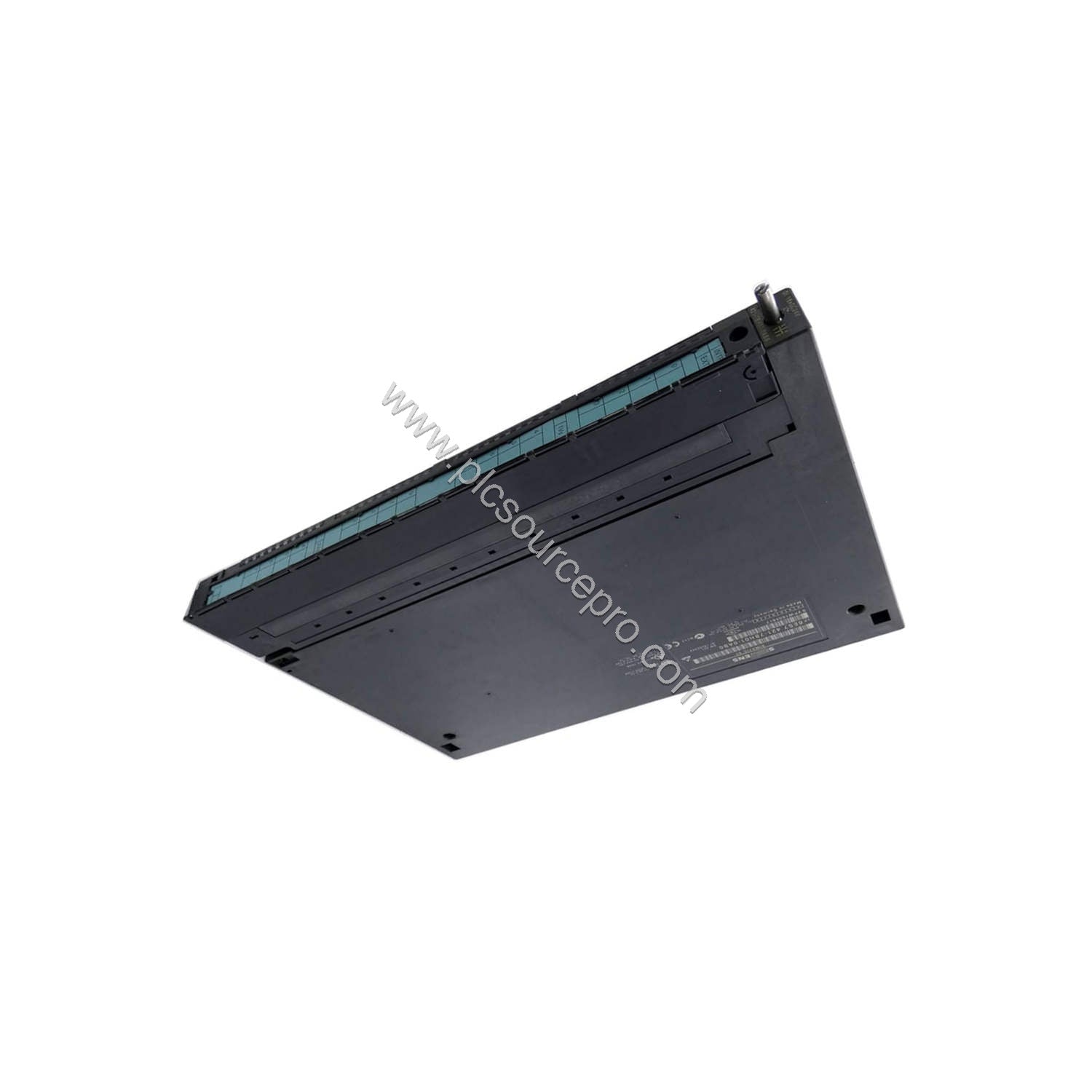

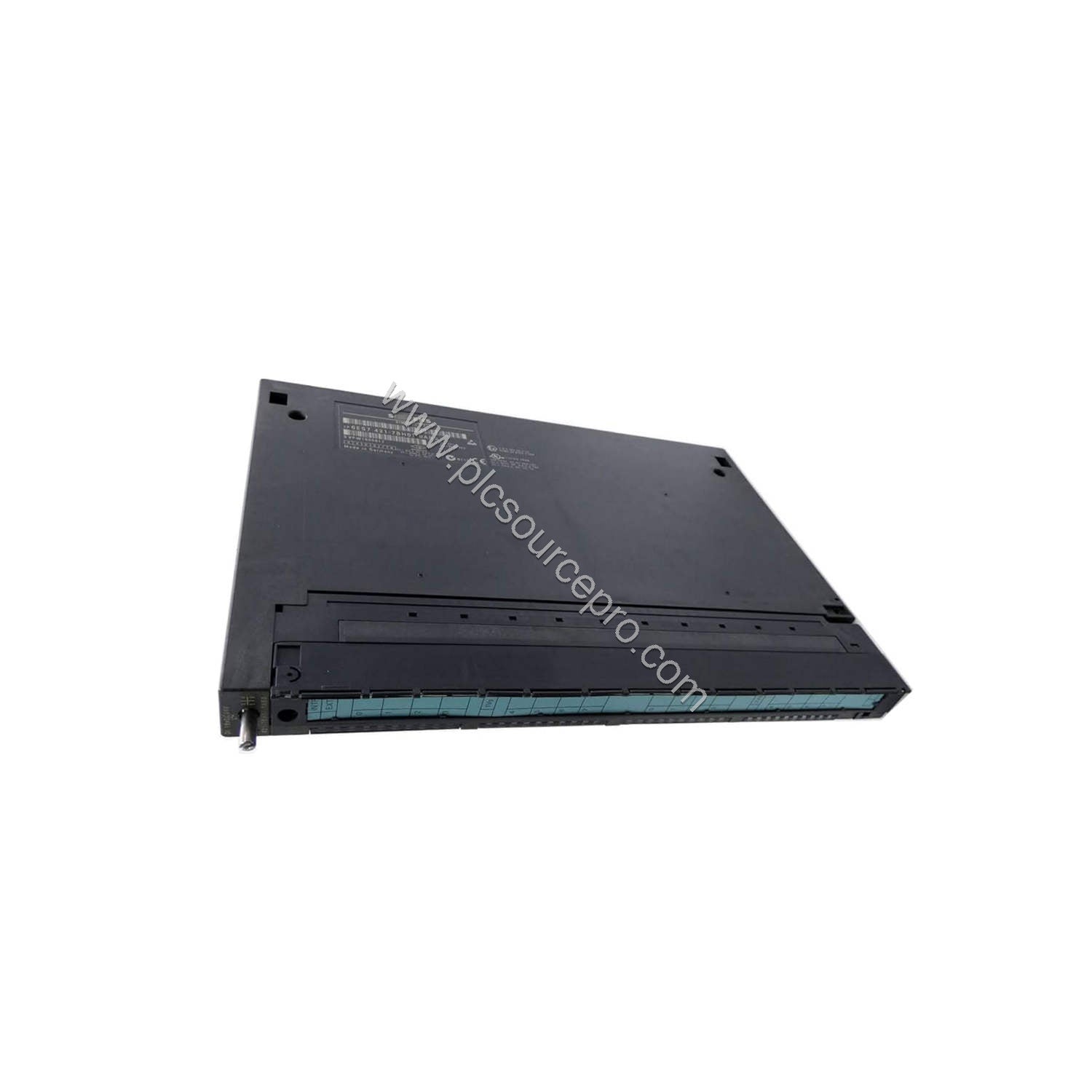

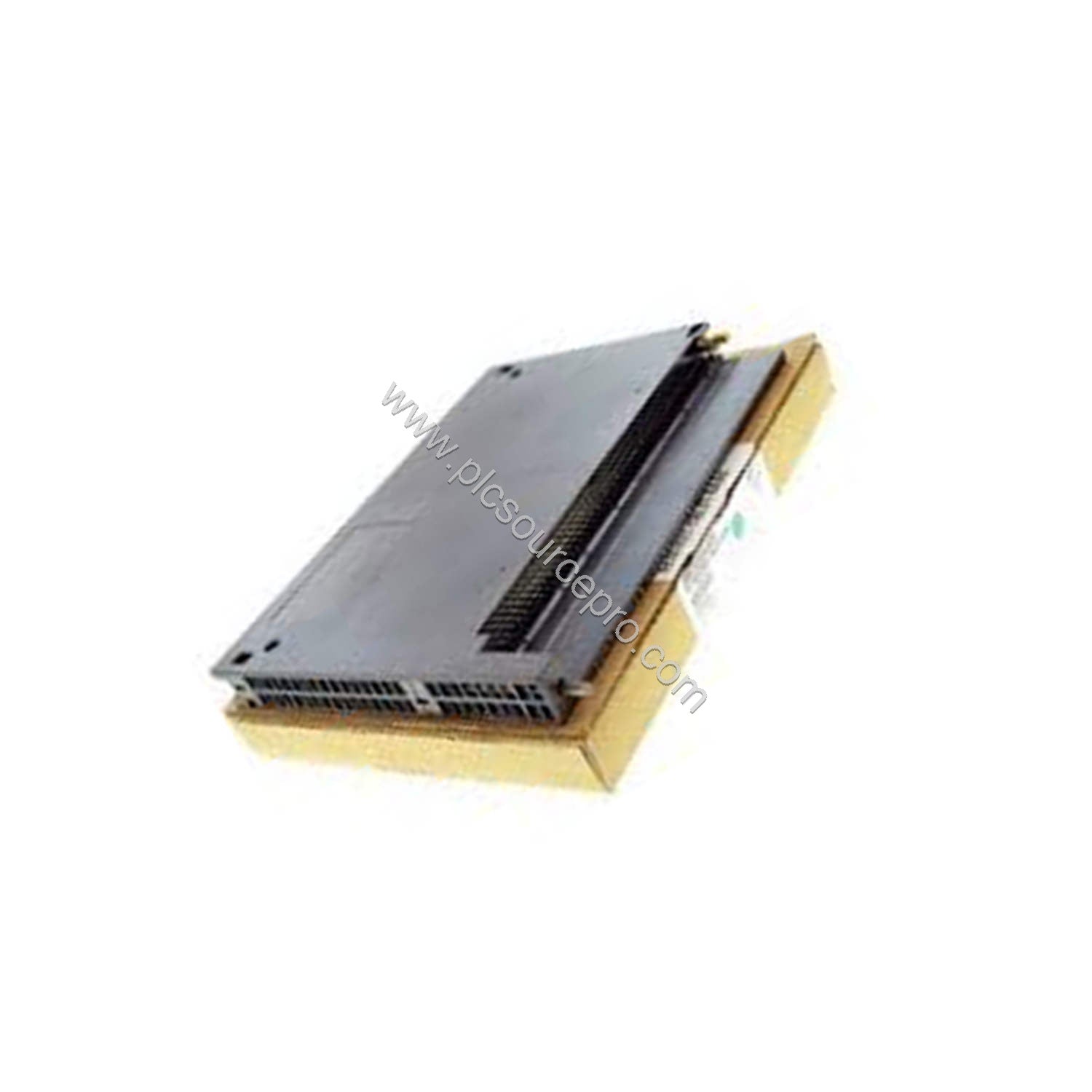

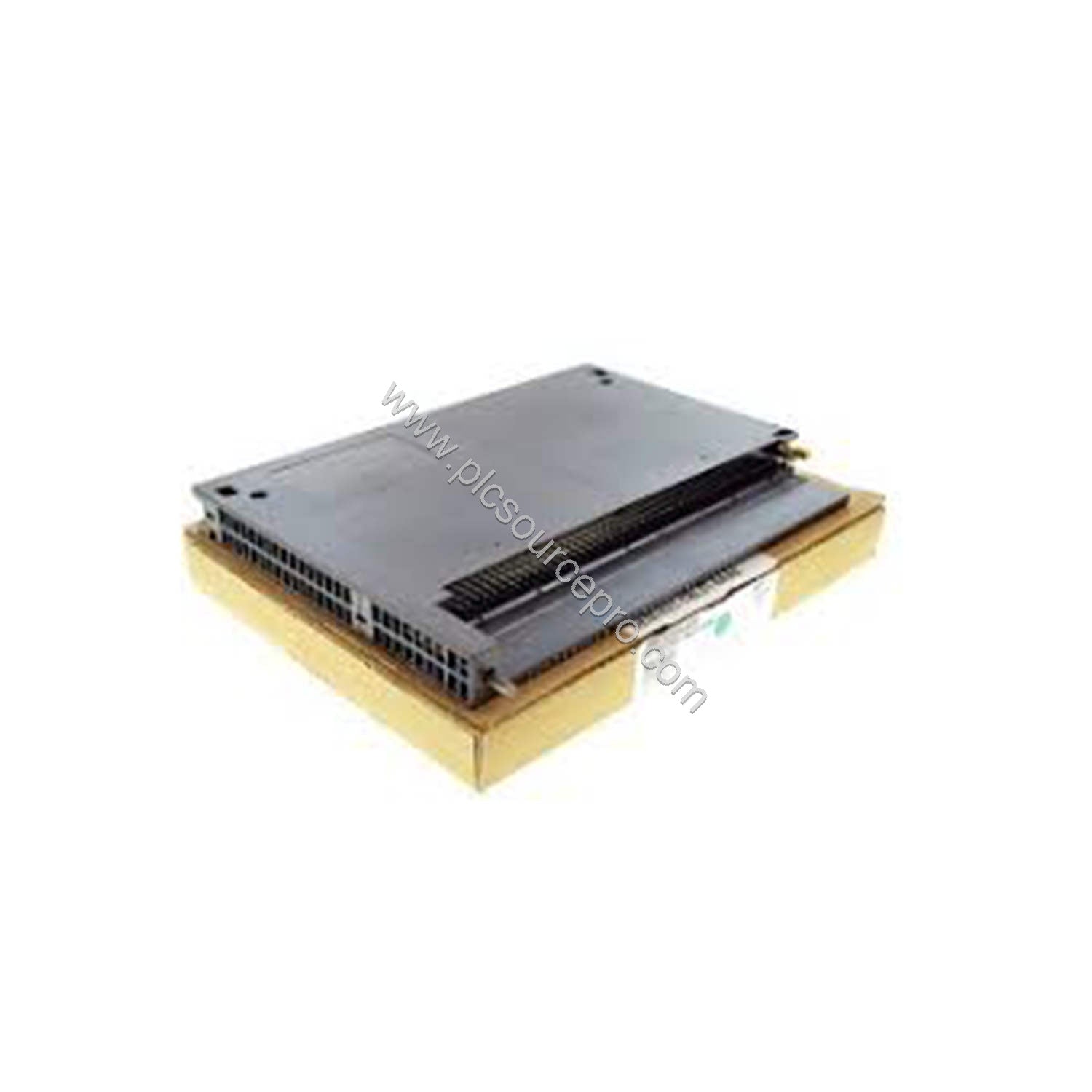

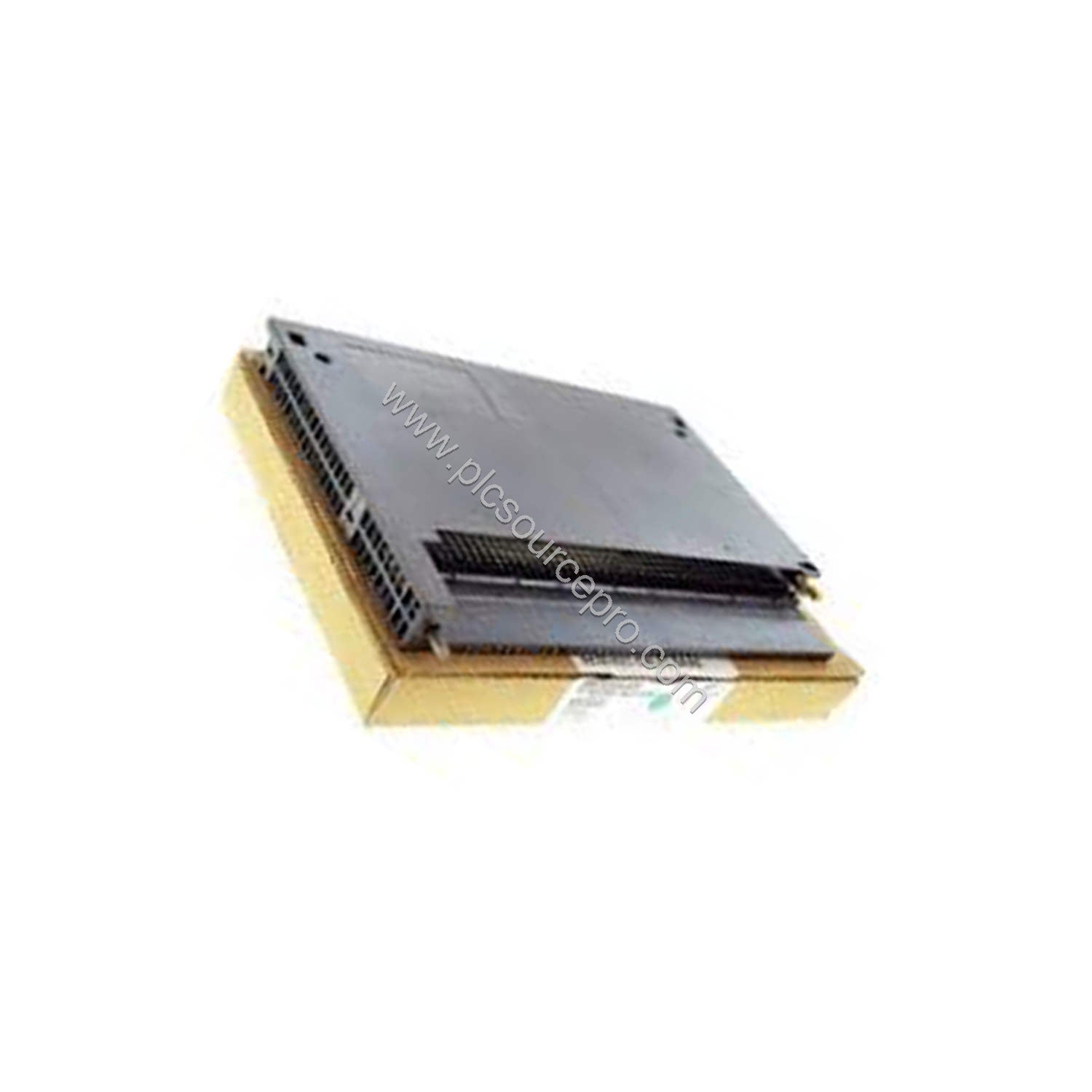

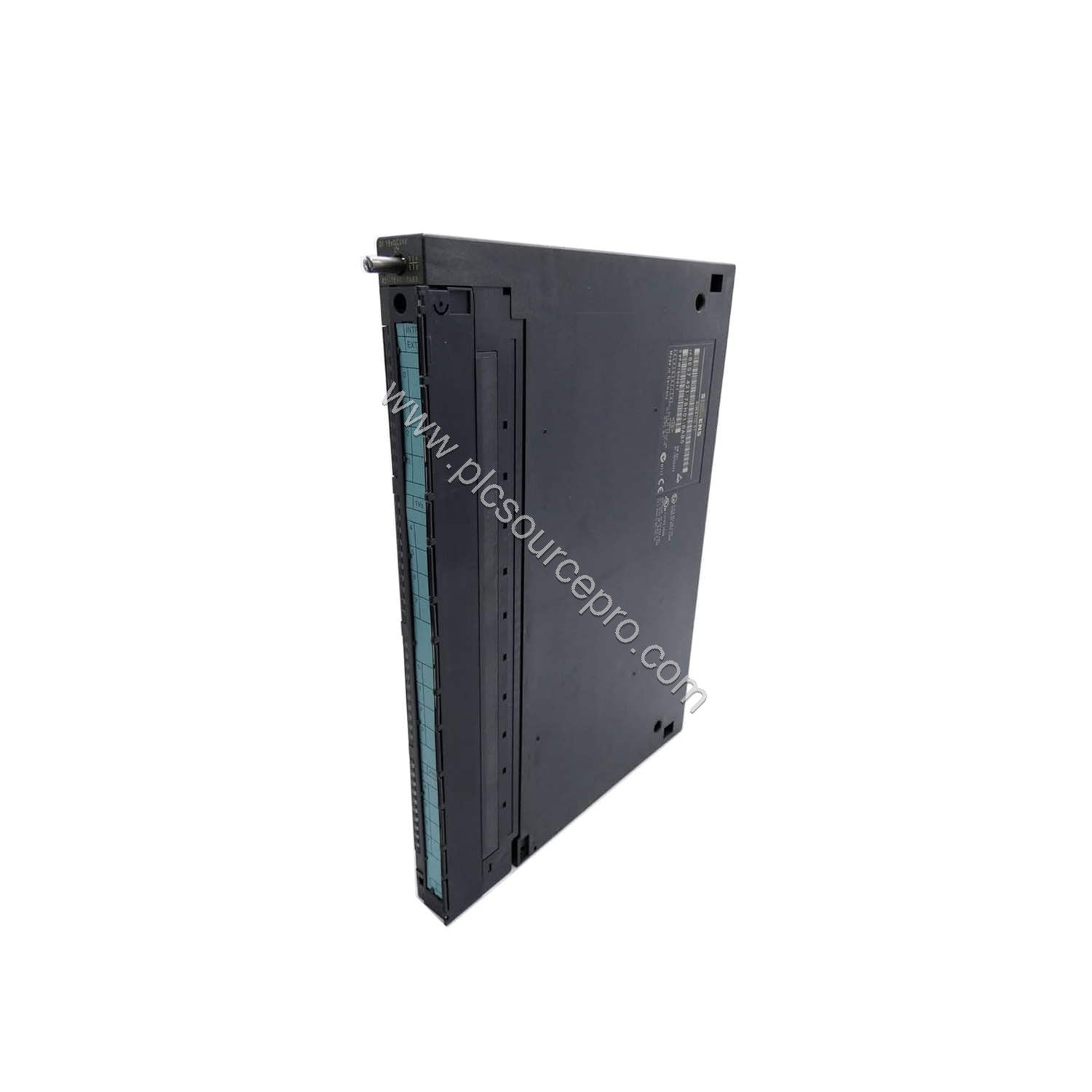

When a digital input module fails in a process control system, downtime costs can escalate rapidly. The Siemens 6ES7421-7DH00-0AB0 is designed to prevent such failures with robust diagnostics and alarm capabilities. This SIMATIC S7-400 SM 421 module offers 16 isolated digital inputs for UC 24–60 V, making it ideal for demanding industrial environments. With built-in wire‑break detection and parameterizable hardware interrupts, the 6ES7421-7DH00-0AB0 helps operators quickly identify and isolate faults before they cause production losses.
Technical Specifications
Below are the key technical parameters for the Siemens 6ES7421-7DH00-0AB0. All values are taken directly from the product datasheet.
-
Digital inputs: 16, isolated in groups of 1
-
Input voltage type: AC/DC, rated value 24 V UC to 60 V UC (47–63 Hz)
-
Signal “1” range: 15–72 V DC; -15 to -72 V DC; 15–60 V AC
-
Signal “0” range: -6 to +6 V DC / 0–5 V AC
-
Input current for signal “1”: typ. 4 mA (4–10 mA)
-
Input delay (parameterizable): 0.5 / 3 / 10 / 20 ms
-
Power loss: typ. 8 W; 3.5 W (24 V DC); 6.5 W (48 V DC); 8.0 W (60 V DC)
-
Backplane bus current: 5 V DC, max. 150 mA
-
Diagnostics: Yes, parameterizable (diagnostic alarm, hardware interrupt, wire‑break)
-
Isolation: 1500 V AC tested between channels and backplane bus
-
Dimensions (WxHxD): 25 x 290 x 210 mm
-
Weight: approx. 600 g
Industry Applications
The Siemens 6ES7421-7DH00-0AB0 excels in applications where reliable status monitoring and early fault detection are critical. Common use cases include:
-
Power generation: Monitoring circuit breaker positions and alarm contacts in substations.
-
Chemical processing: Reading limit switches and safety interlocks on reactors and pumps.
-
Material handling: Detecting presence of parts on conveyors with 2‑wire sensors (quiescent current up to 2 mA).
In each scenario, the module’s wire‑break diagnostic (triggered when current drops below 0.7 mA) alerts operators to sensor failures, preventing unscheduled stoppages.
Installation & Setup Guidance
Mount the Siemens 6ES7421-7DH00-0AB0 directly onto an S7‑400 rack. Ensure proper keying for the slot. For cabling:
- Use shielded cable for runs up to 1000 m; unshielded up to 600 m (note: 0.5 ms delay only at 100 m).
- For 2‑wire sensors, respect the quiescent current limit of 0.5–2 mA to avoid false diagnostics.
- Configure input delay, alarms, and wire‑break monitoring via SIMATIC STEP 7 software.
Note: The module does not have a red channel fault LED, so rely on software diagnostics.
Maintenance & Reliability
The Siemens 6ES7421-7DH00-0AB0 requires minimal routine maintenance. Periodic inspection of terminations and cleanliness of the backplane contacts is recommended. Because the module includes self‑diagnostics (readable via the system), most faults are identified without manual intervention. This proactive diagnostic capability reduces mean time to repair (MTTR) and aligns with a cost‑saving reliability strategy.
Selection Guide & Purchasing Advice
Before purchasing the 6ES7421-7DH00-0AB0, verify your S7‑400 rack version and firmware compatibility. Ensure your power supply can provide the required 150 mA from the backplane bus. For applications needing channel‑level fault LEDs, consider supplementary indication. For a trusted source of genuine Siemens automation spares, visit ubest101.myshopify.com.
