Product Overview

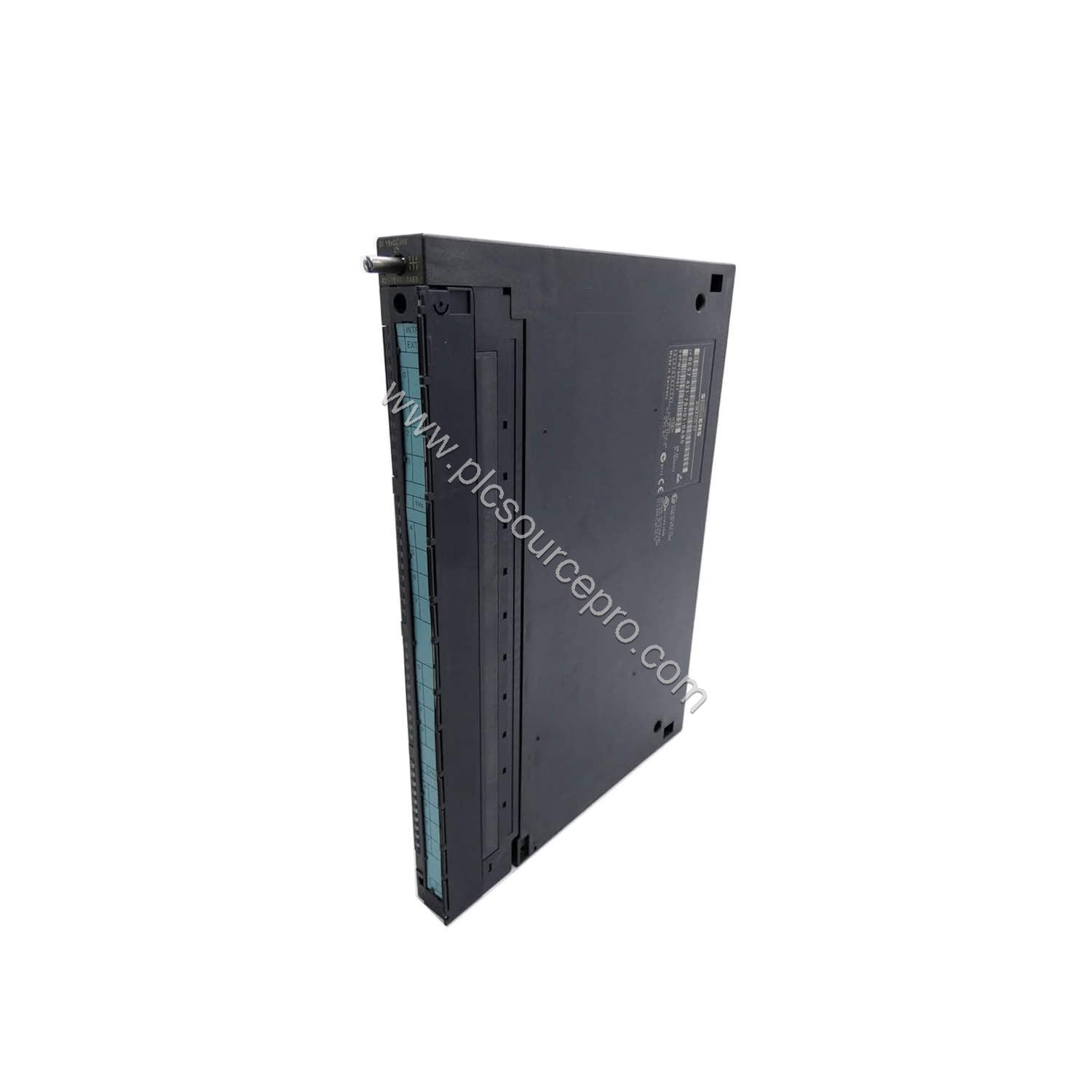

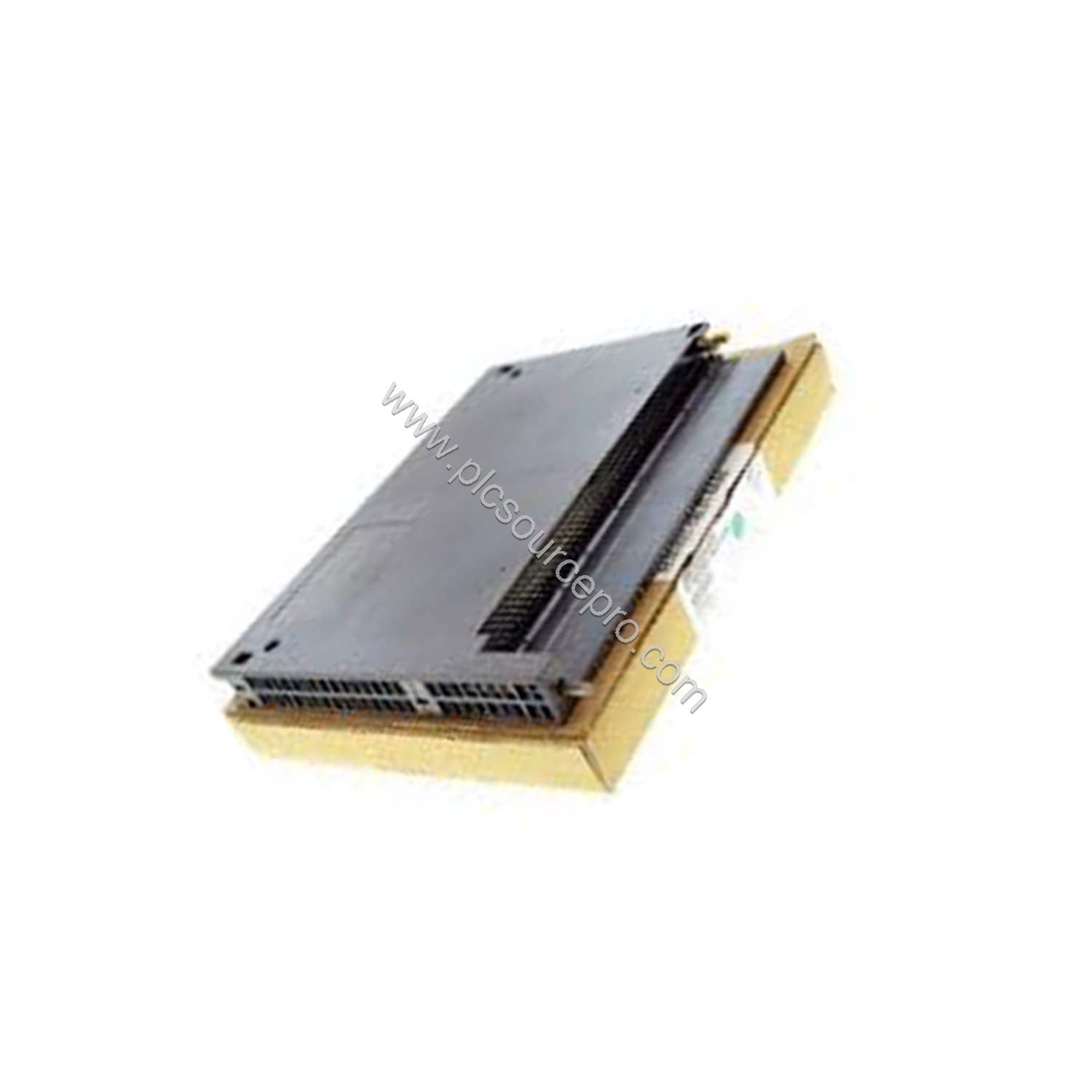

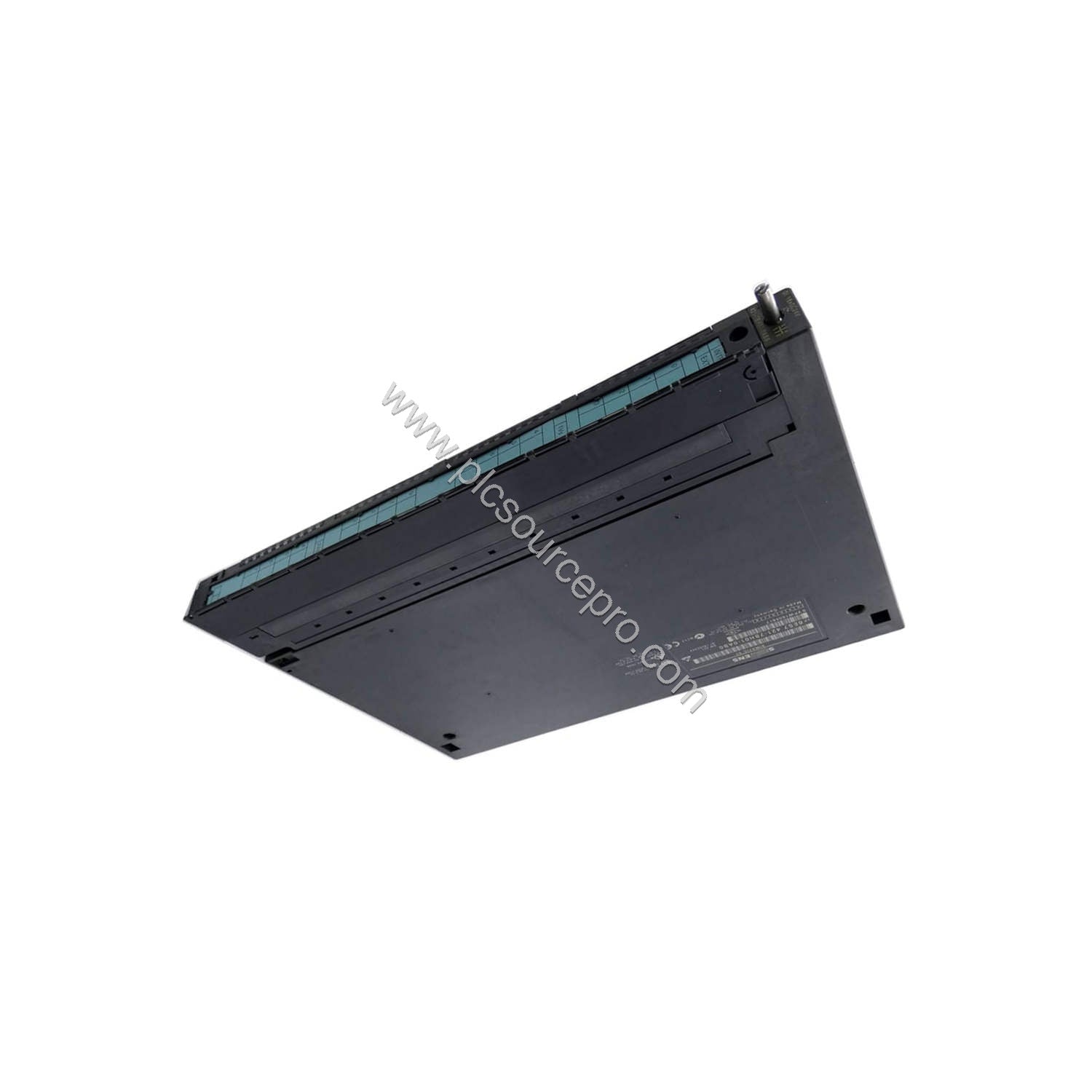

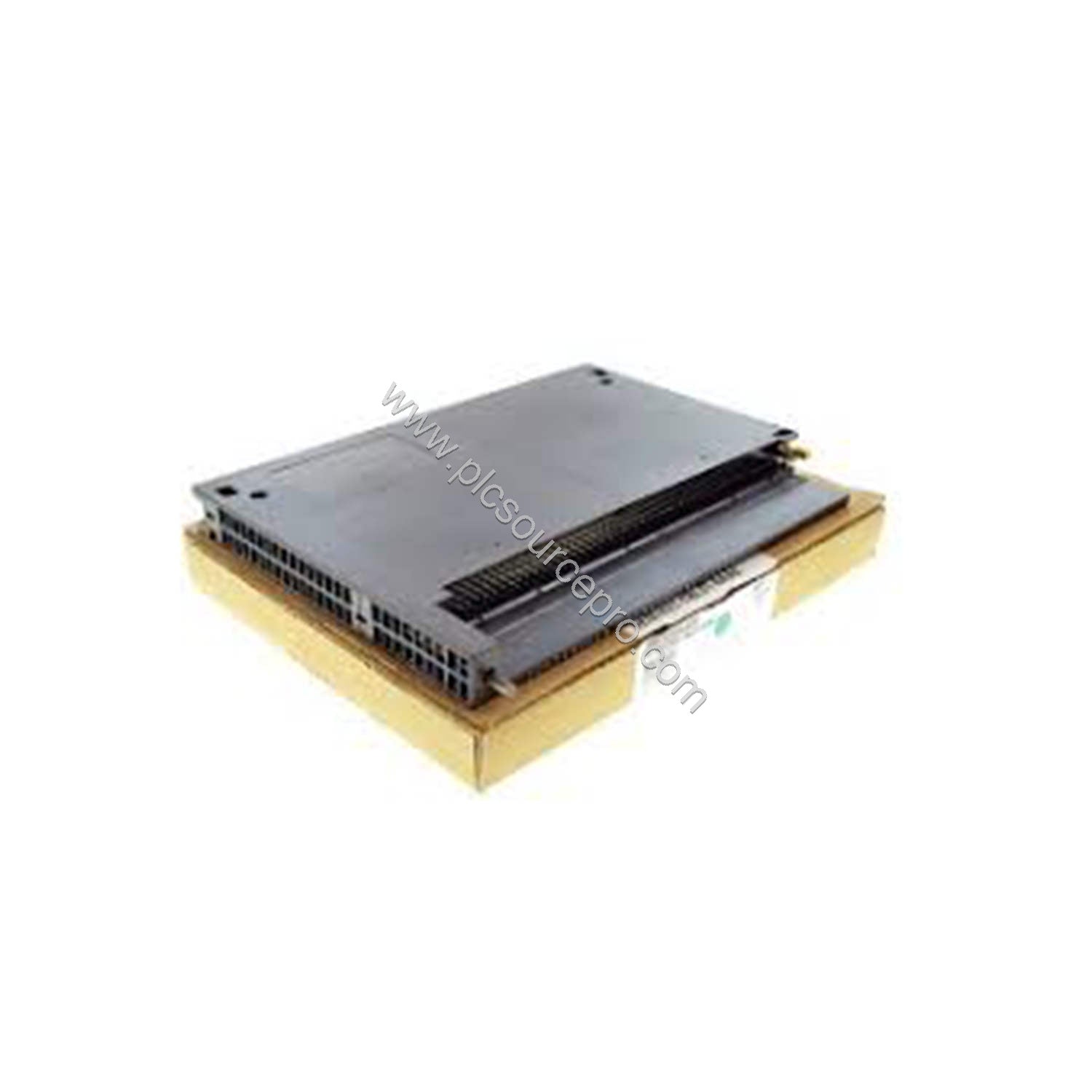

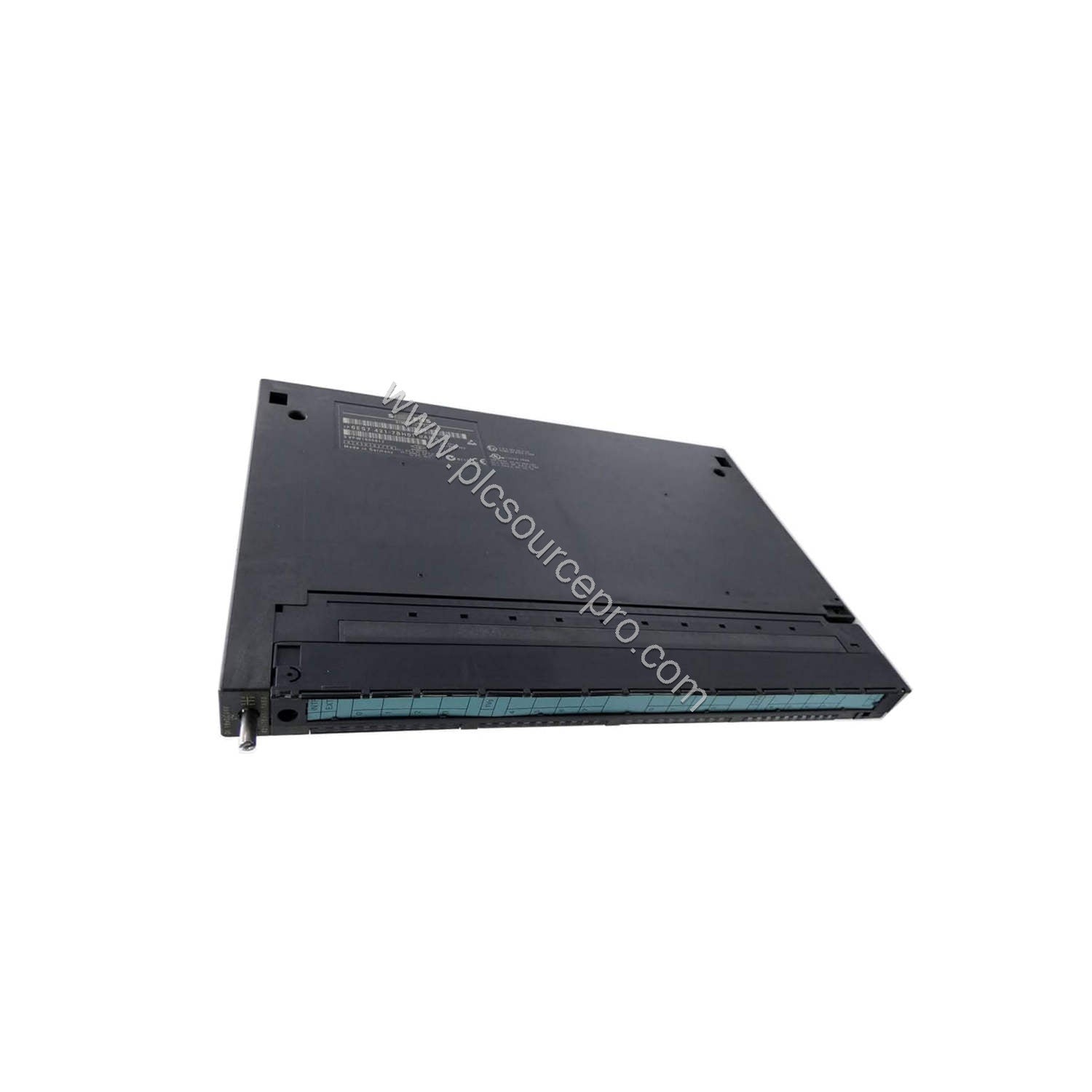

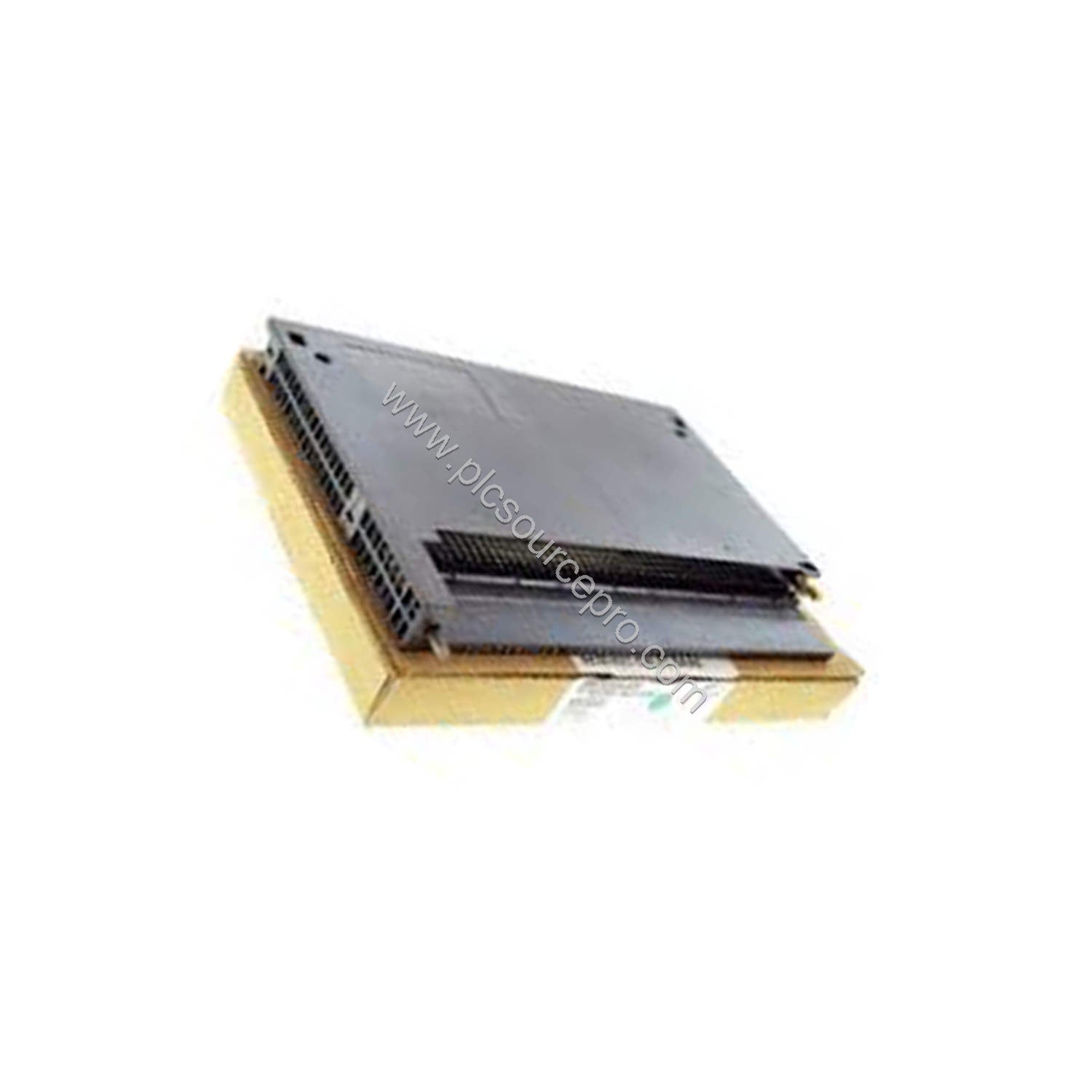

When unexpected field device failures cause production downtime, the Siemens 6ES7421-7BH01-0AB0 digital input module provides early diagnostics to minimize disruption. Designed for the SIMATIC S7-400 system, this isolated 16-point input module operates at 24 V DC with a 0.05 ms input delay. It delivers robust alarm and diagnostic functions, making it an essential component for demanding industrial automation environments.
Technical Specifications Breakdown
| Parameter |
Value |
| Supply voltage (rated) |
24 V DC |
| Supply voltage range |
20.4 V to 28.8 V DC |
| Input current from supply |
Max 120 mA |
| Backplane bus current |
Max 130 mA at 5 V DC |
| Power loss (typical) |
5 W |
| Number of digital inputs |
16 (Type 2 per IEC 61131) |
| Input voltage signal '0' |
-30 V DC to +5 V DC |
| Input voltage signal '1' |
11 V DC to 30 V DC |
| Input current signal '1' (typical) |
6 mA to 8 mA |
| Input delay (parameterizable) |
0.05 / 0.1 / 0.5 / 3 ms |
| Diagnostics function |
Yes, parameterizable |
| Wire-break detection |
I < 1 mA |
| Encoder supply outputs |
2 (L+ -2.5 V), short-circuit protected |
| Dimensions (W × H × D) |
25 mm × 290 mm × 210 mm |
| Weight |
Approx. 600 g |
Industry Applications
The Siemens 6ES7421-7BH01-0AB0 excels in manufacturing lines where precise field device monitoring is critical. Its diagnostic alarm and hardware interrupt capabilities enable rapid response to conditions like wire breaks or supply voltage faults, reducing machine downtime. In process industries, the module’s isolated channels and Type 2 input characteristic ensure reliable signal detection even in electrically noisy environments.
Troubleshooting & Common Issues
Common field problems include open wires or short circuits. The Siemens 6ES7421-7BH01-0AB0 proactively alerts operators through its diagnostic LED indicators: PWR (green) for load voltage, INTF (red) for internal faults, and EXTF (red) for external faults. The wire-break monitoring function identifies faults when current drops below 1 mA, allowing quick corrective action. Parameterizable input delays (0.05 ms to 3 ms) help filter out noise-induced false triggers.
Installation & Setup Guidance
Mount the Siemens 6ES7421-7BH01-0AB0 into any S7-400 rack slot. Connect the backplane bus via the module’s rear connector—it draws up to 130 mA from the 5 V DC bus. For encoder supply, use the two onboard L+ outputs (rated 120 mA each, short-circuit protected). Ensure a 24 V DC supply (20.4–28.8 V) is applied to the load voltage terminals. Unshielded cable runs up to 600 m are supported; shielded cables allow up to 1000 m. For optimal performance, adhere to the specified cable lengths per input delay setting.
