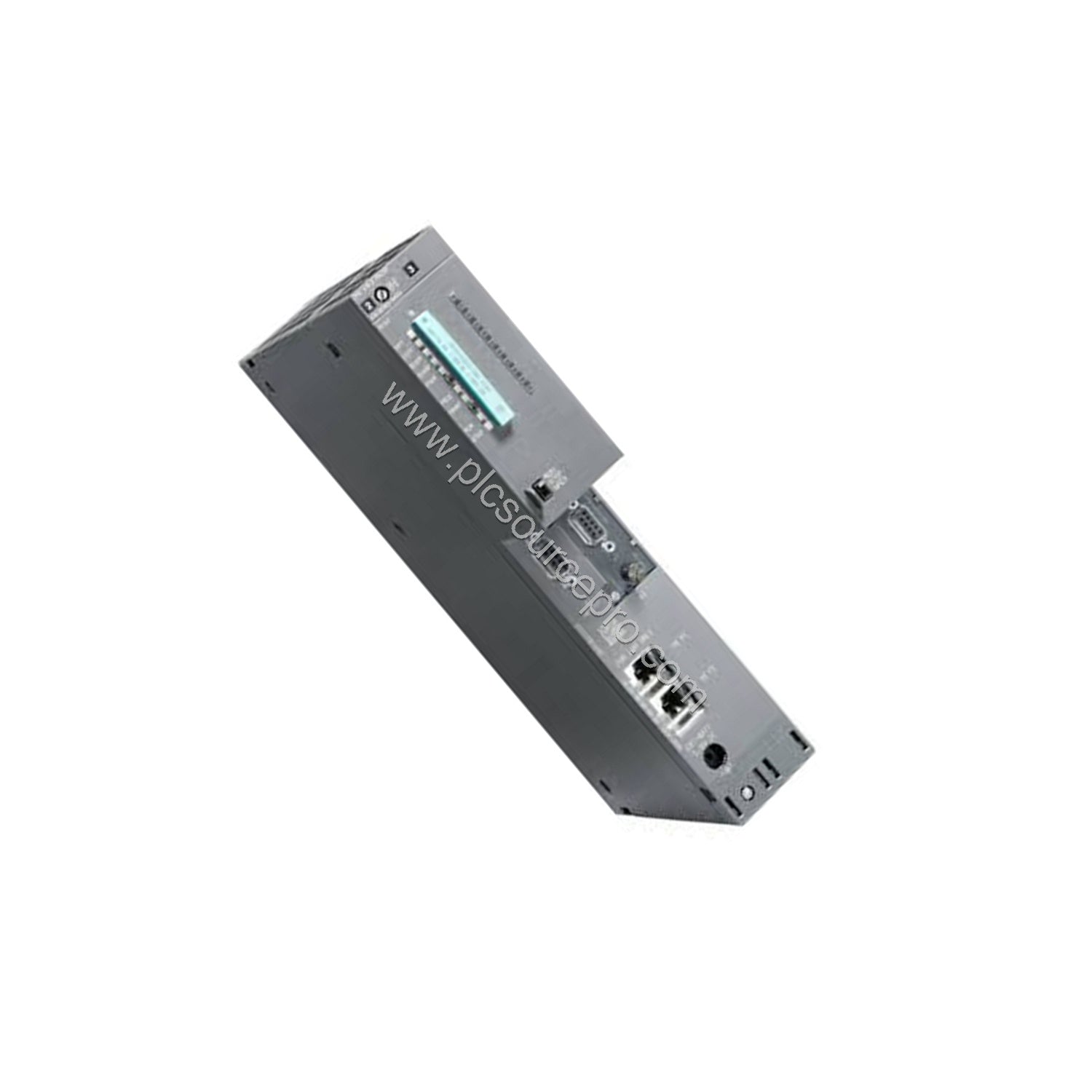

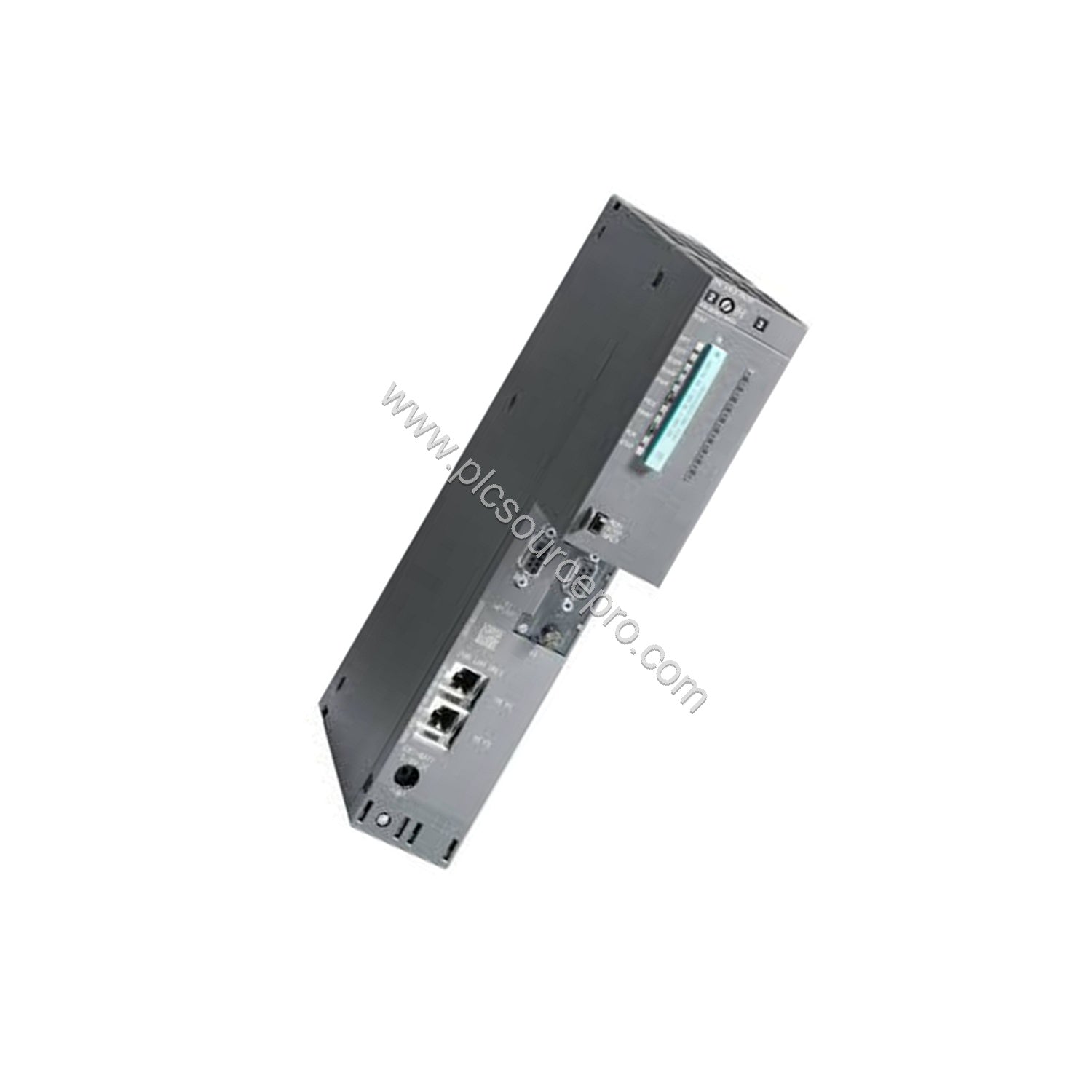

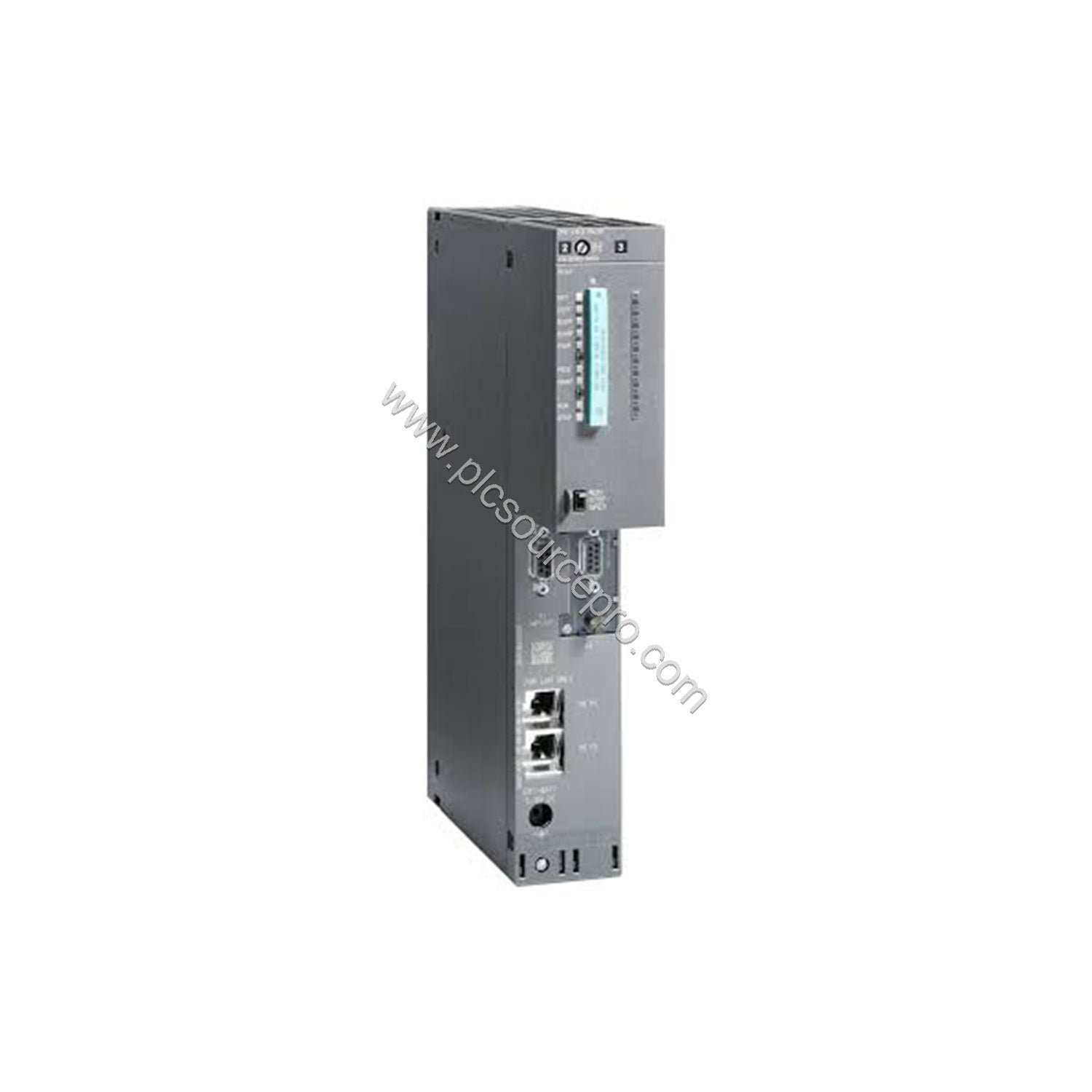

Product Overview
When high-speed processing and large memory are critical for your industrial automation, the Siemens 6ES7416-3ER05-0AB0 delivers exceptional performance. This CPU 416-3 module is part of the SIMATIC S7-400 family and combines 11.2 MB working memory (5.6 MB code, 5.6 MB data) with three PROFIBUS interfaces, enabling robust control of complex processes. With a typical bit operation time of 30 ns and support for isochronous mode, the Siemens 6ES7416-3ER05-0AB0 minimizes cycle times and maximizes throughput, directly improving return on investment by reducing production delays.
Technical Specifications
The following key parameters define the capabilities of the Siemens 6ES7416-3ER05-0AB0:
-
Working memory: 11.2 MB integrated (5.6 MB program + 5.6 MB data) — not expandable, but sufficient for mid-to-large applications
-
Processing speed: 30 ns for bit, word, and fixed-point operations; 90 ns for floating-point arithmetic
-
Power consumption: Typical power loss of 5.5 W, maximum 6 W
-
Interfaces: 1x MPI/PROFIBUS DP (12 Mbit/s), 1x PROFIBUS DP, 1x pluggable IF module (PROFIBUS DP)
-
Backup current: Typical 125 µA (up to 40°C), maximum 550 µA
All values are sourced directly from the Siemens technical documentation for 6ES7416-3ER05-0AB0. The module supports Configuration in RUN (CiR) with a synchronization time of 100 ms basic load plus 10 µs per I/O slave.
Industry Applications
The Siemens 6ES7416-3ER05-0AB0 excels in applications requiring high data throughput and deterministic control. Typical use cases include:
-
Automotive manufacturing: Coordinating multiple assembly stations with distributed I/O via PROFIBUS DP, leveraging isochronous mode for synchronized motion control
-
Material handling: Managing conveyor systems with over 1000 digital I/O points and 200+ analog signals, using the 16 kbyte process image
-
Process control: Running batch processes with S7 communication and data logging, supported by the large 11.2 MB memory and 2048 counters/timers
By integrating the 6ES7416-3ER05-0AB0, facilities reduce downtime through error diagnostic buffers (up to 3200 entries) and online force/status functions, directly contributing to higher overall equipment effectiveness (OEE).
Compatibility & Integration
The Siemens 6ES7416-3ER05-0AB0 integrates seamlessly with the SIMATIC S7-400 system. Key compatibility details:
-
Programming: STEP 7 V5.3 SP2 or higher (with HW update); supports LAD, FBD, STL, SCL, CFC, GRAPH, and HiGraph®
-
Communication: MPI (44 connections), PROFIBUS DP master/slave on all three interfaces; can control up to 125 DP slaves per interface (2nd and 3rd interface)
-
Expansion: Up to 21 expansion devices, 6 interface modules (e.g., IM 460/463), and 4 CPUs in multicomputing mode
-
Networking: Via CP 443-1 for Ethernet connections (ISO-on-TCP, up to 1452 bytes data length)
This module works with standard S7-400 racks and power supplies (24 V DC via backplane bus). Use Memory Cards (Flash or RAM) up to 64 MB for load memory expansion.
Selection Guide & Purchasing Advice
Before purchasing the Siemens 6ES7416-3ER05-0AB0, verify the following:
-
Firmware version: V5.3 as supplied (can be updated via memory card)
-
Required accessories: Backplane bus connector (included with rack), memory card if load memory expansion is needed, and IF module if using the third interface (e.g., IF 964-DP, MLFB 6ES7964-2AA04-0AB0)
-
Physical dimensions: Width 50 mm, height 290 mm, depth 219 mm; occupies 2 slots
-
Weight: Approximately 0.9 kg
PLC Source PRO (visit ubest101) offers the Siemens 6ES7416-3ER05-0AB0 with full traceability and testing. Ensure your system has the correct rack and power supply to support this CPU module.
