Product Overview

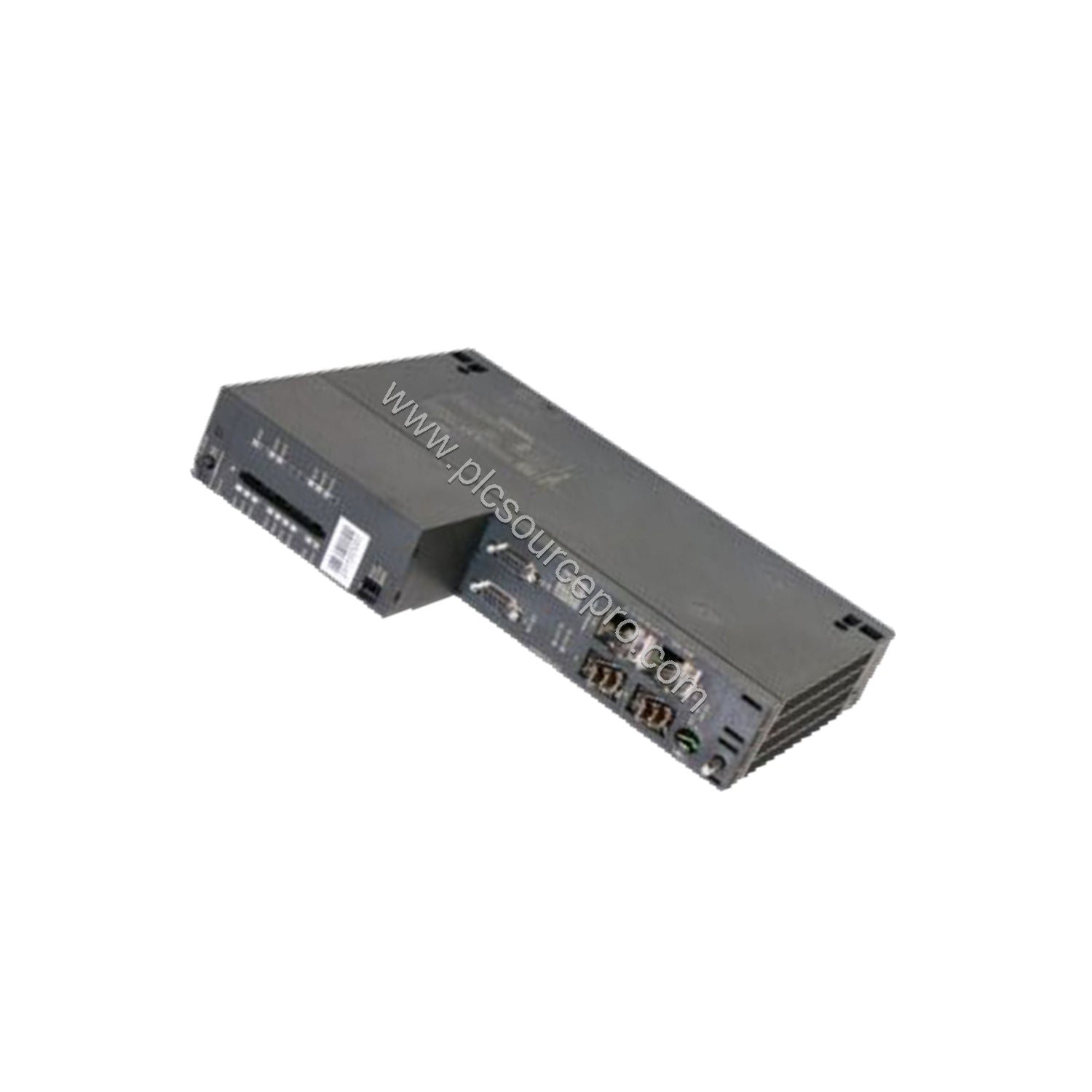

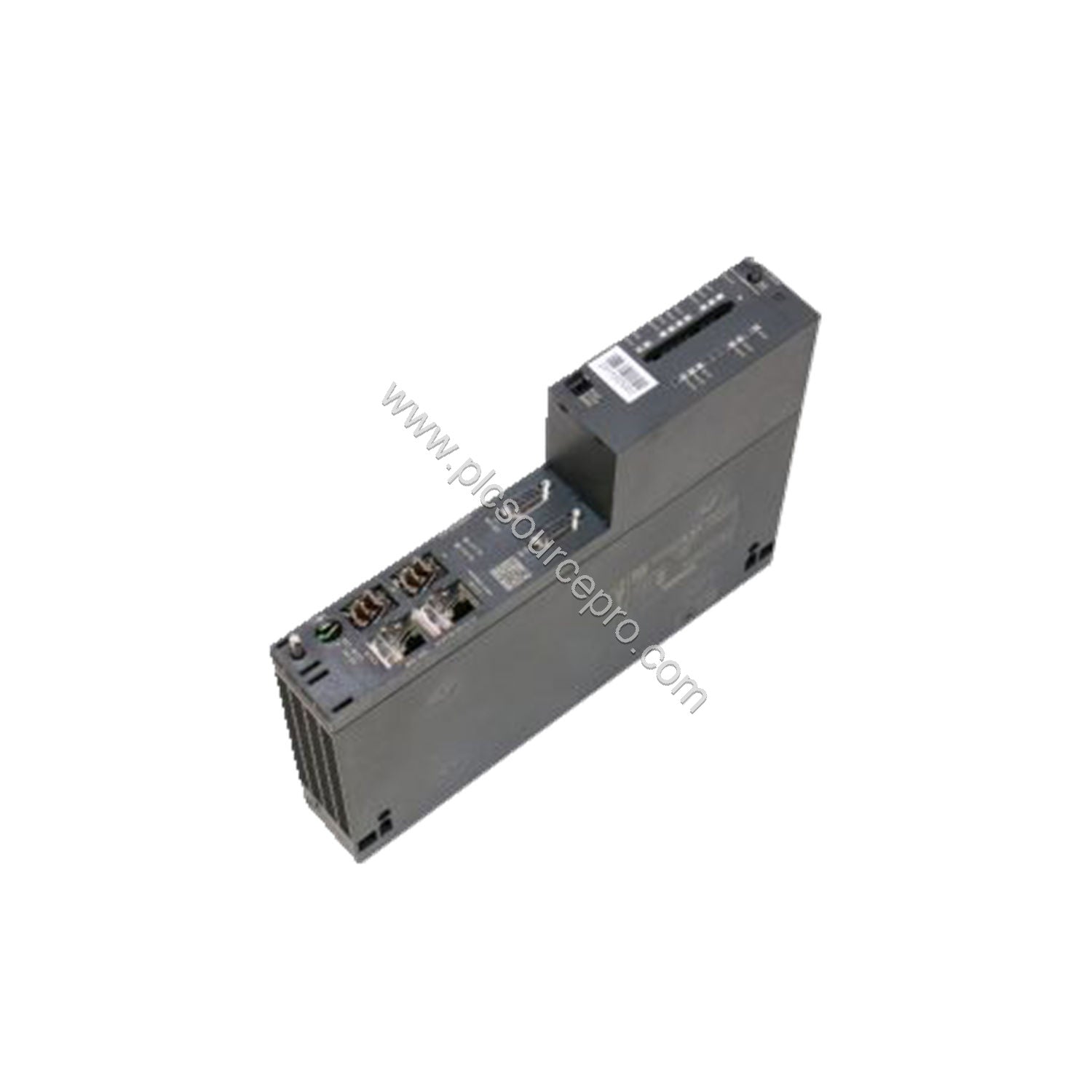

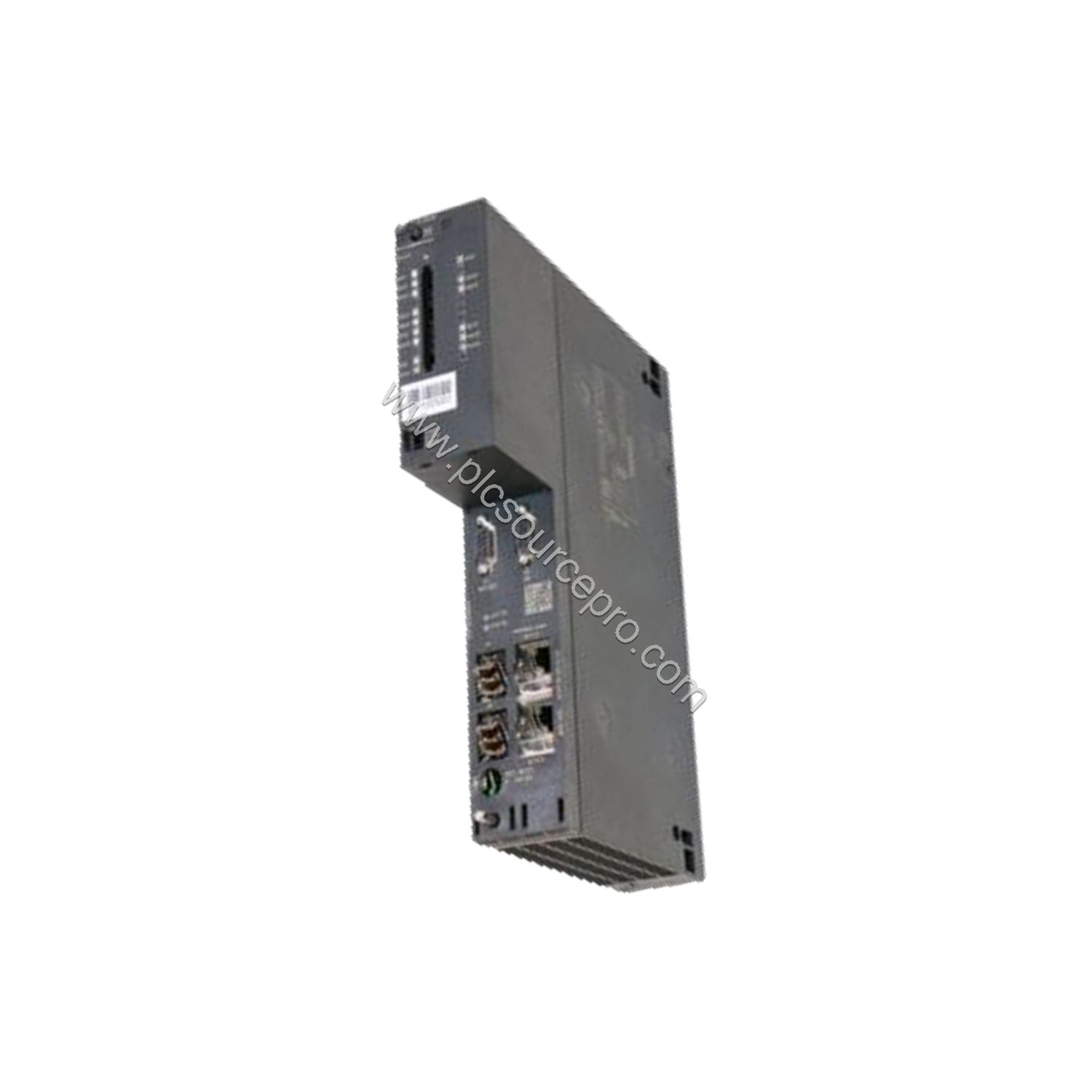

The Siemens 6ES7414-4HM14-0AB0 is a high-performance CPU for SIMATIC S7-400H and S7-400F/FH fault-tolerant automation systems. Designed for critical processes where reliability is paramount, this processor offers 2.8 MB of integrated work memory (split evenly between 1.4 MB for program and 1.4 MB for data) and supports up to 21 expansion units. With four interfaces—one MPI/DP, one DP, and two for synchronization modules—the 6ES7414-4HM14-0AB0 ensures seamless integration into existing industrial networks. Typical power loss is a modest 6 W, making it an energy-efficient choice for continuous operation.
Technical Specifications Breakdown
Key parameters of the Siemens 6ES7414-4HM14-0AB0 include:
-
Memory: 2.8 MB total work memory (1.4 MB program, 1.4 MB data) with non-expandable integrated RAM. Load memory supports FEPROM expansion up to 64 MB.
-
Processing speed: Bit operations, word operations, and fixed-point arithmetic execute in 0.045 µs typical; floating-point takes 0.135 µs typical.
-
Communication: Two PROFIBUS DP master interfaces (one also supports MPI) with data rates up to 12 Mbit/s. The first interface can handle up to 32 DP slaves; the second up to 96 DP slaves.
-
Power consumption: Consumes 1.4 A typical from 5 V DC backplane (max 1.7 A) and 150 mA from 24 V DC per DP interface. Total typical power loss is 6 W.
-
Dimensions and weight: 50 mm width, 290 mm height, 219 mm depth, and weighs approximately 995 g.
These specifications make the 6ES7414-4HM14-0AB0 suitable for demanding control tasks requiring deterministic response and high data throughput.
Real-World Application Scenarios
The Siemens 6ES7414-4HM14-0AB0 excels in continuous process industries such as chemical, petrochemical, and power generation where system downtime is unacceptable. In a typical refinery upgrade scenario, replacing an earlier S7-400 CPU with this model allows for seamless integration with existing PROFIBUS networks while adding fault-tolerant capabilities. The two synchronization module interfaces ensure redundant CPUs remain in lockstep, providing bumpless switchover during a failure. Another application is in water treatment plants where the CPU handles multiple analog and digital I/O channels (up to 65,536 digital inputs/outputs each and 4,096 analog channels each) while maintaining real-time control. The ample 2.8 MB memory accommodates complex control logic and data logging without external memory expansion.
Compatibility & Integration
This CPU is designed specifically for the S7-400H rack system. It requires two slots and works with STEP 7 V5.3 SP2 or higher for engineering. The 6ES7414-4HM14-0AB0 supports PROFIBUS DP master, MPI, and S7 communication. It can connect to up to 31 operator panels without message processing and 8 with message processing. For I/O expansion, up to 6 interface modules (IM 460 or IM 463) can be added. The CPU also supports clock synchronization via MPI or DP as master or slave. Load memory can be expanded with FEPROM cards up to 64 MB, and RAM load memory can be added up to 64 MB, though the integrated work memory is not expandable.
Selection Guide & Purchasing Advice
Before purchasing a Siemens 6ES7414-4HM14-0AB0, verify that your system uses the S7-400H chassis and that you have the required STEP 7 version. Ensure you have synchronization modules (e.g., IF 960 6ES7960-1AA04-0XA0) for redundant operation. For backup, a battery is required to retain all data; external backup voltage (5-15 V DC) can also be applied. At PLC Source PRO (ubest101.myshopify.com), each unit is tested and guaranteed authentic, backed by our quality assurance process. For bulk orders or technical questions, our team is ready to assist.
