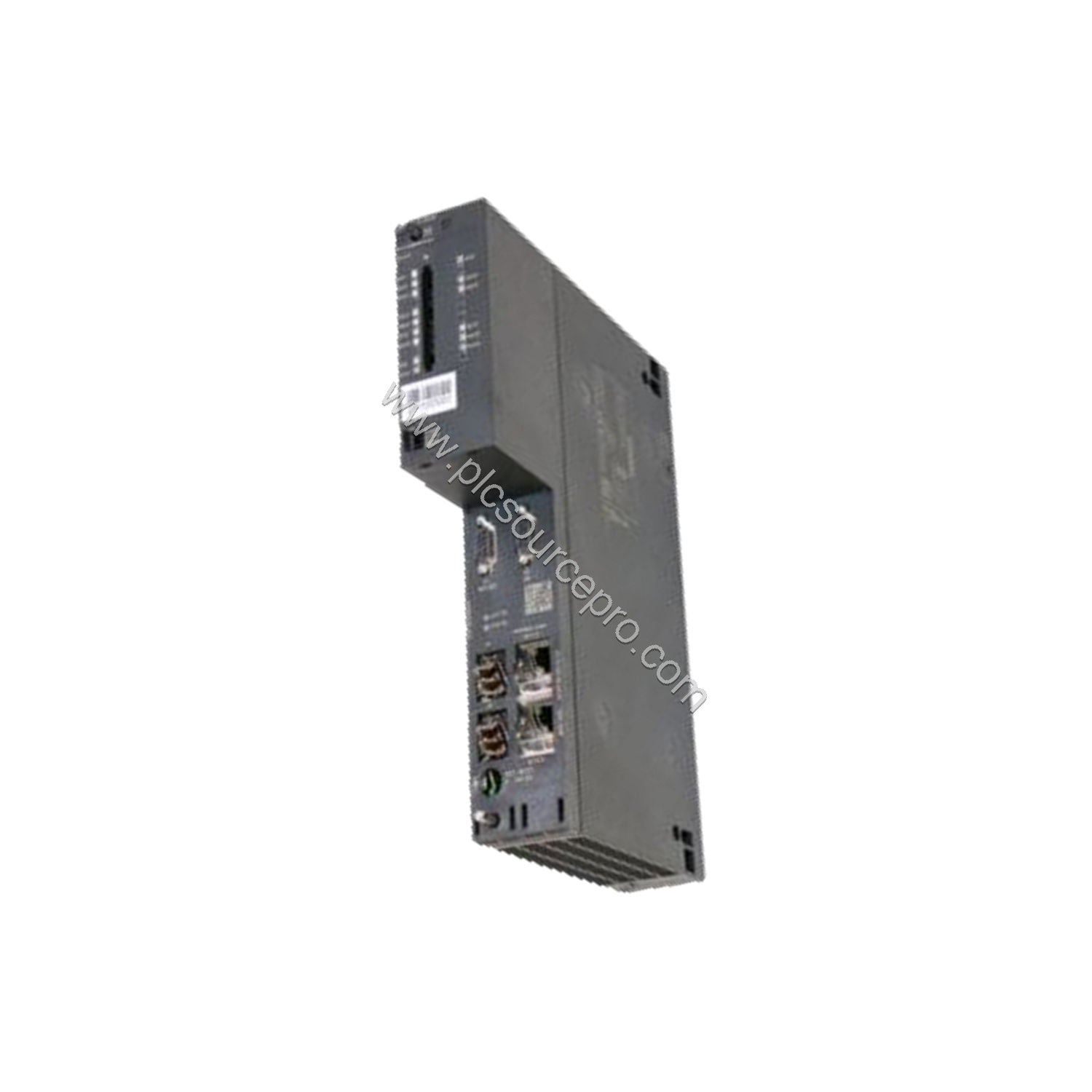

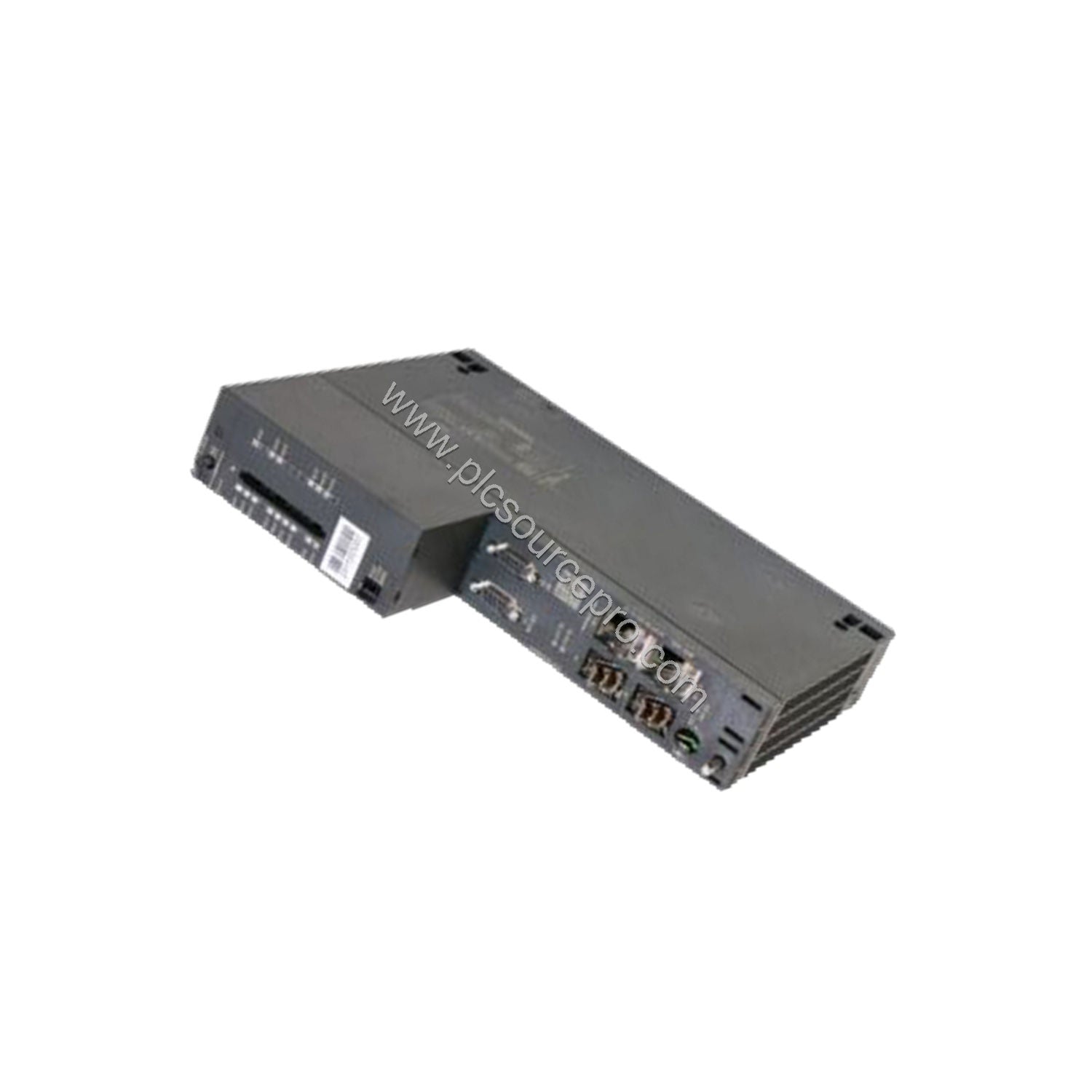

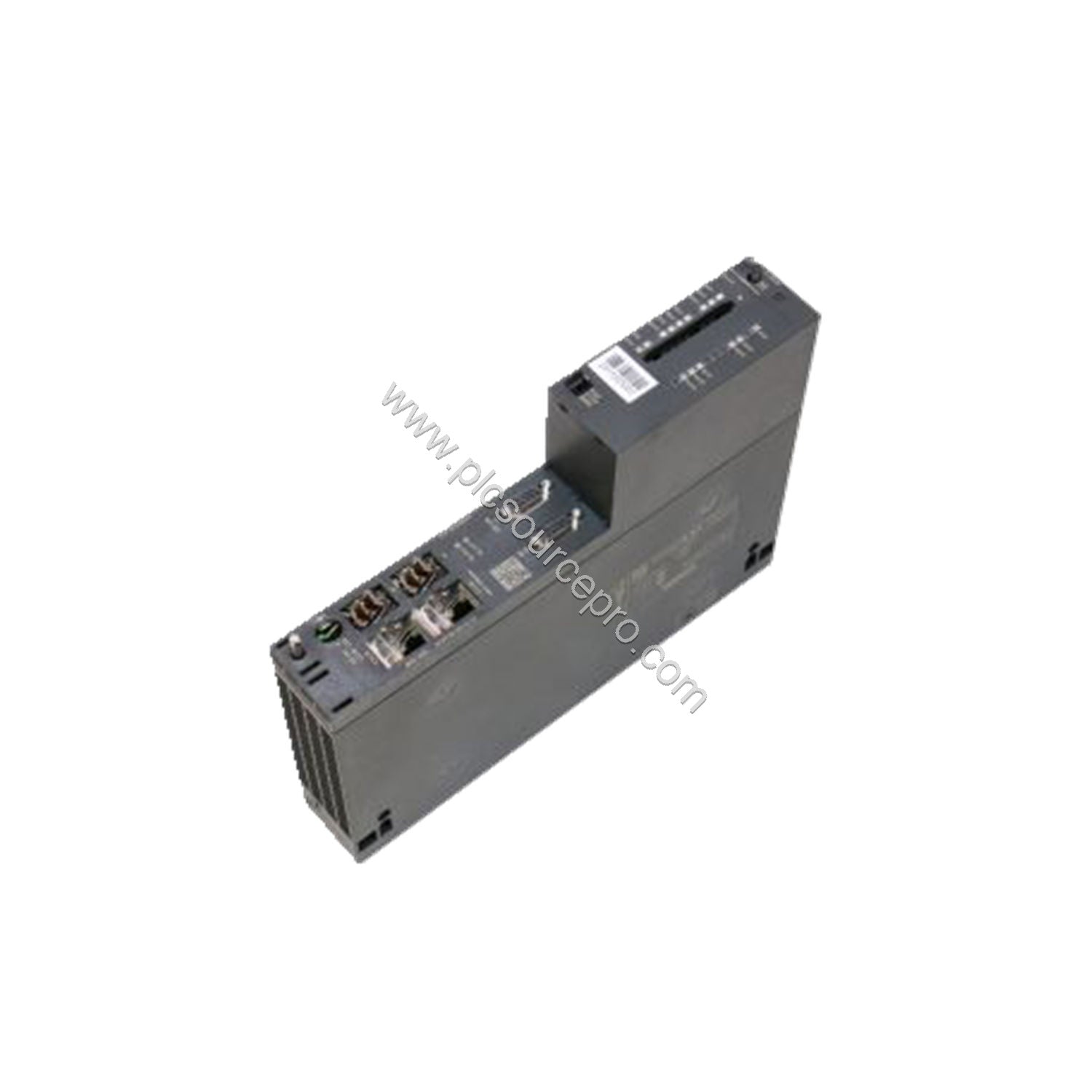

Product Overview: Siemens 6ES7414-3XJ00-0AB0 CPU 414-3
The Siemens 6ES7414-3XJ00-0AB0 is a high-performance CPU module from the SIMATIC S7-400 series. It delivers 768 KB of working memory (384 KB for code, 384 KB for data) and offers three interfaces: MPI/DP at 12 Mbit/s, PROFIBUS DP, and a pluggable interface for IFM. This CPU supports Configuration in RUN (CiR) with a synchronization time of 100 ms for the basic load and 120 µs per I/O byte, enabling on-the-fly system modifications without downtime.
Performance Specifications and Key Metrics
The Siemens 6ES7414-3XJ00-0AB0 operates on a 24 V DC supply and draws a typical current of 1.5 A from the 5 V DC backplane bus (max. 1.6 A). Power loss is typically 7.5 W. Processing speeds are fast: bit, word, and fixed-point operations each take 0.1 µs, while floating-point arithmetic completes in 0.6 µs.
| Specification |
Value |
| Work Memory (integrated) |
768 kbyte (384 kbyte code, 384 kbyte data) |
| Load Memory (expandable FEPROM) |
Max. 64 Mbyte |
| Power Loss |
Typ. 7.5 W |
| Processing Time (bit operations) |
0.1 µs |
| Interfaces |
1st: MPI/DP (12 Mbit/s), 2nd: PROFIBUS DP, 3rd: Pluggable IF (IF 964-DP) |
| Dimensions (W x H x D) |
50 mm x 290 mm x 219 mm |
| Weight |
Approx. 1,070 g |
Additionally, the Siemens 6ES7414-3XJ00-0AB0 supports up to 4,095 DBs (64 kbyte each), 2,048 FBs and FCs, and 256 S7 counters/timers. The diagnostic buffer stores up to 3,200 entries, and the CPU includes a real-time clock with 1 ms resolution.
Real-World Applications for High-Speed Control
This CPU excels in demanding industrial automation tasks such as:
-
Process Control: Manage large-scale continuous processes requiring precise timing and high I/O counts (up to 65,536 digital inputs/outputs and 4,096 analog channels).
-
High-Speed Assembly Lines: The 0.1 µs bit processing and isochronous mode (clock pulse as low as 2.5 ms) ensure synchronized motion control.
-
Redundant Systems: With CiR and multicomputing support (up to 4 CPUs), you can build fault-tolerant controllers that remain online during configuration changes.
Integration with Existing S7-400 Systems
The Siemens 6ES7414-3XJ00-0AB0 is fully compatible with the S7-400 platform. It integrates seamlessly with PROFIBUS DP networks, supporting up to 32 DP slaves on the first interface and 96 on the second. The CPU also works with CP 443-5 Ext. and IM 467 modules, though mixed use of IM 467 and CP 443-5 Ext. is not allowed. For third-party connectivity, the pluggable IF 964-DP interface mirrors the second interface’s capabilities.
Purchasing Guidance and Compatibility Checks
Before purchasing the Siemens 6ES7414-3XJ00-0AB0, verify that your rack (UR1 or UR2) has two free slots and your power supply can handle the backplane current. The CPU requires a 24 V DC supply and a backup battery for data retention. For load memory, use an FEPROM or RAM Memory Card (up to 64 Mbyte). If you need assistance selecting the right accessories, contact PLC Source PRO (available at ubest101.myshopify.com) for expert support.
