Product Overview

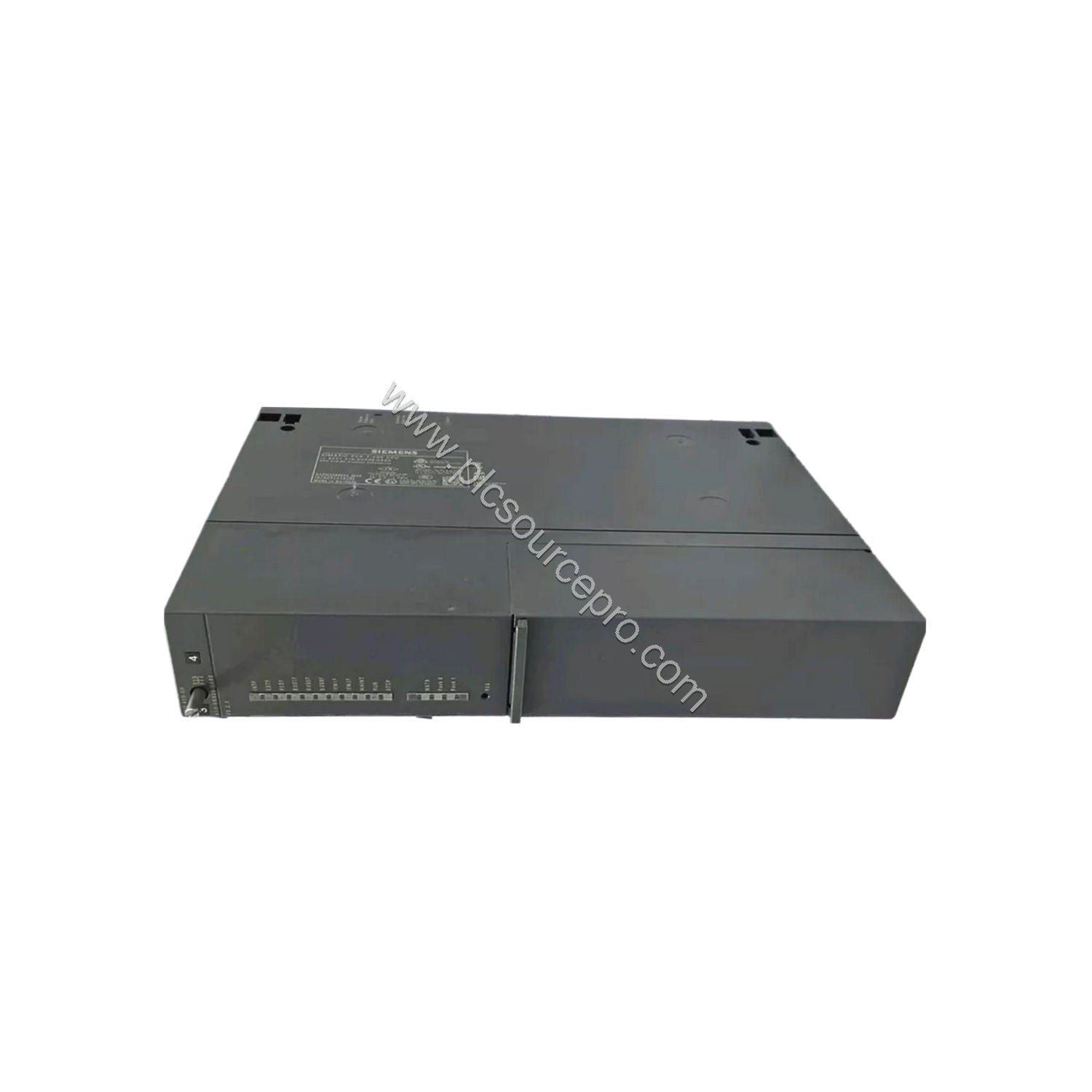

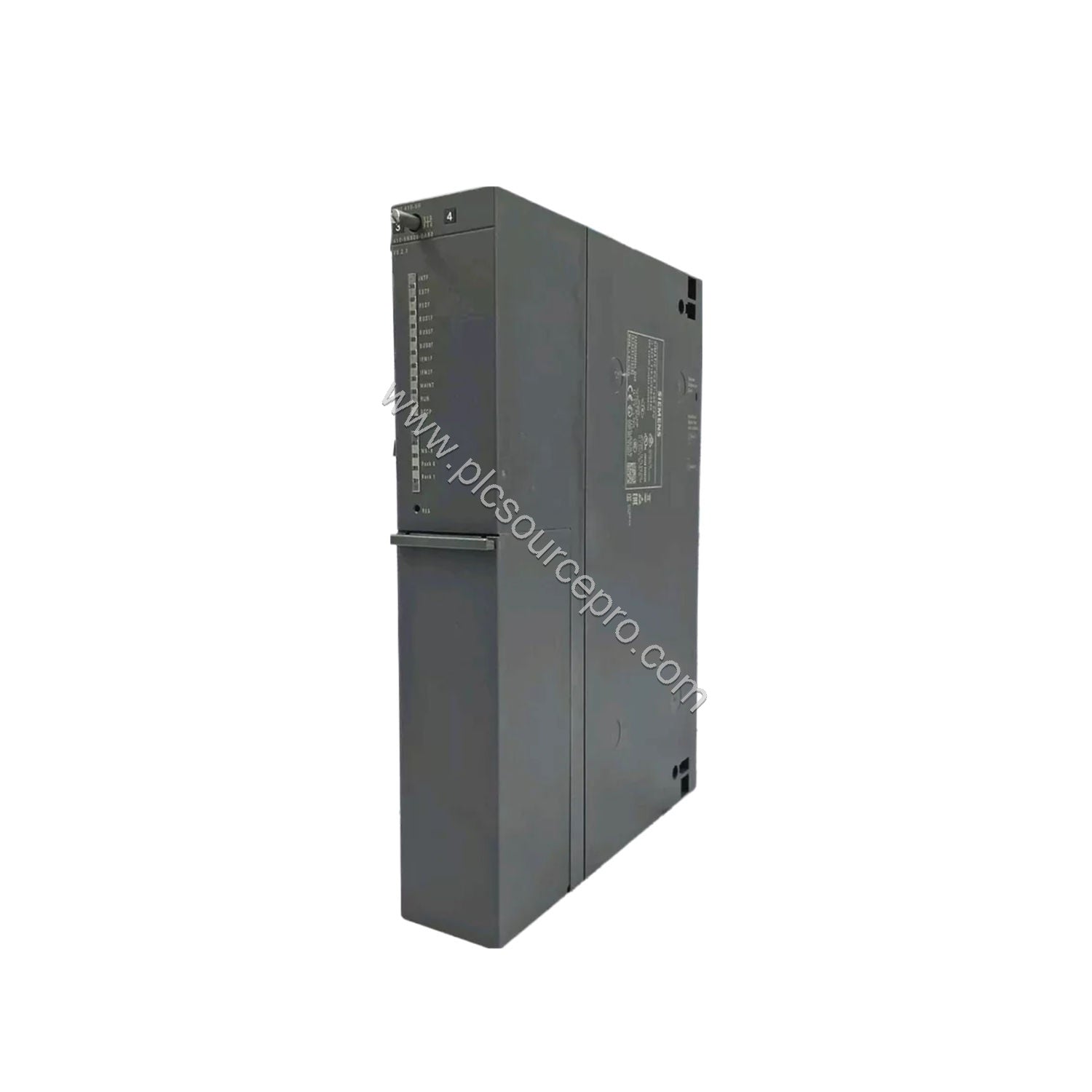

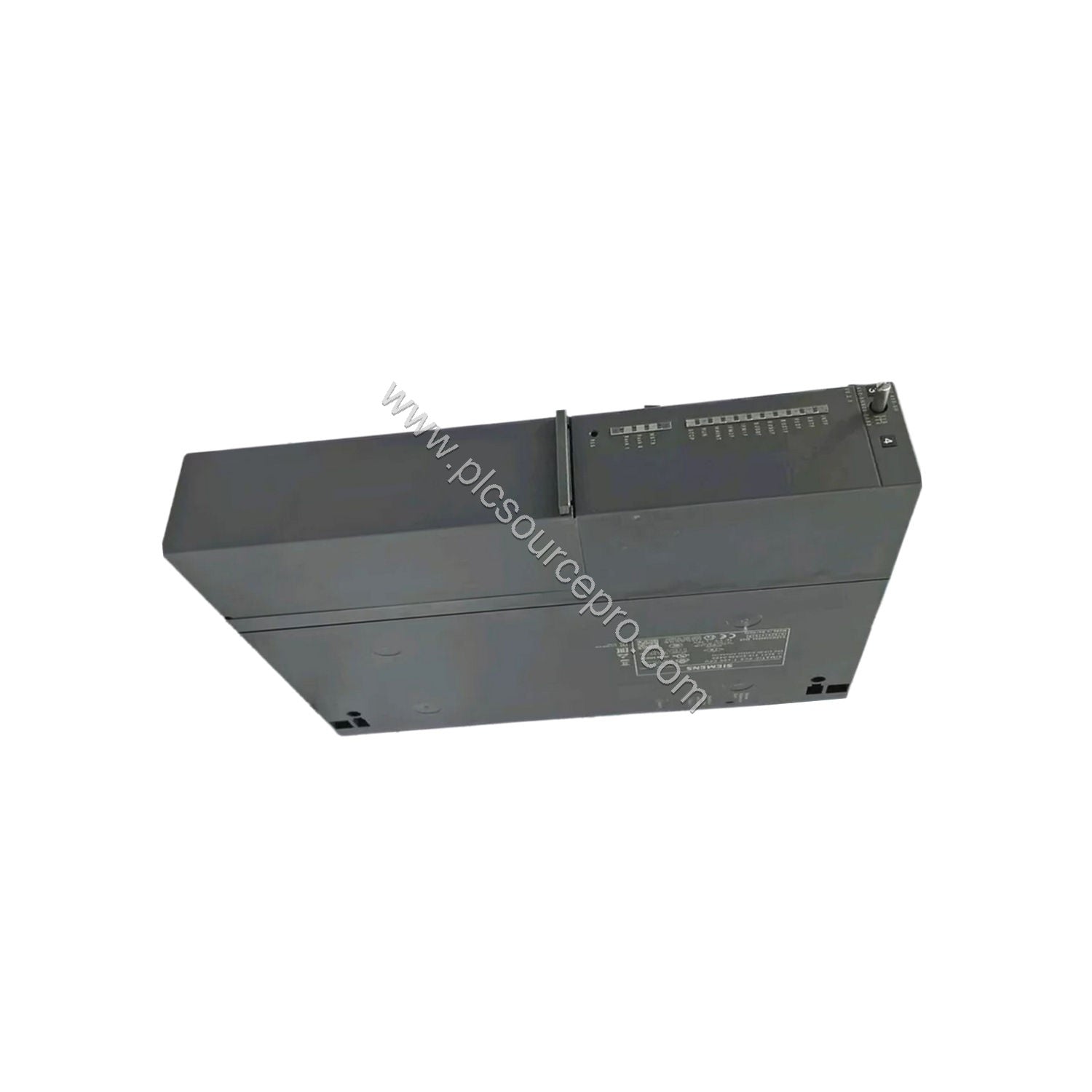

The Siemens 6ES7410-5HX08-0AB0 is a high-performance CPU 410-5H Process Automation central processing unit designed for S7-400 and S7-400H/F/FH systems. This module features 5 interfaces (2x PROFINET, 1x PROFIBUS DP, 2x for synchronization modules) and is intended for use as a spare part without a System Expansion Card. With conformal coating compliant with ISA-S71.04 severity levels G1, G2, G3 and an operating temperature up to 70°C, the Siemens 6ES7410-5HX08-0AB0 ensures reliable operation in harsh environments.
Technical Specifications
| Parameter |
Value |
| Product Type Designation |
CPU 410-5H |
| Hardware Functional Status |
2 |
| Firmware Version |
V8.2 |
| CPU Speed |
450 MHz (multi-processor system) |
| Work Memory (integrated) |
32 Mbyte (max., dependent on System Expansion Card) |
| Load Memory (integrated RAM) |
48 Mbyte |
| Power Loss (typical) |
10 W |
| Input Current from Backplane Bus 5V DC (typical) |
2 A |
| Input Current from Backplane Bus 5V DC (max.) |
2.4 A |
| Processor Speed for Bit Operations |
7.5 ns |
| Processor Speed for Floating Point Arithmetic |
15 ns |
| Dimensions (W x H x D) |
50 mm x 290 mm x 219 mm |
| Weight |
Approx. 1.1 kg |
The Siemens 6ES7410-5HX08-0AB0 supports up to 2,600 PCS 7 process objects (adjustable with System Expansion Card) and features a diagnostic buffer with up to 3,200 entries. It is engineered with the SIMATIC PCS 7 V9.0 or higher programming package and includes SysLog functionality for up to 4 receivers.
Installation & Setup Guidance
When installing the Siemens 6ES7410-5HX08-0AB0 CPU module, ensure the S7-400 rack is properly grounded and that the power supply is disconnected. This module requires 2 slots and must be inserted in the correct orientation. For redundant systems (S7-400H), use the two synchronization interfaces (4th and 5th) with compatible synchronization modules (6ES7960-1AA06-0XA0, 6ES7960-1AB06-0XA0, or 6ES7960-1AA08-0XA0). Configure the CPU using SIMATIC PCS 7 V9.0 or higher. Verify that the System Expansion Card is not required for your application, as the Siemens 6ES7410-5HX08-0AB0 is supplied without one.
Compatibility & Integration
The Siemens 6ES7410-5HX08-0AB0 integrates seamlessly with S7-400 and S7-400H/F/FH systems. It supports PROFINET IO Controller (2 interfaces, up to 250 IO Devices each), PROFIBUS DP master (up to 96 slaves at 12 Mbit/s), and various communication protocols including TCP/IP, ISO-on-TCP, UDP, and MODBUS via add-on. It is compatible with up to 119 operator panels and supports S7 communication as client and server. The module also provides media redundancy with switchover time under 200 ms.
Selection Guide & Purchasing Advice
Before purchasing the Siemens 6ES7410-5HX08-0AB0, ensure your system requires a CPU 410-5H without a System Expansion Card for spare part replacement. Verify compatibility with your existing backplane and power supply. For high-availability systems, confirm synchronization module requirements. PLC Source PRO (available at ubest101) offers this genuine Siemens module with fast shipping. Ensure you have the appropriate firmware version V8.2 and programming software. Check your application for conformal coating needs and temperature range (0°C to 70°C).
