Product Introduction

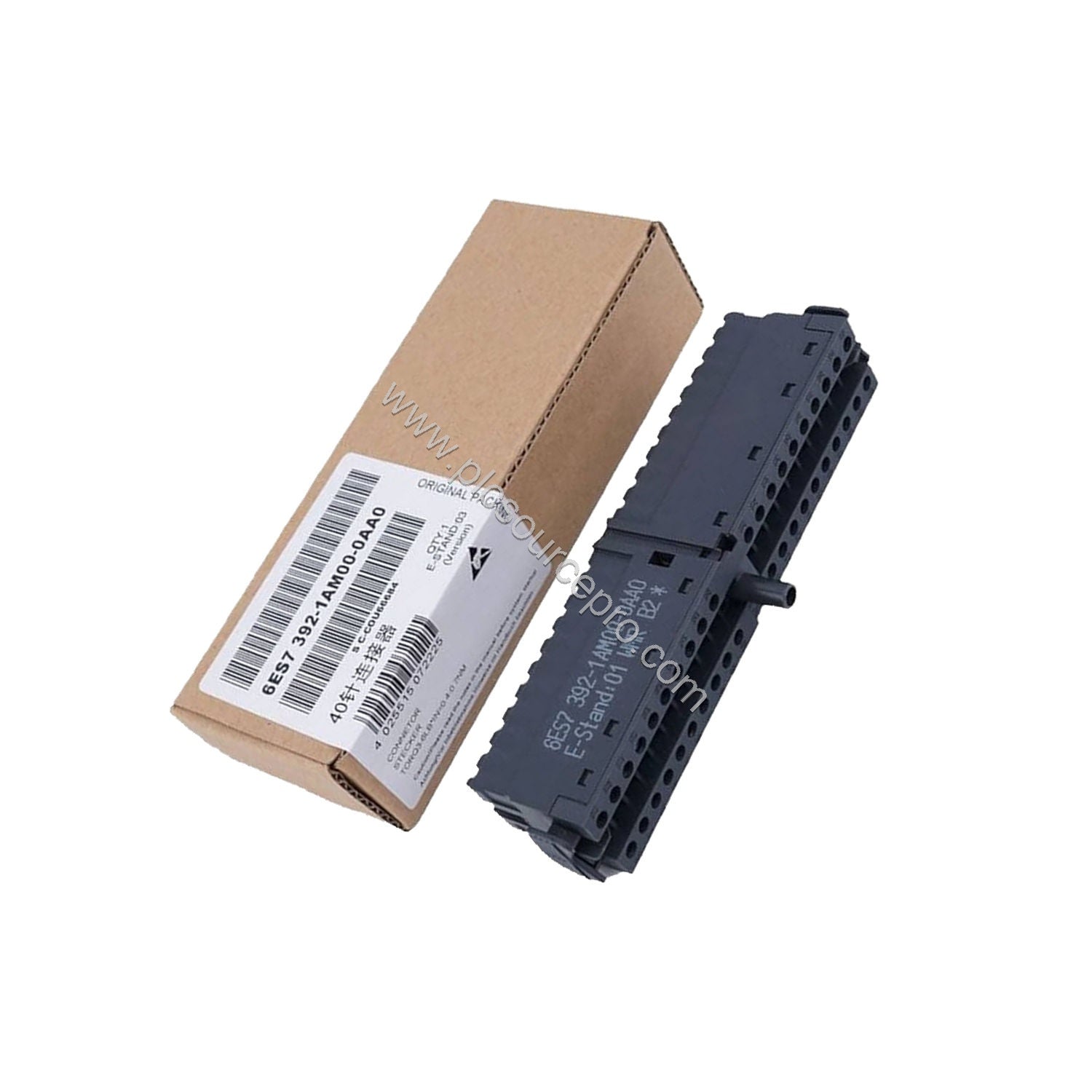

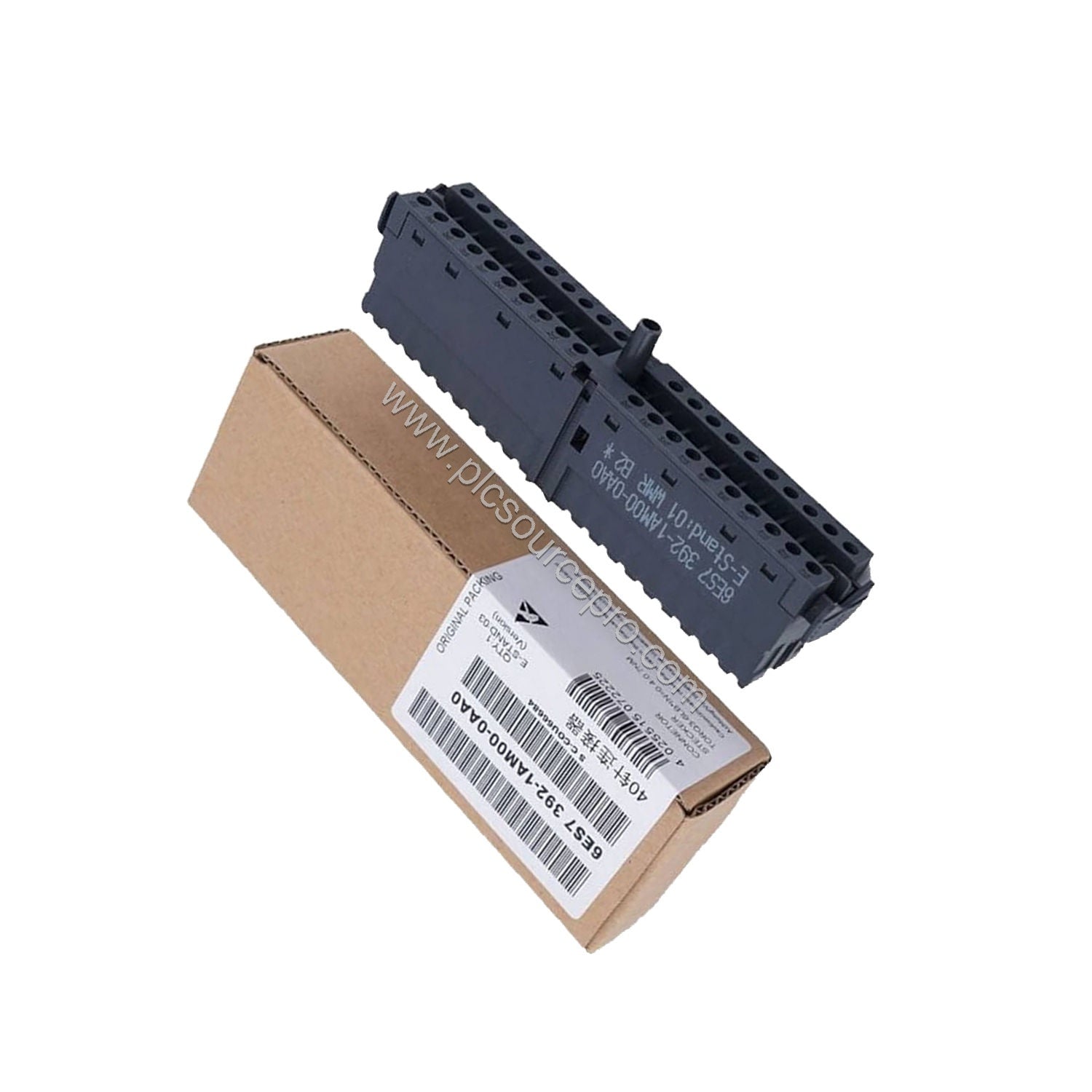

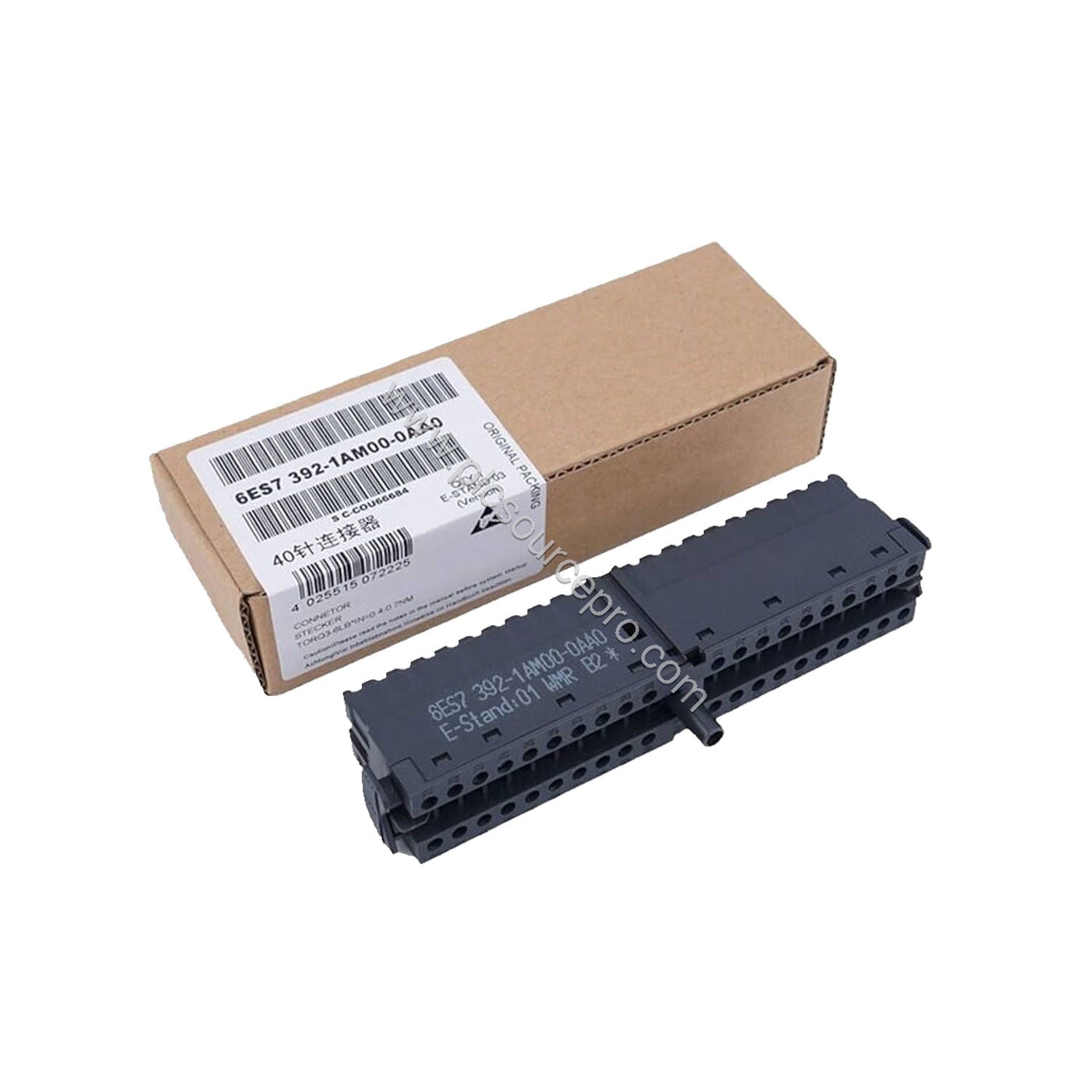

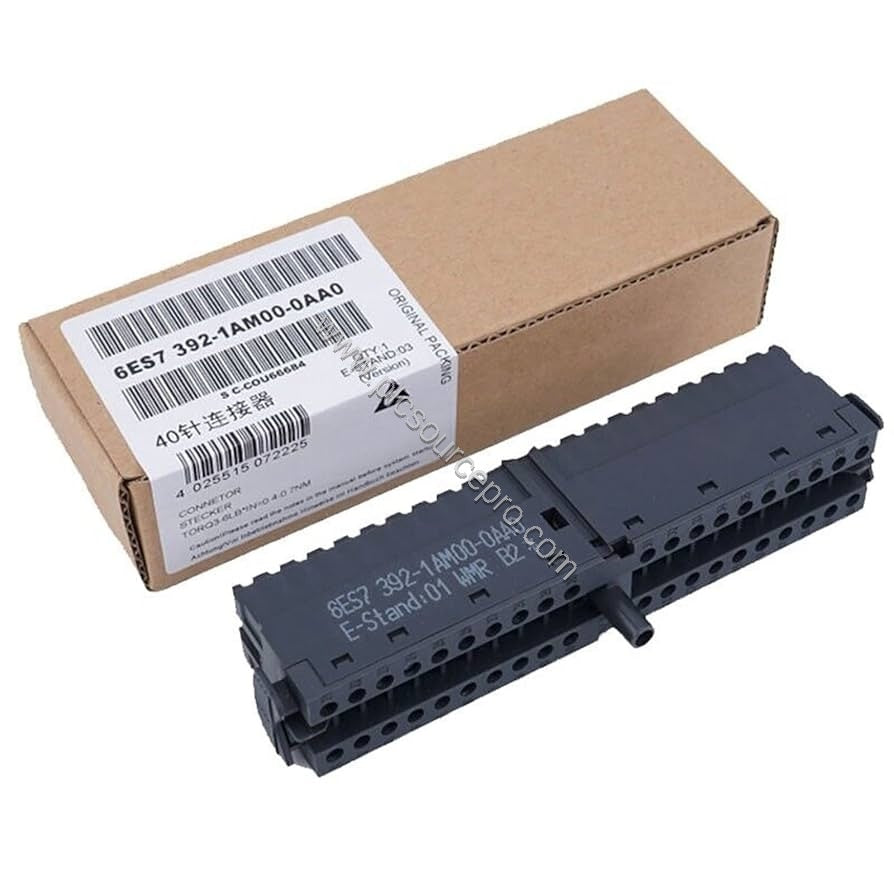

The Siemens 6ES7392-1AM00-0AA0 serves as a robust front connector for the SIMATIC S7-300 system. This 40-pole connector uses screw terminals to ensure reliable I/O signal connections in industrial automation environments. Its design addresses common wiring failures like loose connections and signal loss, providing a secure and durable interface for demanding applications.
Technical Specifications Breakdown
The Siemens 6ES7392-1AM00-0AA0 delivers precise electrical and mechanical parameters that support consistent performance. Key specifications include:
-
Operating temperature range: 0 °C to 60 °C, ensuring functionality in typical factory conditions.
-
Storage temperature range: -40 °C to 70 °C, allowing safe transport and storage.
-
Connection method: Screw terminals; supports up to 2 cables (0.75 mm² total) per connection.
-
Wire cross-sections: Accepts massive cables from 0.14 mm² to 0.75 mm² and flexible cables (with or without end sleeve) from 0.14 mm² to 0.75 mm².
-
Tightening torque: 0.4 N·m to 0.7 N·m, preventing over-tightening damage.
-
Dimensions: Width 21.6 mm, Height 125 mm, Depth 40.9 mm; Weight approx. 137 g.
These specs ensure the Siemens 6ES7392-1AM00-0AA0 handles common wire gauge sizes and minimizes installation errors.
Installation & Setup Guidance
Mount the Siemens 6ES7392-1AM00-0AA0 using a screwdriver with a conical tip (3 mm to 3.5 mm). Strip cables to exactly 6 mm length. Use end sleeves according to DIN 46228: Design A (without plastic sleeve, 5-7 mm long) or Design E (with plastic sleeve, up to 6 mm long). Apply torque between 0.4 N·m and 0.7 N·m to secure terminals; this range prevents thread stripping and ensures low contact resistance.
Maintenance & Reliability
For long-term reliability, periodically inspect the Siemens 6ES7392-1AM00-0AA0 for signs of corrosion or loosening. Operate within 0 °C to 60 °C and avoid condensation. During storage, maintain -40 °C to 70 °C. The screw connection design allows repeated re-tightening without degradation, reducing downtime associated with loose wires.
Selection Guide & Purchasing Advice
Before ordering the Siemens 6ES7392-1AM00-0AA0, verify it matches your S7-300 system requirements. This connector belongs to the S7-300 product family and is compatible with 40-pole modules. For volume needs or technical questions, contact PLC Source PRO (ubest101.myshopify.com) to ensure genuine Siemens parts and competitive pricing. Always confirm cable gauge and stripping length to match the specs provided.
