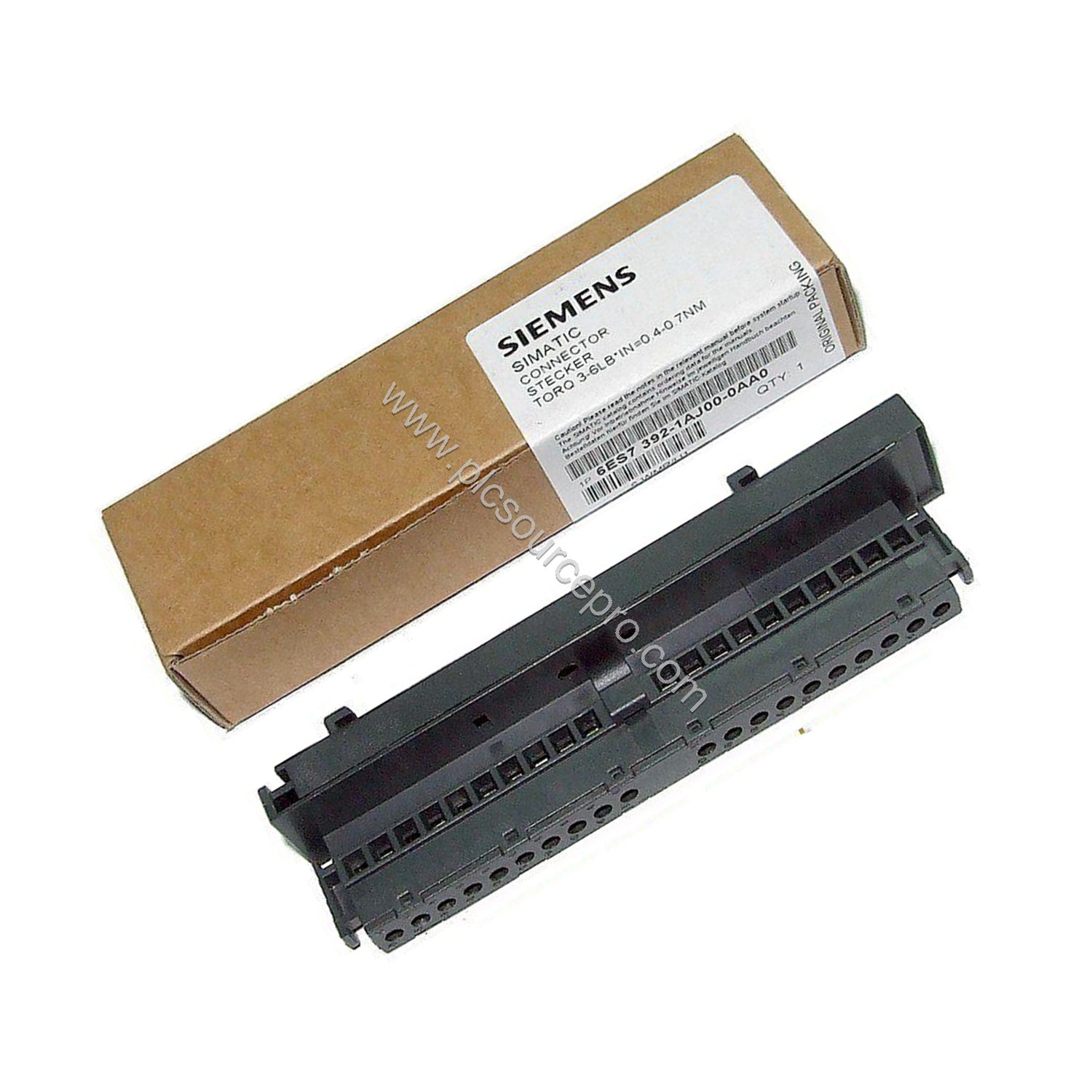

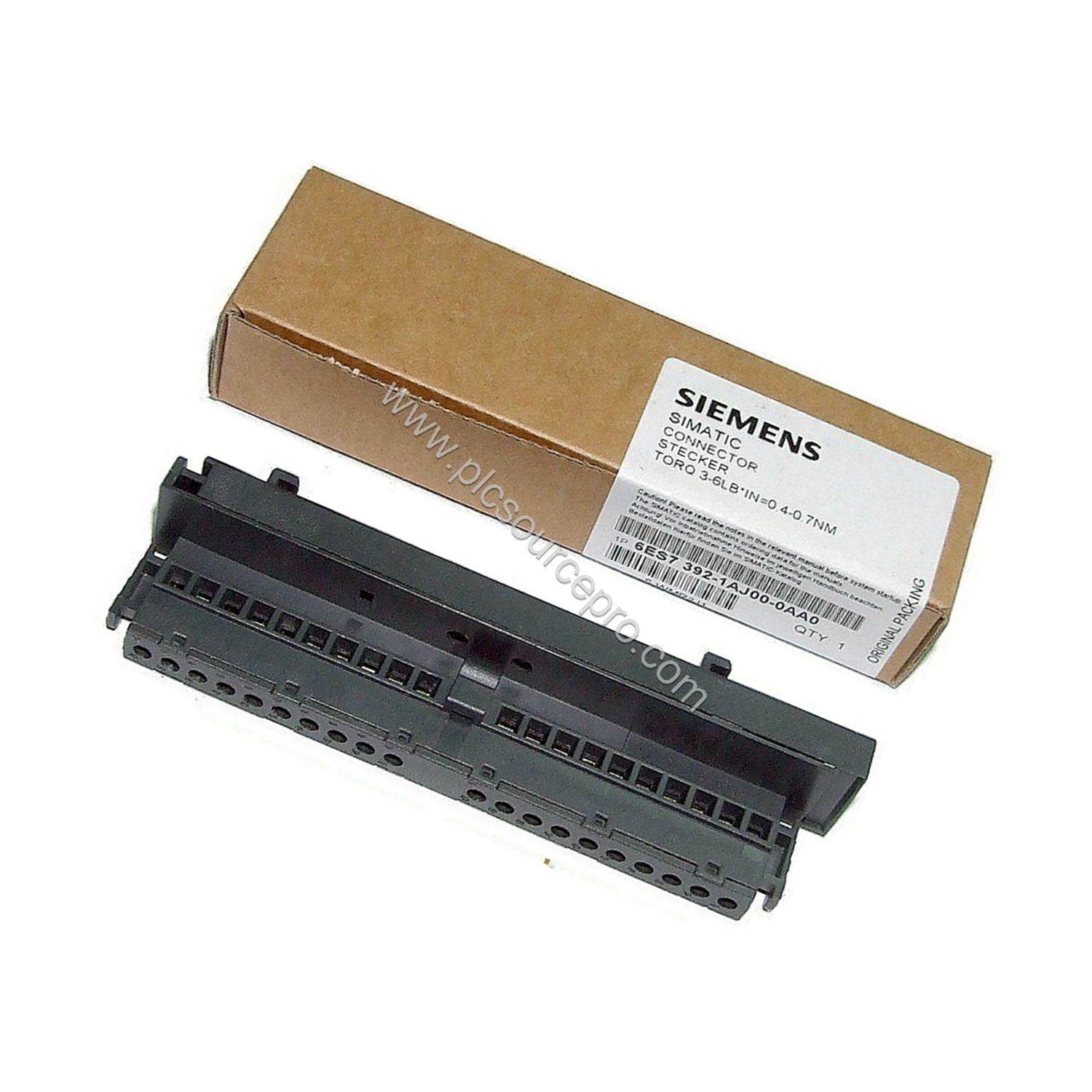

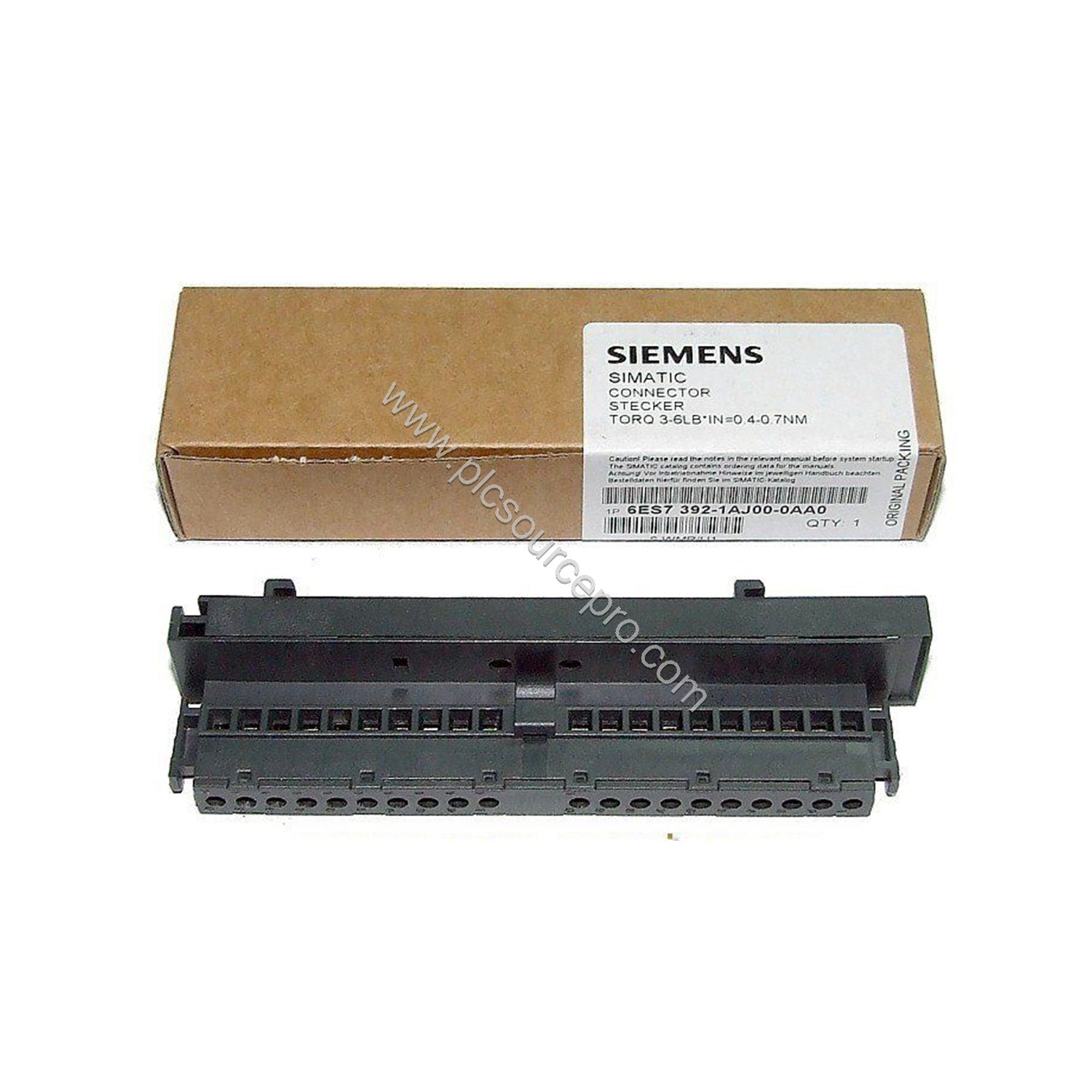

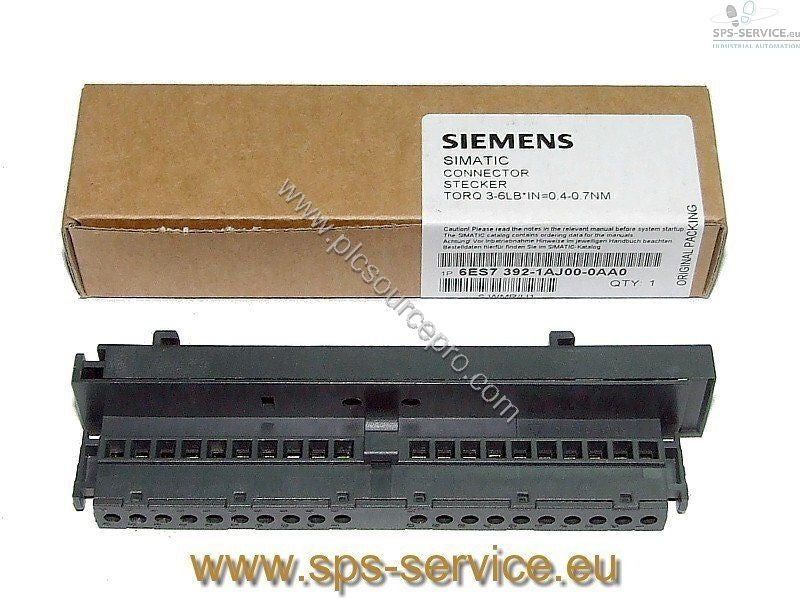

Product Overview
When replacing aging spring-clamp connectors or upgrading your SIMATIC S7-300 I/O infrastructure, the Siemens 6ES7392-1AJ00-0AA0 front connector delivers a robust, field-proven solution. Designed specifically for signal modules with screw contacts, this 20-pole connector ensures secure wire termination, simplified maintenance, and reduced downtime. Whether you are retrofitting an older system or building a new cabinet, the 6ES7392-1AJ00-0AA0 offers the exact mechanical and electrical interface your S7-300 rack requires.
Technical Specifications
The following table outlines the key parameters sourced directly from the Siemens datasheet for the 6ES7392-1AJ00-0AA0:
| Parameter |
Value |
| Product type designation |
Front connector |
| Number of poles |
20 |
| Connection method |
Screw terminals |
| Conductor cross-section (massive cables) |
0.25 mm² – 1.5 mm² |
| Conductor cross-section (flexible with/without end sleeve) |
0.25 mm² – 1.5 mm² |
| AWG range (massive cables) |
24 – 16 |
| Stripped length |
6 mm |
| Tightening torque |
0.4 – 0.7 N·m |
| Dimensions (W × H × D) |
23 mm × 131 mm × 36 mm |
| Weight |
Approx. 70 g |
| Ambient temperature (operation) |
0 °C – 60 °C |
| Ambient temperature (storage/transport) |
-40 °C – 70 °C |
Compatibility & Integration
The Siemens 6ES7392-1AJ00-0AA0 is specifically designed for the SIMATIC S7-300 family. It belongs to the S7-300 accessory portfolio and mates directly with all S7-300 signal modules that accept a 20-pole front connector. This includes digital input/output modules, analog modules, and specialty function modules. Before ordering, verify that your I/O module requires screw-type termination (some modules use spring-loaded or IDC connectors). The 6ES7392-1AJ00-0AA0 is not compatible with S7-1200 or S7-1500 systems, nor with older S5 series racks.
Installation & Setup Guidance
Installing the 6ES7392-1AJ00-0AA0 is straightforward. Use a conical screwdriver with a 3 mm to 3.5 mm tip. Ensure the stripped length of each cable is exactly 6 mm (min. 6 mm, max. 6 mm). For flexible wires, use end sleeves according to DIN 46228 (Design A without plastic sleeve: 5–7 mm long; Design E with plastic sleeve: up to 6 mm long). Tighten each screw to a torque between 0.4 N·m and 0.7 N·m — overtightening may damage the terminal block or strip the screw threads. The connector attaches directly to the signal module via a locking mechanism; no additional tools are required for mounting.
Maintenance & Reliability
Because the Siemens 6ES7392-1AJ00-0AA0 uses screw terminals, periodic re-torque inspections are recommended in high-vibration environments. Check for corrosion or oxidation on the contact surfaces every 12 months. The connector itself is rated for continuous operation from 0 °C to 60 °C and can withstand storage temperatures from -40 °C to 70 °C. Its compact dimensions (23 mm wide, 131 mm high, 36 mm deep) allow dense wiring in standard 80 mm deep cabinets. By replacing worn or damaged connectors proactively, you avoid intermittent signal faults and costly production stoppages.
Troubleshooting & Common Issues
Most connection problems with the 6ES7392-1AJ00-0AA0 stem from improper wire preparation. If a module shows intermittent signals, check for screws loosened by thermal cycling. Verify that the stripped length is exactly 6 mm — too long can cause short circuits, too short can cause poor contact. For flexible wires, always use approved end sleeves to prevent strand breakage under the screw head. If the connector does not lock into the module, inspect the guide pins for damage. The 6ES7392-1AJ00-0AA0 is a passive component; it cannot cause software errors by itself, but a poor connection can mimic a faulty I/O channel. When troubleshooting, swap the connector with a known-good unit to isolate the issue.
Selection Guide & Purchasing Advice
When sourcing the Siemens 6ES7392-1AJ00-0AA0, verify the part number exactly: 6ES7392-1AJ00-0AA0 (also listed as MFN: 6ES73921AJ000AA0). This front connector is the screw-type version; do not confuse it with the spring-type (6ES7392-1BJ00-0AA0) or the 40-pole variants. Ensure your order matches the number of signal modules you intend to connect. For bulk replacements or system upgrades, PLC Source PRO (available at ubest101) stocks genuine Siemens accessories with fast shipping. Always purchase from a reputable supplier to avoid counterfeit components that can compromise system reliability.
