Product Introduction

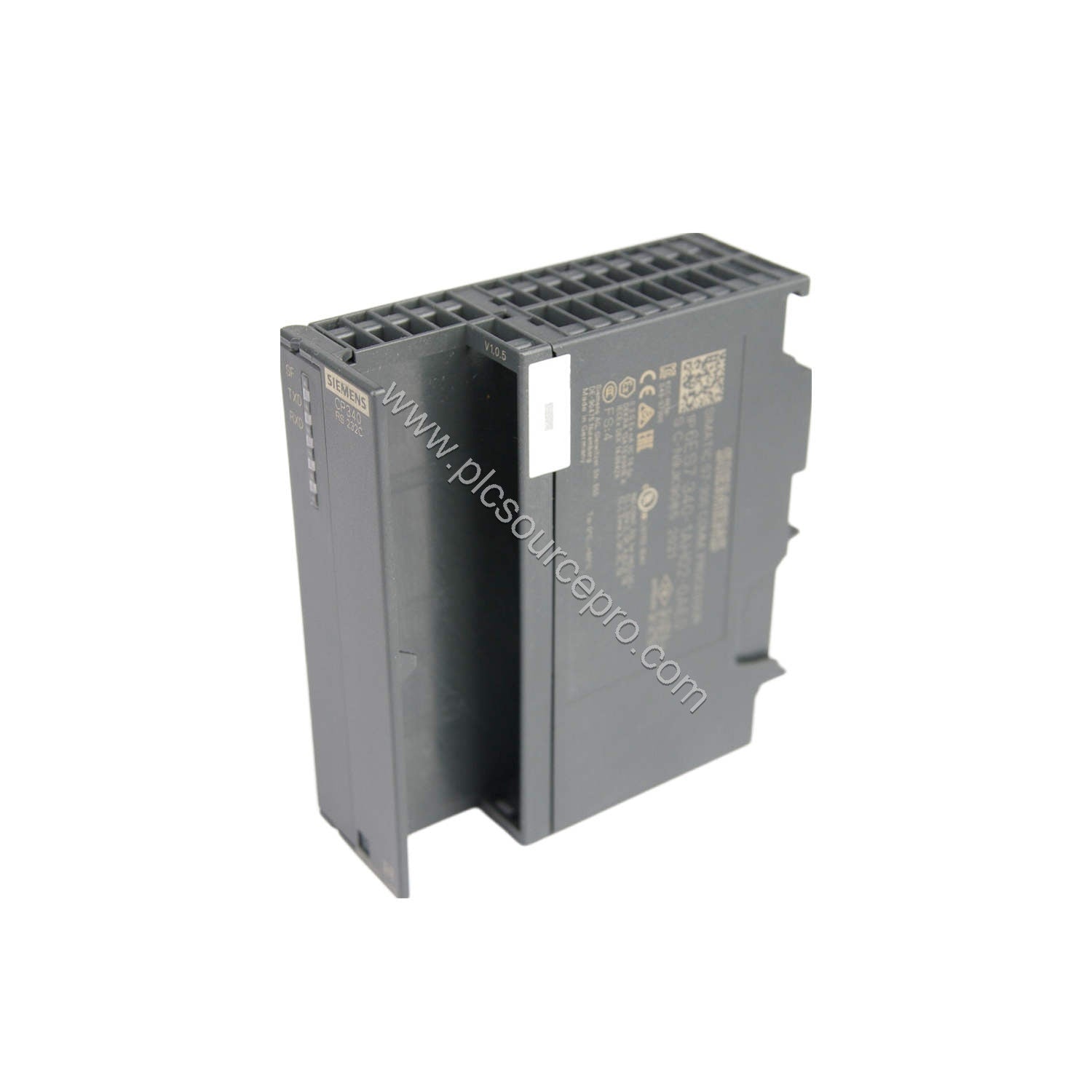

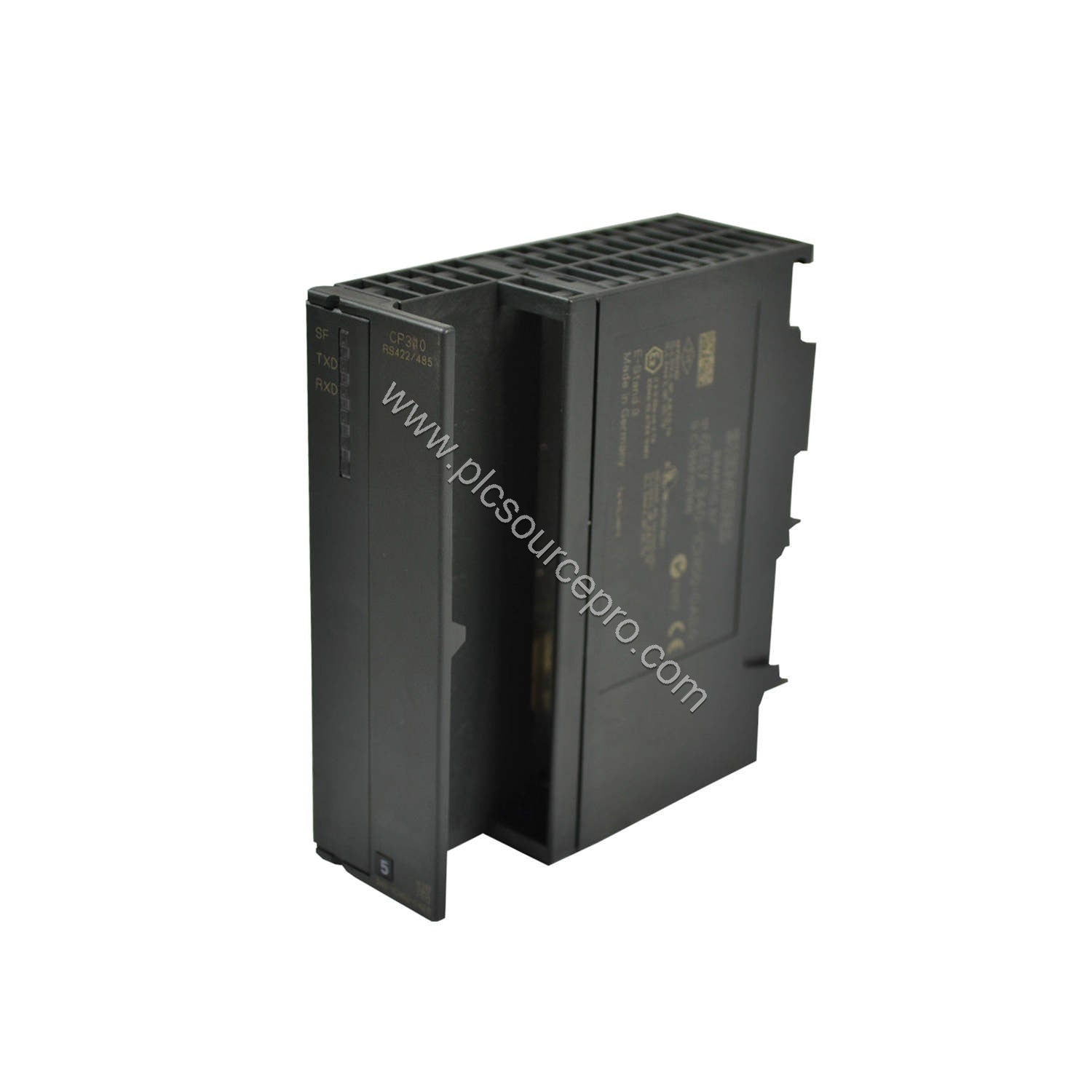

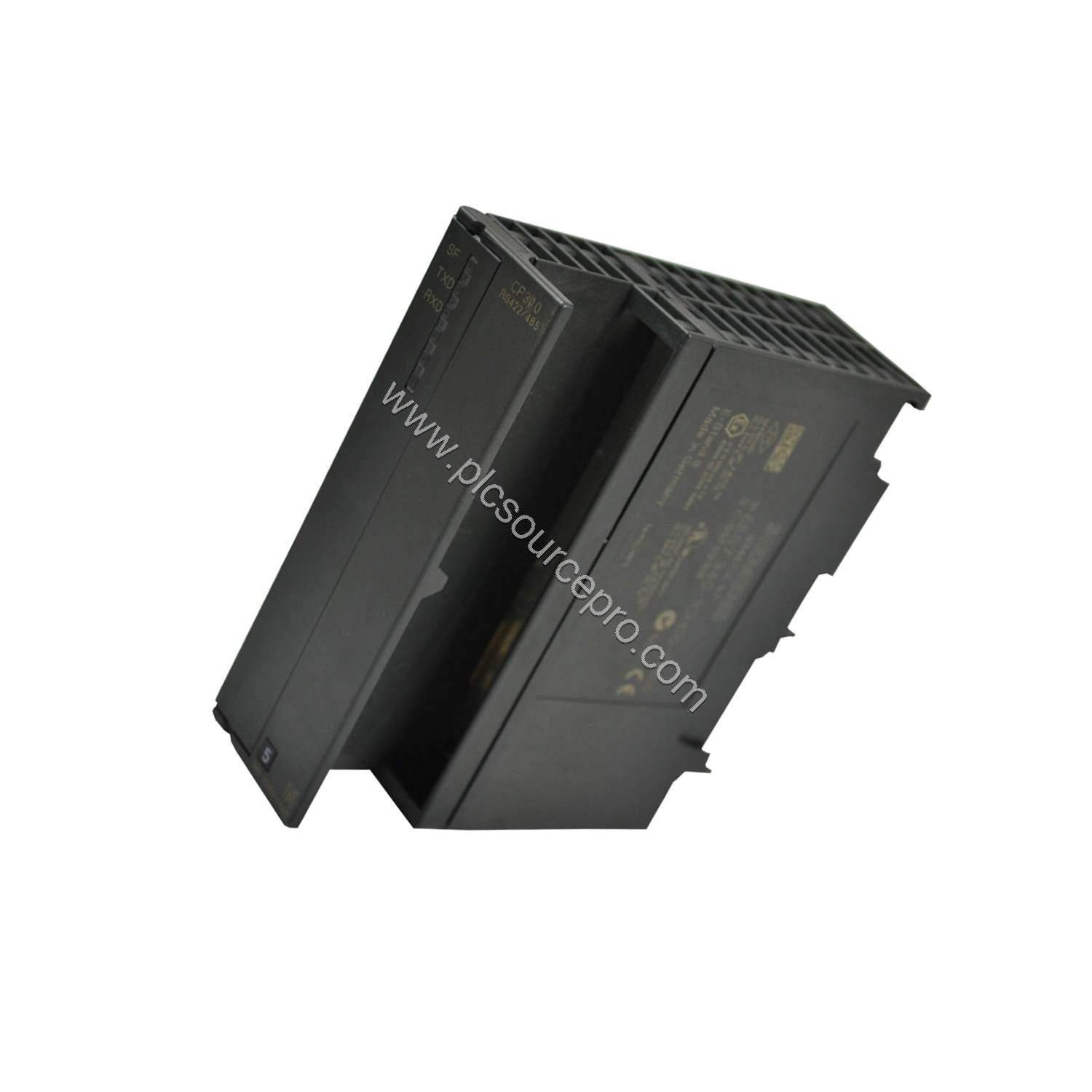

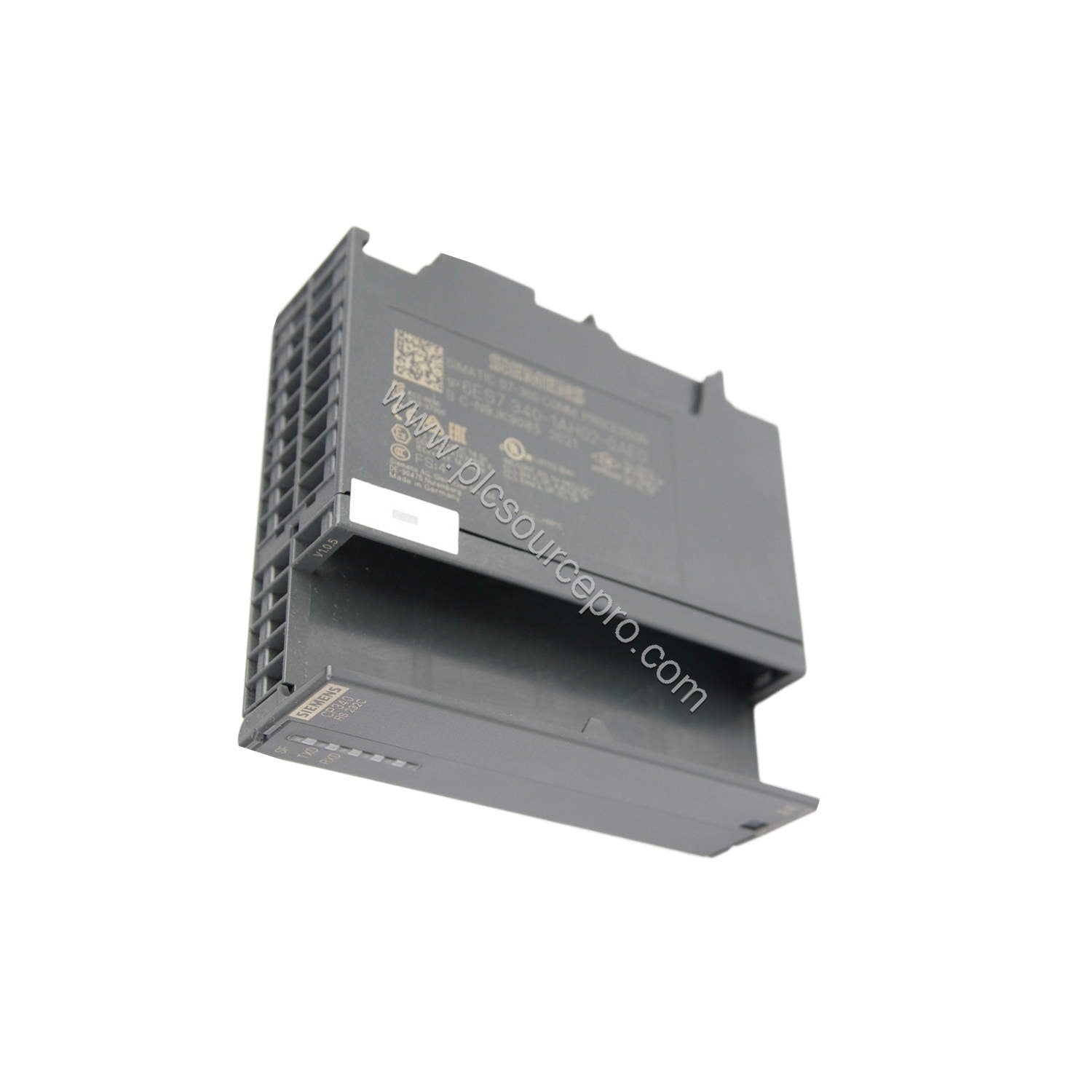

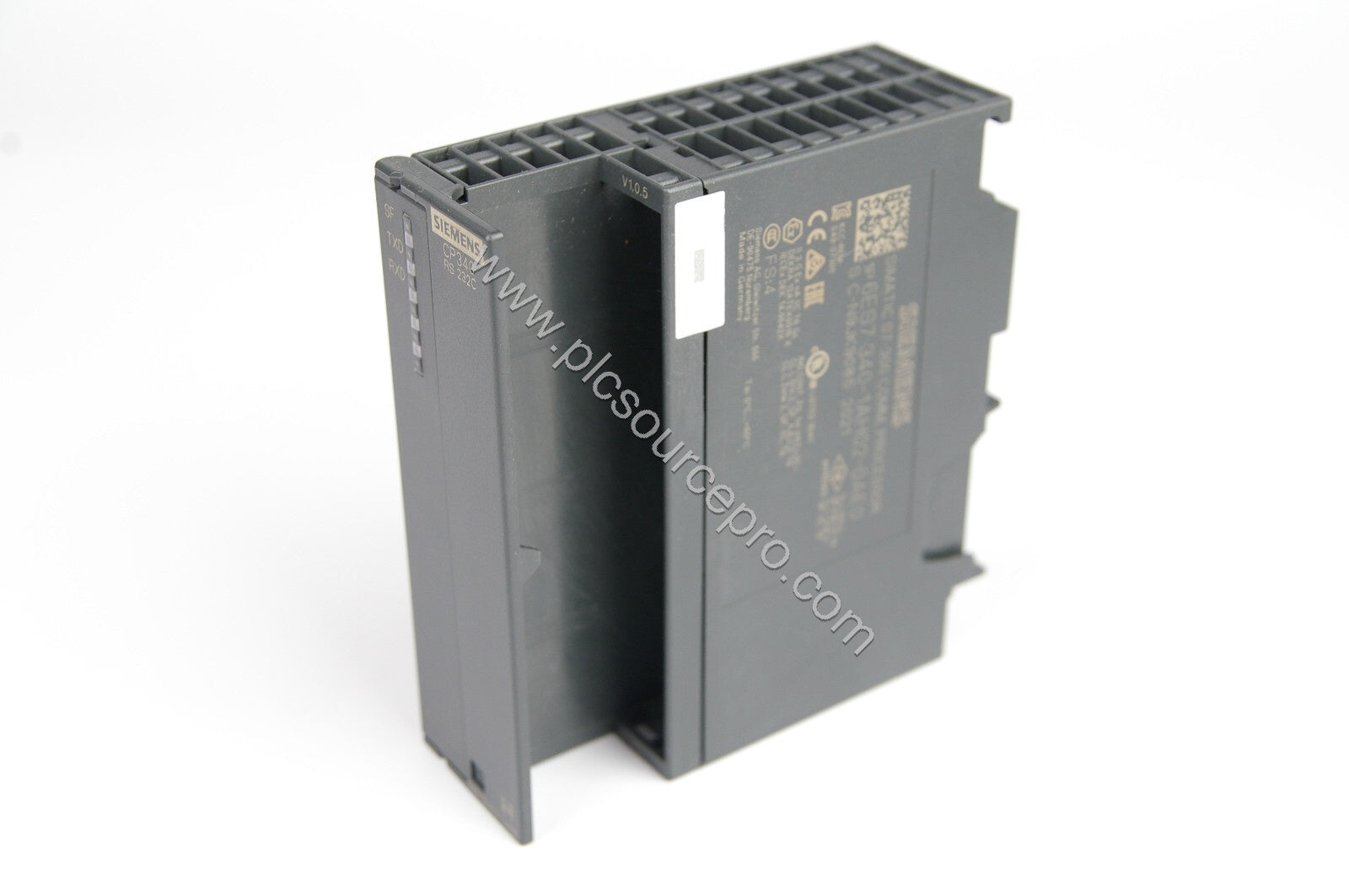

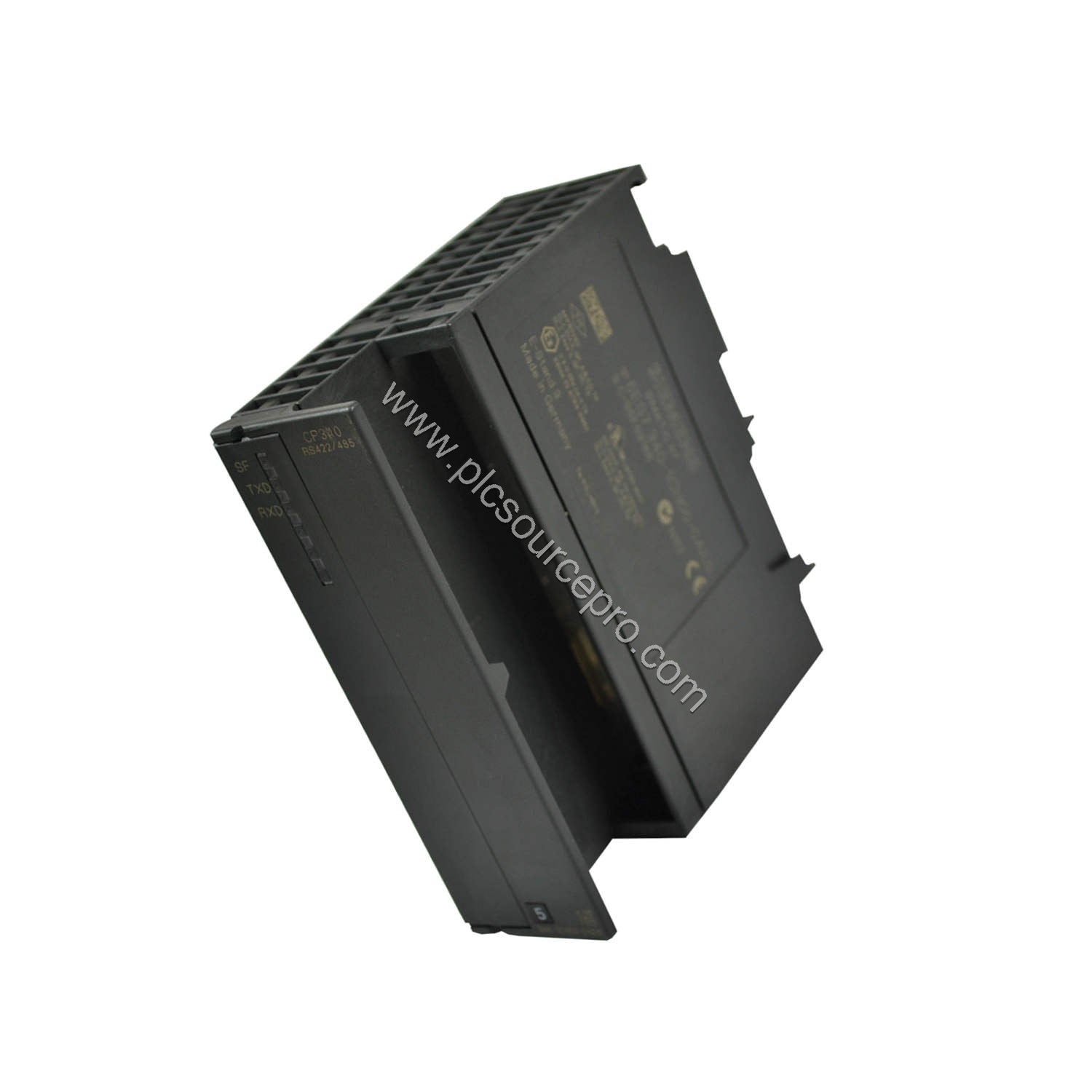

In serial communication applications for SIMATIC S7-300 systems, the Siemens 6ES7340-1AH01-0AE0 CP 340 communication processor delivers reliable point-to-point connectivity. This module includes an RS232C (V.24) interface and comes with a configuration package on CD, simplifying setup and integration into existing control architectures.
Technical Specifications
The Siemens 6ES7340-1AH01-0AE0 offers precise performance metrics derived directly from its datasheet:
-
Input current from backplane bus: 5 V DC, max. 165 mA
-
Power loss, max.: 0.85 W
-
Interface: RS 232C (V.24), 1 isolated interface
-
Transmission rate: min. 2.4 kbit/s, max. 19.2 kbit/s
-
Cable length, max.: 15 m
-
Telegram length, max. (3964 (R) and ASCII): 1,024 byte each
-
Transmission speed, RS 232 with 3964 (R) protocol: max. 19.2 kbit/s
-
Transmission speed with ASCII protocol: max. 9.6 kbit/s
-
Transmission speed with printer driver: max. 9.6 kbit/s
-
Supported printers: HP-Deskjet, HP-Laserjet, IBM-Proprinter, user-defined
-
FB length in RAM, max.: 2,700 byte for data communication, sending and receiving
-
Dimensions: 40 mm (W) x 125 mm (H) x 120 mm (D)
-
Weight, approx.: 300 g
Industry Applications
The Siemens 6ES7340-1AH01-0AE0 is ideal for upgrading legacy S7-300 systems that require serial communication with printers or remote devices. For example, it can drive HP-Laserjet printers using the ASCII protocol at 9.6 kbit/s. Similarly, in point-to-point data exchange scenarios with 3964 (R) protocol, it achieves up to 19.2 kbit/s, ensuring timely transfer of telegrams up to 1,024 bytes.
Compatibility & Integration
This communication processor integrates seamlessly with the SIMATIC S7-300 series via the backplane bus. It supports 3964 (R) and ASCII protocols, as well as printer drivers for common models. The included configuration CD streamlines parameter setup, while the isolated RS232C interface minimizes interference in industrial environments. Cable runs up to 15 meters are supported, making it suitable for local connections.
Selection Guide & Purchasing Advice
When selecting the Siemens 6ES7340-1AH01-0AE0, verify that your backplane bus can supply 5 V DC with a maximum current of 165 mA. Ensure the RS232C interface matches your peripheral's requirements. For reliable supply of this module along with other automation spares, consider PLC Source PRO (available at ubest101.myshopify.com) for genuine products and fast delivery.
