Product Overview

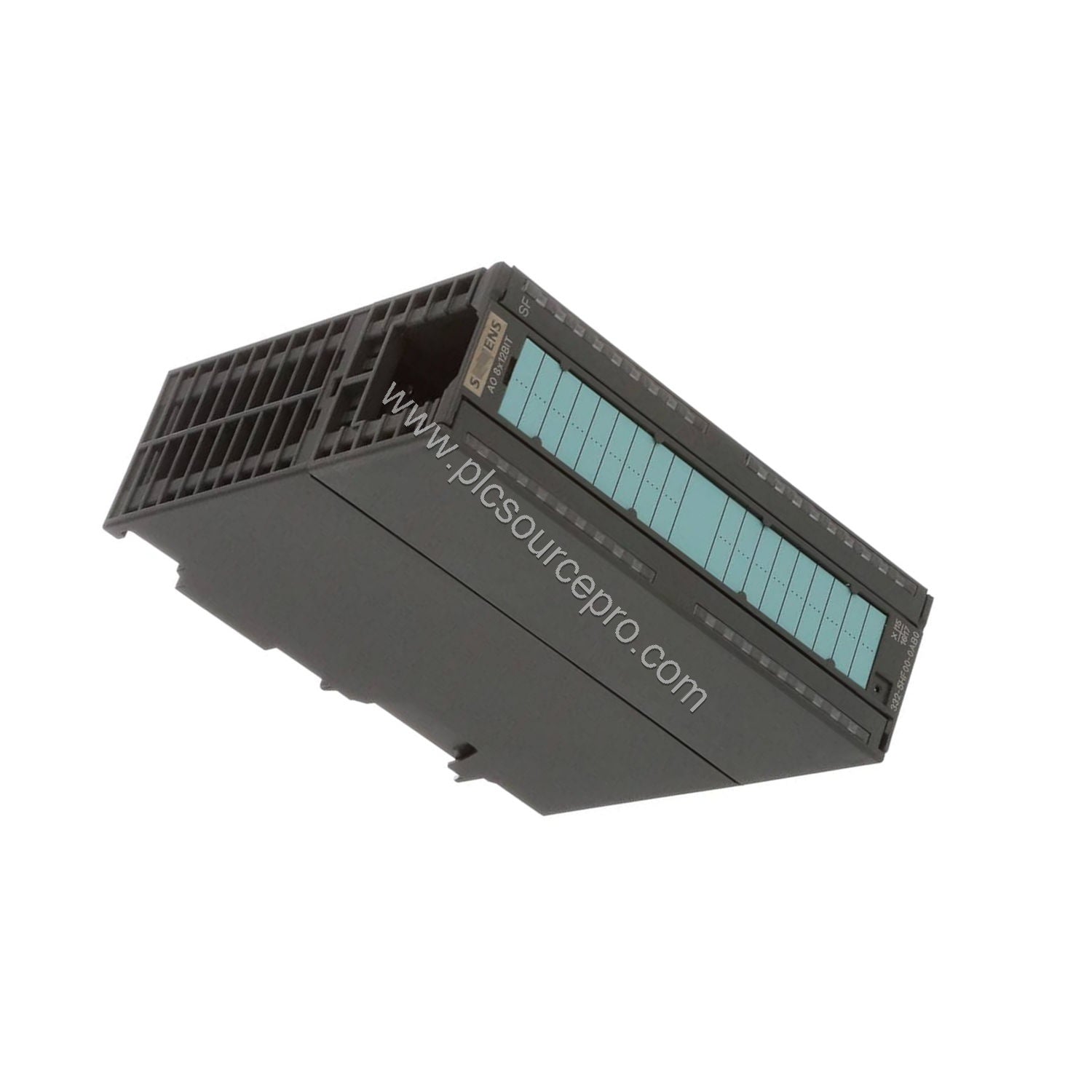

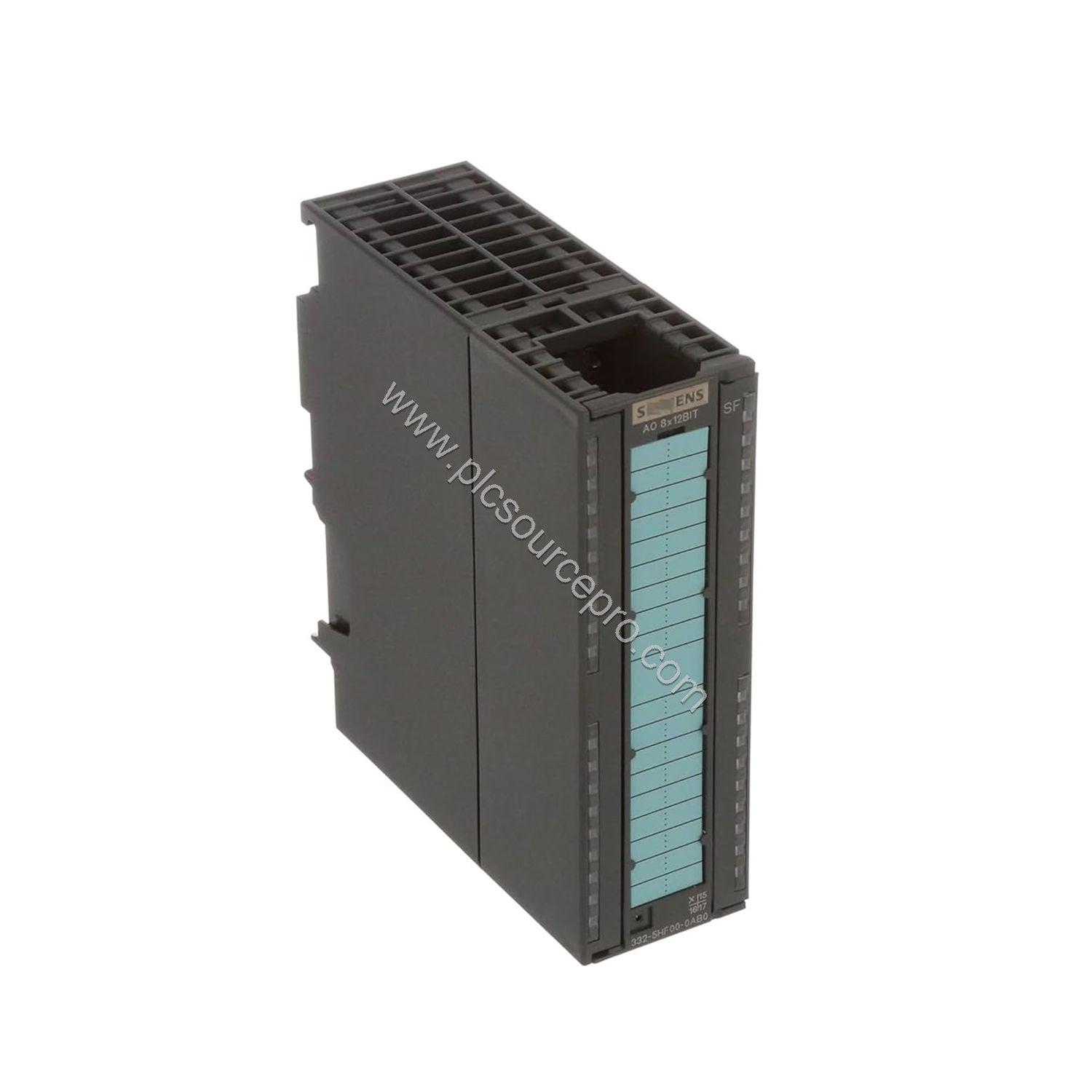

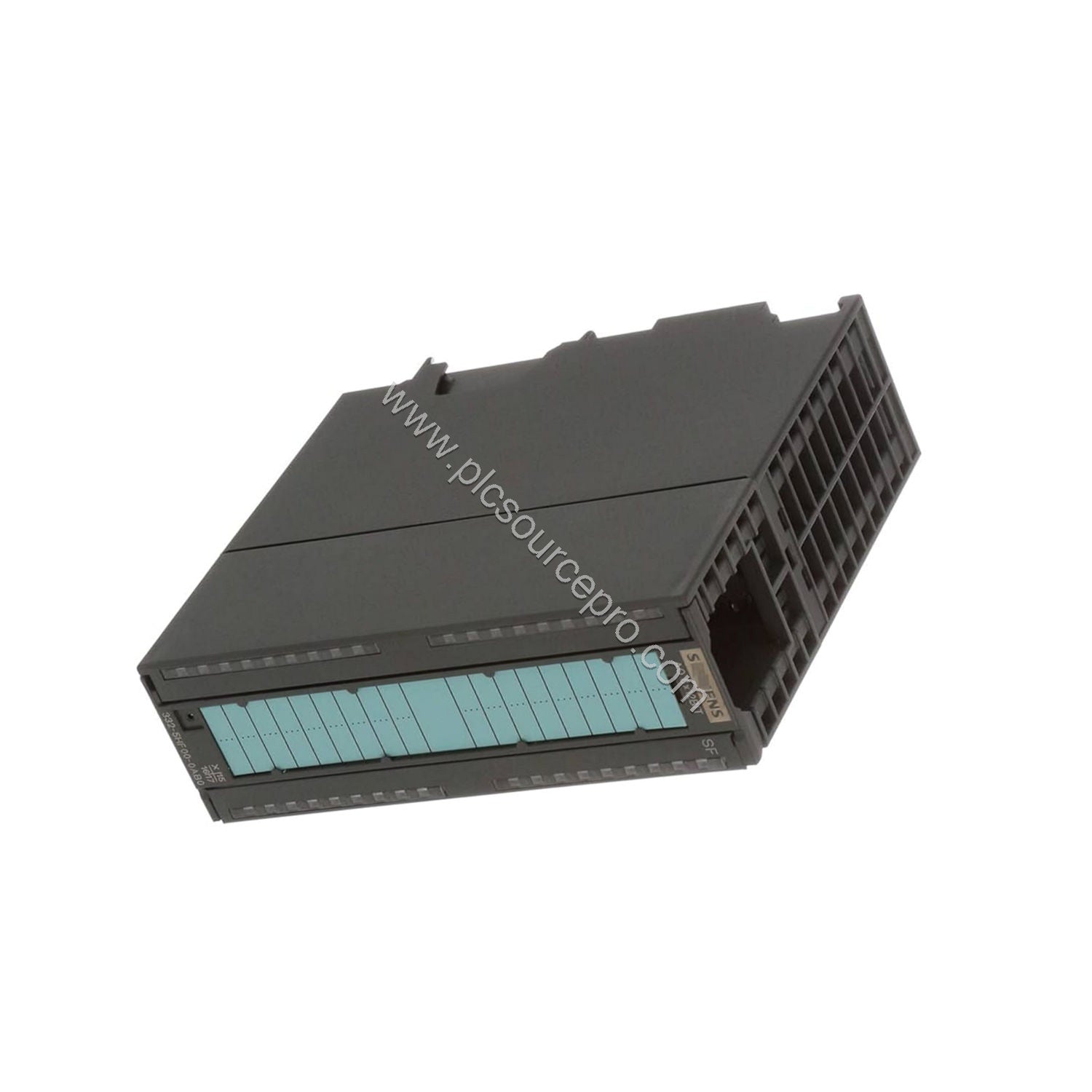

The Siemens 6ES7332-5HF00-0AB0 is an isolated analog output module designed for the SIMATIC S7-300 system. With 8 analog outputs, support for voltage and current ranges, and integrated diagnostics, this SM 332 module delivers precise control for industrial automation. Its 40-pole front connector allows hot swapping on an active backplane bus, minimizing downtime in critical processes.
Technical Specifications
Key performance parameters of the Siemens 6ES7332-5HF00-0AB0 include:
-
Analog Outputs: 8 channels, voltage (0–10 V, 1–5 V, ±10 V) and current (0–20 mA, ±20 mA, 4–20 mA)
-
Resolution: 11-bit with sign (for bipolar ranges) or 12-bit (for unipolar ranges)
-
Conversion Time: 0.8 ms per channel
-
Power Loss: Typ. 6 W
-
Reverse Polarity Protection: Yes, on load voltage L+ (24 V DC)
-
Diagnostics: Parameterizable diagnostic alarm and group error LED (SF red)
-
Isolation: 500 V DC tested between channels and backplane bus/L+
Additional specs include load impedance minimum 1 kΩ for voltage outputs and maximum 500 Ω for current outputs, shielded cable length up to 200 m, and settling times of 0.2 ms (resistive), 3.3 ms (capacitive), and 0.5 ms (inductive).
Real-World Applications
The Siemens 6ES7332-5HF00-0AB0 excels in process control and discrete manufacturing. For example, in a chemical batch reactor, its ±10 V outputs modulate proportional valves with 0.5% accuracy. In a packaging line, 4–20 mA loops drive servo drives while the diagnostic alarm alerts operators to wire breaks. The module's isolation prevents ground loops in noisy industrial environments.
Installation and Setup
Mount the Siemens 6ES7332-5HF00-0AB0 on a standard S7-300 rail. Use a 40-pin front connector (not included) for wiring. Connect load voltage L+ (24 V DC) with reverse polarity protection active. For voltage outputs, ensure minimum load of 1 kΩ; for current outputs, keep load below 500 Ω. Shield cables up to 200 m to maintain signal integrity.
Troubleshooting and Diagnostics
The Siemens 6ES7332-5HF00-0AB0's parameterizable diagnostics reduce downtime. When the SF LED lights red, read diagnostic information via your controller. Common issues: open-circuit current loop (check wiring) or overload on voltage output (module limits short-circuit current to 25 mA). The module's reverse polarity protection on L+ prevents damage from incorrect connections.
Selection Guide
Before purchasing the Siemens 6ES7332-5HF00-0AB0, verify your S7-300 backplane bus supports hot swapping. The module requires a 40-pin front connector (order separately if needed). For expert support and fast shipping, choose PLC Source PRO. This part is available from ubest101, your reliable partner for industrial automation spares.
