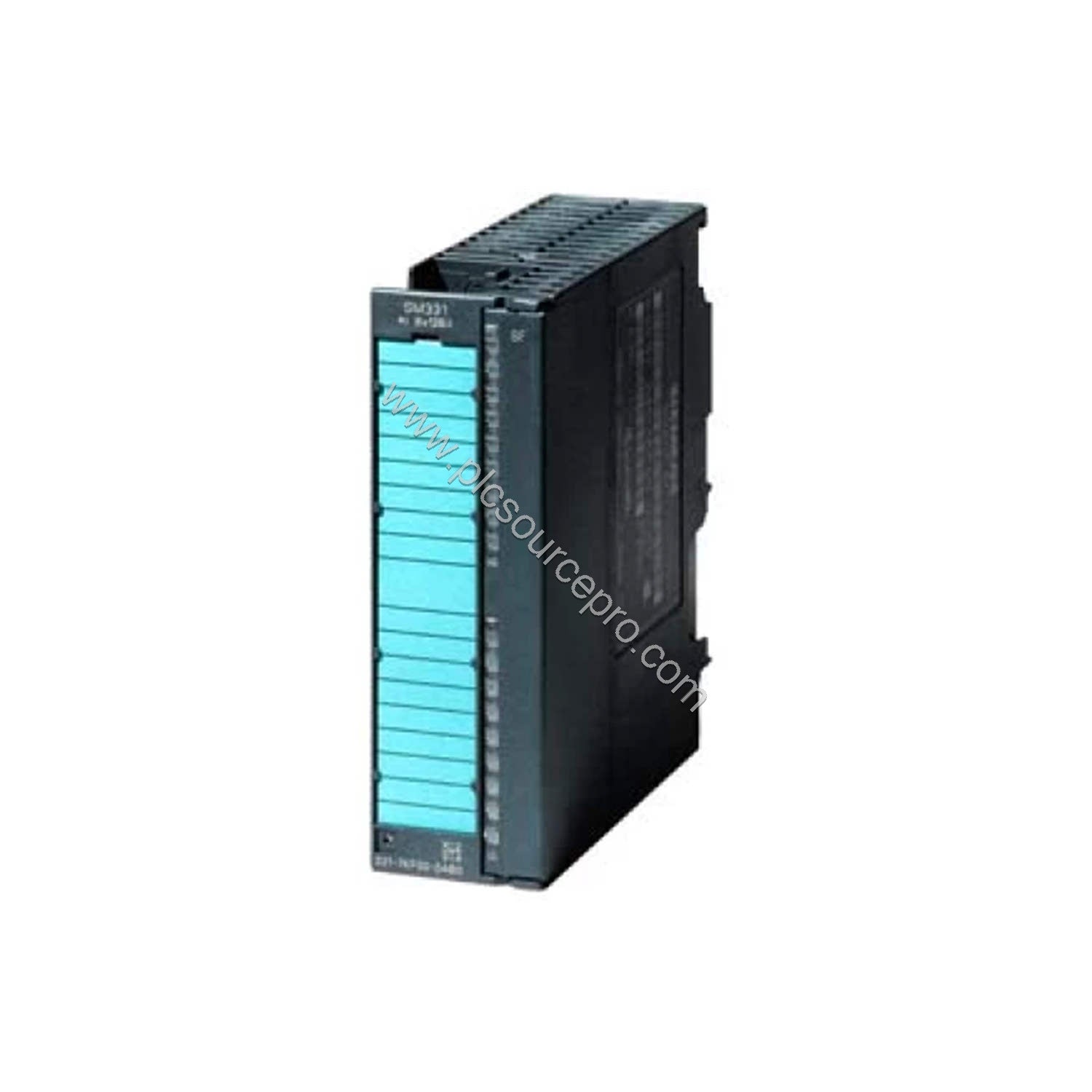

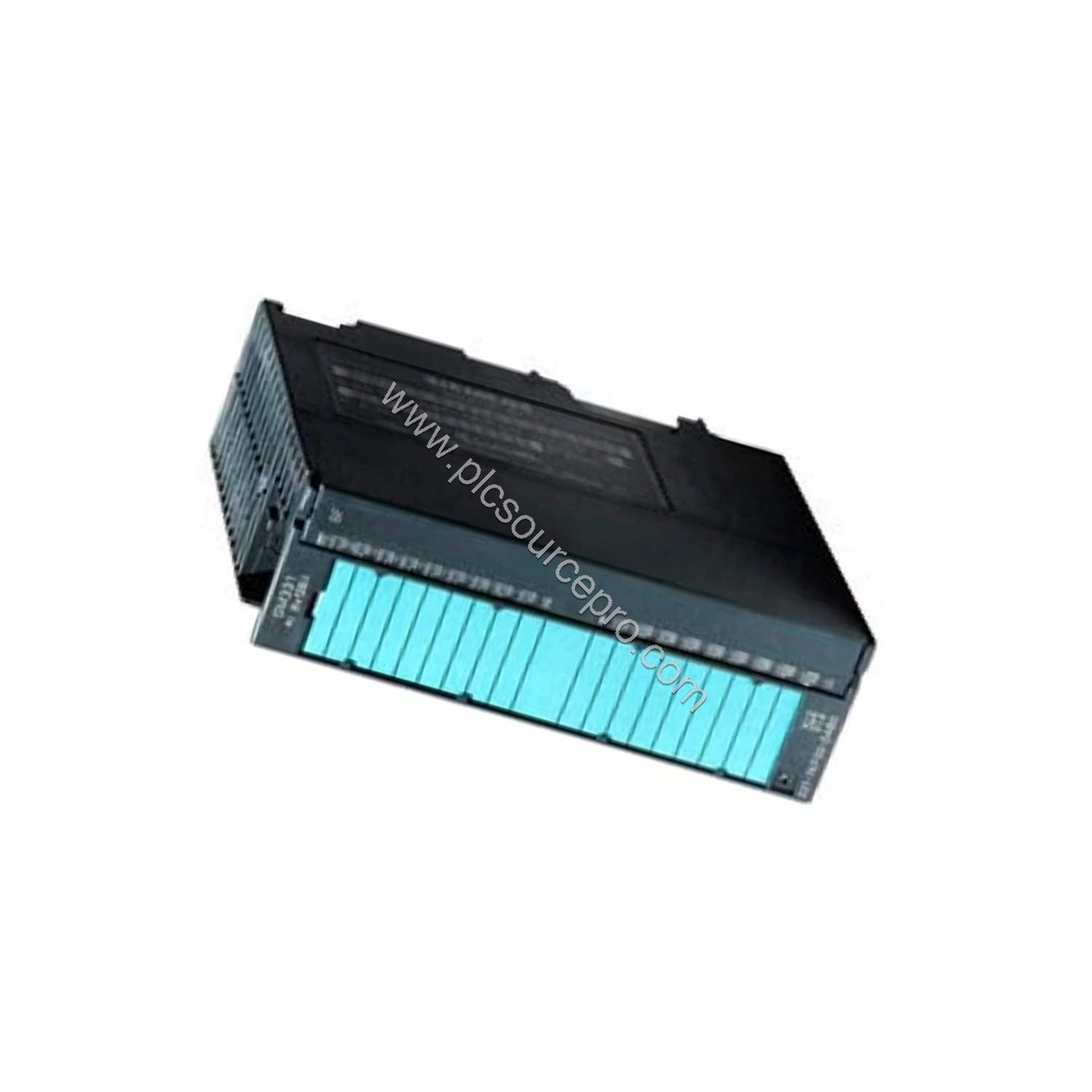

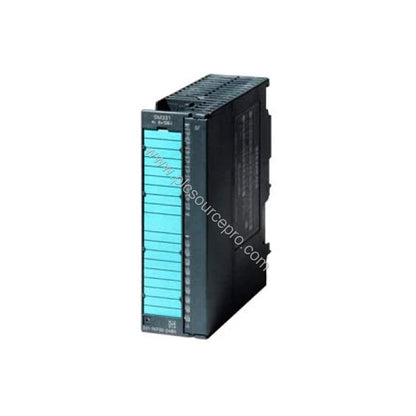

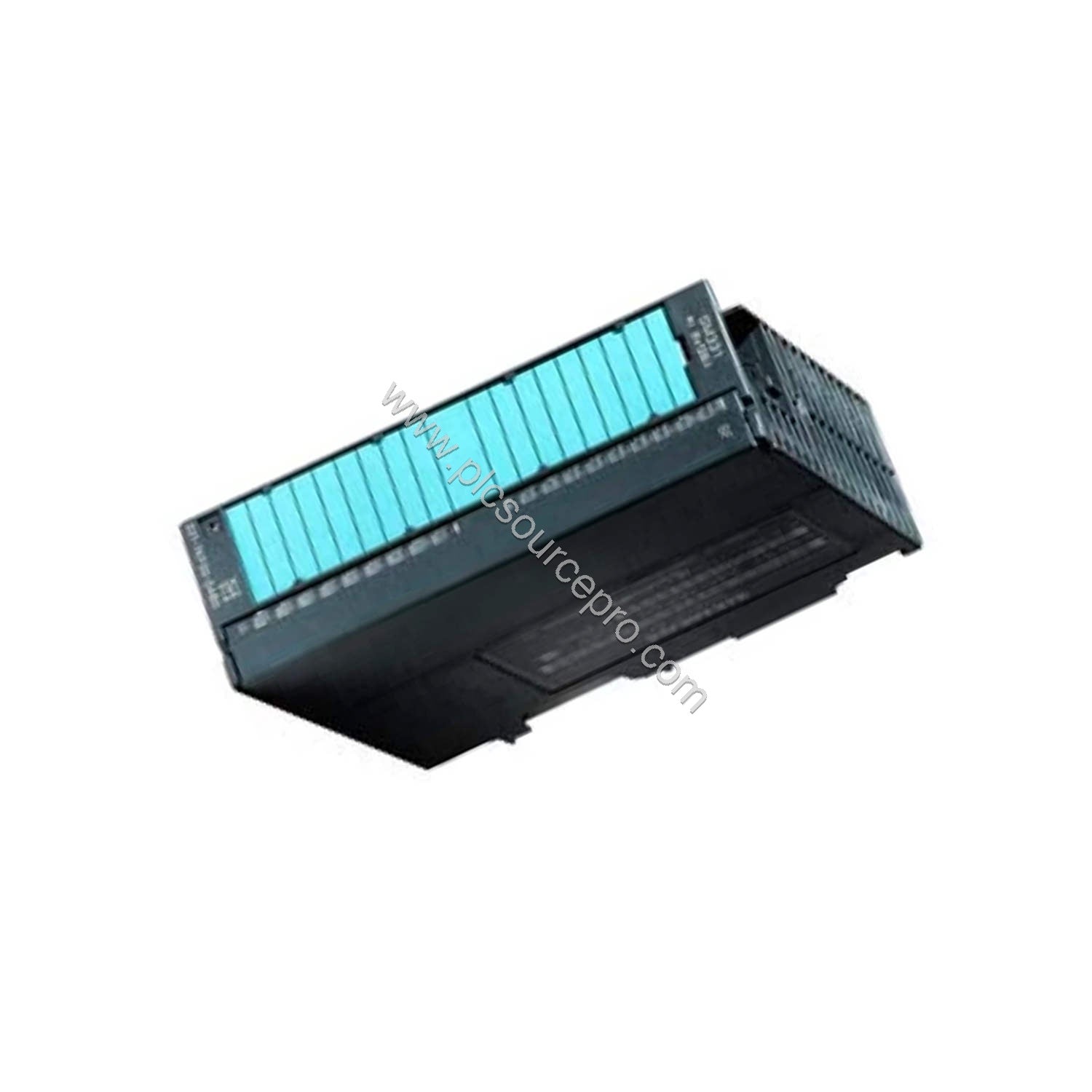

Introduction to the Siemens 6ES7331-7PF01-0AB0 Isolated Analog Input Module
When accurate resistance and RTD measurements are critical, the Siemens 6ES7331-7PF01-0AB0 provides reliable isolated analog input for S7-300 PLC systems. This module addresses common problems such as electrical noise, ground loops, and wiring-induced errors by offering galvanic isolation between channels and the backplane. With eight channels dedicated to resistance thermometers and resistors, the 6ES7331-7PF01-0AB0 ensures consistent data acquisition even in harsh industrial environments.
Technical Specifications of the 6ES7331-7PF01-0AB0
| Parameter |
Value |
| Manufacturer |
Siemens |
| Product Type |
Isolated Analog Input Module for S7-300 PLC |
| Input Channels |
8 channels for resistance and RTD measurements |
| Supported Sensor Types |
Resistance thermometers (Pt, Ni, Cu); resistors (0‑150/300/600 Ω) |
| Isolation Voltage |
500 V DC (between channels and backplane/power supply) |
| Resolution |
16‑bit two’s complement with overrange capability |
| Conversion Time (per module cycle) |
Configurable: 10 ms (≤4 ch), 80 ms (8 ch), 190 ms (>5 ch) |
| Interference Suppression |
50 Hz, 60 Hz, 400 Hz |
| Cable Requirements |
Shielded cables up to 200 m |
| Wiring Configurations |
2‑wire, 3‑wire, or 4‑wire |
| Operational Accuracy (Full Range) |
±0.1% (resistors); ±1 K (RTDs) |
| Basic Accuracy (at 25°C) |
±0.05% (resistors); ±0.5 K (RTDs) |
| Diagnostic Features |
Configurable alarms (limit, diagnostic, hardware interrupt) per channel |
| Channel Grouping |
2‑channel groups with internal isolation |
| Power Consumption |
24 V DC; 240 mA max from L+, 100 mA from backplane |
| Physical Dimensions (W x H x D) |
40 mm x 125 mm x 120 mm |
| Weight |
0.38 lbs (0.17 kg) |
Real-World Applications
The Siemens 6ES7331-7PF01-0AB0 excels in applications requiring precise temperature or resistance monitoring. For example, in industrial ovens, the module’s interference suppression (50/60/400 Hz) prevents noise from heating elements from corrupting RTD readings. In process control loops, the 16‑bit resolution and configurable conversion time allow engineers to balance speed and accuracy. The module’s 3‑wire and 4‑wire support eliminates lead‑resistance errors in remote sensor installations, a common failure mode in resistance measurement.
Installation and Wiring Guidance
To maximize performance, use shielded twisted‑pair cables up to 200 m. For RTDs, prefer 3‑wire or 4‑wire connections to cancel lead resistance. The module groups channels into pairs with internal isolation, so connect sensitive sensors on separate groups if cross‑channel interference is a concern. Note that the 6ES7331-7PF01-0AB0 requires a 24 V DC supply (240 mA from L+). Ensure the backplane current (100 mA) is within the S7‑300 power budget.
Maintenance and Reliability
The Siemens 6ES7331-7PF01-0AB0 includes per‑channel diagnostic alarms for limit violations, wire‑break detection, and hardware faults. Regularly inspect cable shielding and terminal connections. The module’s isolation voltage of 500 V DC protects against voltage spikes, enhancing long‑term reliability. For critical loops, configure the diagnostic interrupts to alert the controller immediately of any abnormal condition.
Selection Guide for the 6ES7331-7PF01-0AB0
Before purchasing, verify that your S7‑300 CPU supports analog input modules and that you have sufficient backplane current. Consider the number of RTD/resistor channels needed. If you require faster updates, limit the active channels to four (10 ms cycle). For high‑accuracy RTD measurements, the ±0.5 K basic accuracy at 25°C meets most process requirements. PLC Source PRO (ubest101) stocks genuine Siemens modules and can assist with configuration advice.
