Product Overview

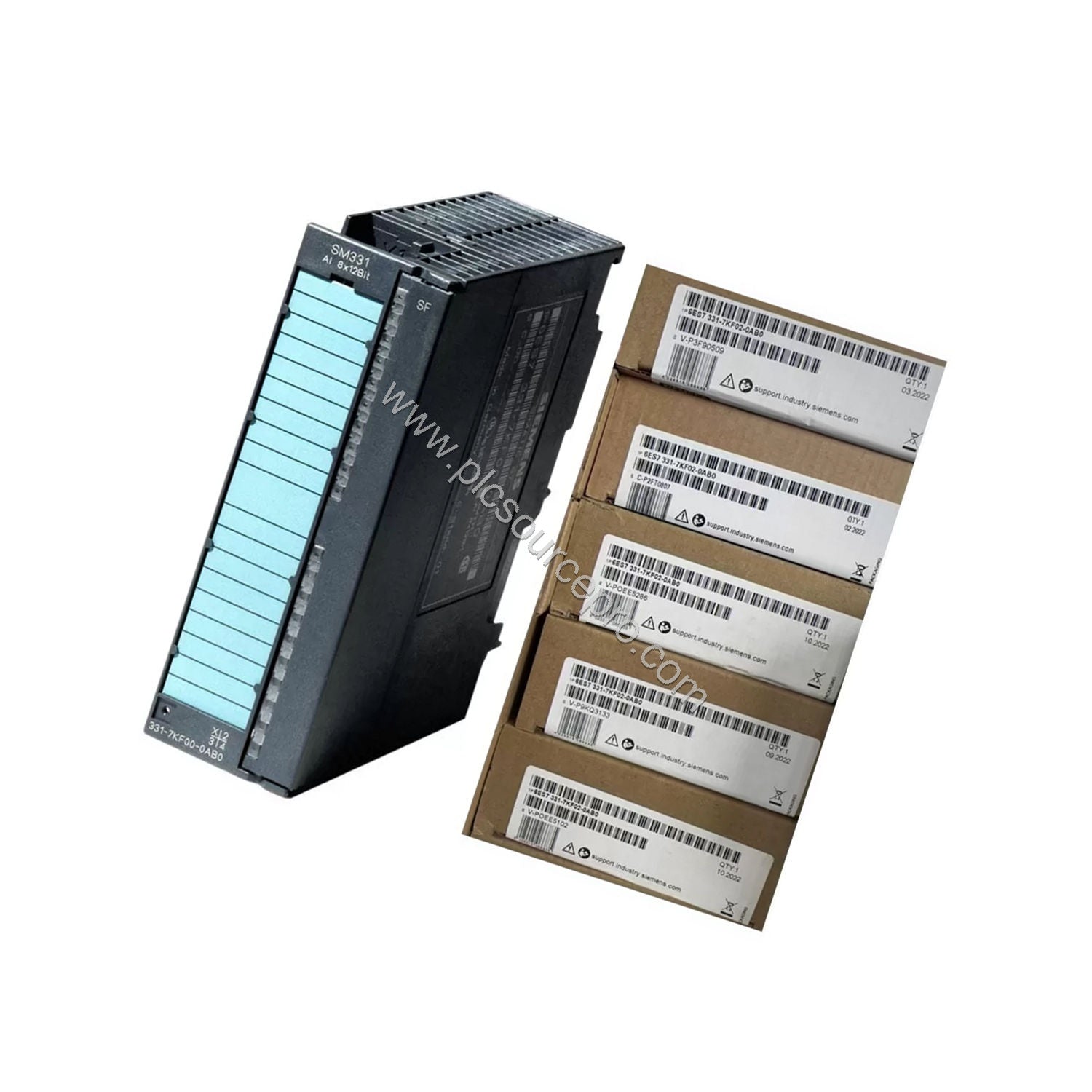

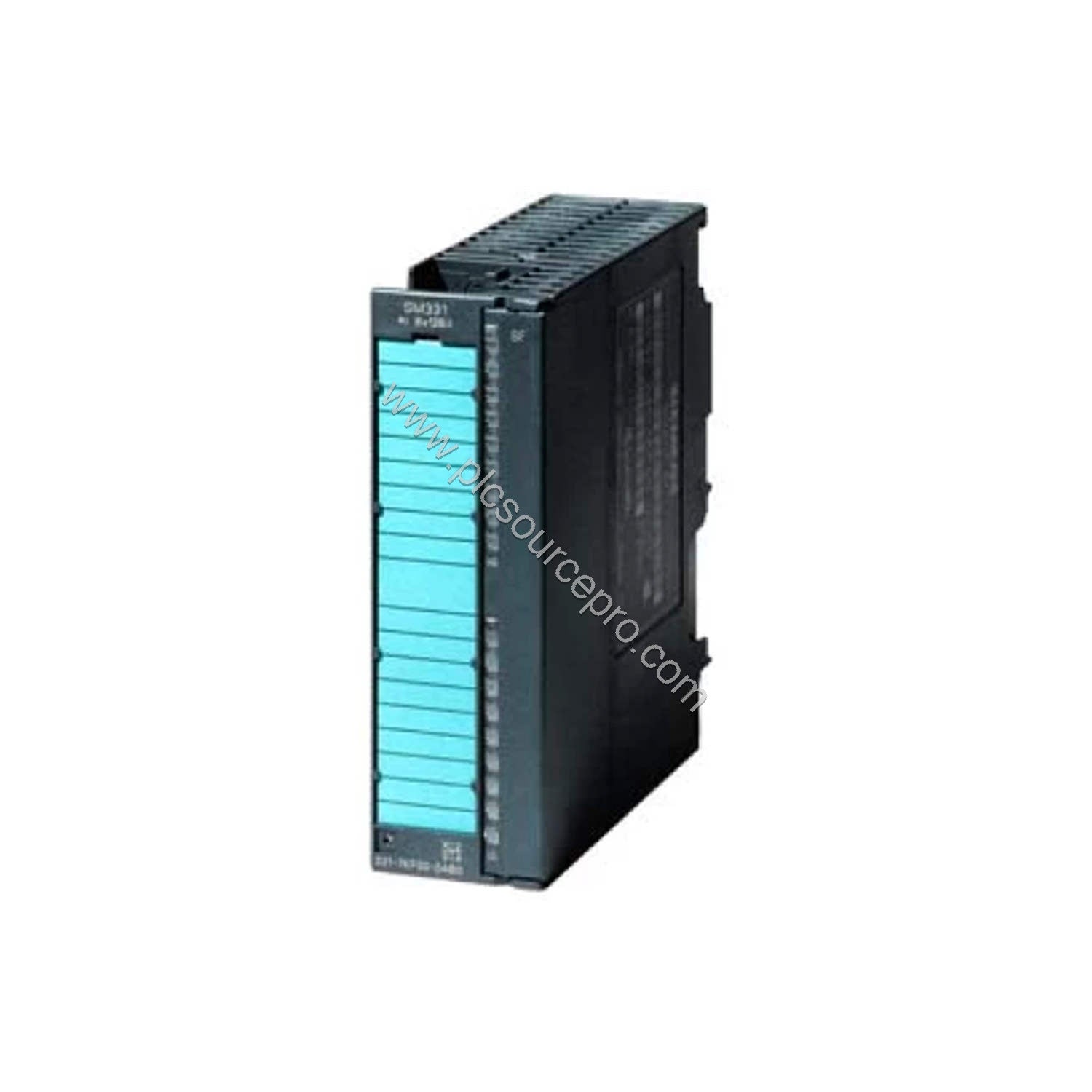

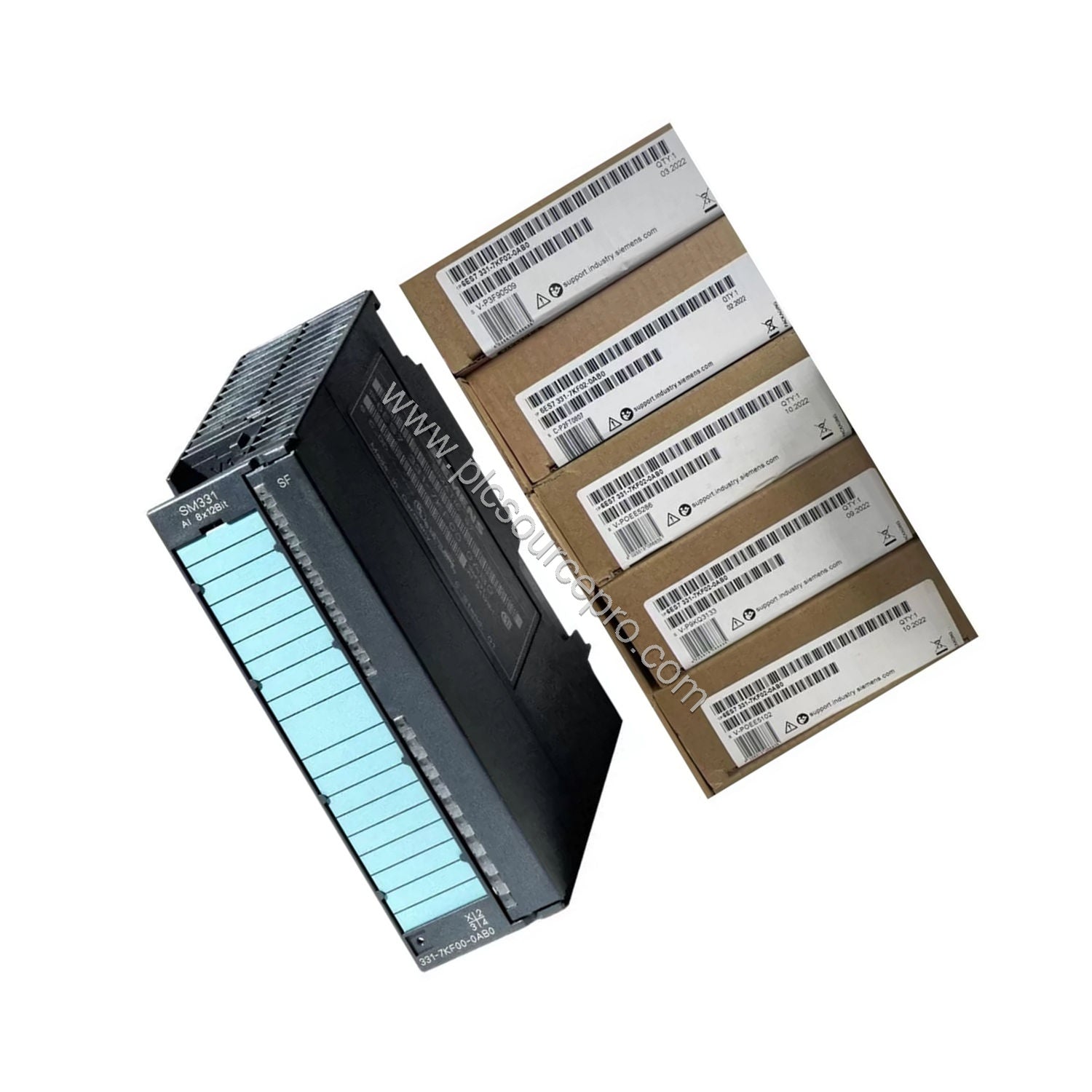

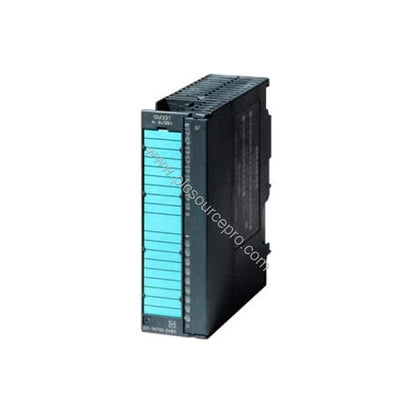

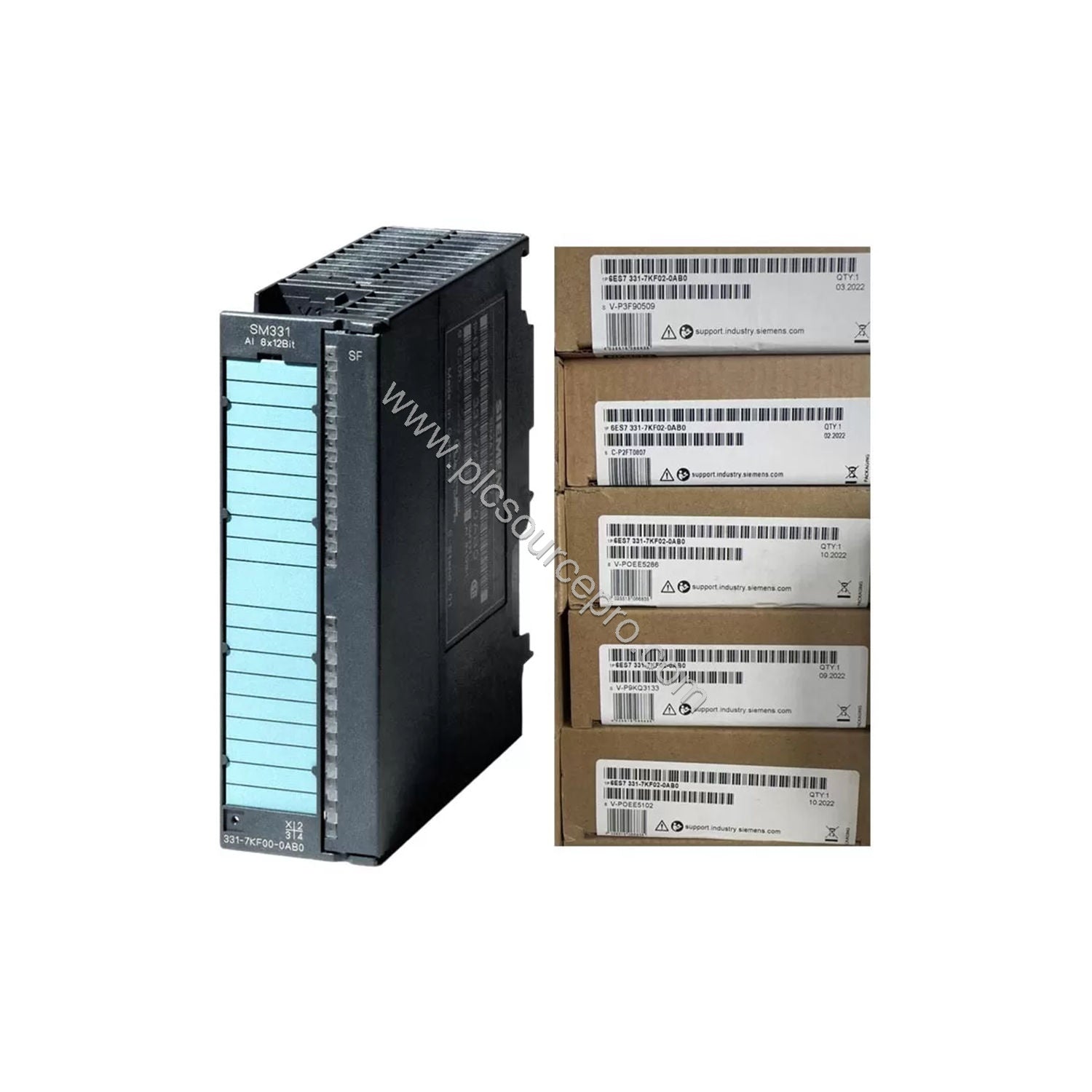

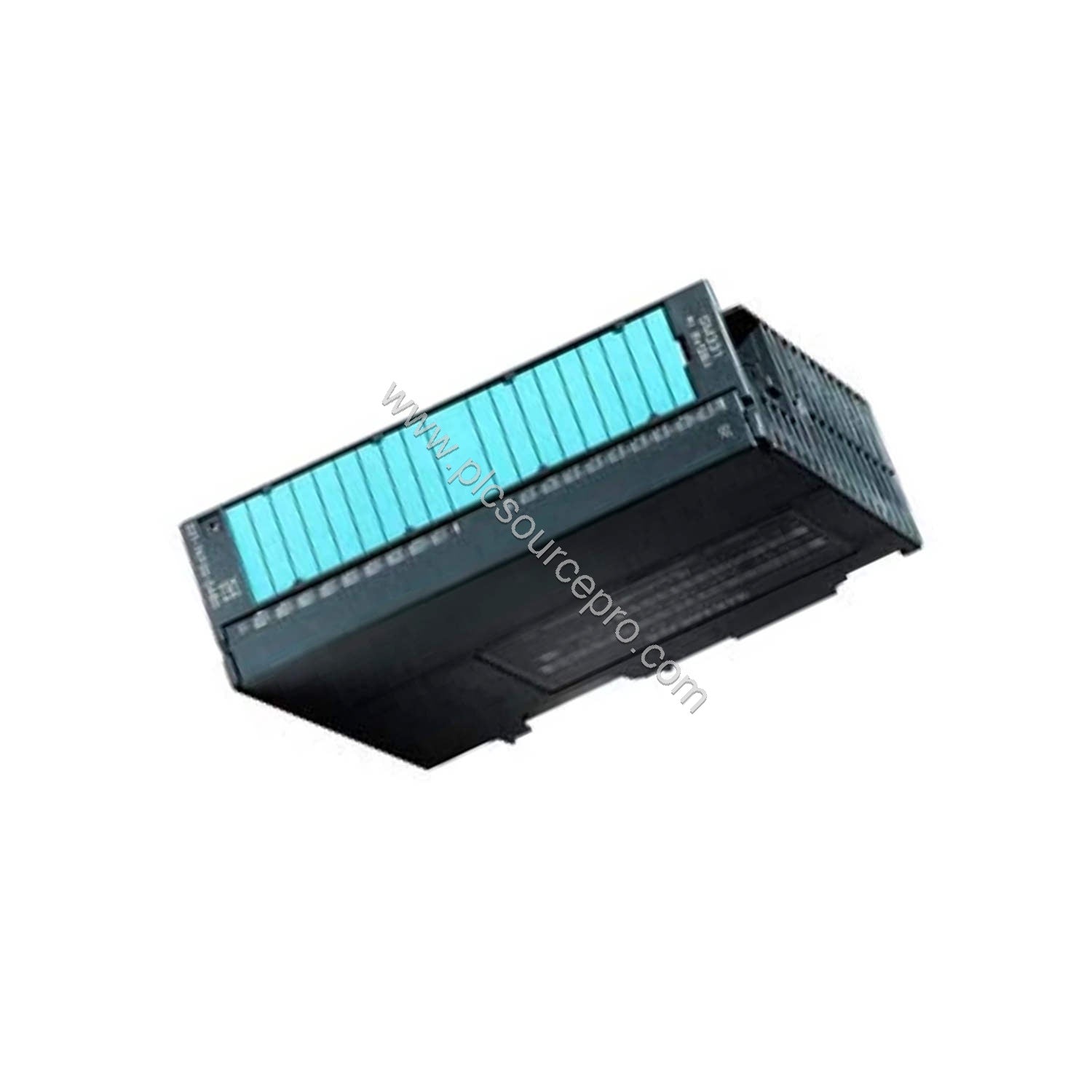

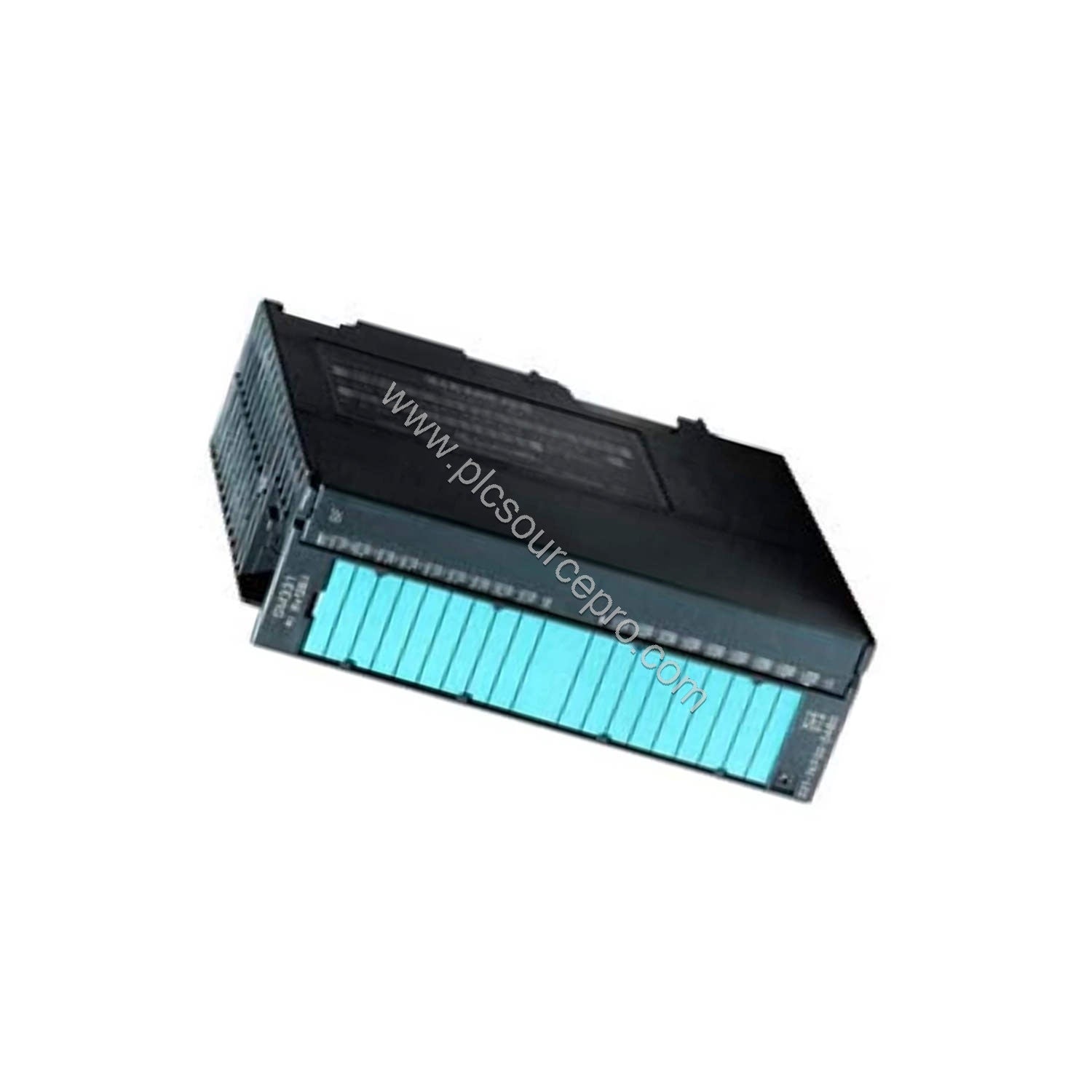

The Siemens 6ES7331-7KF02-0AB0 SM 331 analog input module is a versatile component for S7-300 systems. With 8 isolated analog inputs, it supports voltage, current, thermocouple, and resistance measurements. This module features a resolution of 9/12/14 bits and includes diagnostic and alarm functions. Designed for hot swapping with active backplane bus, it simplifies maintenance and upgrade tasks.
Technical Specifications
| Parameter |
Value |
| Supply voltage (rated) |
24 V DC |
| Input current from load voltage |
max. 30 mA |
| From backplane bus |
5 V DC, max. 50 mA |
| Power loss |
typ. 1 W |
| Number of analog inputs |
8 |
| Input resistance (voltage ranges) |
100 kΩ or 10 MΩ depending on range |
| Input resistance (current ranges) |
25 Ω |
| Permissible input voltage (destruction limit) |
20 V continuous; 75 V for 1 s |
| Permissible input current (destruction limit) |
max. 40 mA |
| Resolution with overrange |
max. 15 bit; unipolar 9/12/12/14 bit; bipolar 9+sign/12+sign/12+sign/14+sign |
| Integration time |
2.5/16.67/20/100 ms (parameterizable) |
| Basic conversion time |
3/17/22/102 ms |
| Interface |
1 x 20-pole front connector |
| Dimensions (W x H x D) |
40 x 125 x 117 mm |
| Weight |
approx. 250 g |
Industry Applications
The Siemens 6ES7331-7KF02-0AB0 is ideal for process control, manufacturing automation, and machine monitoring. Its ability to handle multiple input types—voltage, current, thermocouples, and resistance—makes it suitable for temperature monitoring, pressure sensing, and flow measurement. In upgrade scenarios, replacing older analog modules with this SM 331 enhances measurement accuracy and diagnostic capabilities, reducing downtime.
Installation & Setup Guidance
Mount the Siemens 6ES7331-7KF02-0AB0 on an S7-300 rail using the 20-pin front connector. Ensure the backplane bus is active for hot-swapping. For voltage measurement, respect the input resistance of 100 kΩ or 10 MΩ per range. For current inputs, use 2- or 4-wire transducers. Wire shielded cables to minimize noise; maximum cable length is 200 m (50 m for 80 mV and thermocouple ranges). Parameterize integration time and alarms via the configuration software.
Compatibility & Integration
This module integrates seamlessly with the Siemens S7-300 PLC family. It connects to the backplane bus and requires a 20-pin front connector. Compatible with TIA Portal and STEP 7 for configuration. The diagnostic alarm (parameterizable on channels 0 and 2) and limit value alarm enhance system monitoring. Use it with any S7-300 CPU that supports SM 331 modules.
Selection Guide & Purchasing Advice
When ordering the Siemens 6ES7331-7KF02-0AB0, verify compatibility with your existing S7-300 rack and CPU. Ensure the 20-pin front connector is included or purchased separately. For volume purchases or urgent replacements, contact PLC Source PRO—your trusted supplier for Siemens automation spares. Visit ubest101.myshopify.com for additional product information and bulk pricing.
