Product Introduction

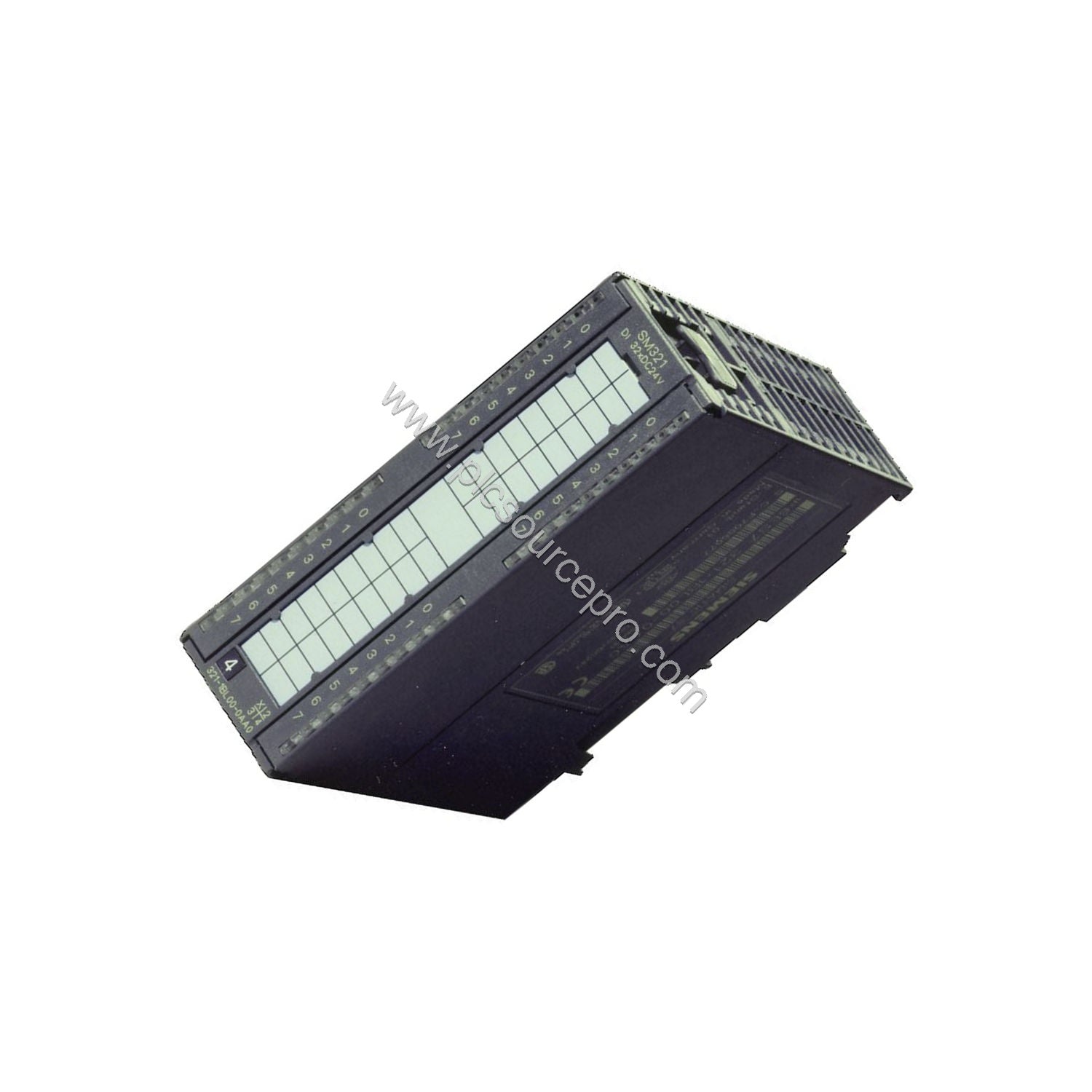

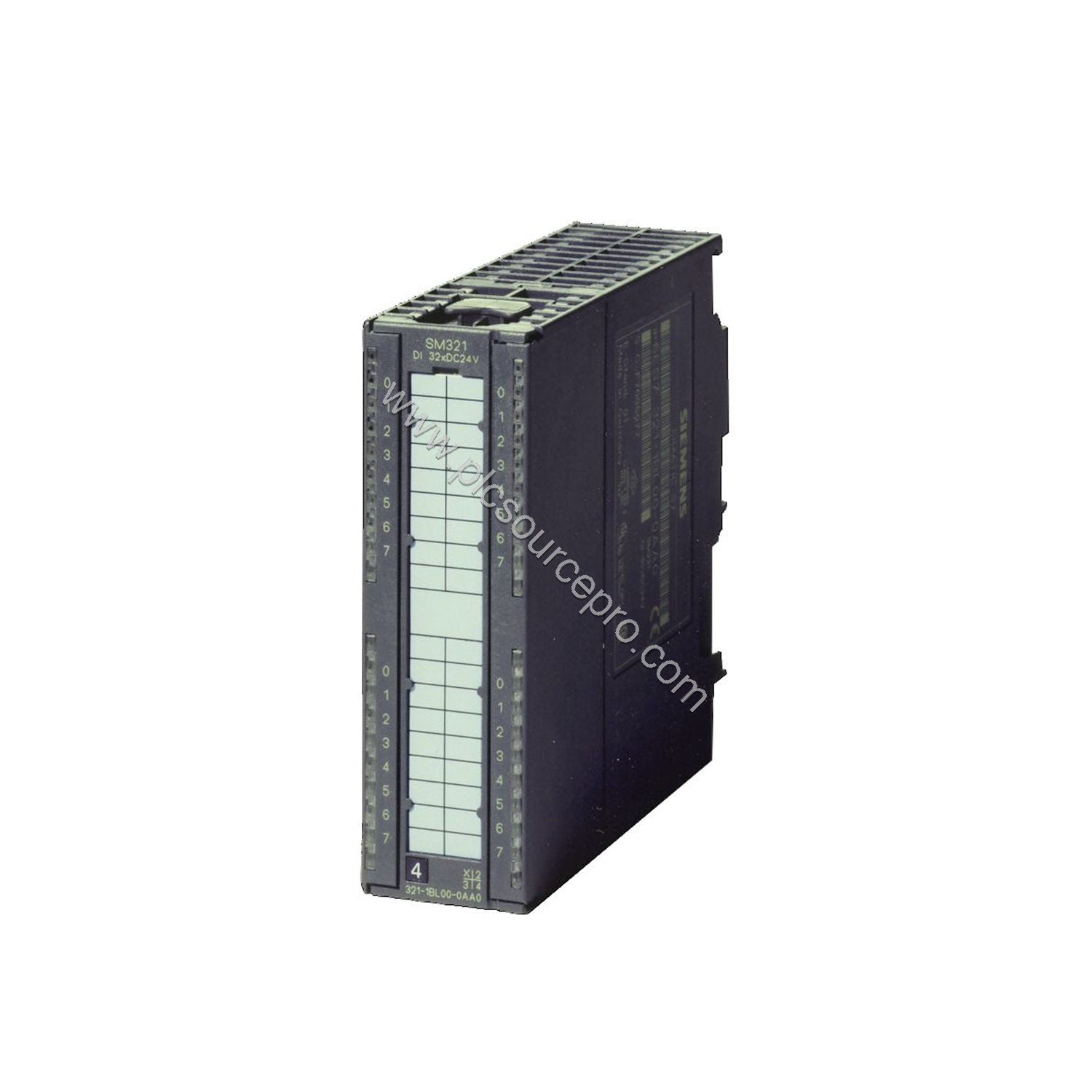

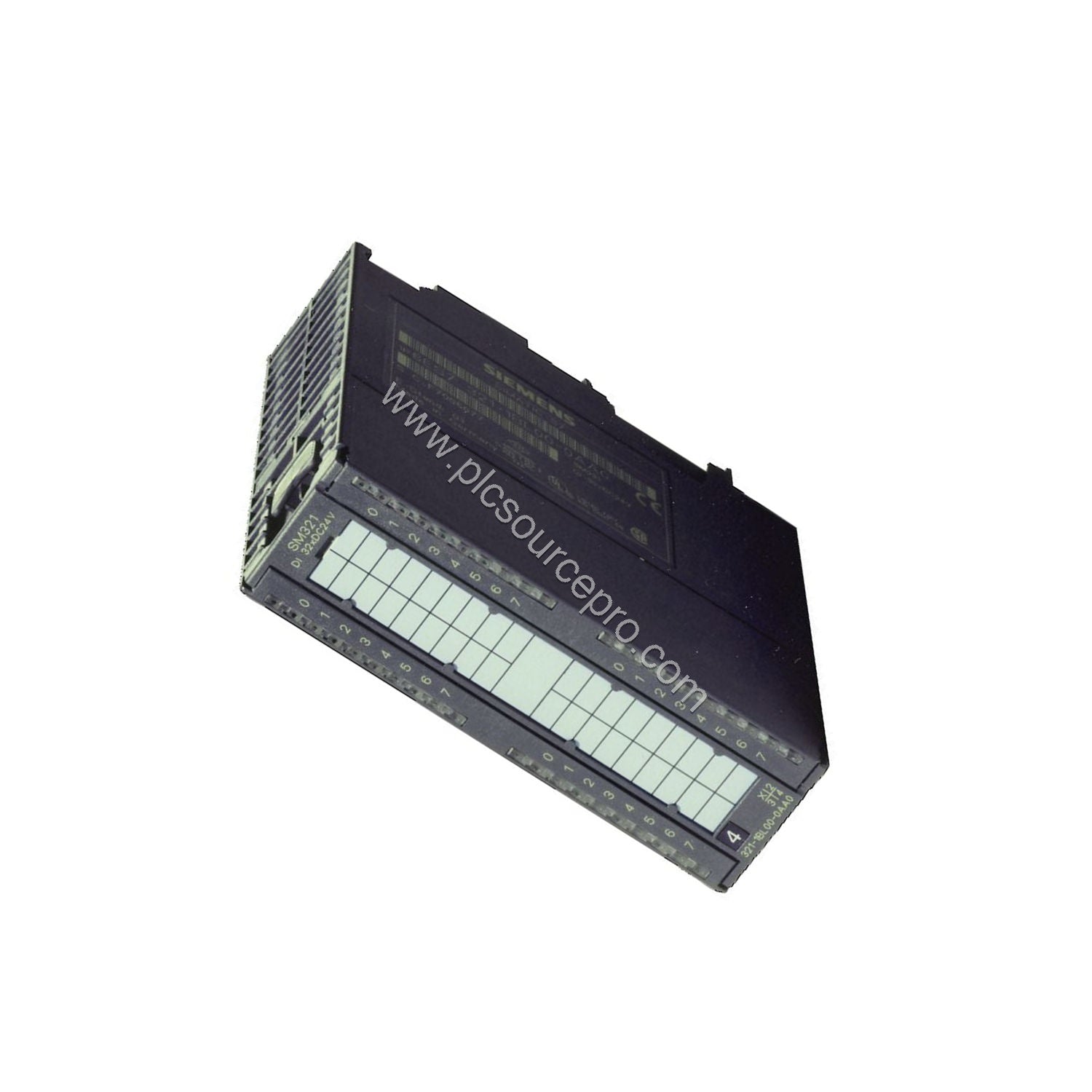

The Siemens 6ES7321-7BH01-0AB0 belongs to the SIMATIC S7-300 family and serves as a high-performance digital input module. Designed for industrial automation, it provides 16 isolated digital inputs, accepts 24 V DC supply voltage, and supports process interrupt and diagnostic functions. With its robust design and parameterizable diagnostics, the 6ES7321-7BH01-0AB0 is suitable for isochronous mode applications where precise timing is essential. This module excels in harsh environments, offering reverse polarity protection and a wide operating voltage range from 20.4 V DC to 28.8 V DC.
Technical Specifications Breakdown
The 6ES7321-7BH01-0AB0 delivers reliable performance with the following key parameters derived from its datasheet:
-
Supply Voltage: Rated 24 V DC (permissible range 20.4 V to 28.8 V DC) with reverse polarity protection.
-
Input Current: 90 mA max from load voltage L+ (no load), 130 mA max from backplane bus 5 V DC.
-
Encoder Supply: Two outputs with electronic short-circuit protection; rated 120 mA (0 mA to 150 mA range).
-
Power Loss: Typically 4 W.
-
Digital Inputs: 16 inputs conforming to IEC 61131 type 2; 24 V DC rating; signal '0' at -30 to +5 V, signal '1' at 13 to 30 V; typical input delay parameterizable from 0.1 ms to 20 ms.
-
Diagnostics: Diagnostic alarm and hardware interrupt parameterizable; wire-break detection activated below 1 mA; diagnostic information readable.
-
Isolation: 500 V DC tested between channels and backplane bus via optocoupler.
-
Dimensions: Width 40 mm, height 125 mm, depth 120 mm; weight approx. 200 g.
Industry Applications
The 6ES7321-7BH01-0AB0 is widely used in manufacturing lines, process control systems, and material handling where reliable digital input reading is critical. Its diagnostics and wire-break detection help reduce downtime by quickly identifying sensor faults. In isochronous mode applications such as synchronized motion control, the module ensures precise data capture. A typical scenario involves connecting up to 16 limit switches or proximity sensors with cable runs up to 1000 m shielded or 600 m unshielded.
Installation & Setup Guidance
Mount the 6ES7321-7BH01-0AB0 on a standard S7-300 rail. Use a 20-pin front connector (required, not included) for wiring. Ensure load voltage L+ is within 20.4–28.8 V DC. For wire-break monitoring, connect sensors with appropriate pull-up resistors (10–18 kΩ). Parameterize input delays and diagnostics via the S7-300 programming software. The module supports simultaneous operation of all 16 inputs up to 60°C horizontally or 40°C vertically.
Maintenance & Reliability
Routine inspection of the 6ES7321-7BH01-0AB0 should focus on connector seating and LED indicators. The green SF LED signals group error; status LEDs for each input help identify faulty channels. Clean the module with dry compressed air to prevent dust buildup. Given its low power loss (4 W) and electronic short-circuit protection, the module offers long service life in moderate environments.
Troubleshooting & Common Issues
Common issues with the 6ES7321-7BH01-0AB0 include false readings from loose wiring or incorrect sensor types. If a wire-break alarm triggers, check the sensor connection and resistance (should be >10 kΩ). For diagnostic alarms, parameterize the module correctly via the engineering tool. The module's built-in diagnostic alarm and hardware interrupt features allow fast identification of input faults, minimizing system downtime.
Selection Guide & Purchasing Advice
When selecting the 6ES7321-7BH01-0AB0, verify compatibility with your S7-300 CPU and power supply. Ensure you have the required 20-pin front connector. For additional support, purchasing from PLC Source PRO (available at ubest101.myshopify.com) guarantees genuine parts and reliable service.
