Product Introduction

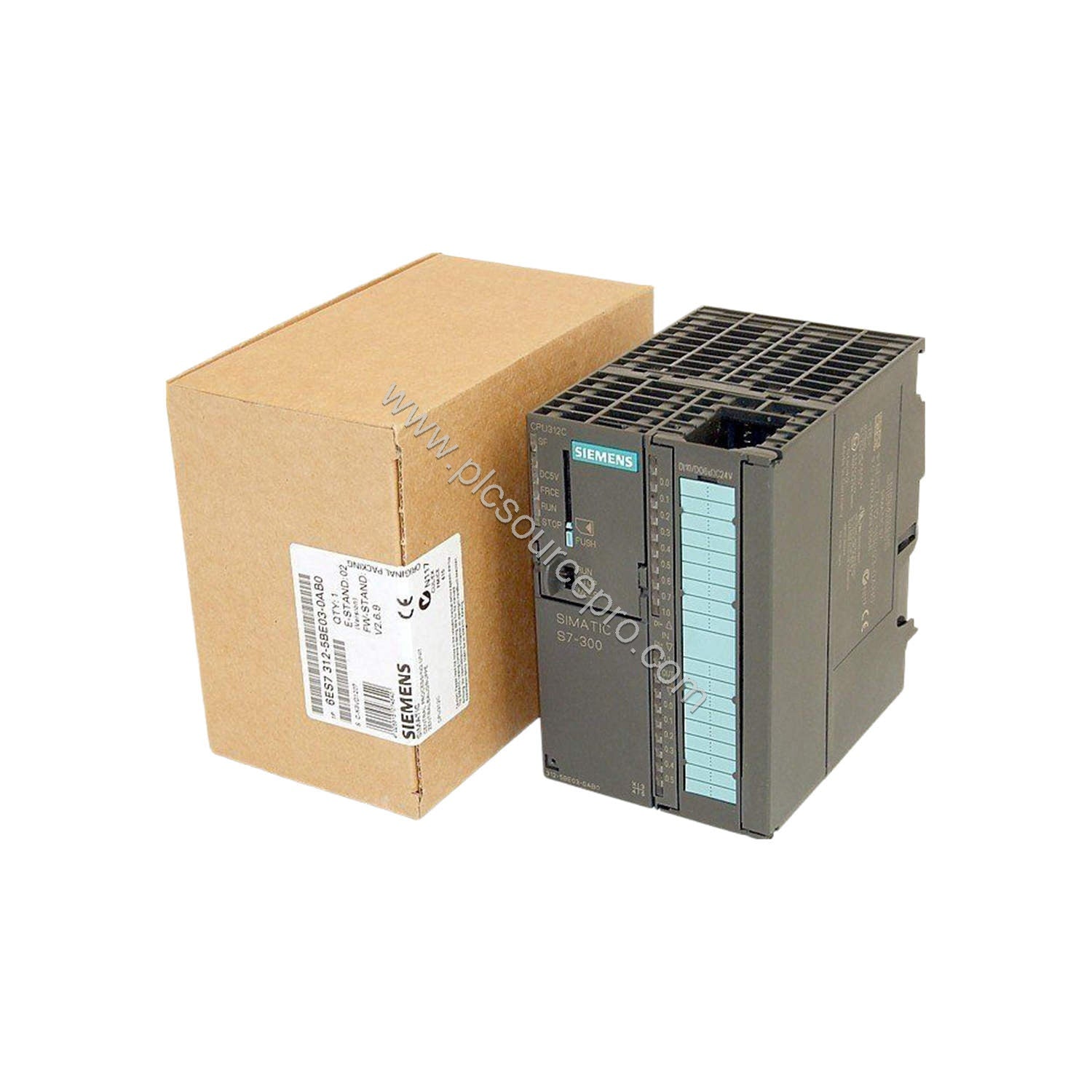

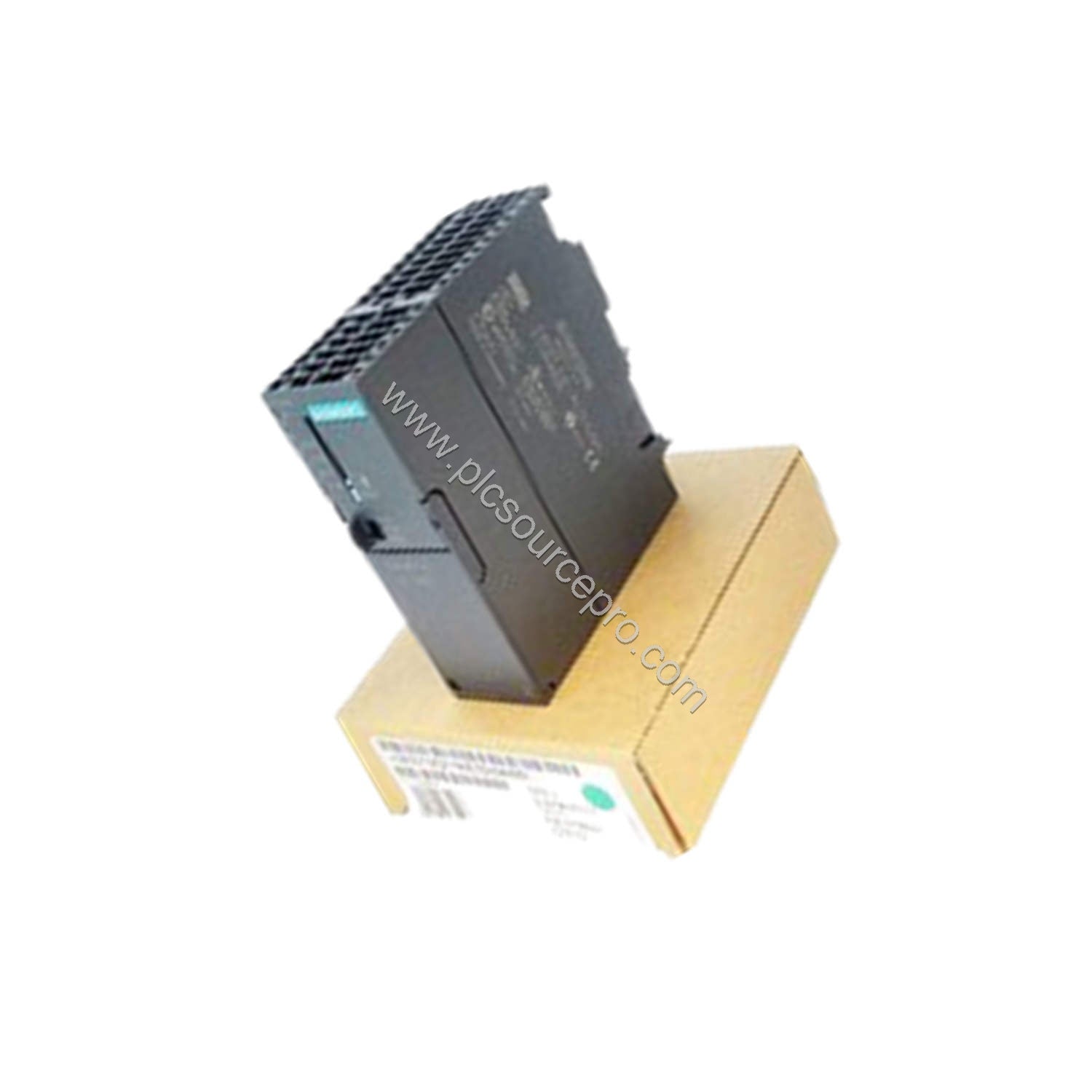

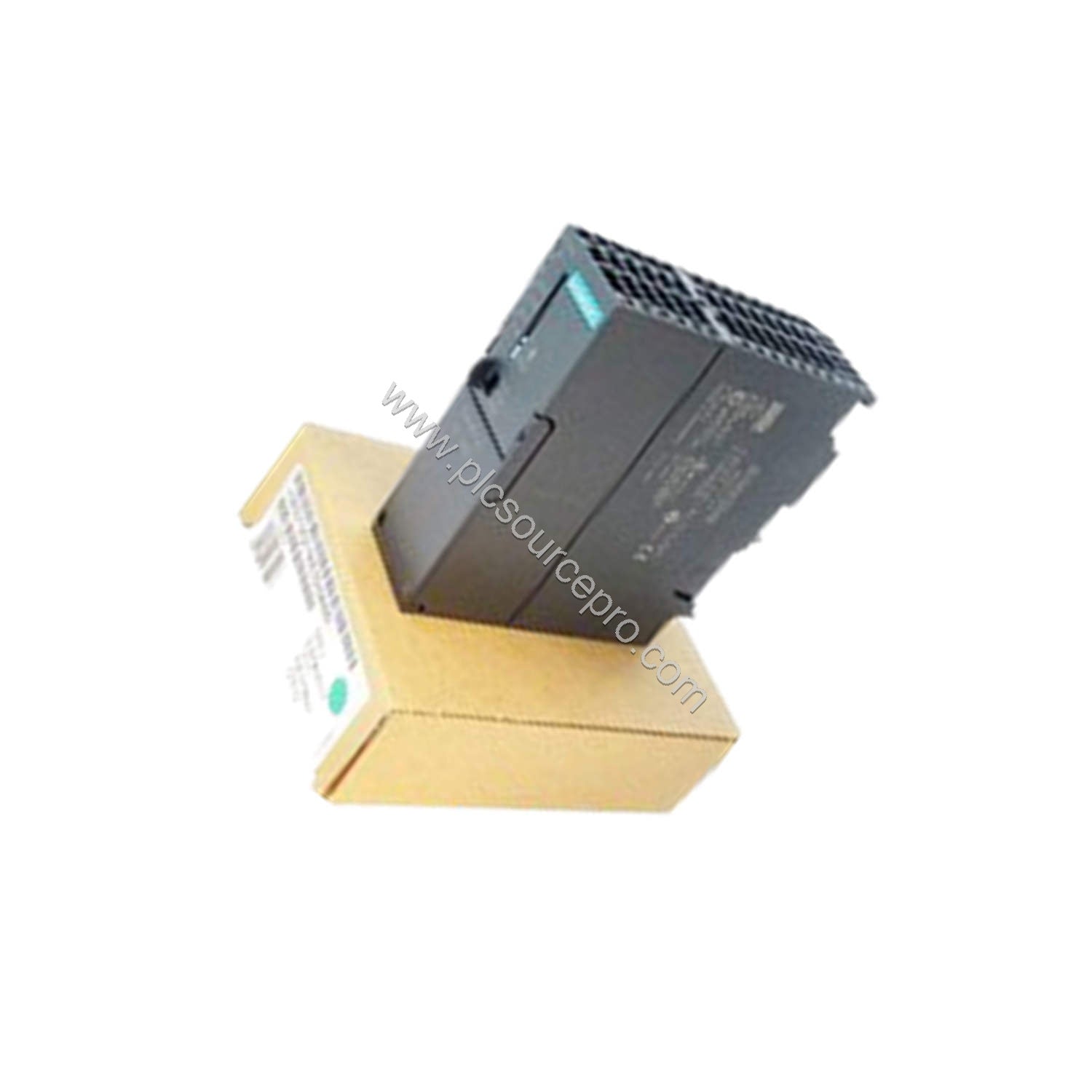

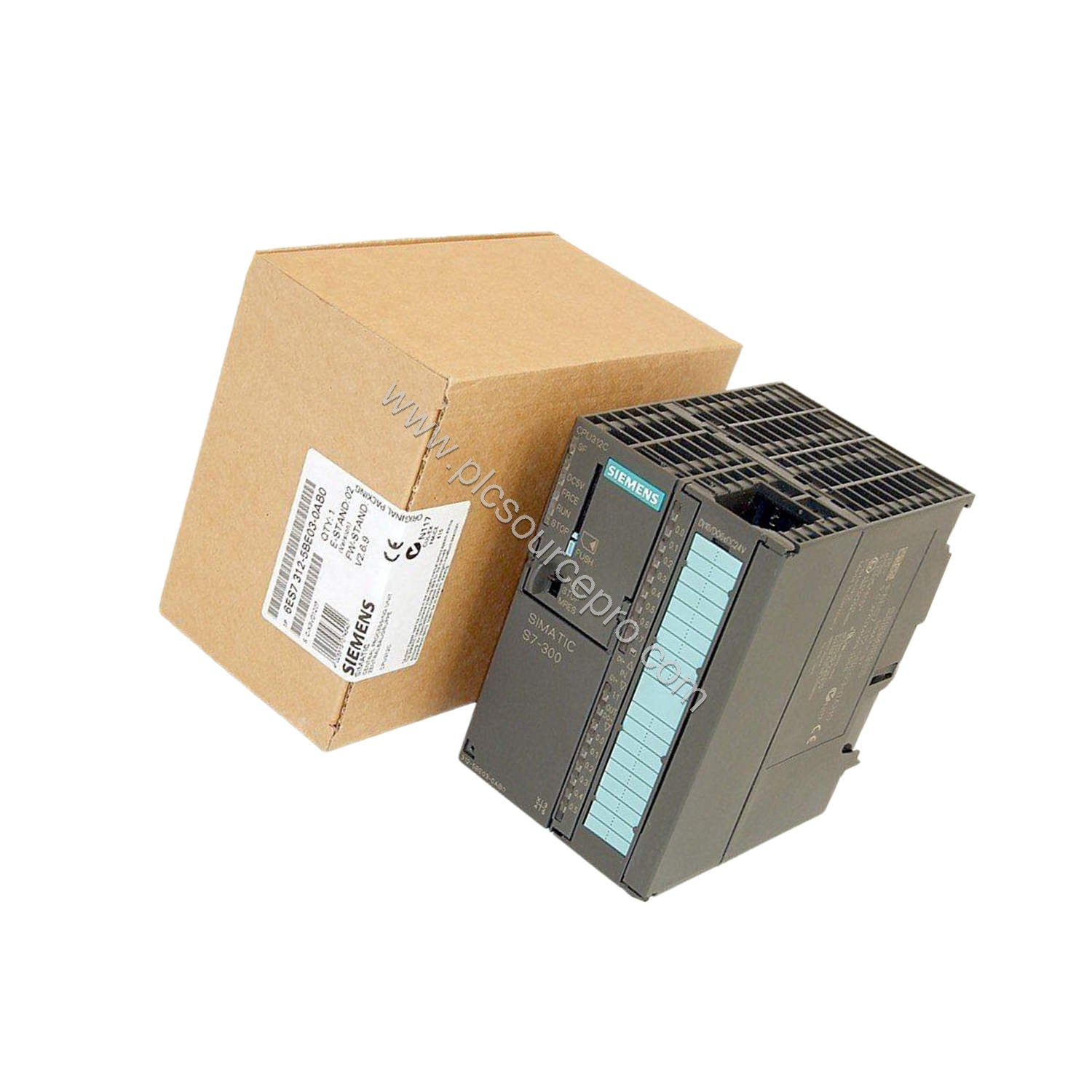

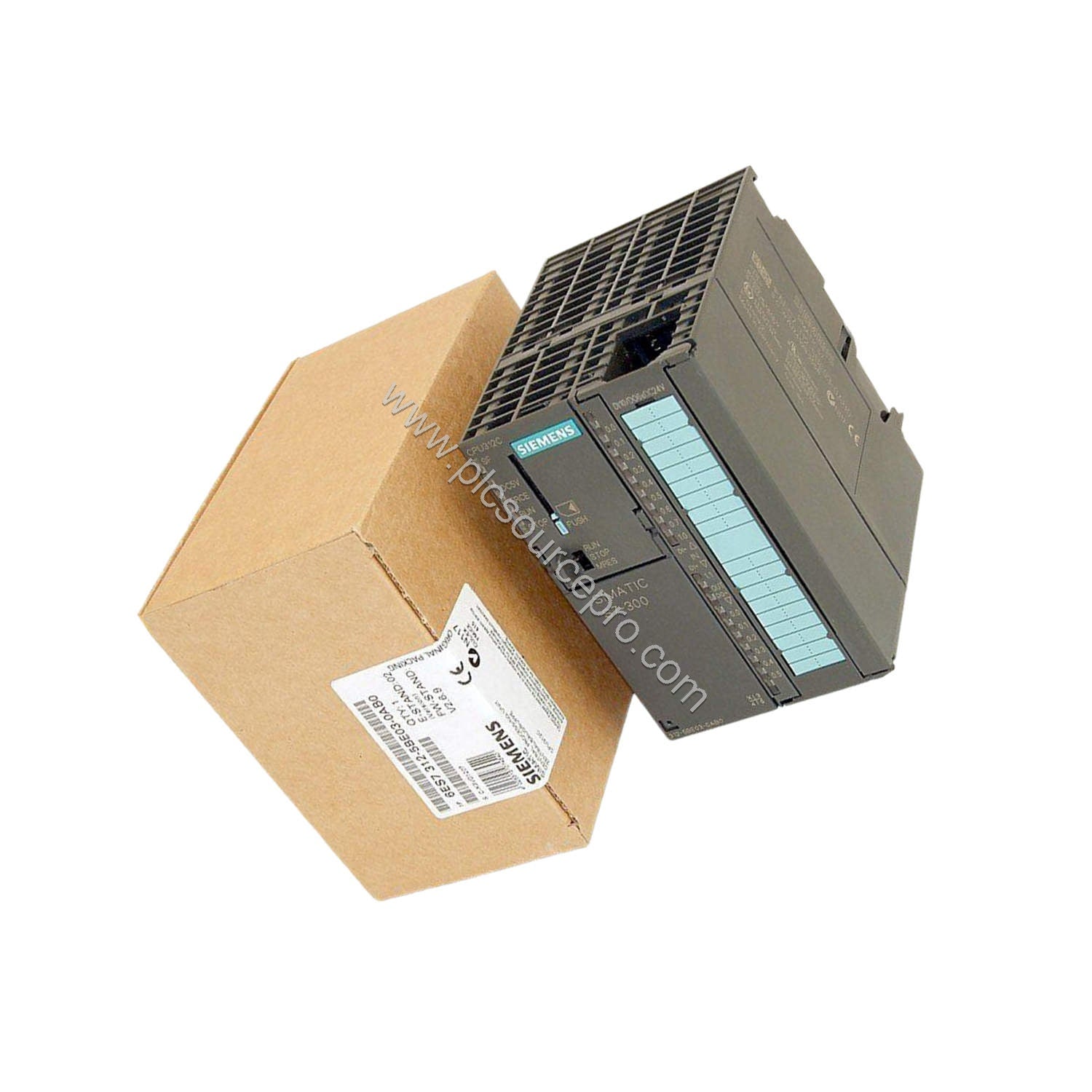

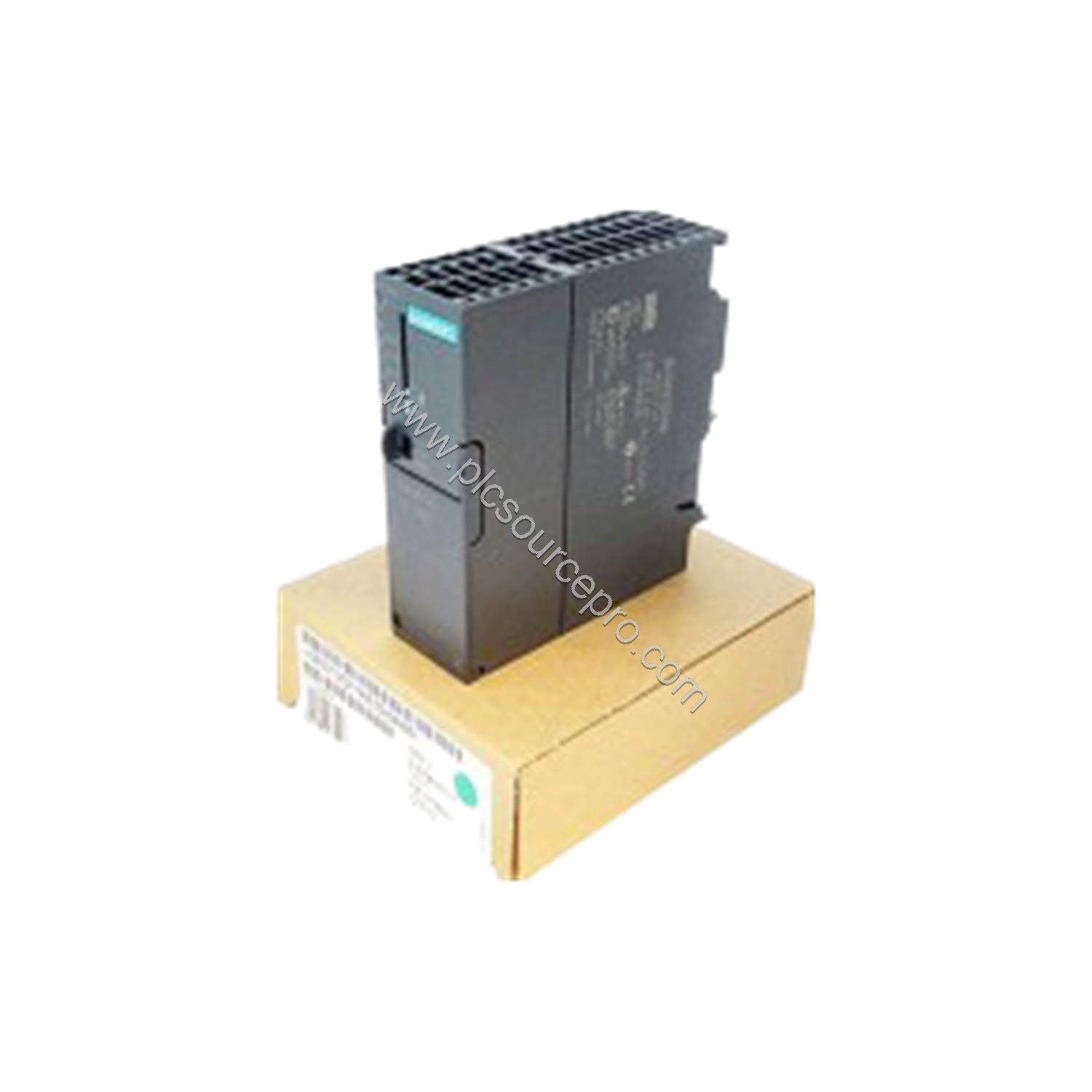

When your SIMATIC S7-300 system requires a robust central processing unit, the Siemens 6ES7312-1AE13-0AB0 CPU 312 offers a dependable solution. This spare part module is designed for demanding industrial environments and provides stable performance with its hardware functional status 01 and firmware version V2.6. It integrates seamlessly with the S7-300 family, ensuring minimal downtime during replacement or upgrade.
Technical Specifications
| Parameter |
Value |
| Hardware Functional Status |
01 |
| Firmware Version |
V2.6 |
| Programming Package |
STEP 7 V5.2 + SP1 or higher with HW update |
| Rated Supply Voltage (DC) |
24 V |
| Typical Power Loss |
2.5 W |
| Dimensions (L x W x H) |
13 cm x 4 cm x 12.5 cm |
| Weight |
0.27 kg |
Industry Applications
The Siemens 6ES7312-1AE13-0AB0 CPU 312 is commonly deployed in manufacturing automation, process control, and machine building. As a replacement part, it allows users to upgrade older CPU 312 units to firmware V2.6, improving system reliability and compatibility with modern STEP 7 environments. Typical applications include conveyor control, packaging systems, and simple motion control tasks.
Installation & Setup
Mount the Siemens 6ES7312-1AE13-0AB0 on a standard DIN rail within an S7-300 rack. Connect a 24 V DC power supply to the designated terminals. Ensure proper grounding to avoid electrical noise. Use STEP 7 V5.2 + SP1 or higher with the latest hardware update to configure the module. Always power down the system before installation.
Compatibility & Integration
This Siemens 6ES7312-1AE13-0AB0 CPU 312 is fully compatible with the SIMATIC S7-300 system architecture. It works with digital and analog I/O modules, communication processors, and other S7-300 components. The module requires the STEP 7 programming environment for configuration and is designed for use in standard S7-300 racks.
Selection Guide & Purchasing Advice
Before purchasing the Siemens 6ES7312-1AE13-0AB0, verify that your existing STEP 7 version is V5.2 SP1 or higher with the required HW update. Check your current CPU 312 hardware status; this module is a direct replacement for previous versions. For reliable supply and expert support, order from PLC Source PRO (ubest101.myshopify.com) – your trusted industrial automation parts provider.
