Product Introduction

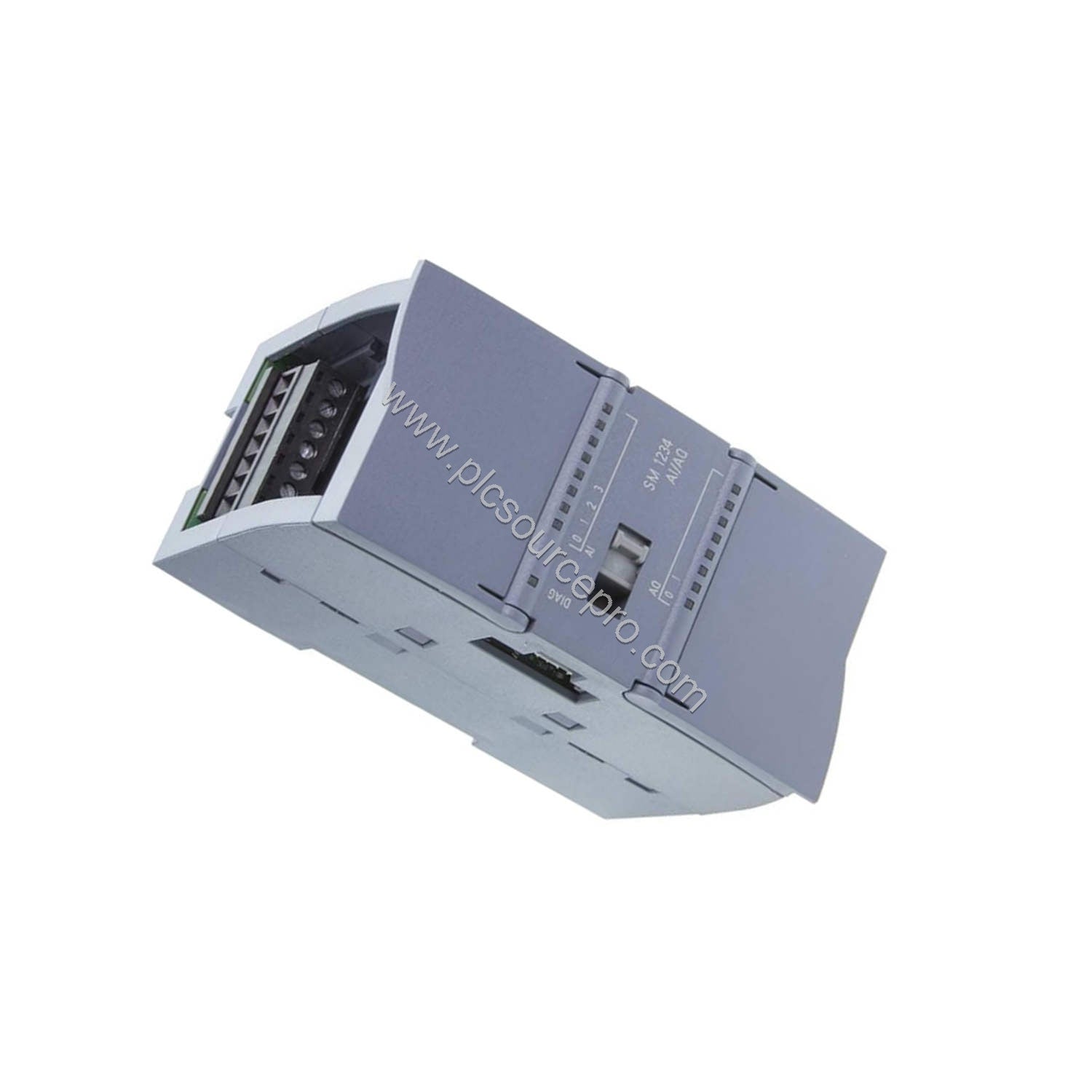

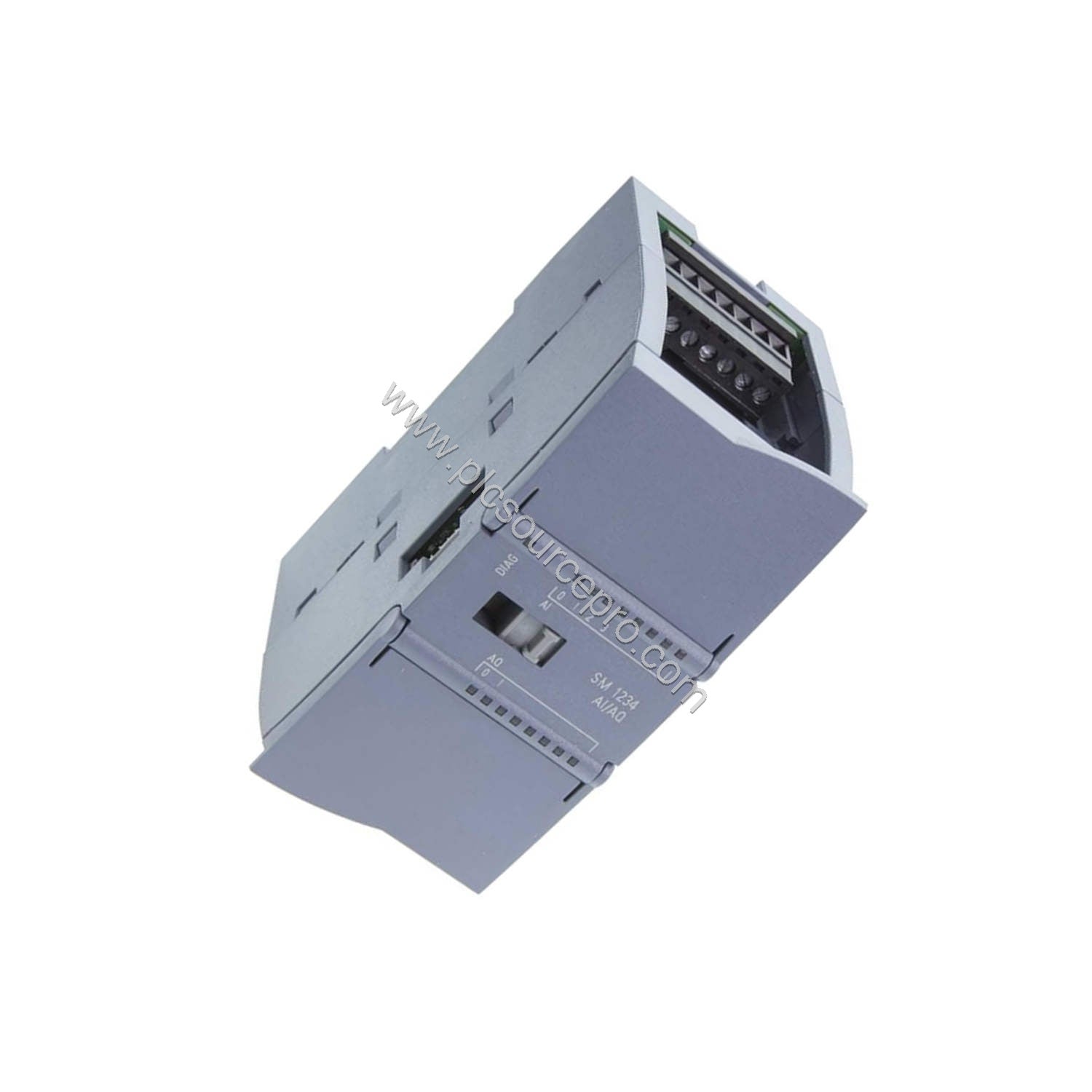

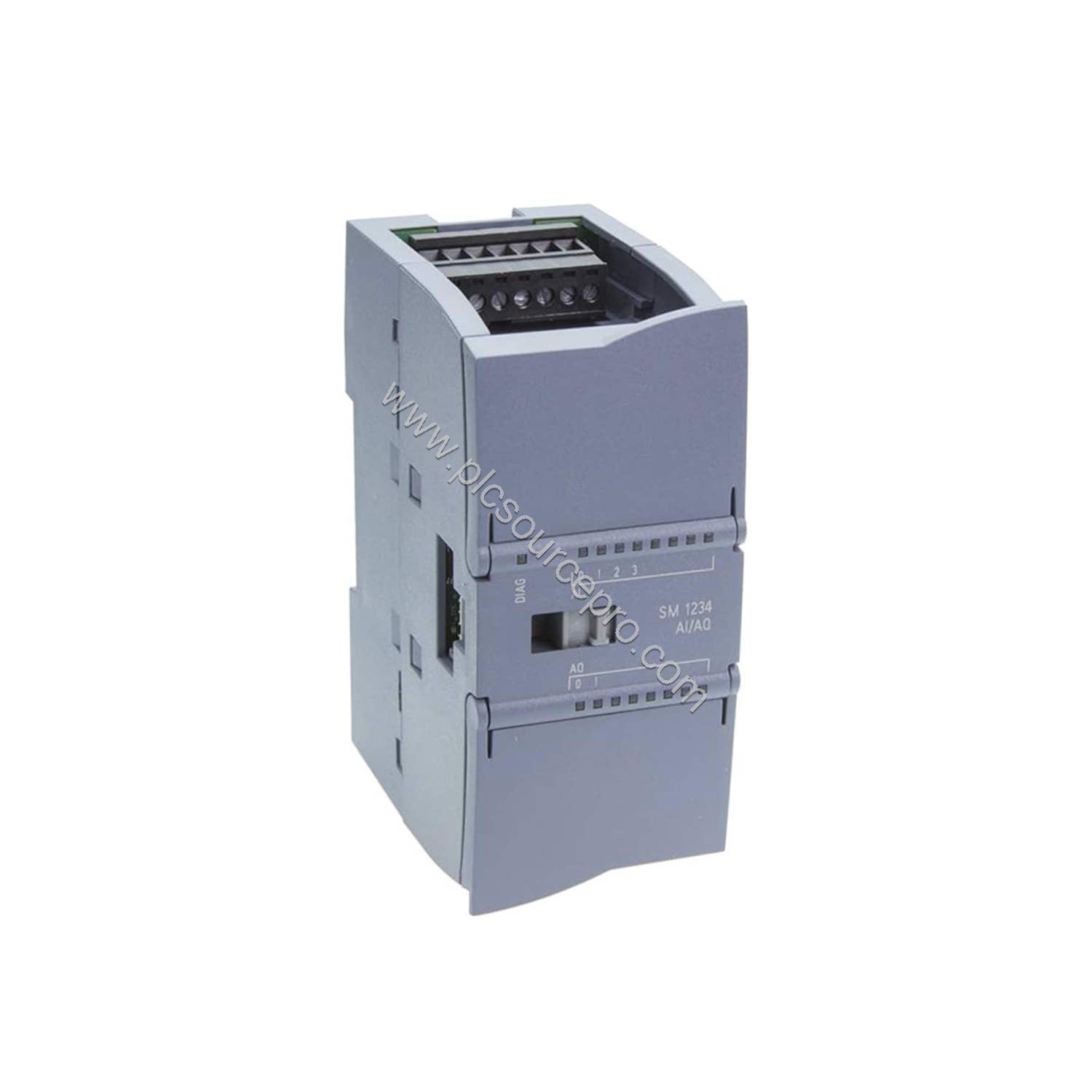

When analog signal integrity and rapid diagnostics are critical, the Siemens 6ES7234-4HE32-0XB0 provides a robust solution. This SIMATIC S7-1200 analog I/O module, designated SM 1234, combines 4 analog inputs and 2 analog outputs in a compact package. It supports voltage (±10V, ±5V, ±2.5V) and current (0-20mA, 4-20mA) signals with resolutions up to 14 bits for voltage and 13 bits for current. Designed for demanding industrial environments, the Siemens 6ES7234-4HE32-0XB0 includes comprehensive diagnostics and alarm functions to minimize downtime.
Technical Specifications Breakdown
The Siemens 6ES7234-4HE32-0XB0 delivers precise analog measurement and control. Below are key specifications from the product database:
| Parameter |
Value |
| Supply voltage (DC) |
24 V |
| Current consumption (typical) |
60 mA at 24 V DC, 80 mA from 5 V backplane bus |
| Power loss (typical) |
2 W |
| Analog inputs |
4 differential (current or voltage) |
| Input voltage ranges |
±10V, ±5V, ±2.5V |
| Input current ranges |
0-20 mA, 4-20 mA |
| Analog outputs |
2 (voltage or current) |
| Output voltage range |
-10 V to +10 V |
| Output current ranges |
0-20 mA, 4-20 mA |
| Resolution |
Voltage: 14 bits; Current: 13 bits |
| Cycle time (all channels) |
Max. 625 µs |
| Diagnostics |
Supply voltage monitoring, wire-break, short-circuit |
| IP degree of protection |
IP20 |
| Dimensions (WxHxD) |
45 x 100 x 75 mm |
| Weight |
Approx. 220 g |
These specifications ensure reliable operation across a wide temperature range (-20°C to 60°C horizontal, -20°C to 50°C vertical) and with ambient humidity up to 95%.
Real-World Applications
The Siemens 6ES7234-4HE32-0XB0 excels in process control and machine automation. In a packaging line, it monitors temperature and pressure signals while simultaneously controlling analog actuators. With its high accuracy (basic error limit ±0.1% for voltage inputs) and fast cycle time, it maintains tight process tolerances. The built-in diagnostics, such as wire-break detection, alert operators to signal faults before they cause production stops — a key benefit for reducing unplanned downtime.
Another typical use is in HVAC systems, where the module measures airflow and damper positions and outputs control signals to actuators. The Siemens 6ES7234-4HE32-0XB0 handles mixed signal types, simplifying wiring and reducing cabinet space.
Troubleshooting & Common Issues
The diagnostics of the Siemens 6ES7234-4HE32-0XB0 help identify common problems quickly. The module monitors supply voltage and signals wire-break or short-circuit conditions via diagnostic alarm and status LEDs. If an input reads incorrectly, check the wiring and verify the input range configuration. For output issues, ensure the load impedance meets requirements: minimum 1000 Ω for voltage outputs, maximum 600 Ω for current outputs. If resolution seems low, confirm that the signal range matches the configured channel (e.g., ±10V for 14-bit resolution). This proactive approach minimizes troubleshooting time on your production floor.
Selection Guide & Purchasing Advice
Before ordering the Siemens 6ES7234-4HE32-0XB0, verify compatibility with your S7-1200 CPU and that your application requires analog I/O. The module requires a front connector (sold separately). For long cable runs, use shielded twisted-pair cables up to 100 meters. When sourcing from a reliable supplier, PLC Source PRO offers genuine Siemens modules with competitive pricing. For bulk or custom inquiries, contact ubest101 directly. Ensure your system power supply can handle the module's consumption: 60 mA at 24V DC plus 80 mA from the backplane bus.
