Product Introduction

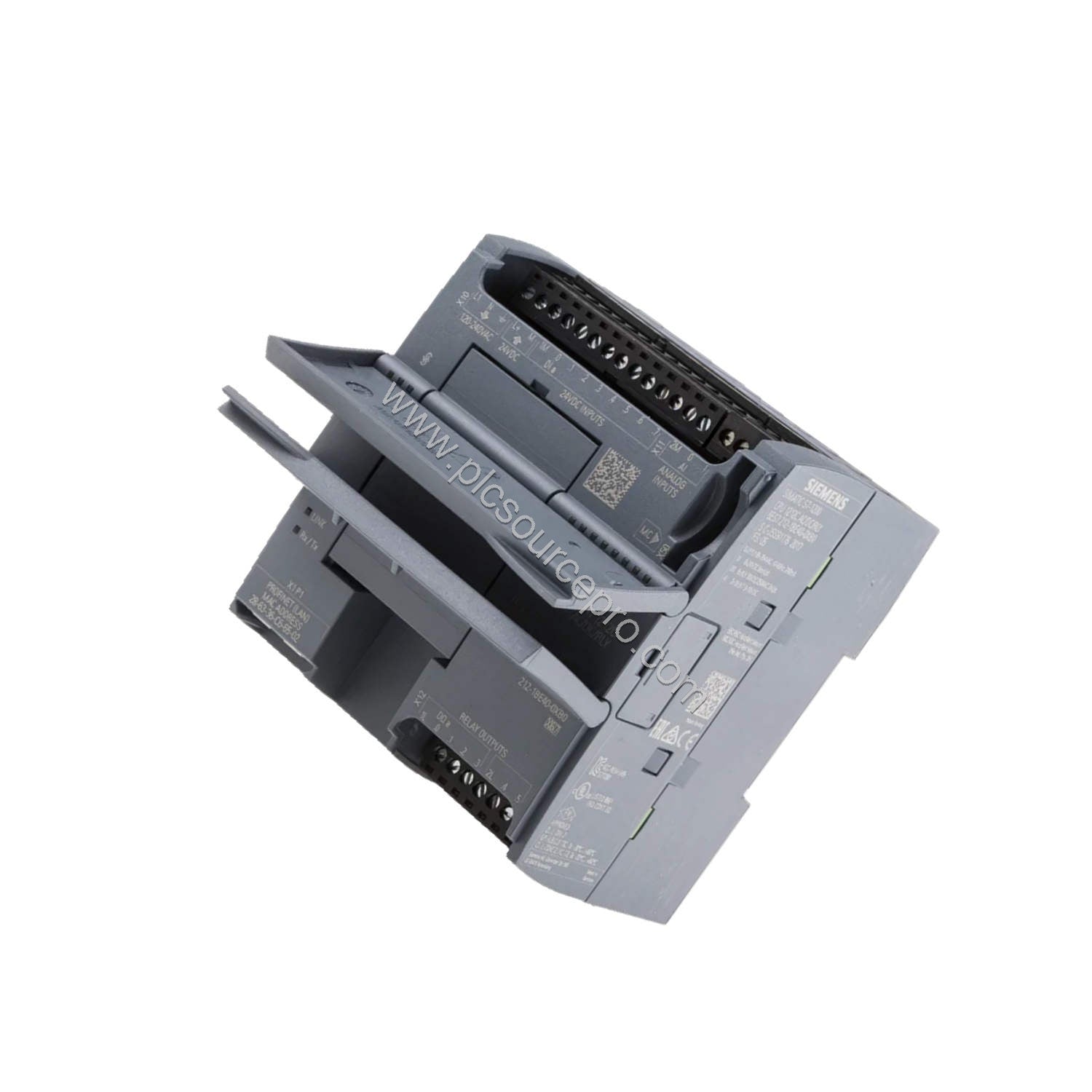

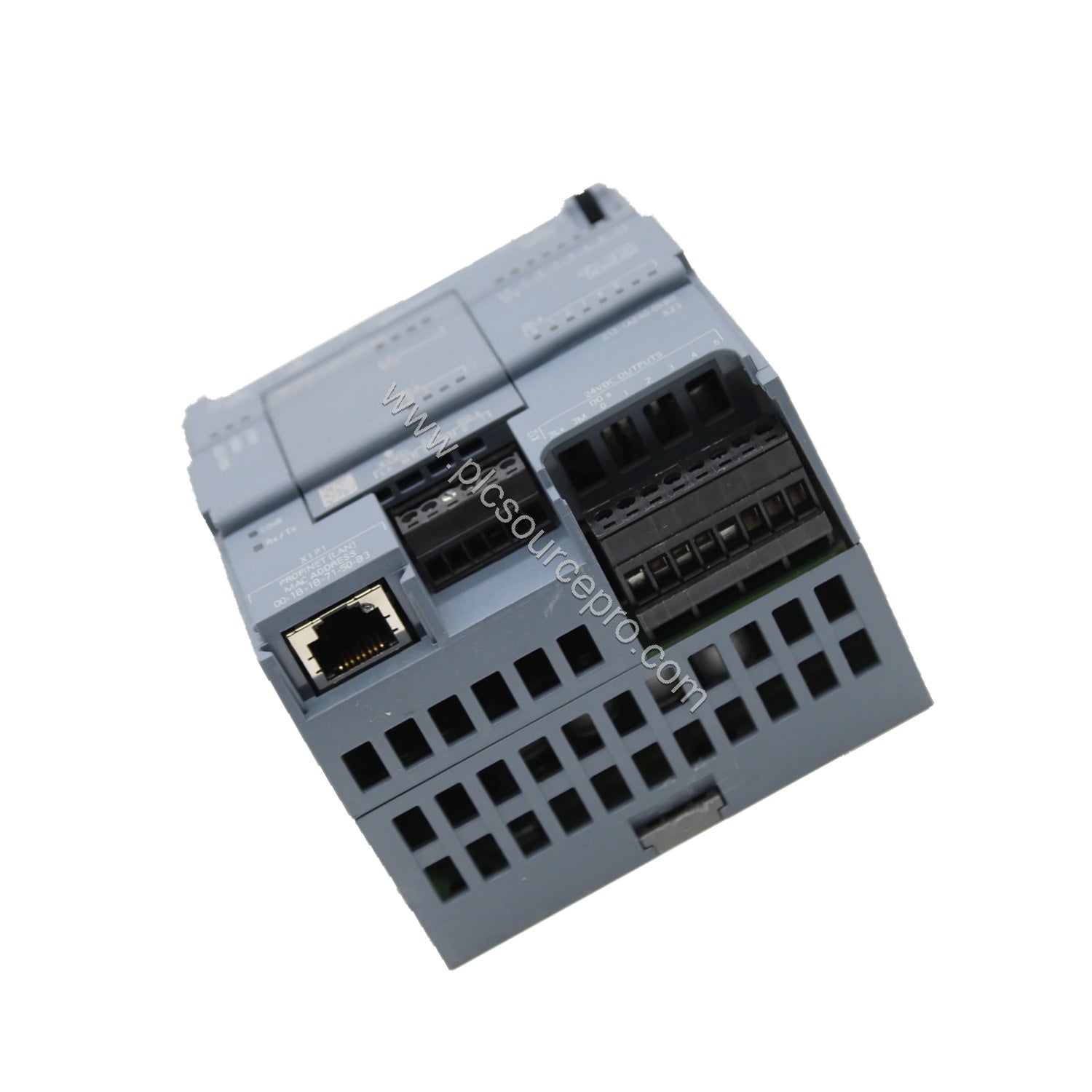

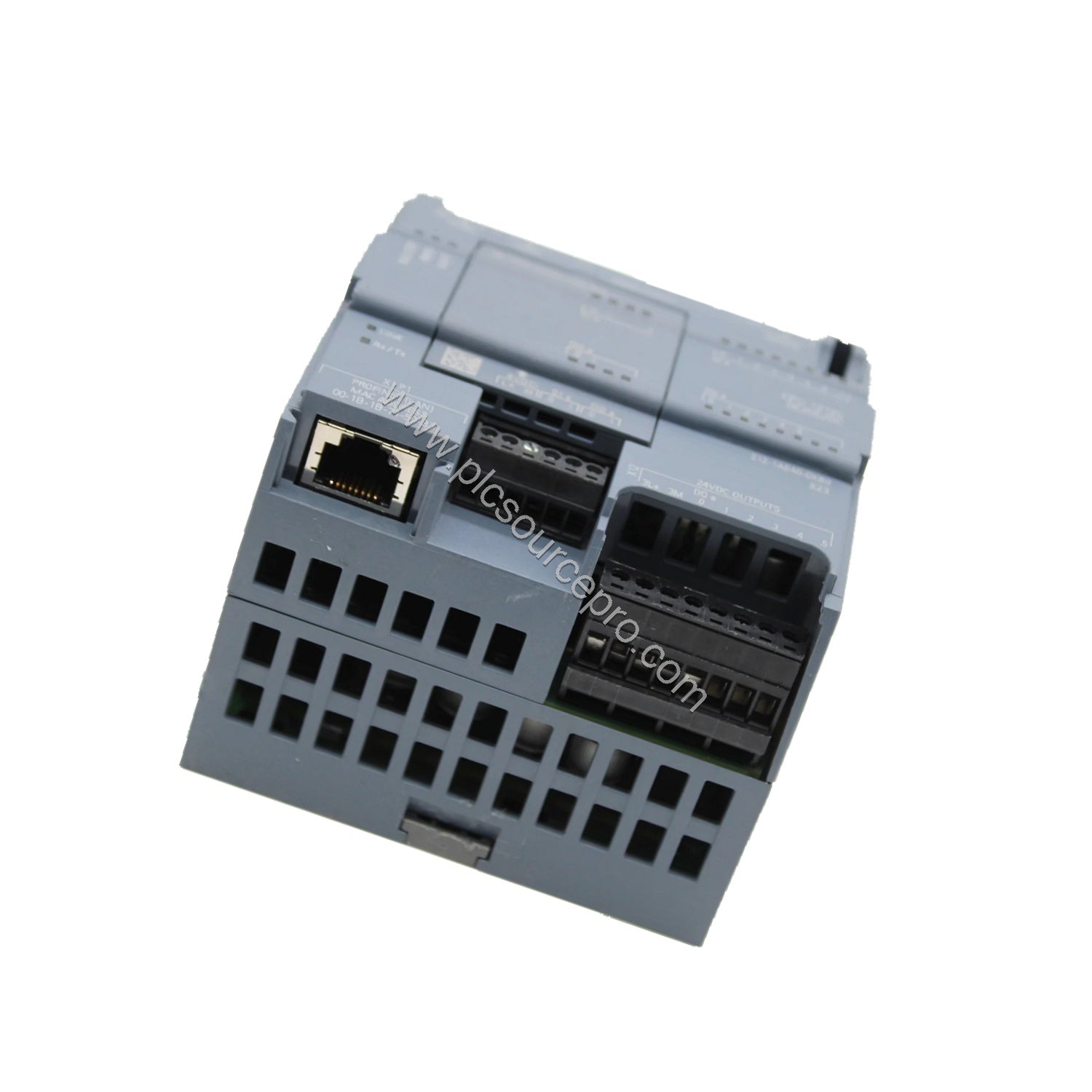

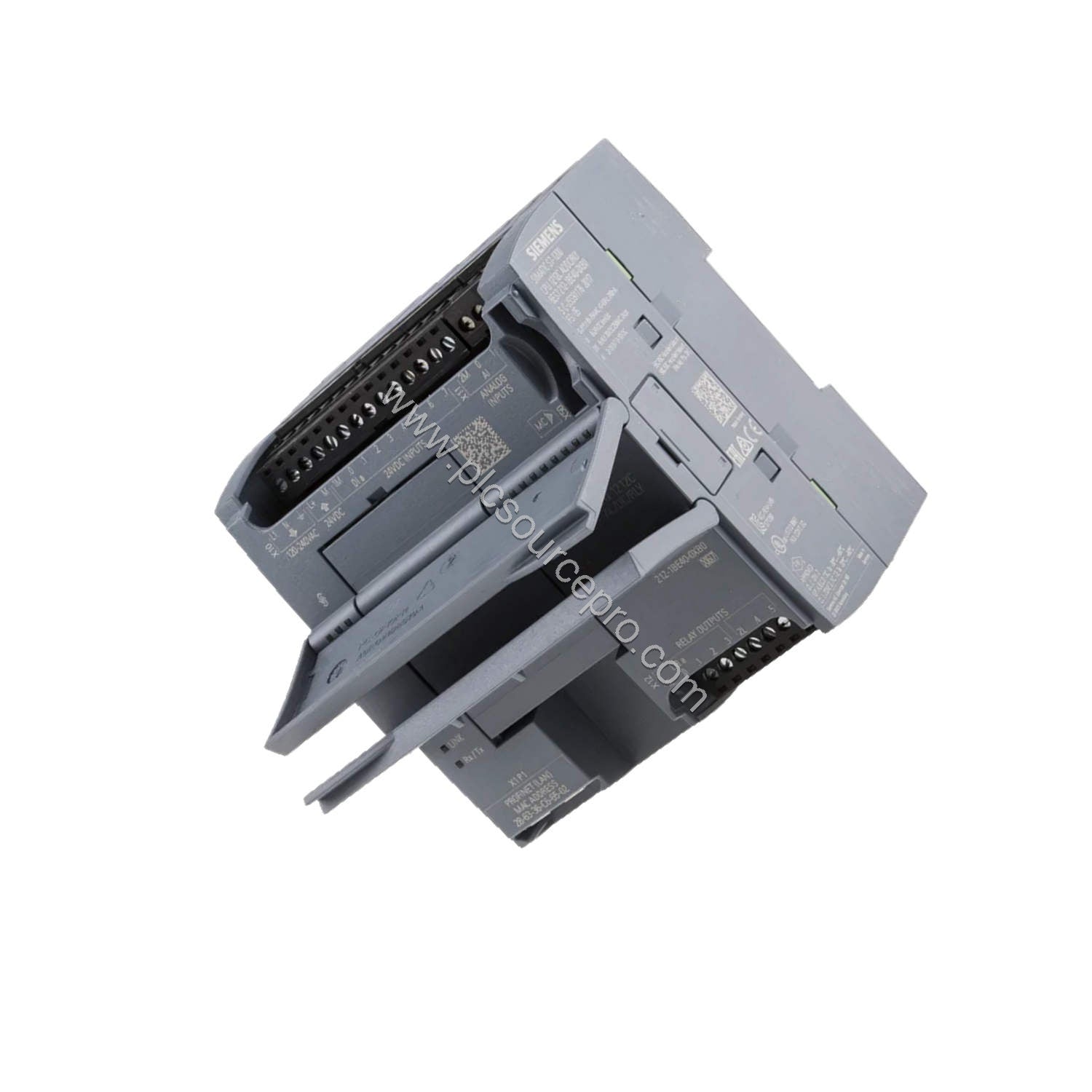

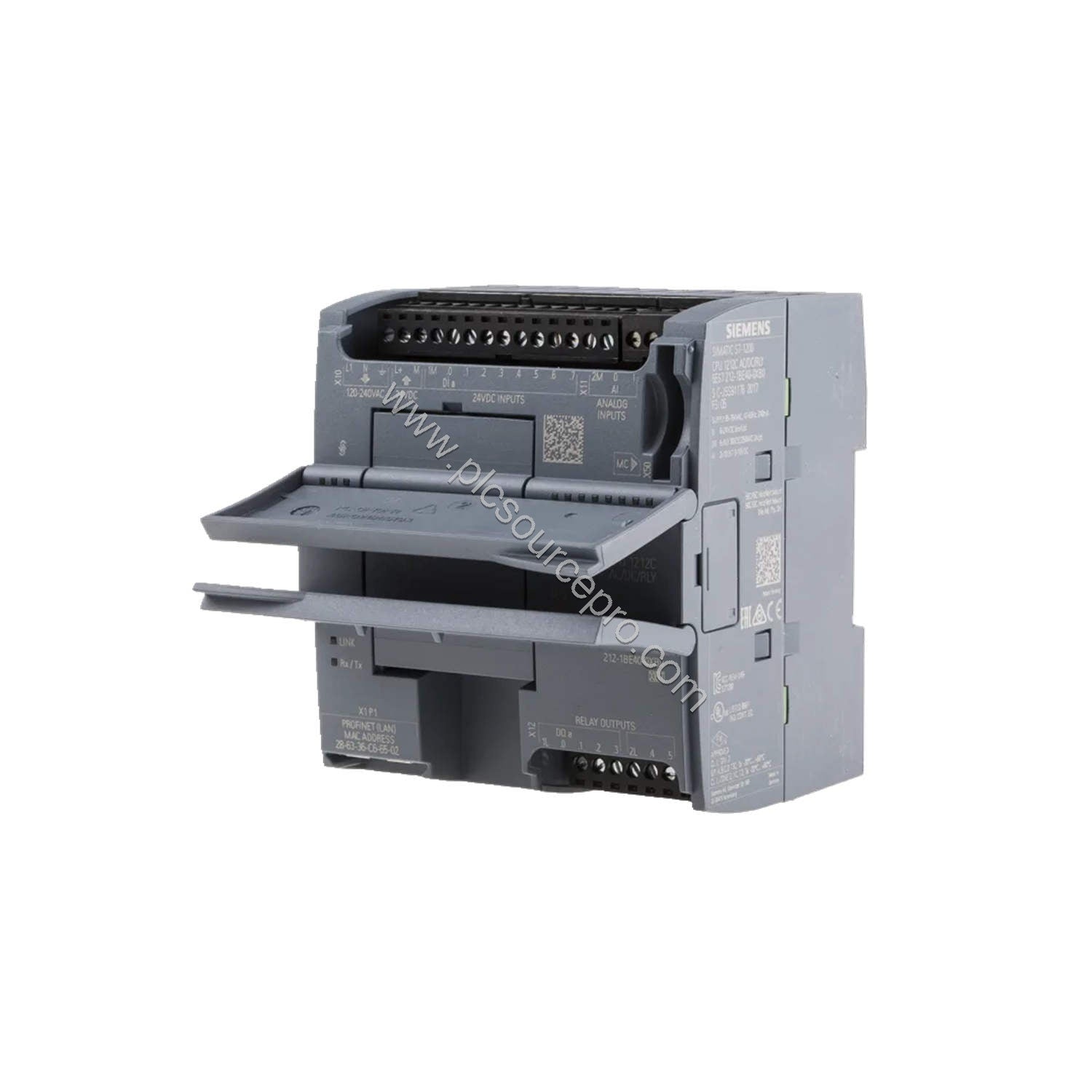

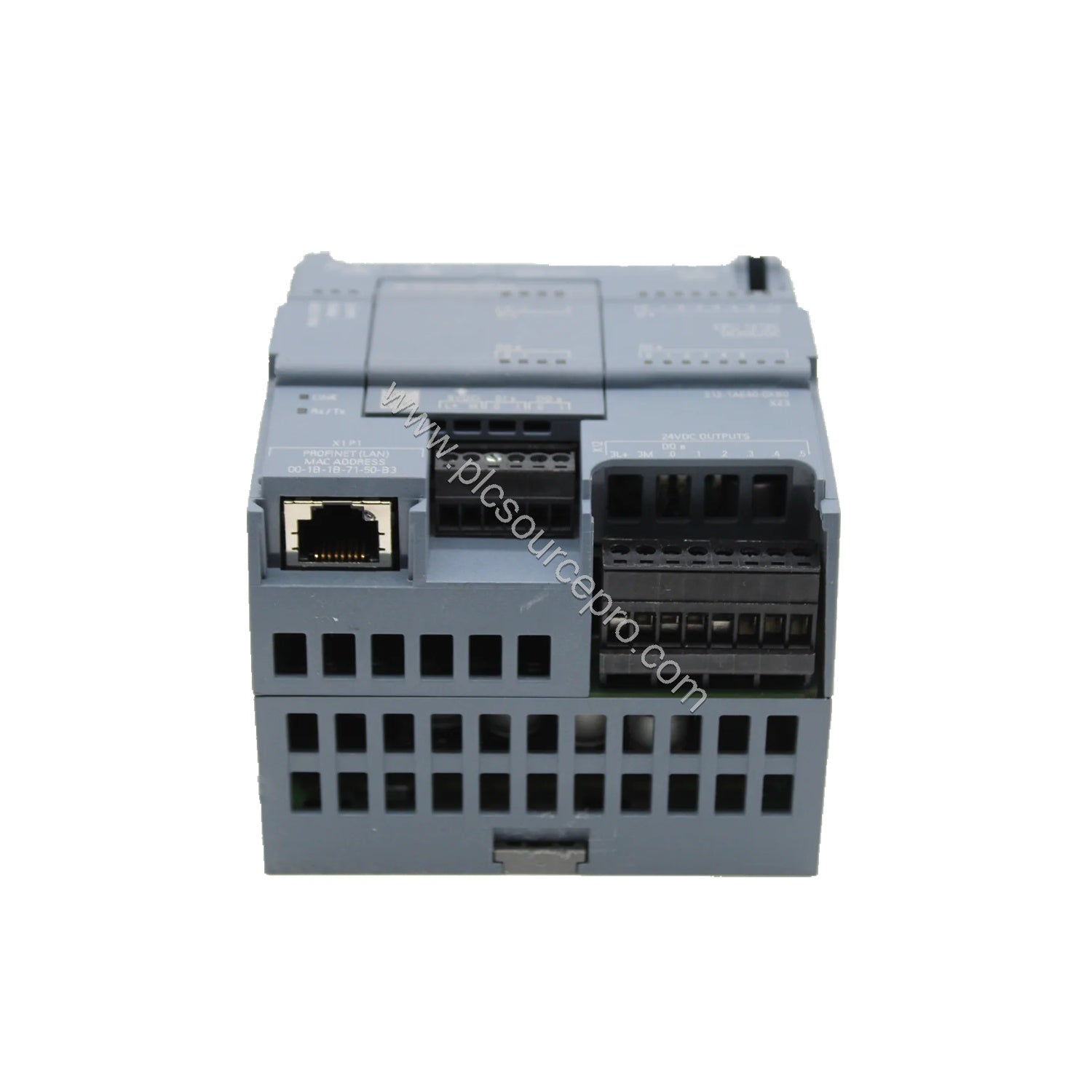

The Siemens 6ES7212-1HD30-0XB0 is a compact CPU module from the SIMATIC S7-1200 series, specifically the CPU 1212C DC/DC/Relay variant. This industrial automation module replaces older 1200-series CPUs or upgrades systems needing reliable control in a small footprint. It integrates 8 digital inputs (24 V DC), 6 relay outputs (2 A each), and 2 analog inputs (0–10 V DC), powered by a supply voltage range of 20.4–28.8 V DC. With 25 KB of work memory and a PROFINET interface, it is ideal for distributed automation tasks. At PLC Source PRO, we ensure this genuine Siemens part is available for your next retrofit or new project.
Technical Specifications Breakdown
The Siemens 6ES7212-1HD30-0XB0 delivers robust performance with key specifications derived from its datasheet:
-
Work Memory: 25 kbyte integrated (non-expandable) – sufficient for mid-sized control logic.
-
Load Memory: 1 Mbyte integrated, expandable up to 24 Mbyte via SIMATIC Memory Card.
-
Digital Inputs: 8 total, with 4 usable as high-speed counters (HSC) up to 100 kHz single-phase, or 80 kHz differential.
-
Digital Outputs: 6 relay outputs, switching up to 2 A resistive load, with mechanical endurance of 10 million cycles.
-
Analog Inputs: 2 channels, 0–10 V DC, 10-bit resolution, conversion time 625 µs per channel.
-
Communication: PROFINET IO Controller supporting TCP/IP, ISO-on-TCP, and S7 communication (server).
-
Power Consumption: Typical 175 mA at 24 V DC, max 1.2 A; power loss typ. 9 W.
-
Environmental: Operating temperature 0–55 °C (horizontal), IP20 protection, CE/cULus/FM approved.
These specs make the 6ES7212-1HD30-0XB0 a reliable choice for compact automation systems where high-speed counting and relay switching are required.
Industry Applications
The Siemens 6ES7212-1HD30-0XB0 excels in applications such as:
-
Packaging machinery: Counts products using HSC inputs and controls actuators via relay outputs.
-
Conveyor systems: Manages start/stop sequences and monitors analog sensors for material presence.
-
Building automation: Controls lighting and HVAC relays while reading temperature sensors through analog inputs.
When upgrading from older S7-200 CPUs, the 6ES7212-1HD30-0XB0 offers improved processing speed (0.1 µs per bit operation) and integrated PROFINET, reducing wiring and simplifying network integration.
Installation & Setup Guidance
Mount the Siemens 6ES7212-1HD30-0XB0 on a standard DIN rail using the integrated clip. Ensure horizontal installation for ambient temperatures up to 55 °C; vertical installation derates to 45 °C. Connect the 24 V DC power supply to terminals L+ and M, respecting polarity. For the relay outputs, provide external short-circuit protection as the module lacks internal protection. Use shielded twisted-pair cables for analog inputs (max 100 m) and unshielded cables for digital I/O (max 300 m). Program with STEP 7 V10.5 or higher via the PROFINET port; the web server is available for diagnostics after commissioning.
Maintenance & Reliability
To maximize uptime with the 6ES7212-1HD30-0XB0, follow these practices:
- Periodically inspect relay contacts for wear—rated for 100,000 operations at rated load, 10 million mechanical cycles.
- Keep ambient temperature below 55 °C and avoid condensation (max 95% RH non-condensing).
- Clean the module with a dry cloth; avoid solvents that may damage the enclosure.
- Backup the project using the EEPROM (maintenance-free backup) or a SIMATIC Memory Card for quick replacement.
Proper ventilation and protection from vibration (2 g wall mount, 1 g DIN rail) extend the module’s service life, aligning with the cost-benefit of reduced downtime.
Selection Guide & Purchasing Advice
Before ordering the Siemens 6ES7212-1HD30-0XB0, confirm your power supply is 20.4–28.8 V DC and that you require relay outputs (6 channels). For applications needing more digital or analog I/O, add signal modules (max 2) and a signal board (max 1). If you need high-speed outputs, consider the DC/DC/DC variant instead. PLC Source PRO (available at ubest101) stocks this module as a genuine spare part, ready to ship from our warehouse. Contact our team for custom kitting or volume discounts.
