Product Overview

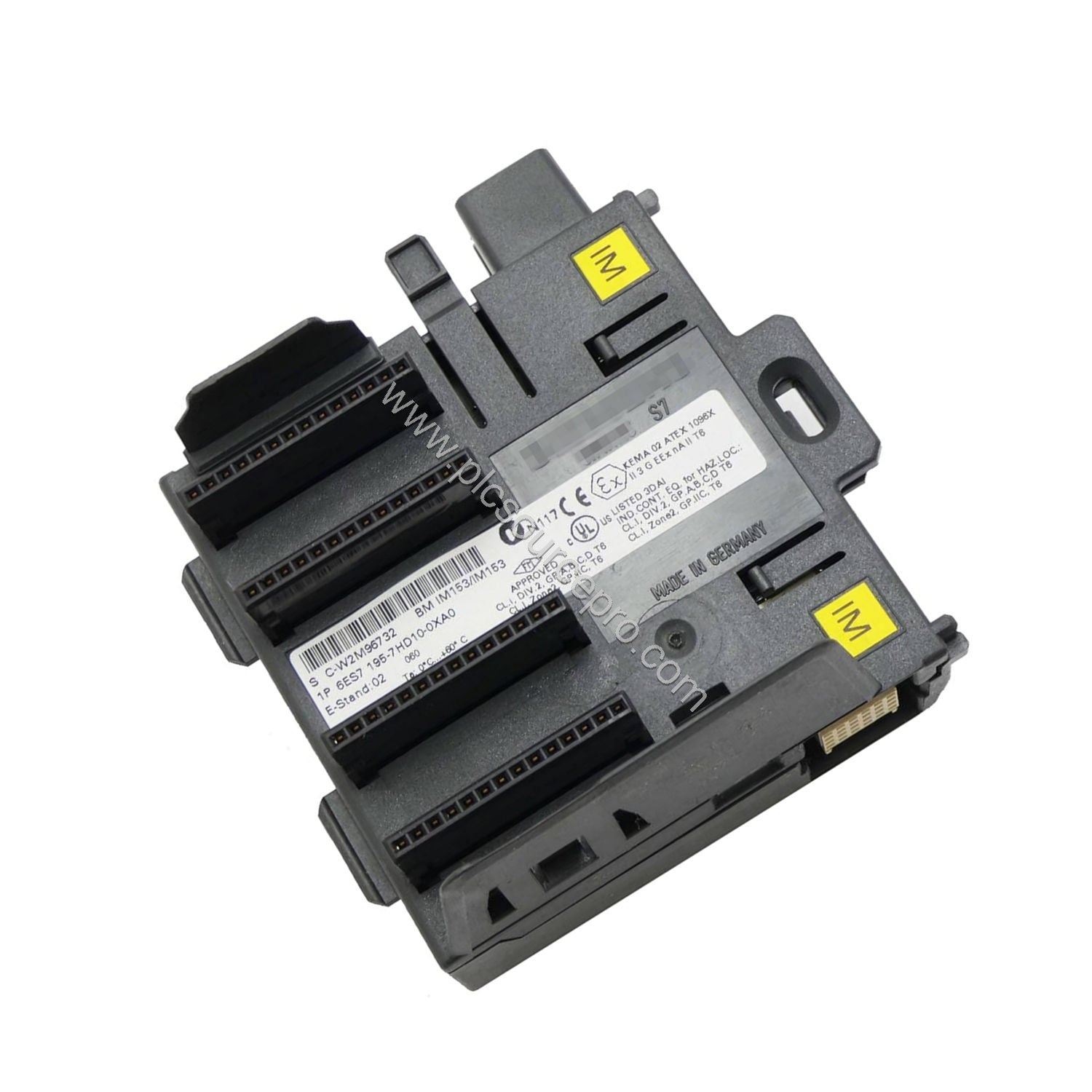

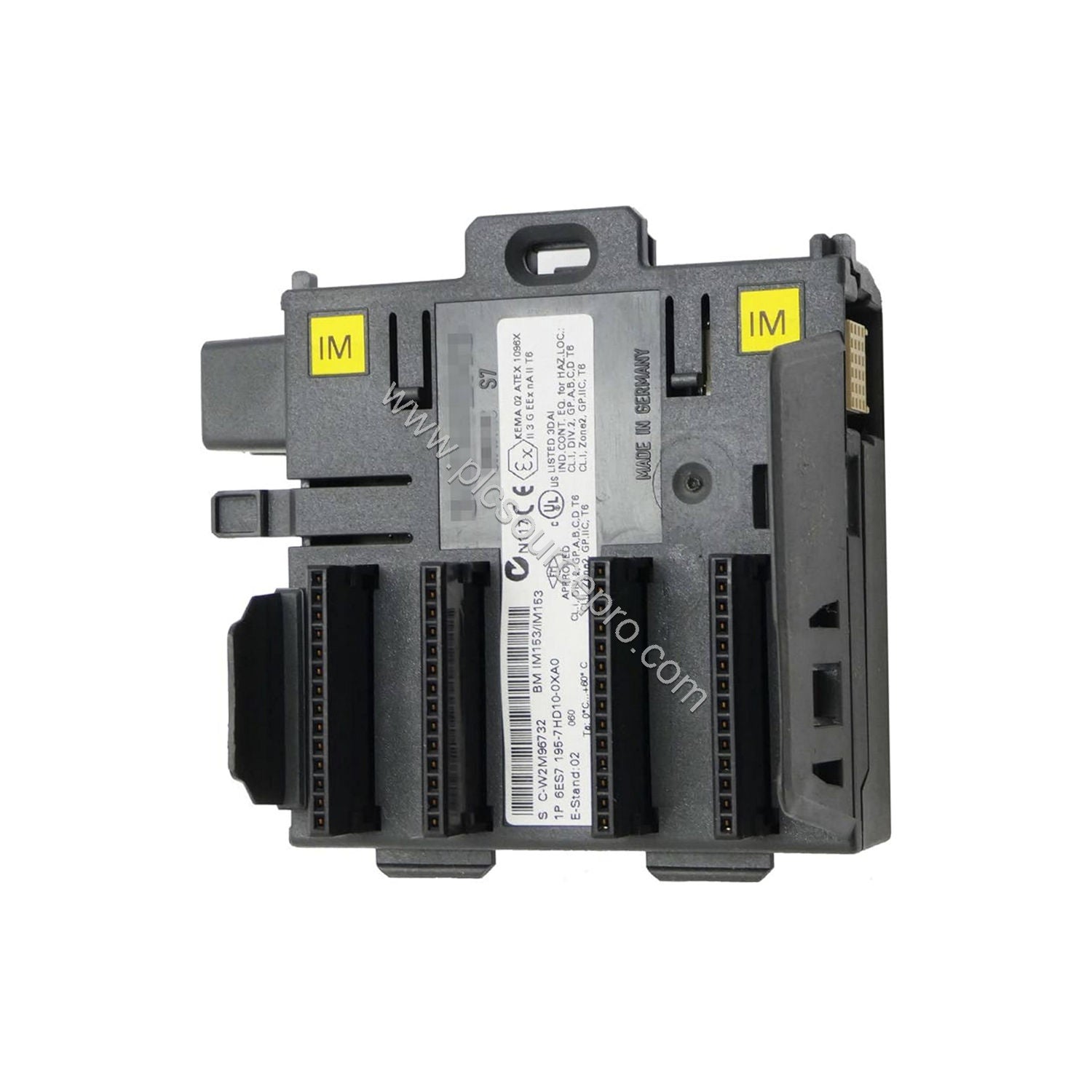

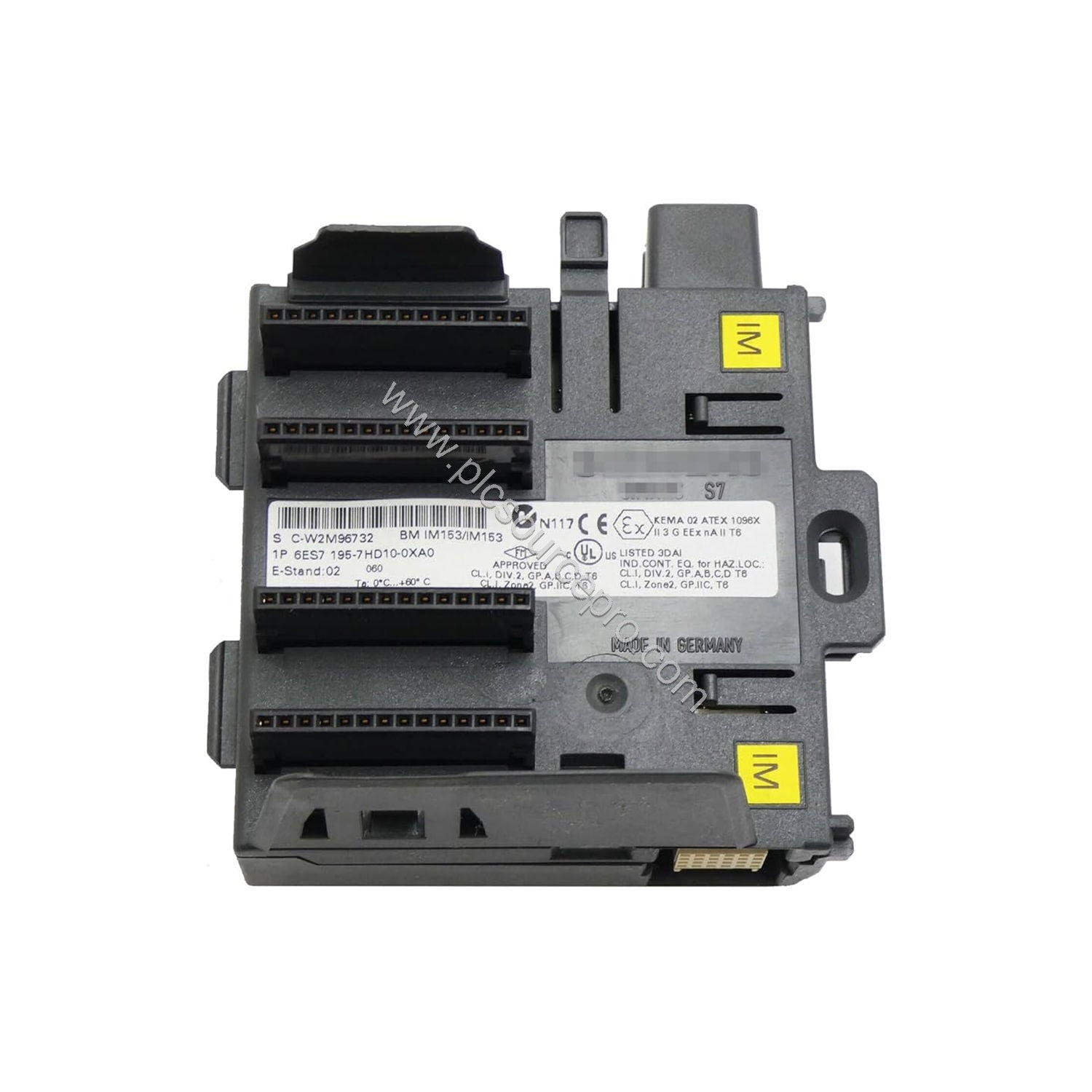

The Siemens 6ES7195-7HD10-0XA0 is a specialized bus module designed for the ET 200M distributed I/O system. Its primary function is to securely hold two redundant IM153-2 interface modules while enabling removal and insertion during RUN operation. This hot-swap capability minimizes downtime during maintenance or upgrades, making it an essential component for high-availability industrial automation applications. The module is built to withstand demanding environments and integrates seamlessly into existing SIMATIC DP networks.
Key Features & Specifications
While detailed electrical specifications are best obtained from the manufacturer, the Siemens 6ES7195-7HD10-0XA0 offers the following physical characteristics based on provided data:
-
Width: 97 mm
-
Height: 92 mm
-
Depth: 30 mm
-
Weight: approx. 133 g
These compact dimensions make the module easy to install in standard control cabinets. For complete technical parameters, please consult the product datasheet or contact our support team.
Industry Applications
The Siemens 6ES7195-7HD10-0XA0 is ideal for process industries where continuous operation is critical. Common applications include:
-
Chemical plants: Redundant IM153-2 configurations ensure uninterrupted control of batch processes.
-
Water treatment facilities: Hot-swap capability allows I/O module replacement without halting treatment lines.
-
Pharmaceutical manufacturing: Redundant architecture meets stringent uptime requirements during validation runs.
In each scenario, the bus module enables system upgrades with minimal production loss.
Installation & Setup Guidance
Installing the Siemens 6ES7195-7HD10-0XA0 requires careful alignment with the ET 200M backplane. Ensure the module is securely latched into the DIN rail before inserting the IM153-2 modules. The module supports hot-swap only when the system is in RUN mode; always follow Siemens guidelines for inserting or removing modules to prevent data corruption. Proper grounding of the DIN rail and backplane is essential for noise immunity.
Selection Guide & Purchasing Advice
Before ordering, verify that your existing ET 200M system is compatible with the Siemens 6ES7195-7HD10-0XA0. This module is specifically designed for redundant IM153-2 configurations; it will not function with single IM153s. Also confirm that your firmware version supports hot-swap during RUN. For reliable supply, consider purchasing from PLC Source PRO (available via ubest101.myshopify.com) to ensure genuine Siemens parts and fast delivery. Our inventory includes complementary ET 200M components to complete your system.
