Product Overview

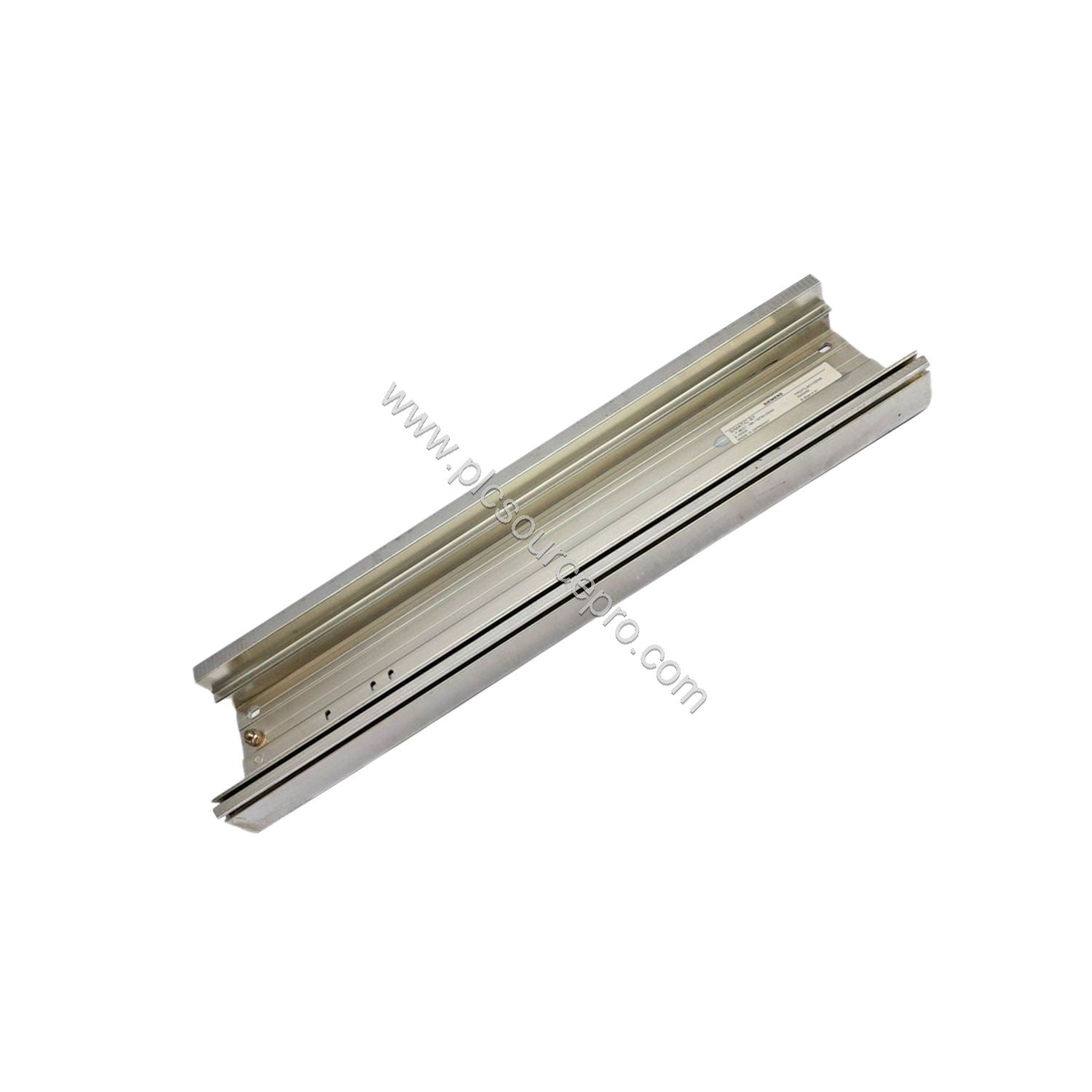

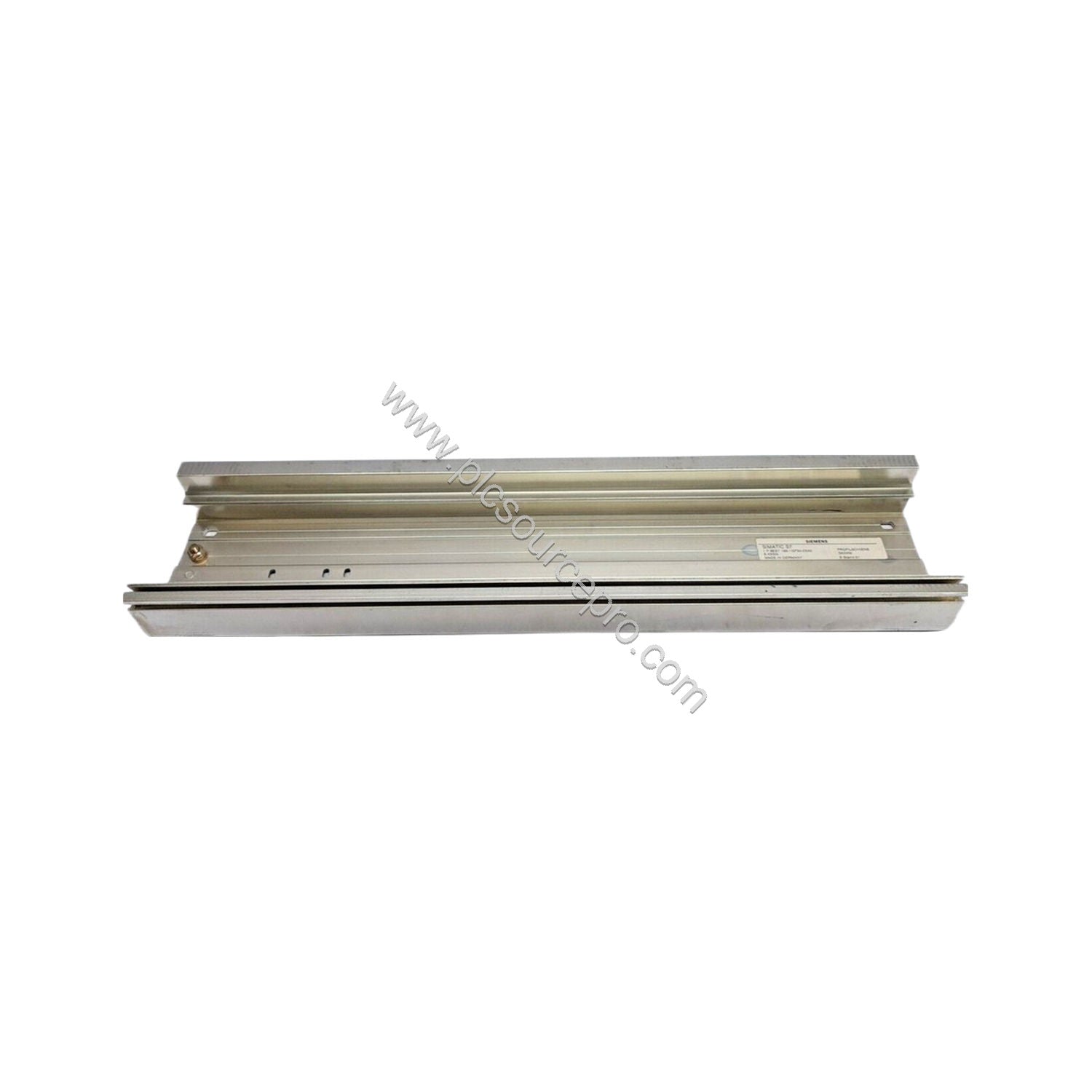

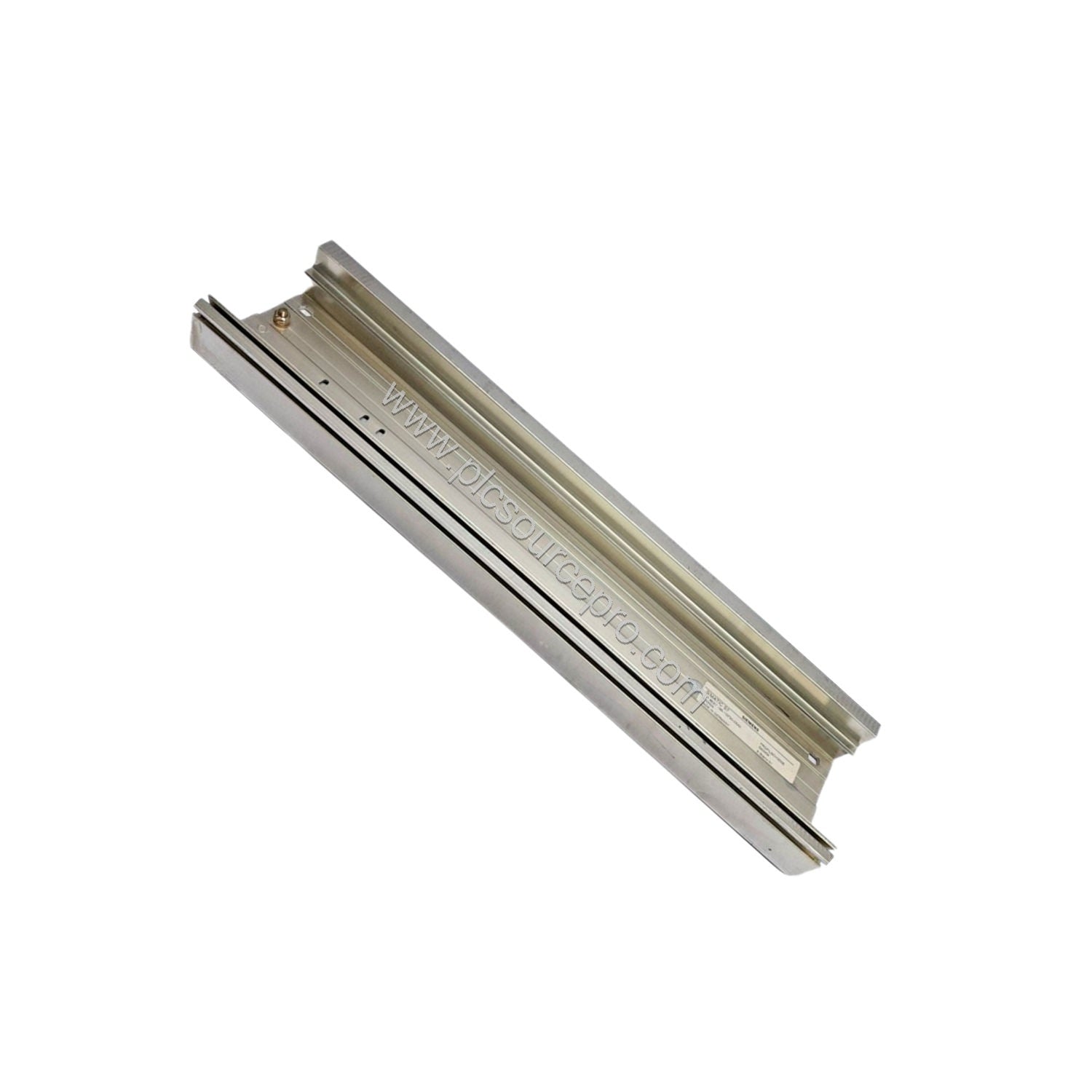

When a system requires dependable mechanical support for hot-swap bus modules, the Siemens 6ES7195-1GF30-0XA0 SIMATIC DP mounting rail delivers lasting performance. This rail serves as the foundation for ET 200M distributed I/O systems, enabling secure installation of bus modules with removal and insertion under power. Its robust aluminum construction and galvanically isolated surface protect against corrosion and electrical interference.
Technical Specifications
The Siemens 6ES7195-1GF30-0XA0 mounting rail is built with precision for demanding industrial environments. Below are the key physical parameters:
-
Length: 530 mm
-
Width: 530 mm (consistent with length, as it is a flat rail)
-
Height: 122 mm
-
Material: Aluminum
-
Surface: Galvanically isolated
-
Weight: Approximately 1,320 g
For additional electrical or mechanical specifications, please contact our team. The rail is designed exclusively for use with Siemens ET 200M bus modules.
Industry Applications
The Siemens 6ES7195-1GF30-0XA0 mounting rail is a critical component in process automation, manufacturing, and power generation. In chemical plants or refineries, the galvanically isolated surface prevents ground loops and signal degradation. In automotive assembly lines, the rail allows quick module swaps without system shutdown, reducing downtime. This mounting rail supports the hot-swap functionality that maintenance teams depend on.
Installation & Setup
Installing the Siemens 6ES7195-1GF30-0XA0 is straightforward. Mount the rail onto a backplane or cabinet panel using M6 bolts (not included). Ensure the rail is level and firmly secured before snapping on the ET 200M bus modules. The 530 mm length accommodates up to 12 narrow width modules. Follow Siemens mounting guidelines to maintain the galvanic isolation integrity.
Compatibility & Integration
This Siemens 6ES7195-1GF30-0XA0 rail is specifically designed for the Siemens ET 200M distributed I/O system. It works with all SIMATIC DP bus modules that support removal and insertion under load. It is not compatible with other Siemens rail series such as S7-300 or ET 200SP without adapters.
Selection Guide & Purchasing Advice
Before purchasing the Siemens 6ES7195-1GF30-0XA0, confirm your bus module count and total length requirement. This rail is 530 mm long; if you need a different size, look for alternative Siemens ET 200M rails. Always verify that your cabinet depth can accommodate the 122 mm height. PLC Source PRO stocks original Siemens parts. For bulk orders or technical questions, you can reach us through the store link at ubest101.myshopify.com.
