Product Overview

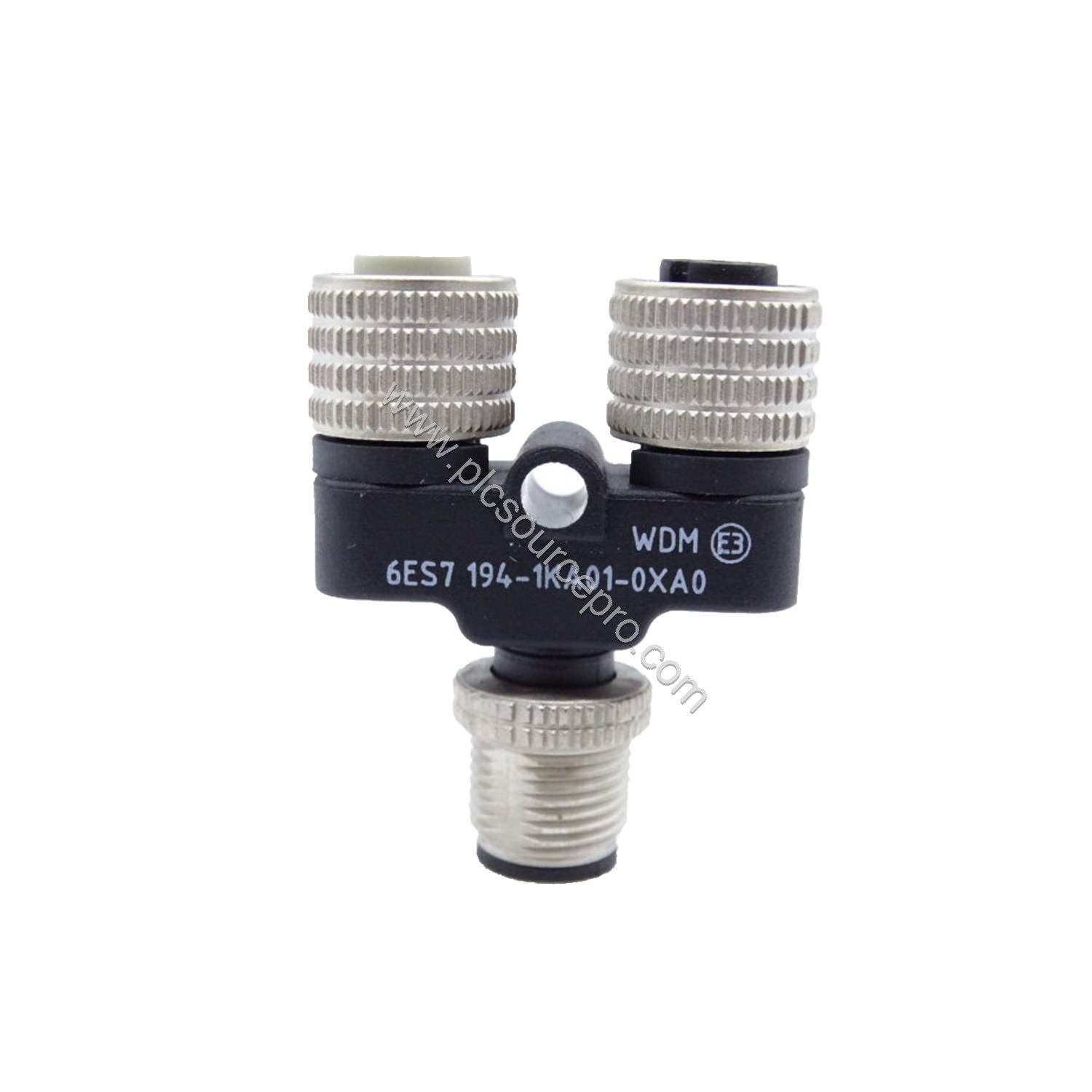

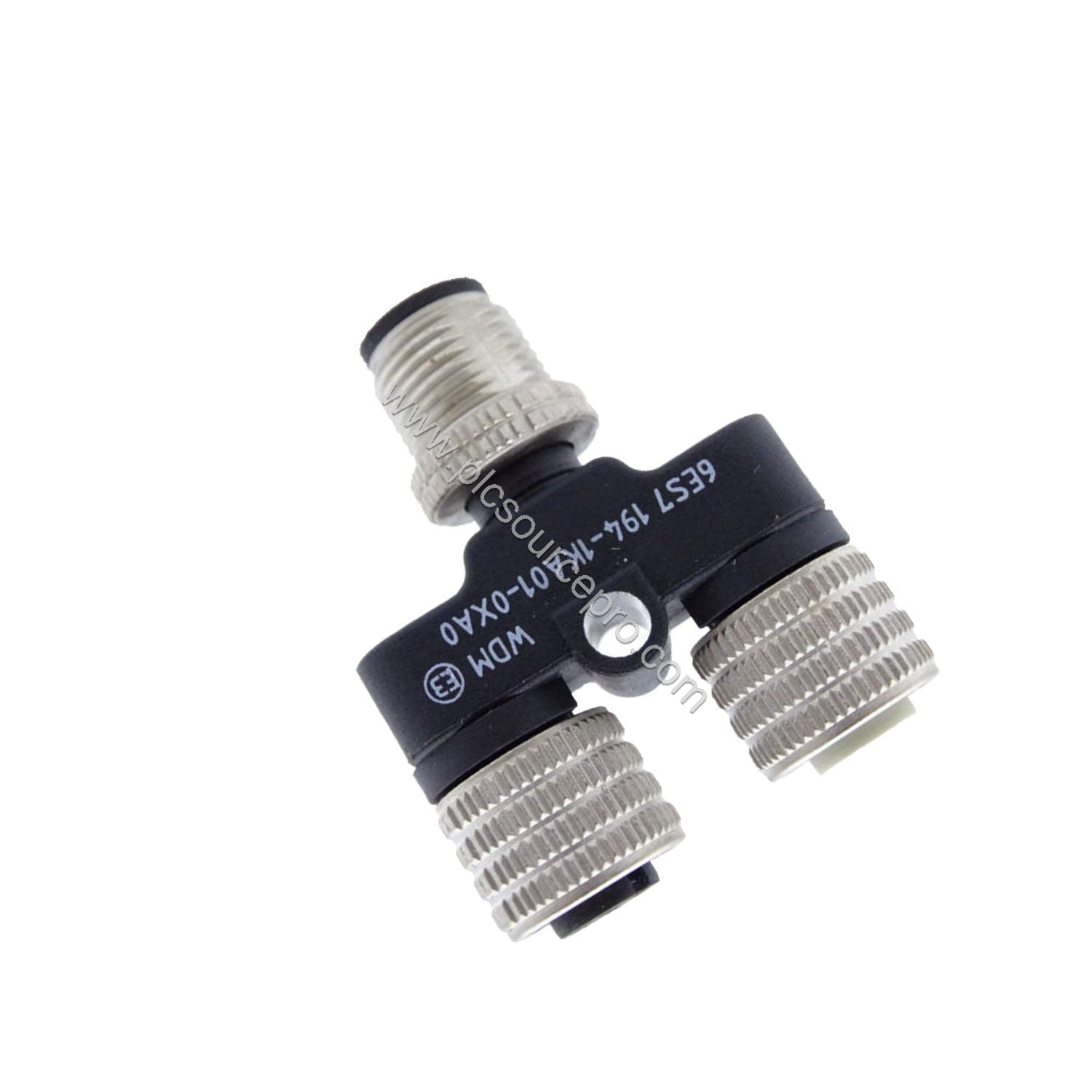

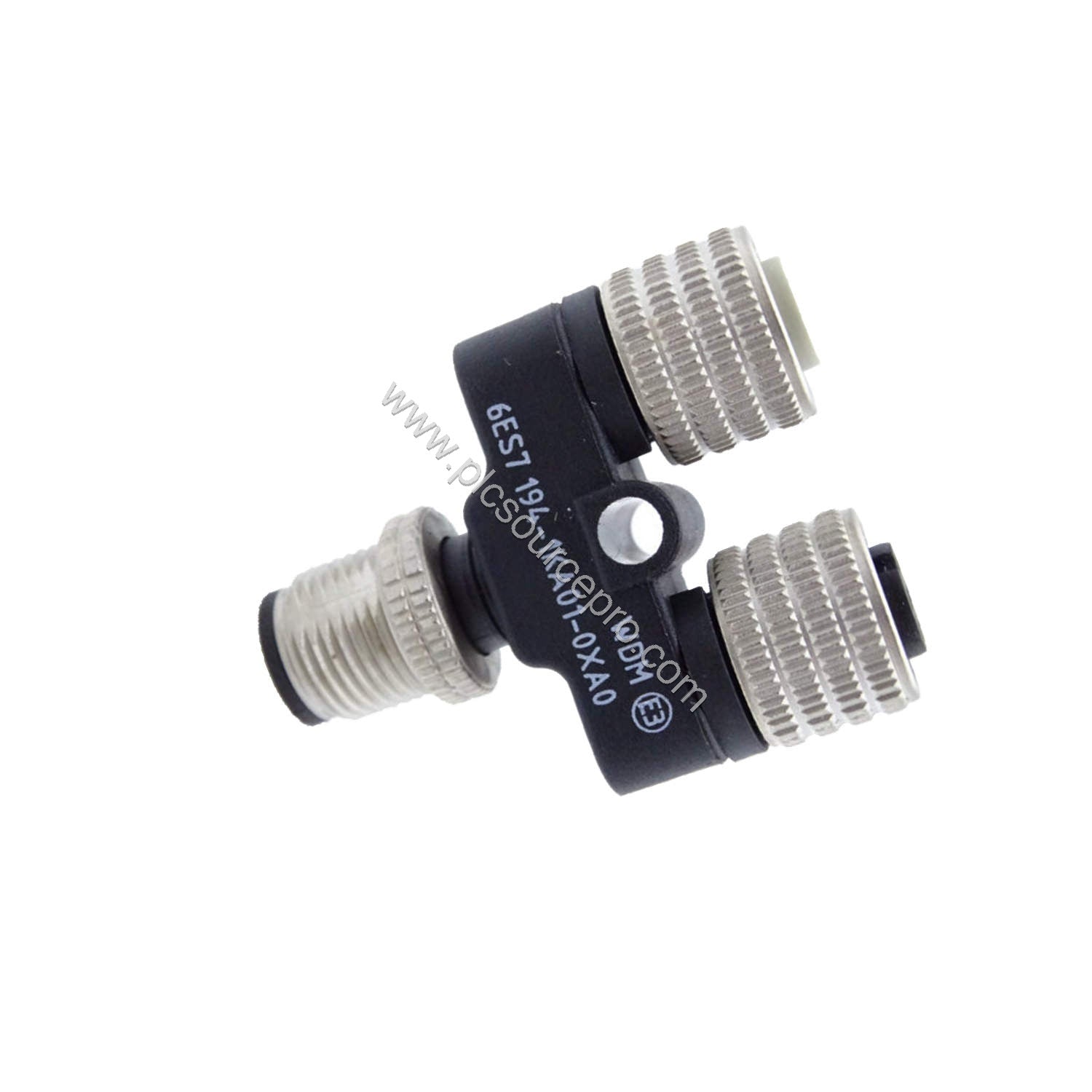

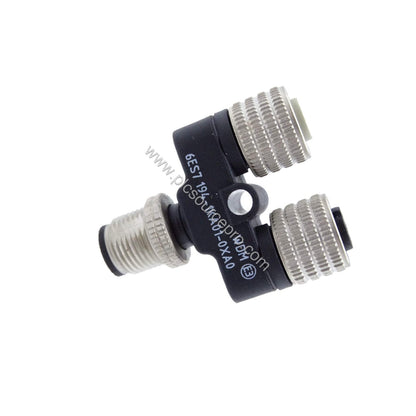

When signal integrity and reliability are critical in double-connection applications, the Siemens 6ES7194-1KA01-0XA0 Y Connector delivers consistent performance. Built for harsh industrial environments, this compact connector features an IP67 rating, five-pole design, and robust construction. As part of the Siemens I/O Modules product line, the 6ES7194-1KA01-0XA0 ensures dependable signal distribution in automation systems, reducing downtime and maintenance costs. This Y Connector is an ideal choice for engineers seeking a cost-effective solution that minimizes connection failures.
Technical Specifications
| Parameter |
Value |
| Manufacturer |
Siemens |
| Product Line |
I/O Modules |
| Part Number |
6ES7194-1KA01-0XA0 |
| UPC |
662643225204 |
| Weight |
0.06 lbs (0.03 kg) |
| Product Type |
Y Connector |
| Degree of Protection |
IP67 |
| Certification |
CE |
| Number of Poles |
5 |
| Cable Type |
Single |
| Maximum Ambient Temperature |
60 °C |
| Minimum Ambient Temperature |
0 °C |
| Operating Humidity Limit |
80% (non-condensing) |
| Storage Humidity Limit |
80% (non-condensing) |
| Operating Altitude |
1000 m above sea level |
| Use |
Double Connection |
These specifications highlight the ruggedness of the Siemens 6ES7194-1KA01-0XA0. The IP67 protection ensures resistance to dust and moisture, while the wide temperature range (-0 to 60°C) suits many industrial settings. The five-pole configuration allows for efficient signal distribution in double connection applications.
Applications & Use Cases
The Siemens 6ES7194-1KA01-0XA0 Y Connector excels in manufacturing lines, packaging machinery, and conveyor systems where reliable signal routing is essential. For example, in a automotive assembly plant, this connector links sensors to control cabinets, ensuring data flow despite vibrations and contaminants. Its 80% humidity tolerance makes it suitable for food processing facilities with washdown requirements. By using the 6ES7194-1KA01-0XA0, facilities reduce connection-related downtime and extend equipment lifespan, delivering long-term cost benefits.
Maintenance & Reliability
Routine inspection of the Siemens 6ES7194-1KA01-0XA0 is straightforward. Check the connector housing for physical damage and ensure cable strain relief remains intact. The IP67 seal protects internal contacts from debris, so cleaning with a dry cloth suffices in most cases. Operating within the specified 0–60°C range and below 80% humidity prevents condensation-related issues. With minimal maintenance needs, the 6ES7194-1KA01-0XA0 offers a low total cost of ownership, aligning with ROI-focused procurement strategies.
Selection Guide & Purchasing Advice
Before purchasing the Siemens 6ES7194-1KA01-0XA0, verify your cable type (single) and connection requirements (double). Ensure your system operates within the temperature and altitude limits. For reliable sourcing, trust PLC Source PRO (visit ubest101.myshopify.com) for genuine Siemens modules. We stock original parts with clear specifications, helping you avoid counterfeit products. Order the 6ES7194-1KA01-0XA0 today to enhance your system's durability.
