Product Introduction

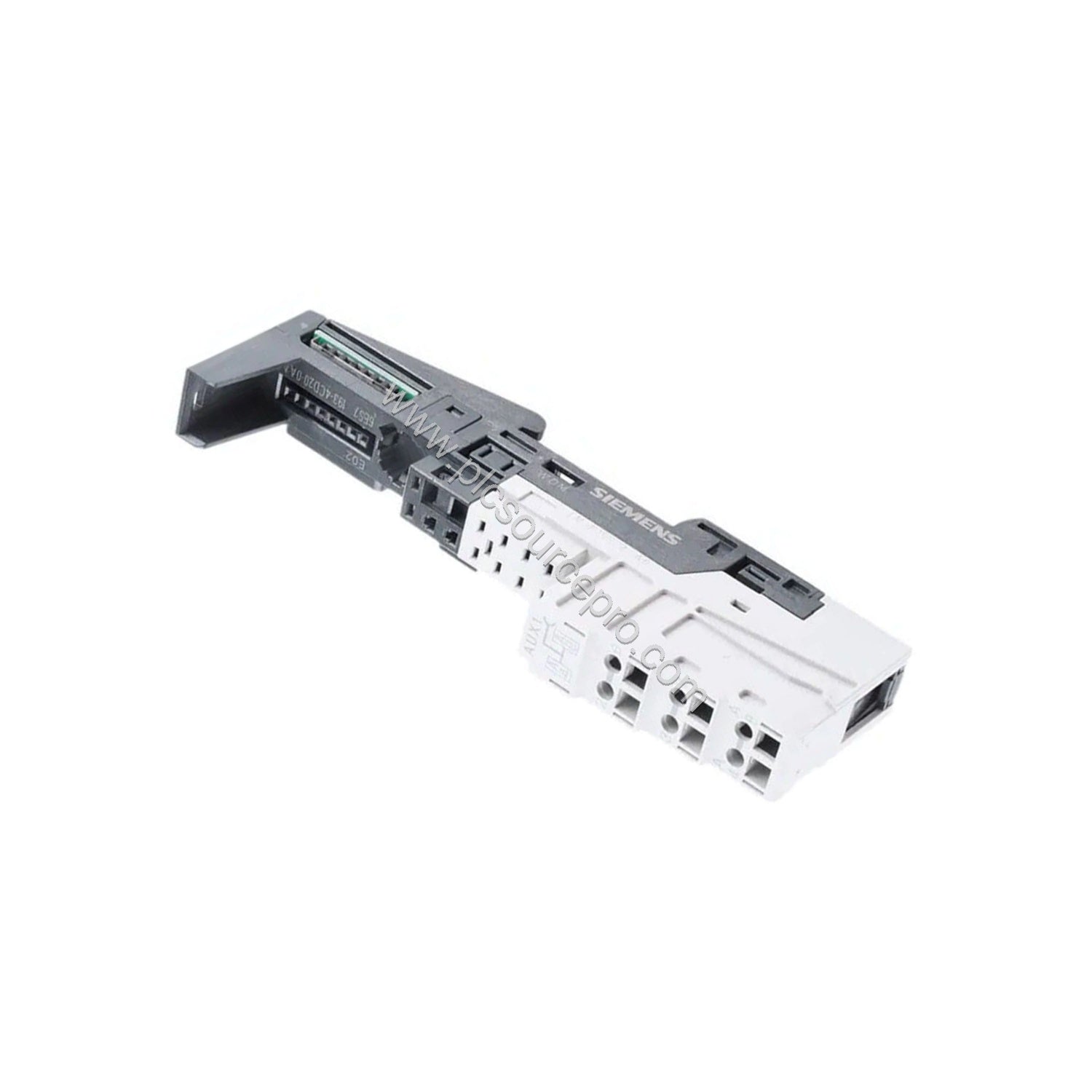

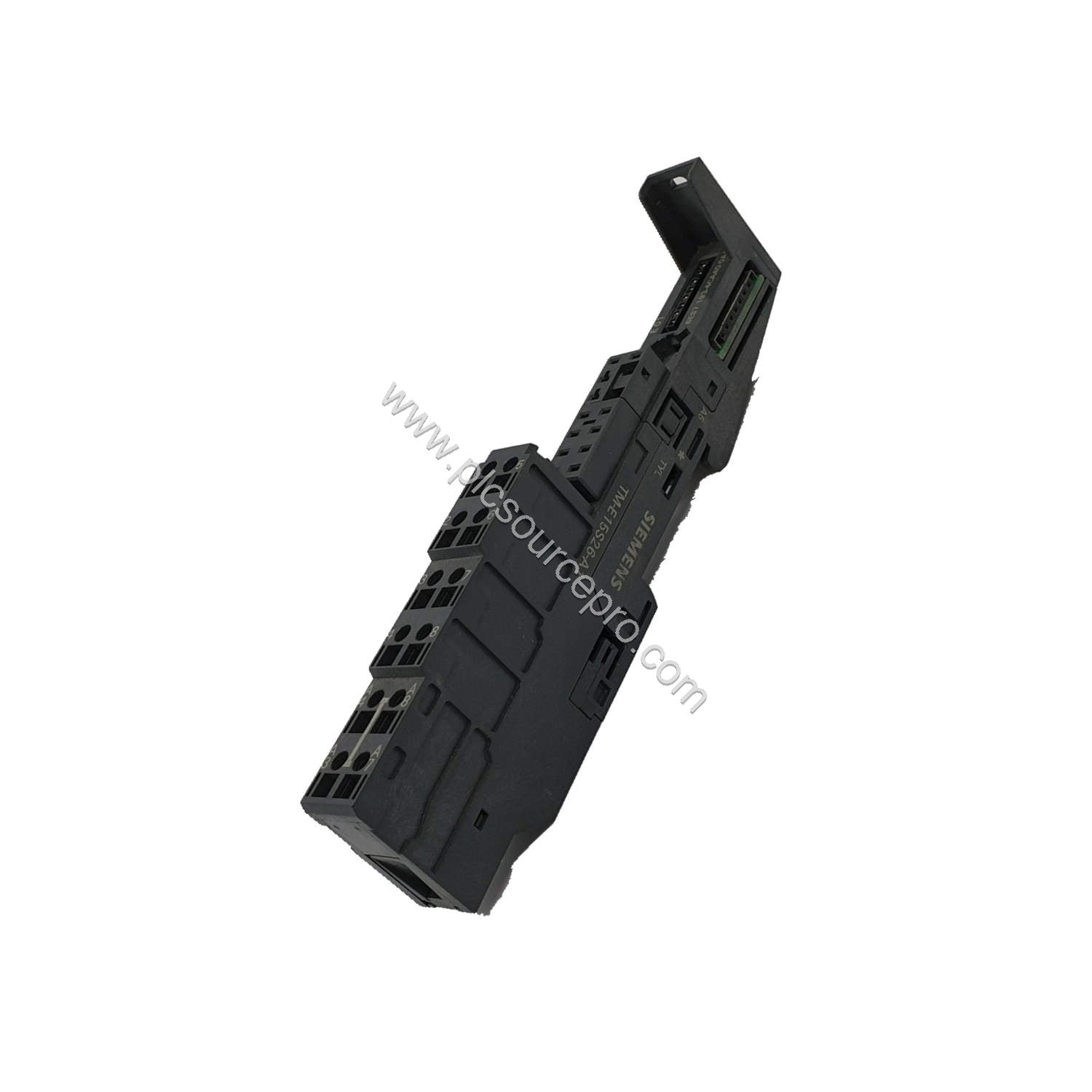

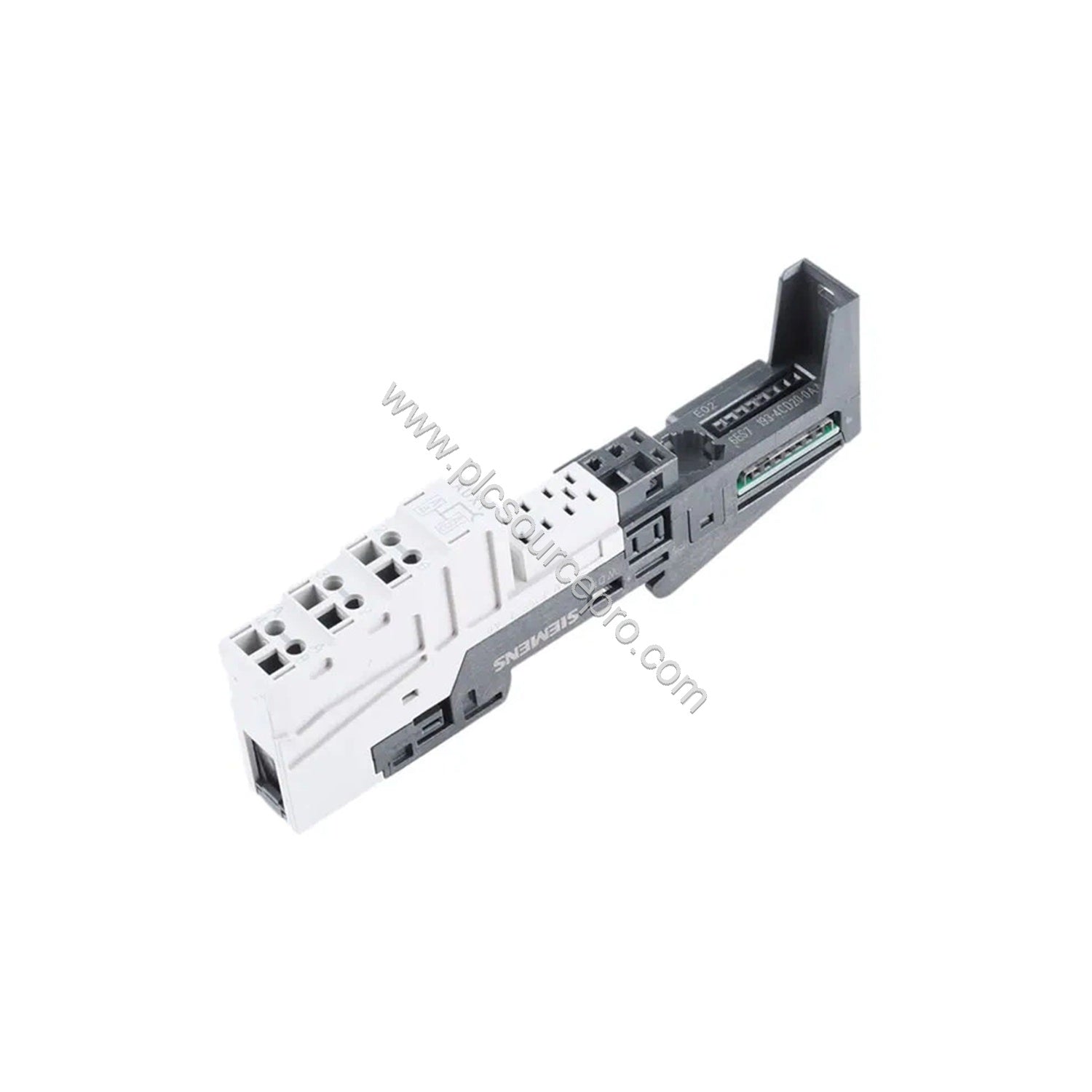

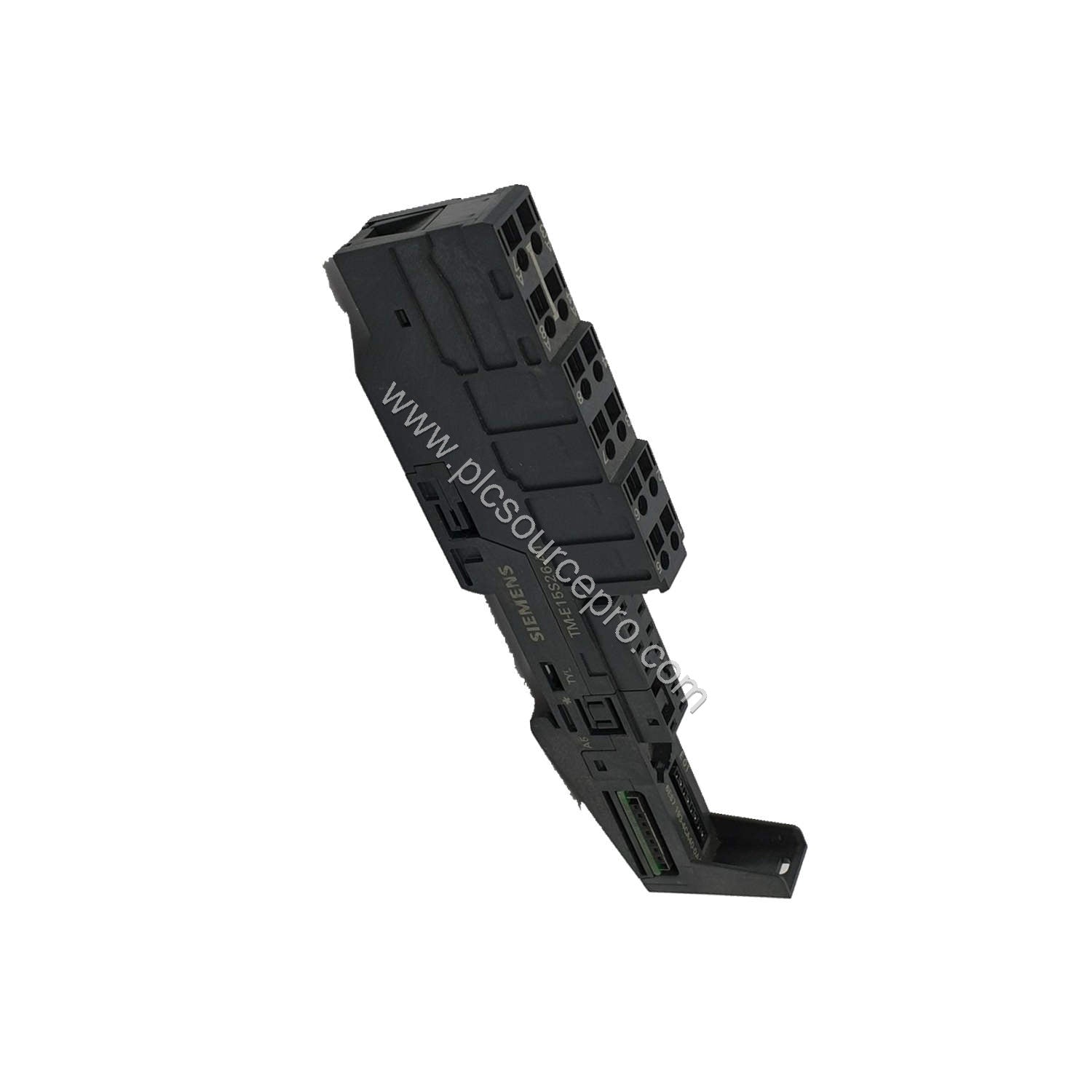

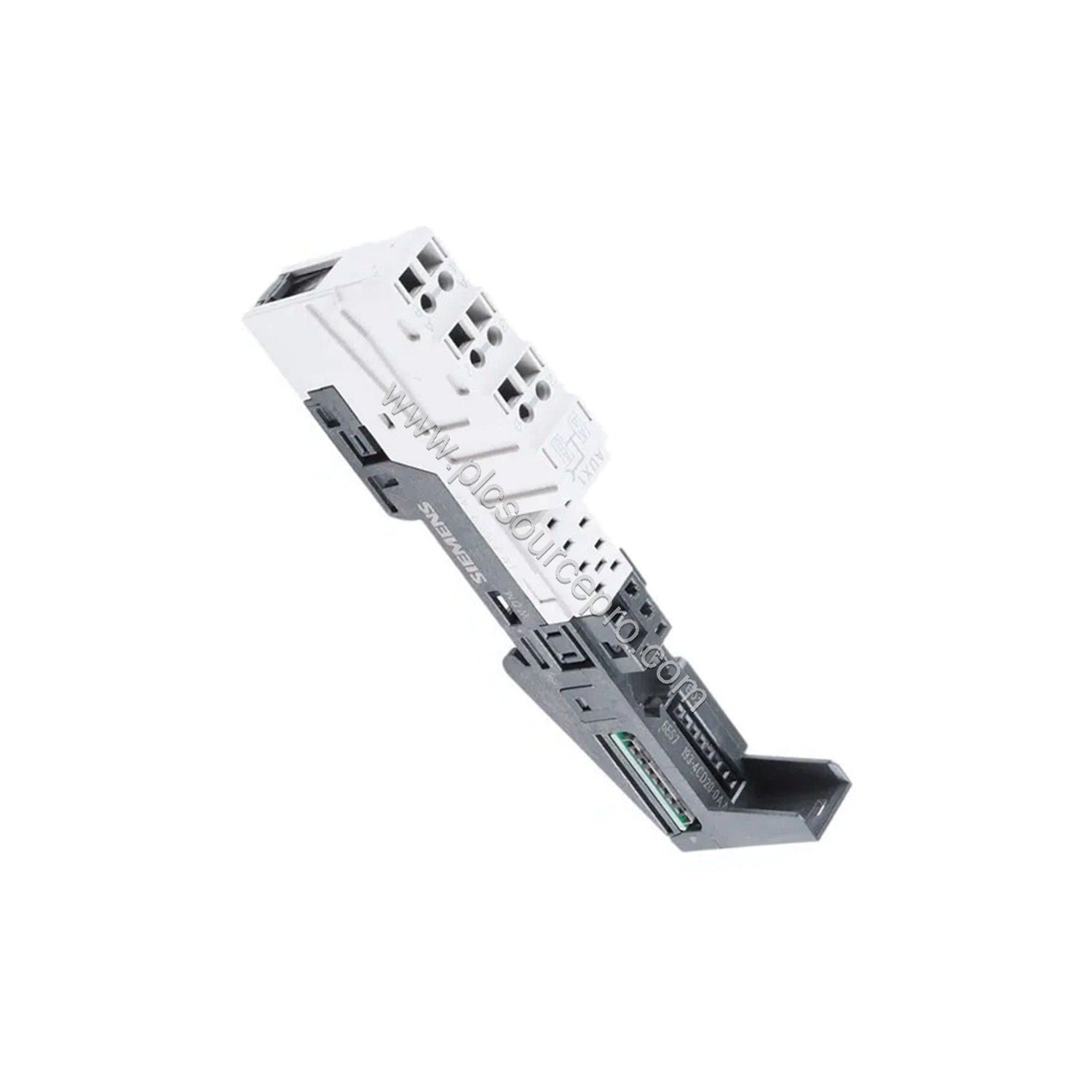

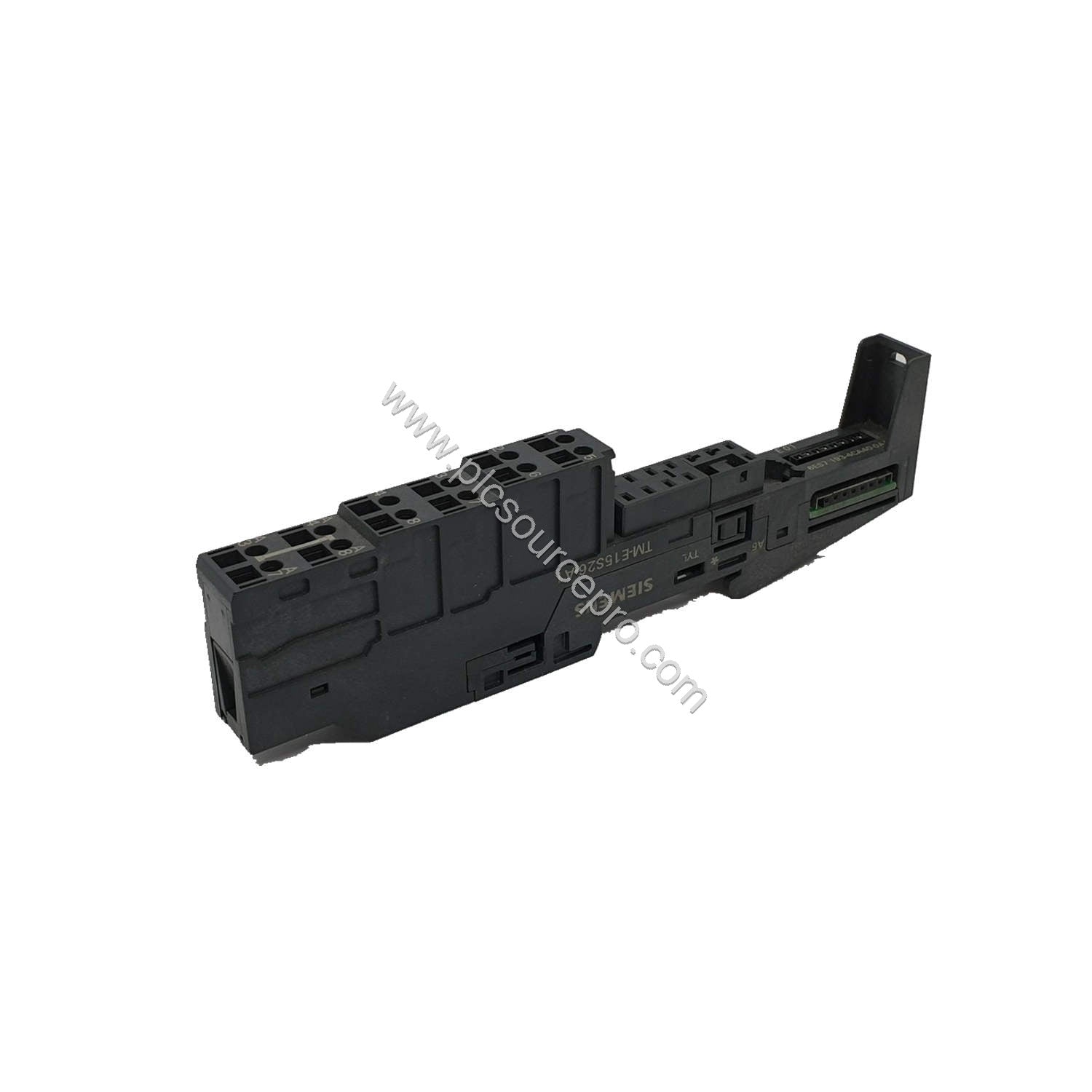

In distributed automation systems, reliable terminal connections are critical. The Siemens 6ES7193-4CF50-0AA0 Terminal Module TM-E30C46-A1 delivers robust connectivity for ET200S installations. Part of the SIMATIC DP family, this module supports spring-type terminals with 4x 6 terminal connections and continuous AUX1 access, ensuring stable signal transmission in demanding industrial environments.
Technical Specifications
-
Width: 30 mm
-
Height: 157 mm
-
Depth: 43 mm
-
Weight: Approx. 131 g
-
RoHS Compliance: Since 01/01/06
-
WEEE Take-Back: Yes
-
REACH: Lead CAS-No. 7439-92-1 > 0.1% (w/w)
Industry Applications
The Siemens 6ES7193-4CF50-0AA0 excels in manufacturing lines, material handling, and process control systems where ET200S I/O modules require secure spring-type connections. Its compact 30 mm width fits tight cabinets, while the AUX1 continuous terminal access facilitates daisy-chaining for auxiliary power or signals. Ideal for upgrades from screw-terminal modules, it reduces wiring time and maintenance efforts.
Installation & Setup Guidance
Mount the Siemens 6ES7193-4CF50-0AA0 on a standard DIN rail within the ET200S backplane. Ensure proper alignment with adjacent electronic modules. Use a small screwdriver to open spring terminals; insert stripped wires (0.5–2.5 mm²) and release. Torque not required. Verify AUX1 connections are continuous if linking multiple modules. No special tools needed for installation.
Compatibility & Integration
This terminal module integrates seamlessly with SIMATIC DP ET200S systems. It accepts all standard ET200S electronic modules (30 mm width). Compatible with Siemens S7-300/400 and other PROFIBUS DP masters via the ET200S interface module. No adapter cables required; direct plug-in design ensures quick deployment.
Selection Guide & Purchasing Advice
Before purchasing the Siemens 6ES7193-4CF50-0AA0, verify your ET200S system revision and required terminal configuration. This module supports spring-type terminations—ideal for vibration-prone sites compared to screw terminals. For exact fit, confirm overall width (30 mm) matches your electronic modules. PLC Source PRO (ubest101) stocks genuine Siemens parts with proper documentation. Contact our team for volume pricing or same-day shipping.
