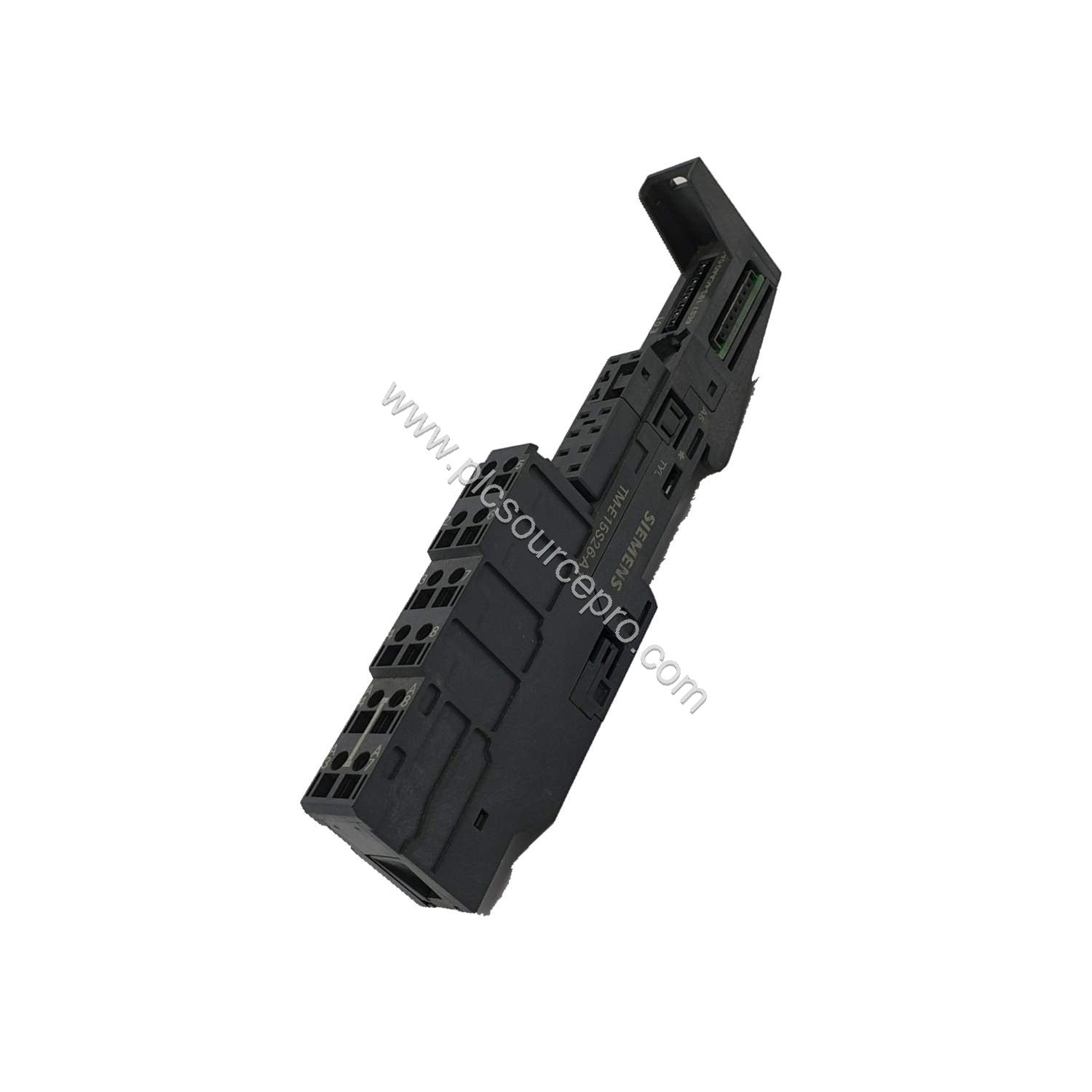

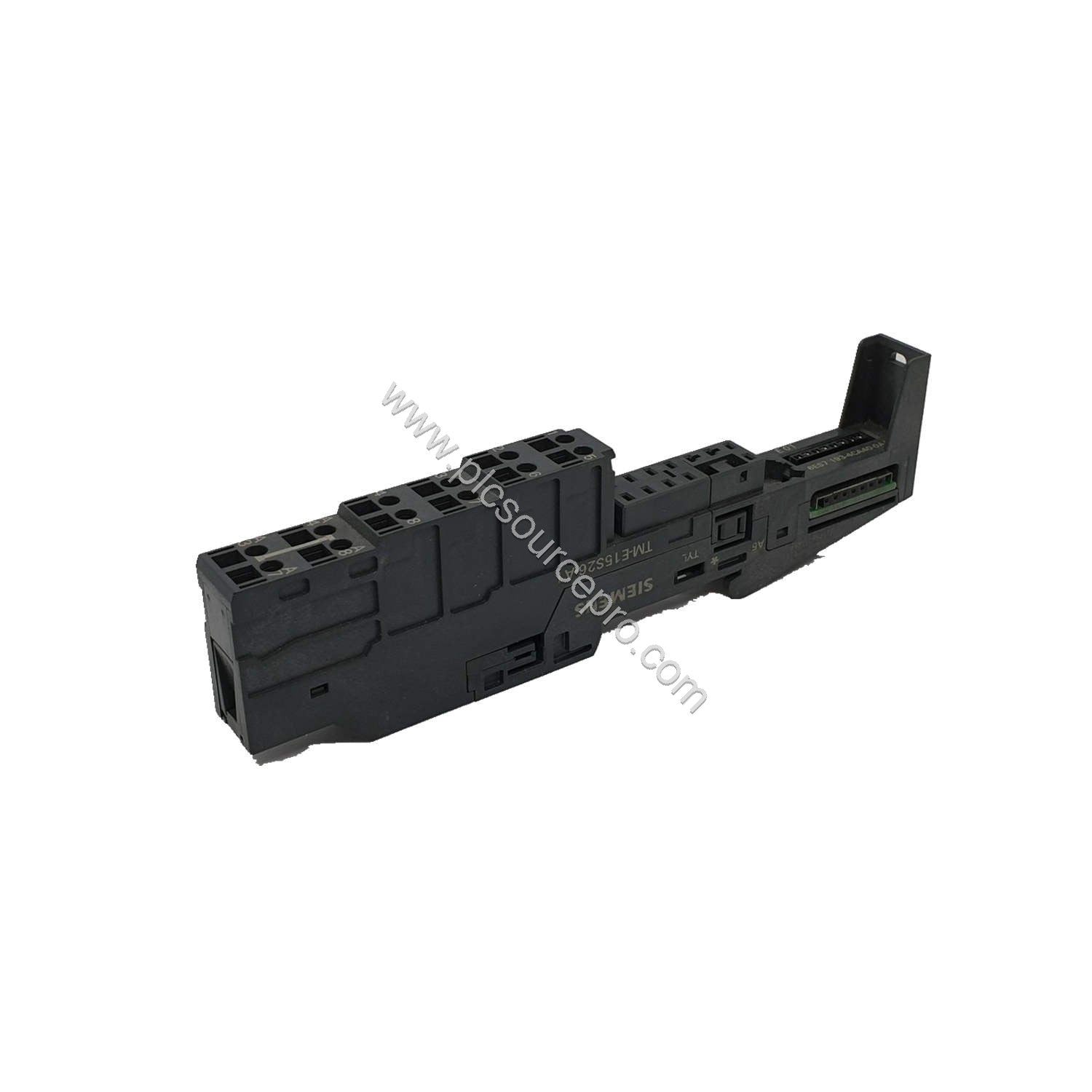

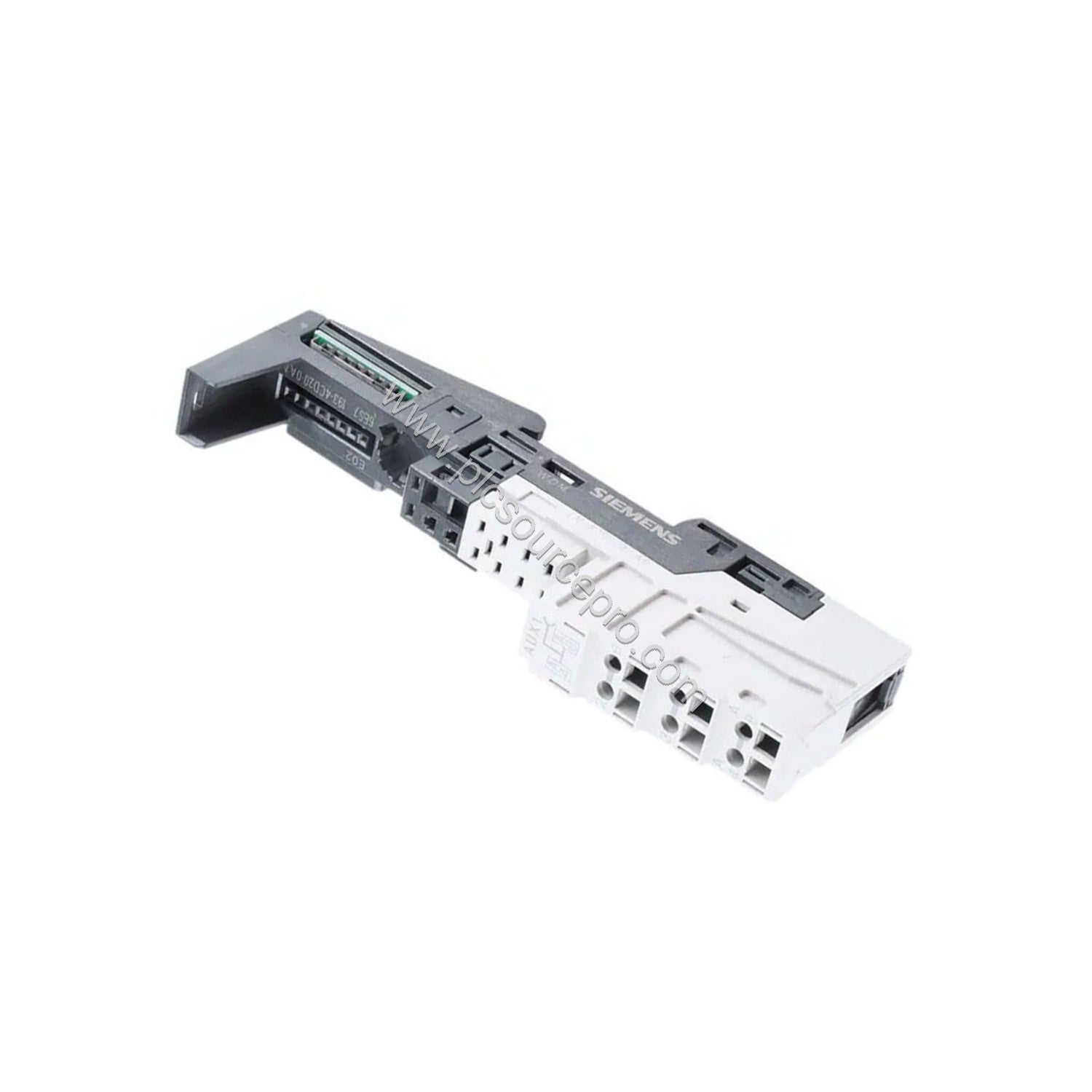

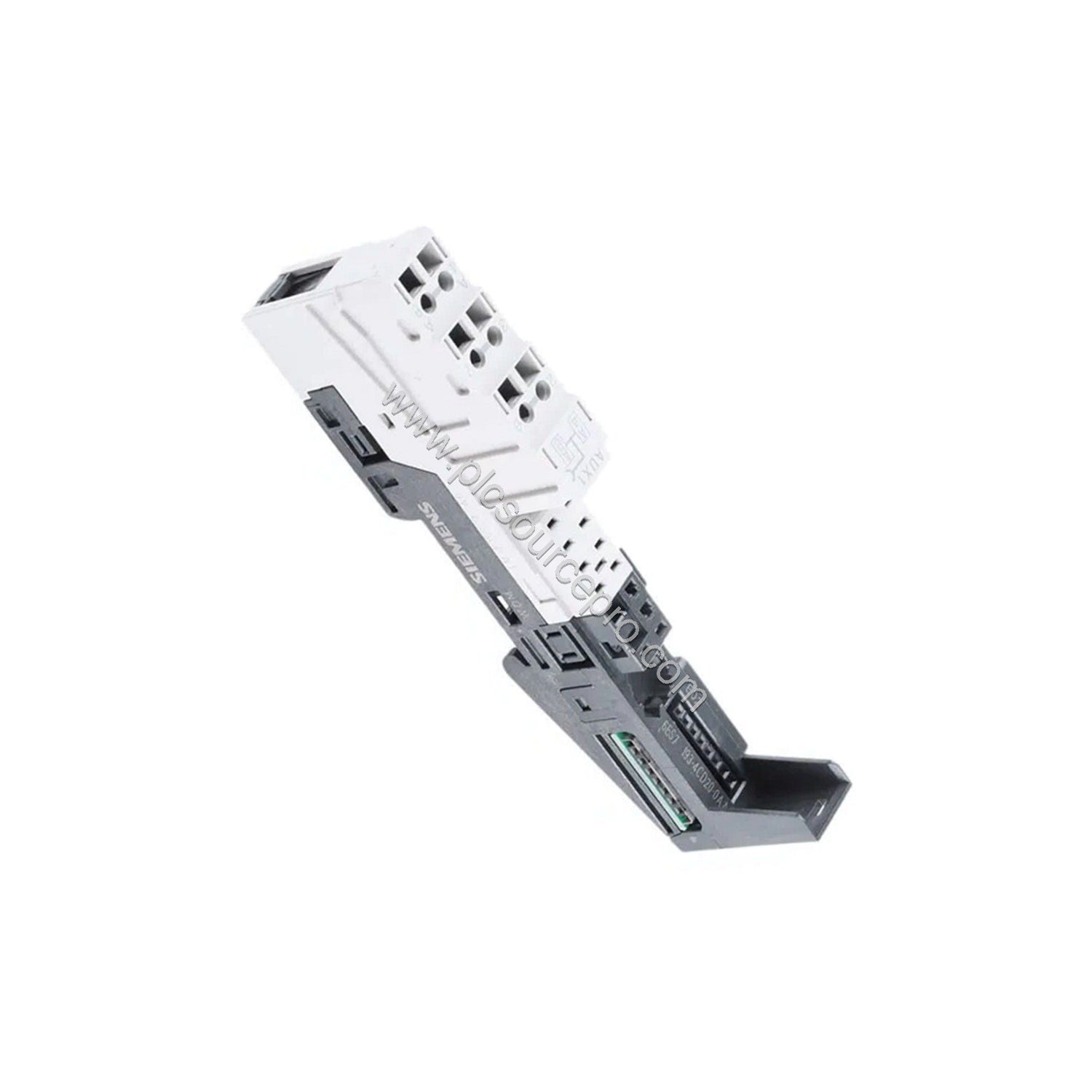

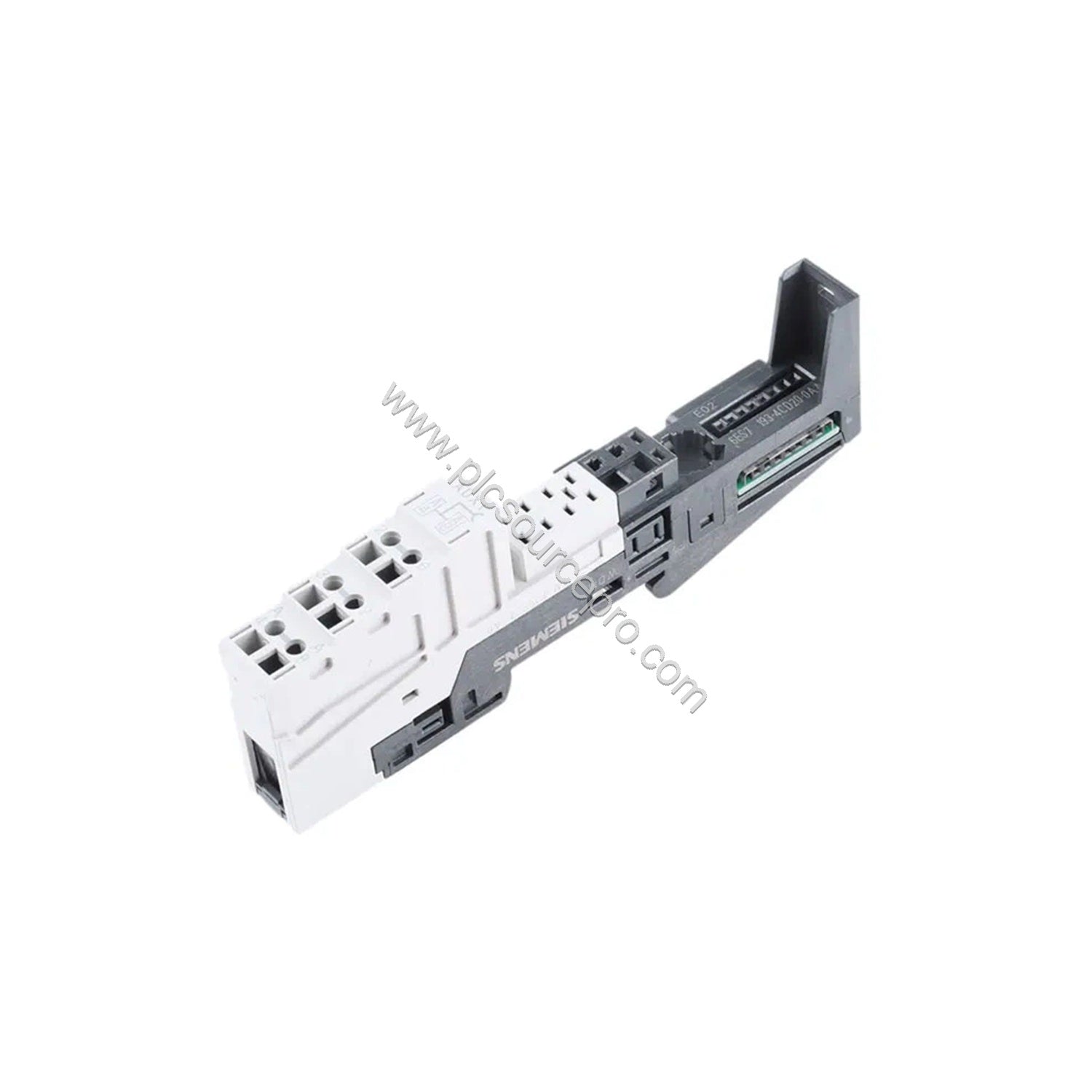

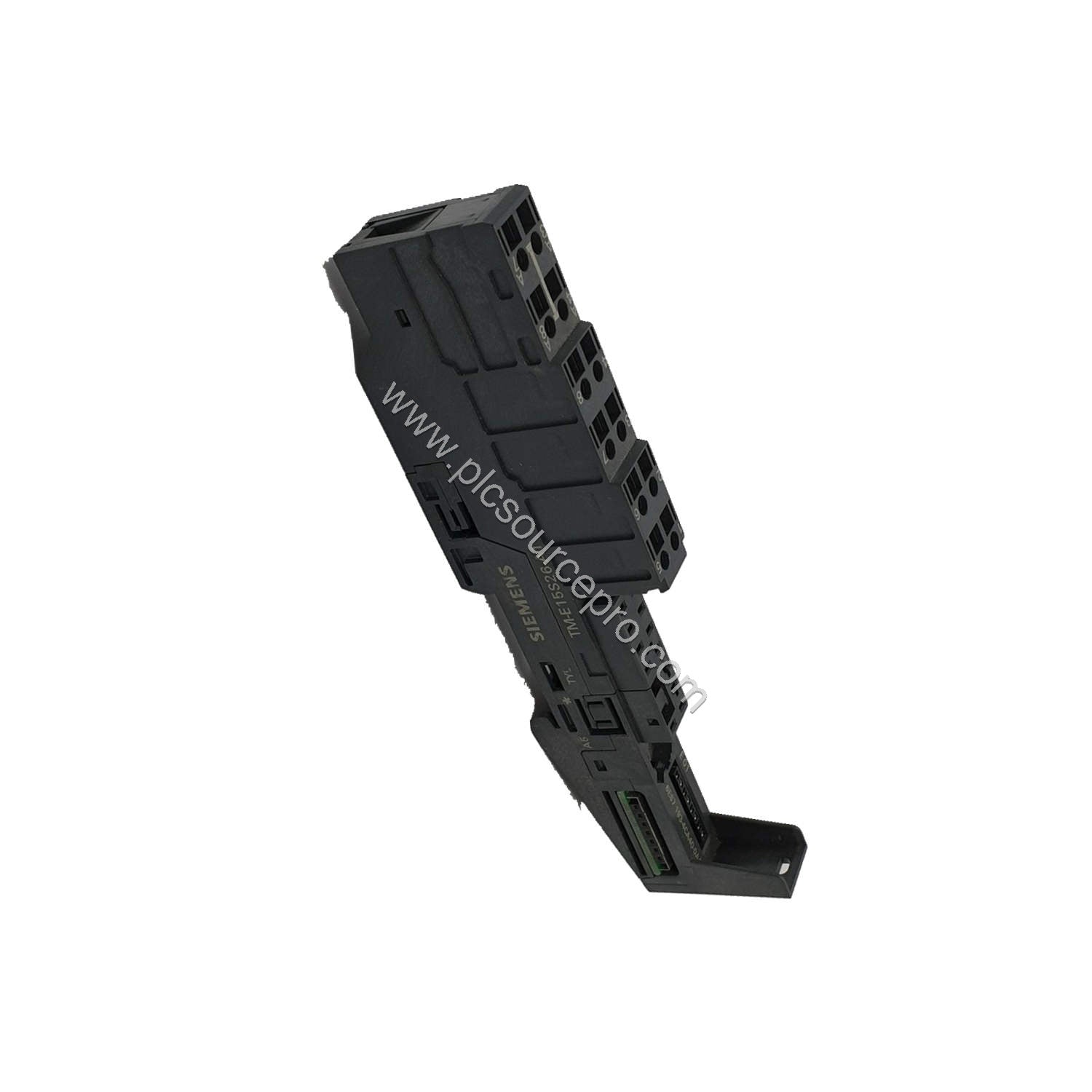

Introduction to the Siemens 6ES7193-4CE00-0AA0 Terminal Module
When upgrading from older fixed-wiring solutions to a modular distributed I/O system, the Siemens 6ES7193-4CE00-0AA0 Terminal Module provides a reliable interface for power distribution. This module, part of the SIMATIC DP ET 200S family, replaces conventional terminal blocks with a compact, screw-type terminal design. It supports power modules with a 15 mm width and offers two terminal connections for auxiliary 1 (AUX1) without a terminal lead, streamlining wiring and saving cabinet space.
Technical Specifications of the Siemens 6ES7193-4CE00-0AA0
The following table lists the key physical specifications for the Siemens 6ES7193-4CE00-0AA0. These parameters ensure compatibility with ET 200S mounting rails and cabinets.
| Specification |
Value |
| Width |
15 mm |
| Height |
119.5 mm |
| Depth |
43 mm |
| Weight (approx.) |
55 g |
| Delivery quantity |
1 piece |
The 15 mm width allows dense module placement on the DIN rail, while the height and depth match standard ET 200S form factors. The lightweight design simplifies handling during installation.
Real-World Applications
The Siemens 6ES7193-4CE00-0AA0 excels in process automation and machine building environments. For example, in a chemical plant, it distributes power to field sensors and actuators via the ET 200S power module, replacing old multi-wire terminal strips. In a packaging machine, it provides a clean, modular power distribution point that reduces wiring errors and speeds up commissioning.
Installation and Setup Guidelines
Install the Siemens 6ES7193-4CE00-0AA0 on a standard DIN rail (35 mm). Use the screw-type terminals for secure connection of power and auxiliary lines. The module includes 2x2 terminal connections for AUX1 with an inline configuration – connect the auxiliary supply directly without an additional terminal lead. Torque the screws to 0.5 Nm for reliable contact. Ensure the adjacent power module is 15 mm wide to match the terminal module footprint.
Compatibility with ET 200S Systems
This terminal module is designed exclusively for the Siemens SIMATIC DP ET 200S distributed I/O system. It works with any 15 mm wide power module (e.g., PM-E, PM-D). The Siemens 6ES7193-4CE00-0AA0 connects to the auxiliary bus AUX1, enabling shared power rail architecture. It does not integrate with other ET 200 series (e.g., ET 200M) without adapters.
Selection Guide and Purchasing Advice
Before purchasing the Siemens 6ES7193-4CE00-0AA0, verify that your ET 200S station uses 15 mm power modules. Confirm the number of auxiliary connections needed – this module provides two terminals for AUX1. For larger projects, multiple units can be daisy-chained. PLC Source PRO (ubest101) stocks genuine Siemens modules, ensuring fast delivery and factory-sealed quality.
