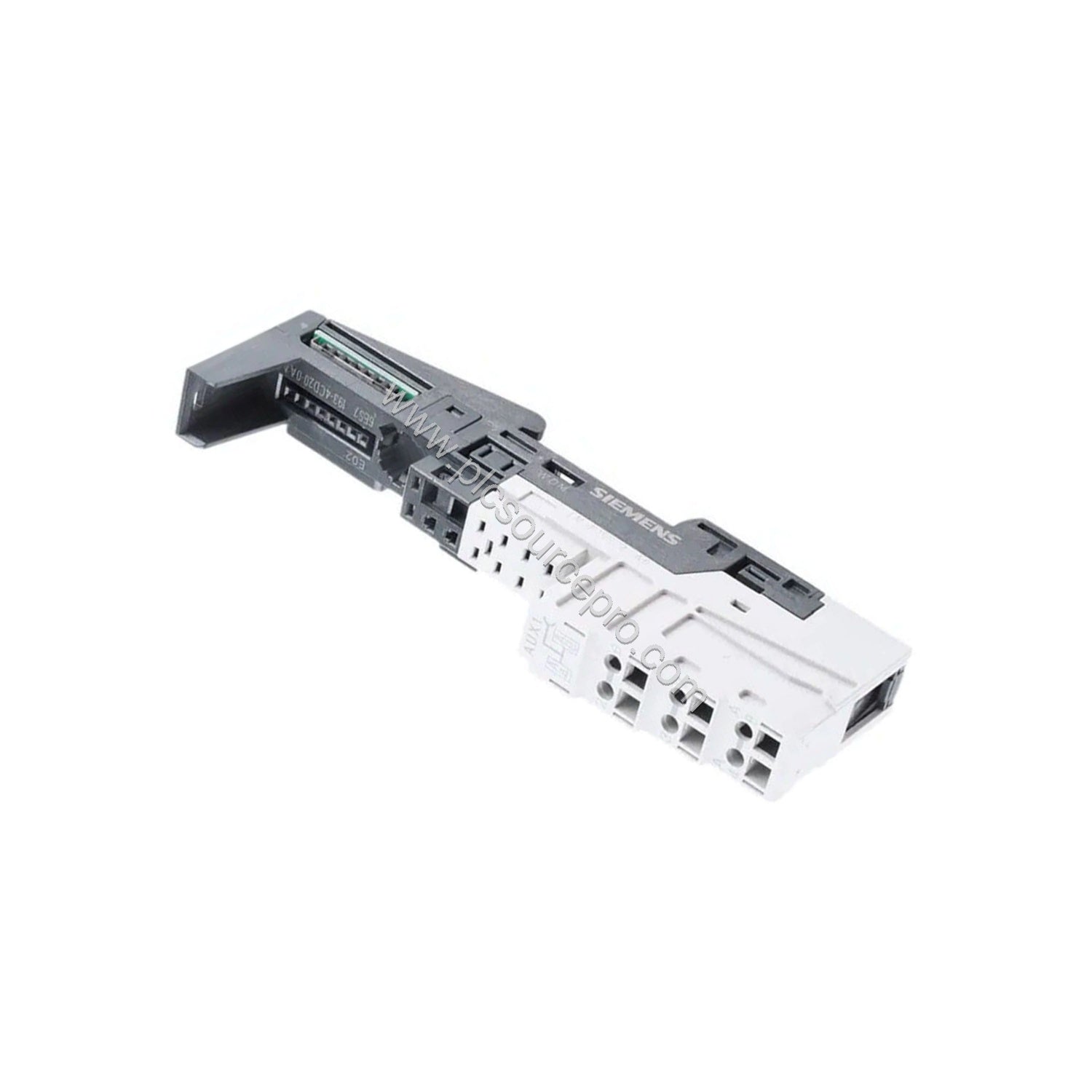

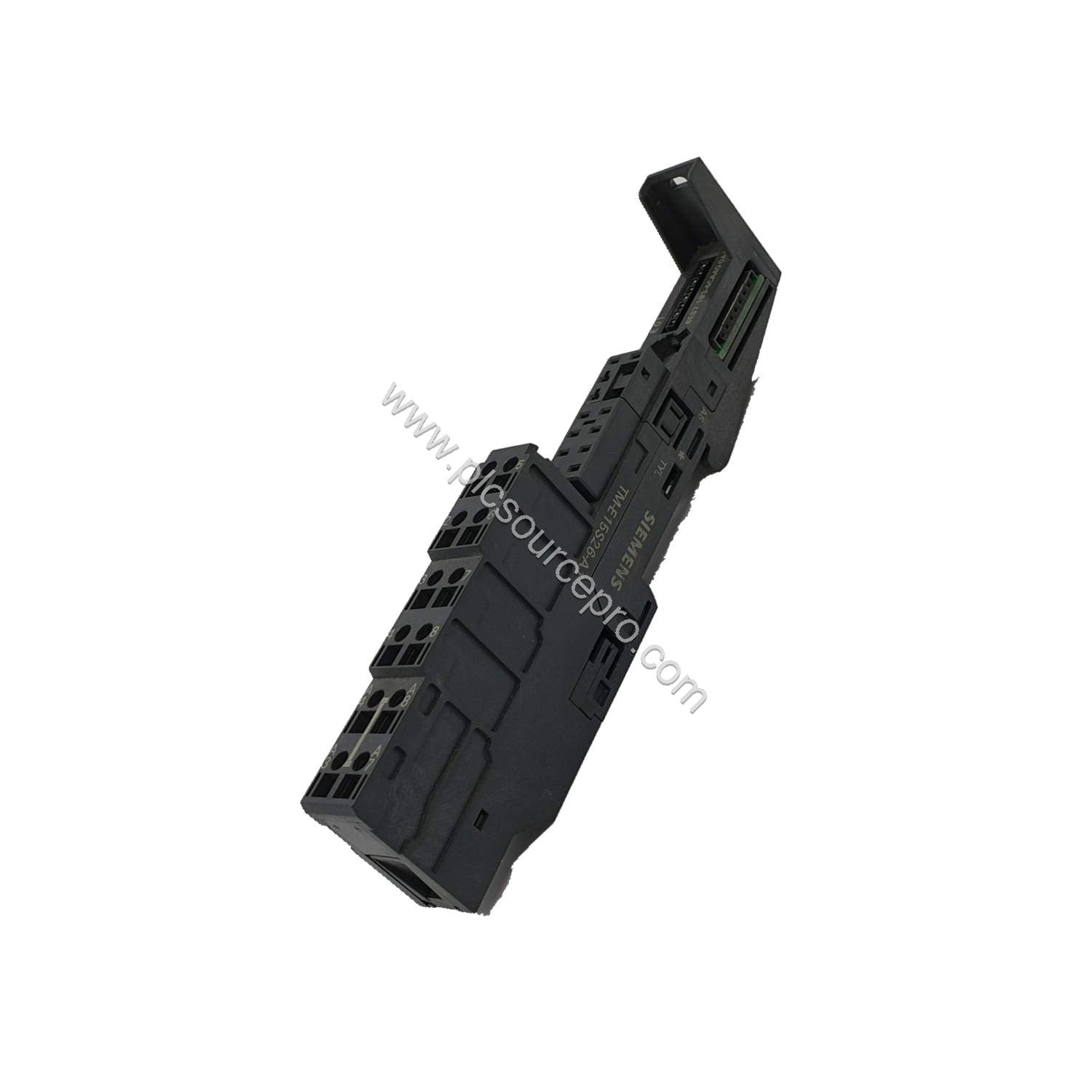

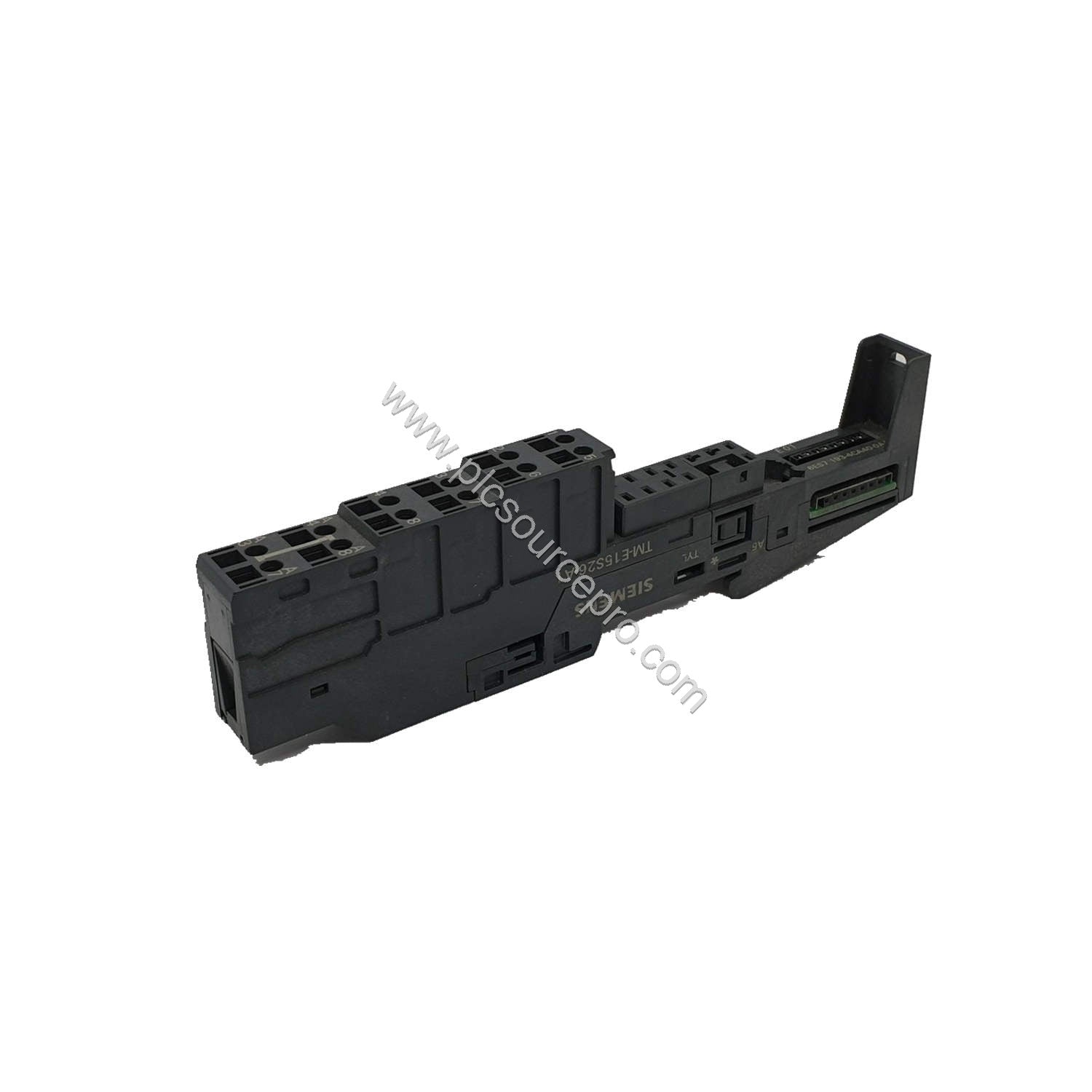

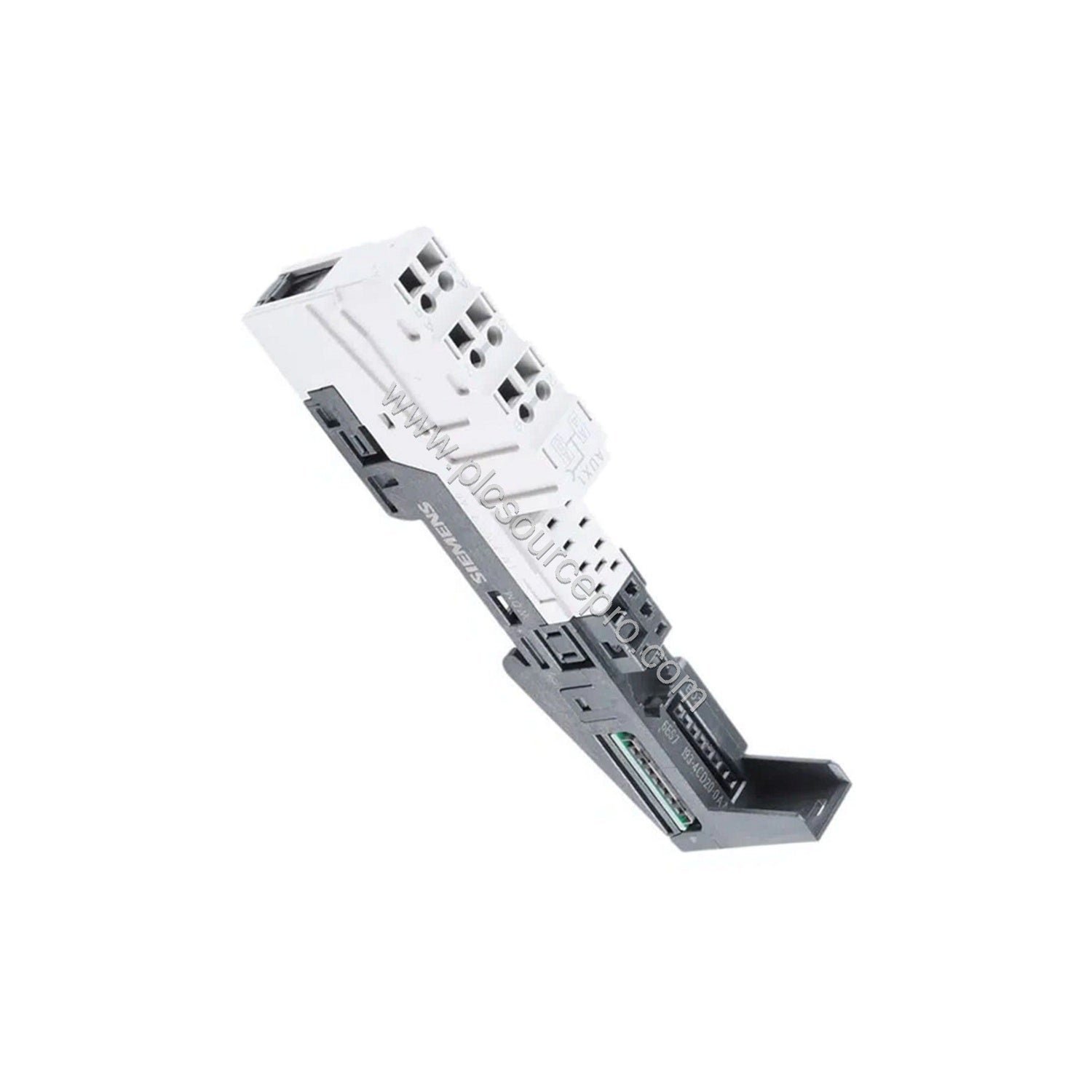

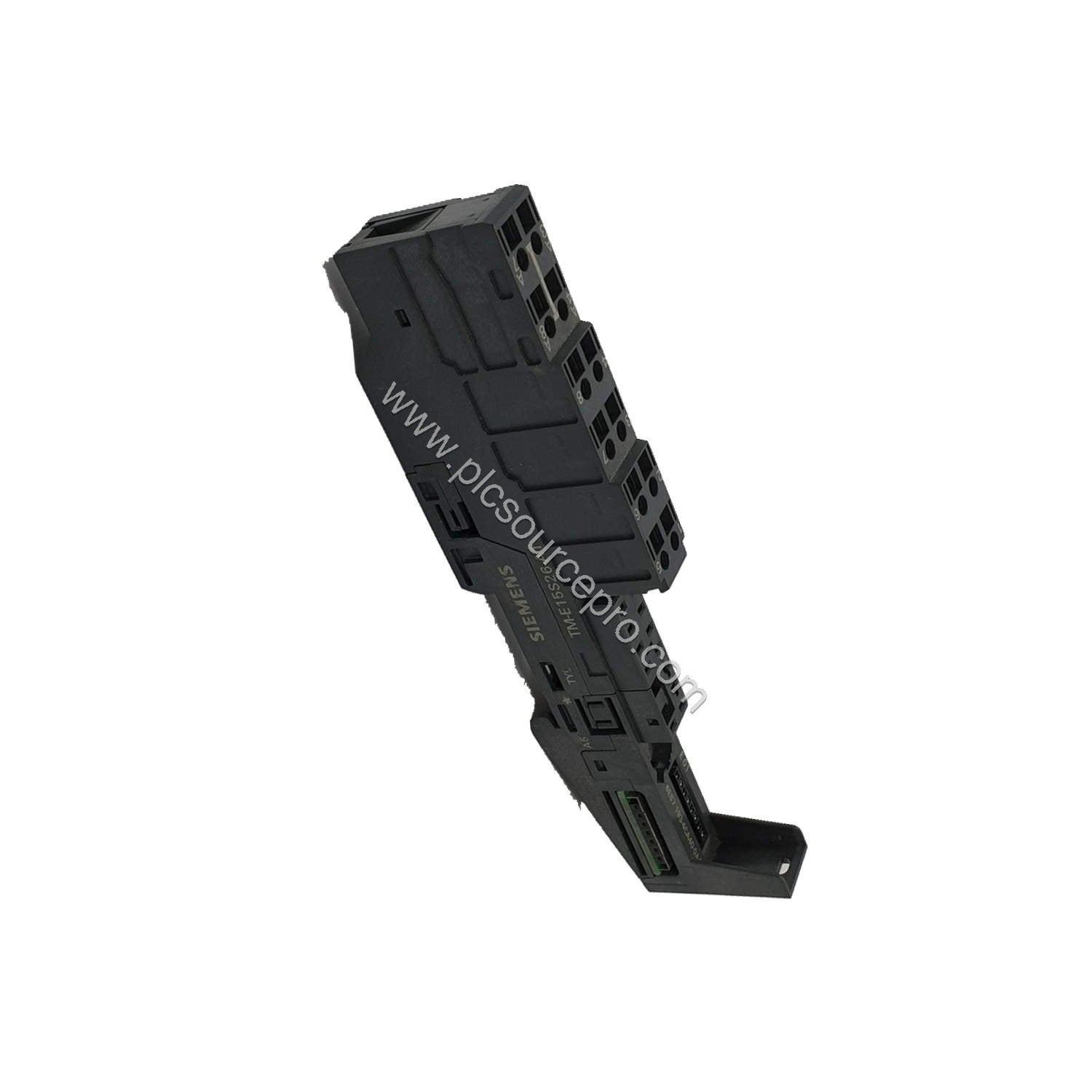

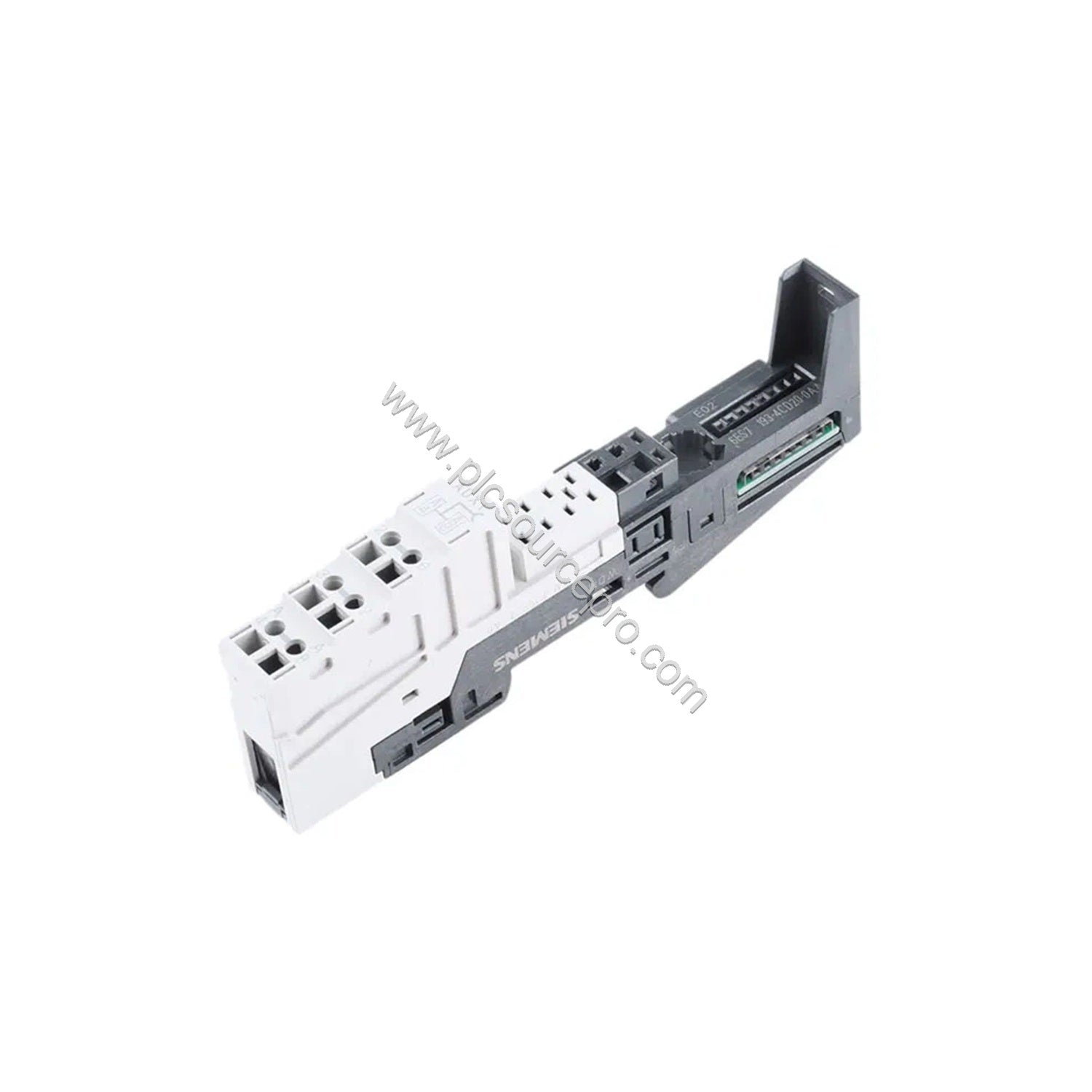

Product Overview – What Is the Siemens 6ES7193-4CD30-0AA0?
The Siemens 6ES7193-4CD30-0AA0 is a genuine spare part terminal module from the SIMATIC DP series. Specifically designed for the ET 200S distributed I/O system, this TM-P15C23-A0 module supports power modules and provides reliable wiring termination. Its compact 15 mm width and spring-type (Cage Clamp) terminals make it ideal for space-constrained cabinets. The module features 2x3 terminal connections with terminal access to AUX1 and includes an interrupted AUX1 path for flexible power distribution.
Technical Specifications of Siemens 6ES7193-4CD30-0AA0
Although detailed electrical parameters are not listed in our database, the following physical specifications are confirmed for the Siemens 6ES7193-4CD30-0AA0:
-
Width: 15 mm
-
Height: 132 mm
-
Depth: 43 mm
-
Weight: approx. 65 g
-
Delivery quantity: 1 piece
The module uses spring-type (Cage Clamp) terminals for quick and vibration-resistant wiring. For complete electrical characteristics, please consult the official Siemens datasheet or contact our support team.
Industry Applications and Use Cases
The Siemens 6ES7193-4CD30-0AA0 is essential in manufacturing plants that rely on ET 200S remote I/O stations. Typical applications include:
-
Automotive production lines: Power distribution to sensors and actuators in welding cells.
-
Packaging machinery: Reliable termination for high-speed control signals.
-
Water treatment facilities: Robust connections in humid environments where spring-clamp terminals prevent loosening.
As a replacement part, the 6ES7193-4CD30-0AA0 ensures minimal downtime during upgrades or repairs of ET 200S systems.
Installation and Setup Guidance
Mount the Siemens 6ES7193-4CD30-0AA0 on a standard DIN rail within an ET 200S station. Ensure the power module is correctly inserted before connecting field wiring. Use a small screwdriver to open the spring-clamp terminals; insert stripped wires (0.25–1.5 mm²) and release the clamp. Verify that the AUX1 busbar is properly aligned to maintain the interrupted connection if required by your design. Always power down the system before installation.
Compatibility and Integration
The Siemens 6ES7193-4CD30-0AA0 is specifically designed for the SIMATIC ET 200S distributed I/O system. It integrates with Siemens S7-300/400 PLCs via PROFIBUS DP or PROFINET (depending on the interface module used). This terminal module works with standard ET 200S power modules (e.g., PM-E) and accepts any ET 200S electronic module that requires AUX1 supply. Ensure your backplane bus and power module are compatible with the 15 mm width form factor.
Selection Guide and Purchasing Advice
Before purchasing the Siemens 6ES7193-4CD30-0AA0, verify that your ET 200S station uses the 15 mm wide power module format and requires the AUX1 interrupted configuration. This module is a spare part; confirm your existing hardware revision matches. PLC Source PRO (available at ubest101.myshopify.com) stocks this genuine Siemens part. Always order one unit per power module slot to ensure proper spacing. Contact our technical team if you need assistance with system compatibility.
