Product Introduction – Cost-Effective Terminal Solution

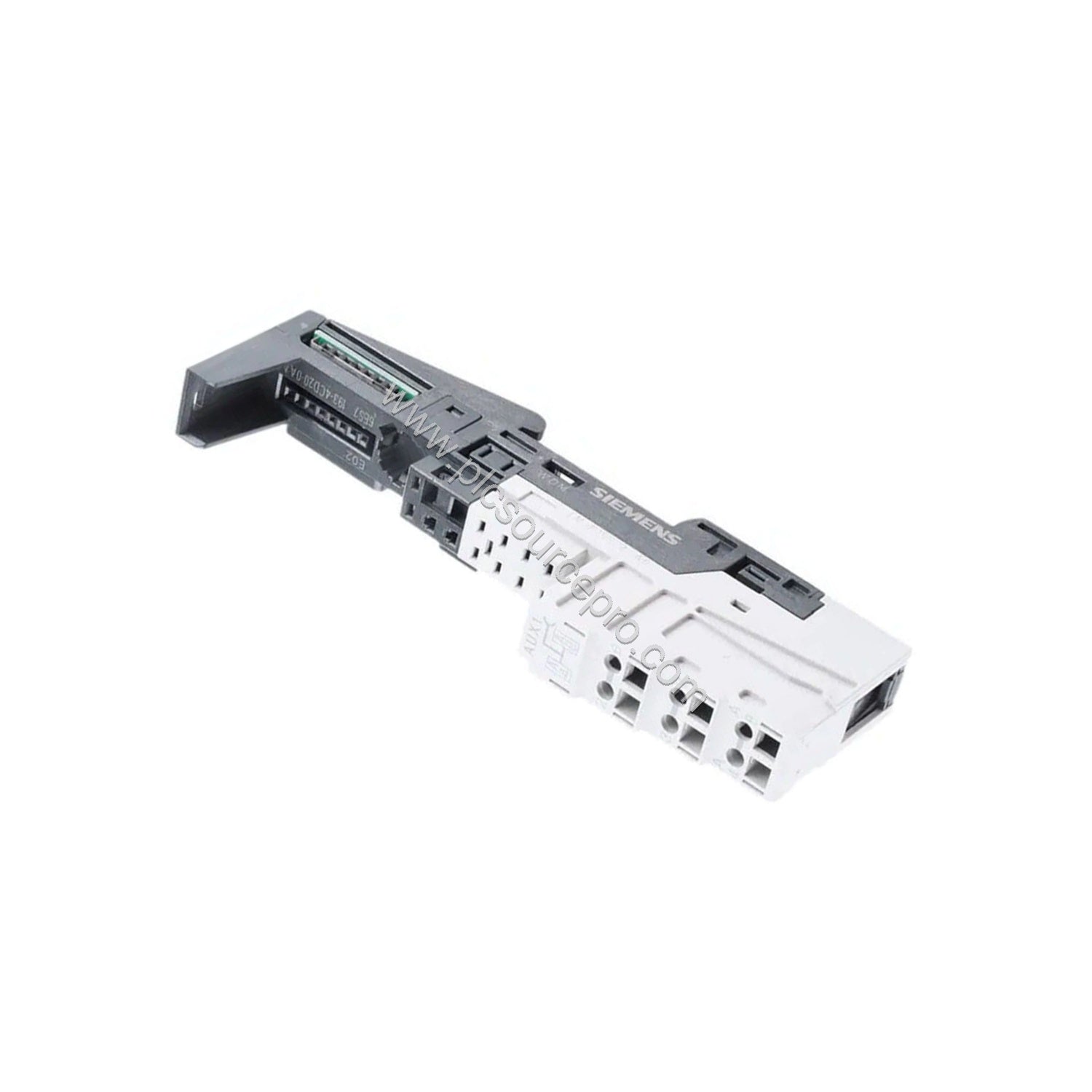

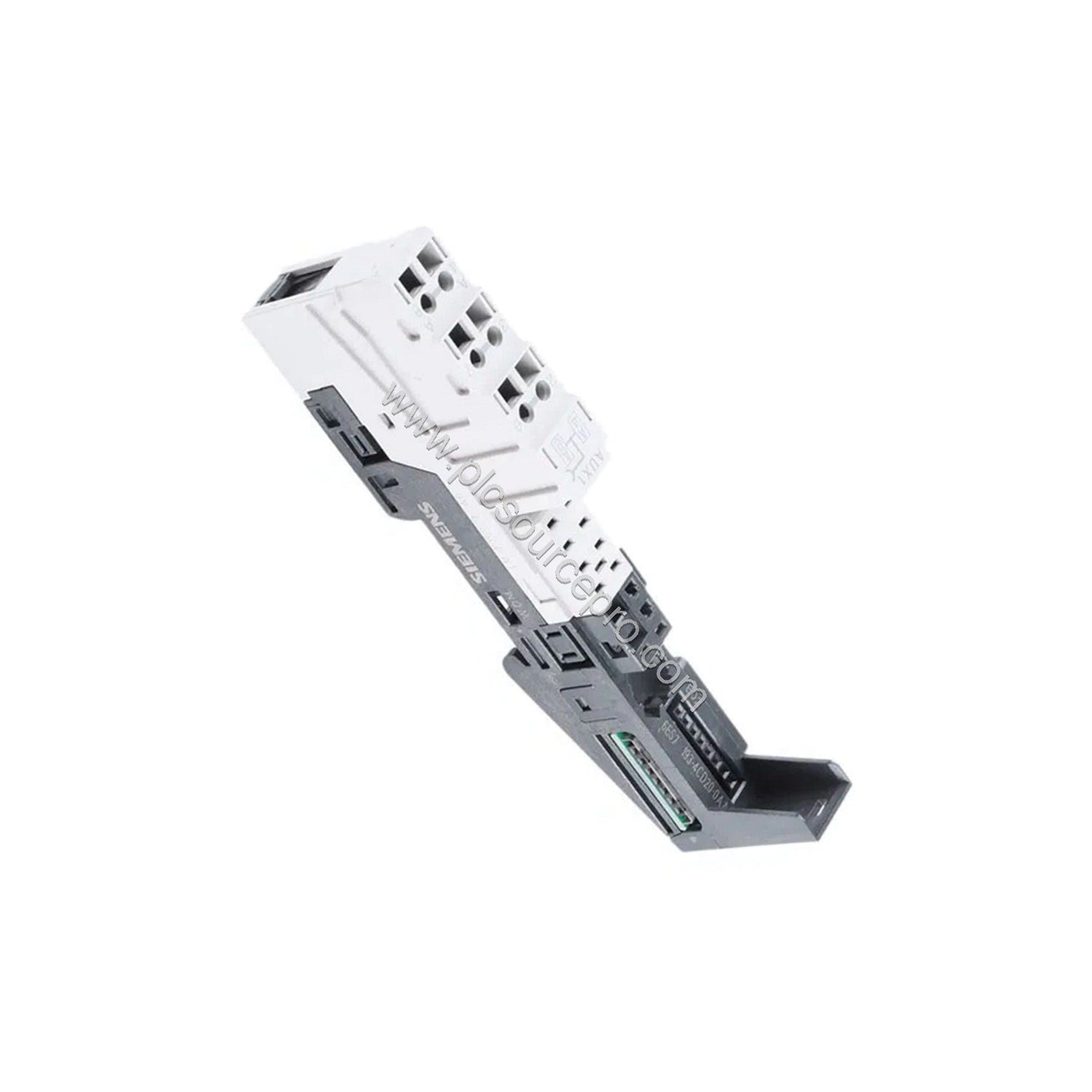

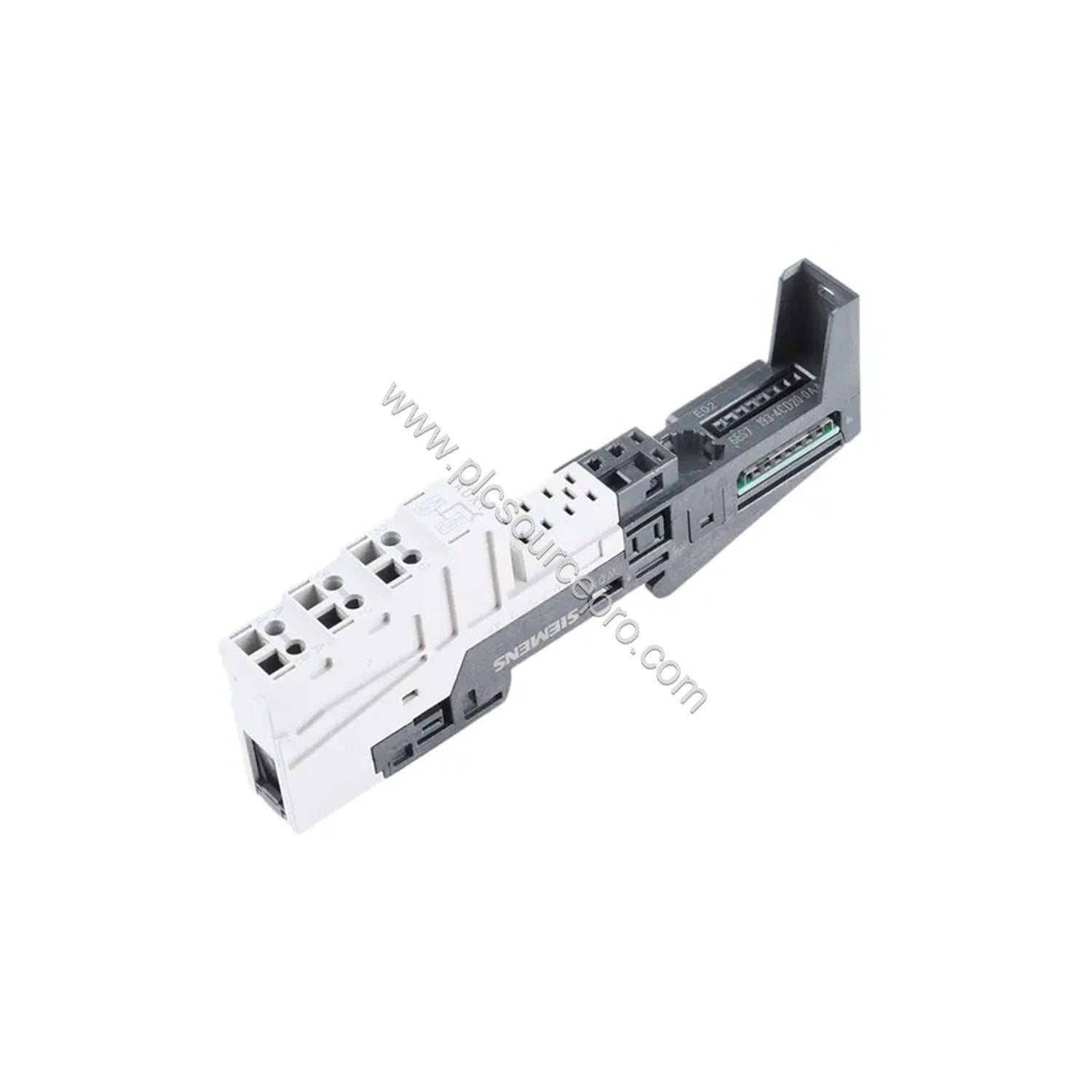

In distributed automation systems, reliable power distribution is critical to uptime. The Siemens 6ES7193-4CD20-0AA0 terminal module TM-P15S23-A0 for ET200S provides a robust, cost-effective interface between power modules and the backplane. By reducing wiring complexity and ensuring secure connections, this module helps minimize installation costs and potential failure points — delivering long-term ROI for your control infrastructure.
Technical Specifications Breakdown
The Siemens 6ES7193-4CD20-0AA0 is a compact terminal module with the following key parameters derived directly from the product database:
| Parameter |
Value |
| Width |
15 mm |
| Height |
132 mm |
| Depth |
43 mm |
| Weight (approx.) |
65 g |
| Terminal Type |
Screw terminals (2x3 connections) |
| Special Feature |
AUX1 interrupted |
| RoHS Compliance |
Since 01.01.2006 |
These specifications ensure the module fits standard ET200S mounting rails and offers clear terminal access for simplified troubleshooting.
Application Scenarios – Real-World Use Cases
Engineers commonly deploy the Siemens 6ES7193-4CD20-0AA0 in automotive assembly lines and material handling systems where ET200S remote I/O stations distribute power across multiple modules. The AUX1 interrupted feature allows safe isolation of auxiliary power during maintenance without affecting the main bus. In packaging machinery, the 15 mm width saves valuable cabinet space while the screw terminals provide vibration-resistant connections — a critical advantage in high-speed production environments. This terminal module delivers a cost-benefit edge by reducing spare part inventories and speeding up field wiring.
Installation & Setup Guidance
Mount the Siemens 6ES7193-4CD20-0AA0 onto a standard 35 mm DIN rail within the ET200S terminal block assembly. Ensure the module clicks securely into place. Wire the power module using the 2x3 screw terminal connections; tighten to the recommended torque (refer to the ET200S manual). The AUX1 interrupted terminal provides an intentional break for AUX1 bus — use this for adding a fuse or disconnect if needed. Always verify polarity and voltage ratings before energizing. No special tools are required beyond a standard screwdriver.
Selection Guide & Purchasing Advice
Before purchasing the Siemens 6ES7193-4CD20-0AA0, confirm your ET200S configuration requires a terminal module for power modules with 15 mm width and screw terminals. Check compatibility with your specific power module type (e.g., PM‑E, PM‑D). For assured quality and fast shipping, source this genuine Siemens part from PLC Source PRO (ubest101.myshopify.com). Proper selection ensures seamless integration and extended system life.
